Alloy 6063 T5 LED Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K15
Minimum Order Quantity: 1meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Process: Extrusion Packing: PE Bag + Carton / Customized Package
Certificates: Rohs Application: Led Linear Lighting Project
Accessories: End Caps, Clips, Spring Wiring System Finish: Anodized / Coating
Color: Silver/White/Black Temper: T3-T8
High Light:

Alloy 6063 T5 LED Strip Aluminium Profile

,

PC Frosted LED Strip Aluminium Profile

,

Alloy 6063 T5 LED Mounting Channel


Product Description

Alloy 6063 T5 LED Strip Aluminium Profile



LED Strip Light Aluminium Profile Surface Housing Extrusion Alloy 6063 T5



The LED strip profiles have a favorable effect on the life of your LED strips. Led strips can be applied to different substrates and types of surfaces, the better a surface insulates, the less well the LED strips can lose their heat. And the better the LED strips can lose their heat, the longer the LED strip will last. LED strips lose the heat better and more efficiently through the aluminum in the profile.

Application
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections


Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 12mm width

Main Specifications

Model No.: K15
Item Type: LED Strip Aluminium Profile
Dimensions: (W)17*(H)15 mm
Standard length: 2m/pcs
Customized-length: Available on request
Suitable for led strip: PCB width up to 12mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver, black, white
Diffuser material: PC(UGR)/ PMMA
Diffuser finished: Opal, Frosted, Transparent, Black
Accessories: End caps, clips
Installation: Surface-mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request
Handling time Samples within 3 working days
Batch order 3-15 working days upon stocks
Shipment By sea, by air, by express for option


Alloy 6063 T5 LED Strip Aluminium Profile 0

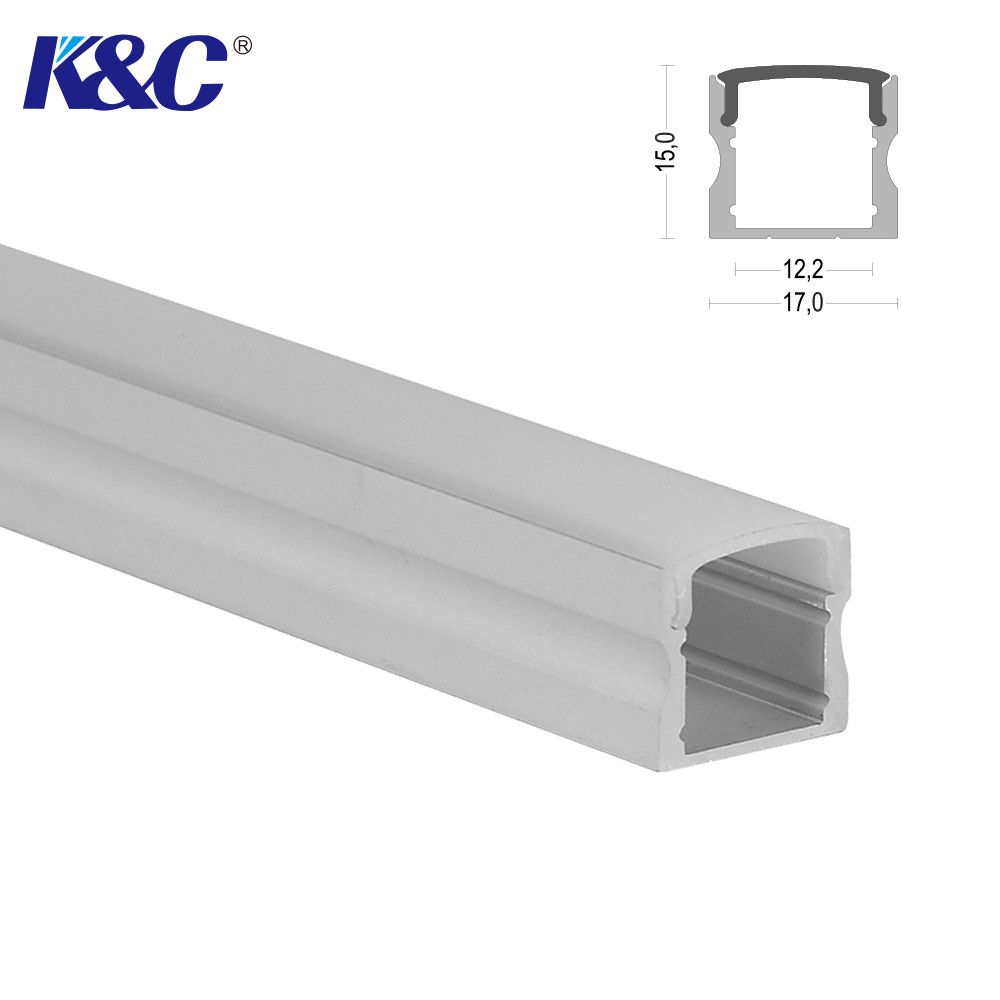

Drawing:
 Alloy 6063 T5 LED Strip Aluminium Profile 1

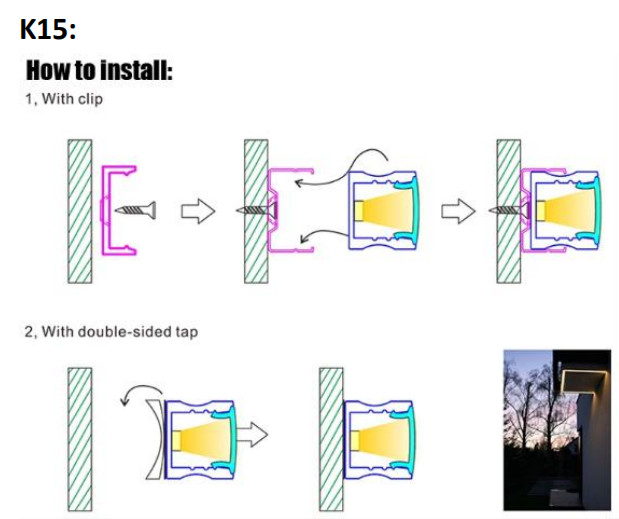

Installation
Alloy 6063 T5 LED Strip Aluminium Profile 2

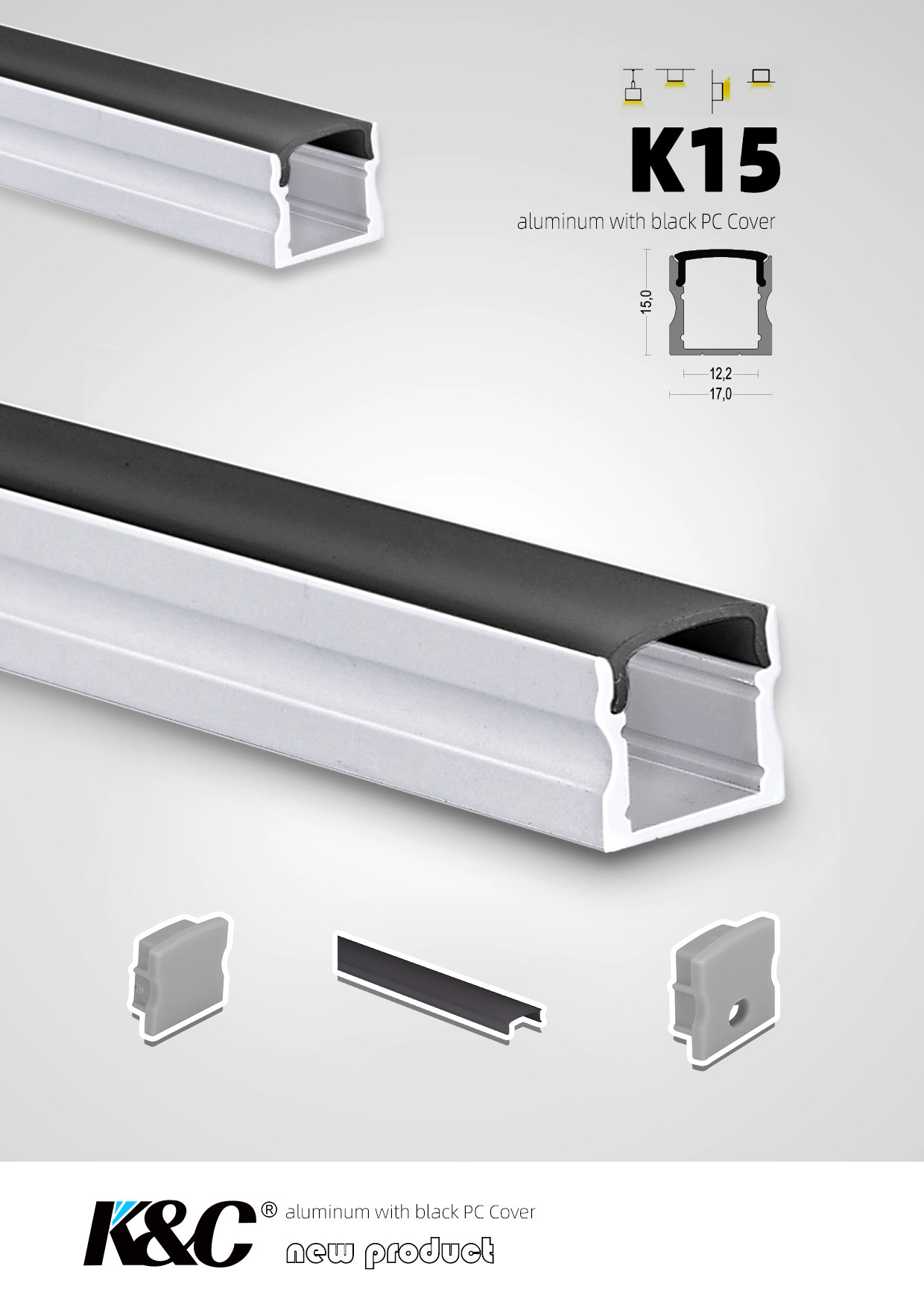

High Resolution Picture
Recommendation
Alloy 6063 T5 LED Strip Aluminium Profile 3
Alloy 6063 T5 LED Strip Aluminium Profile 4

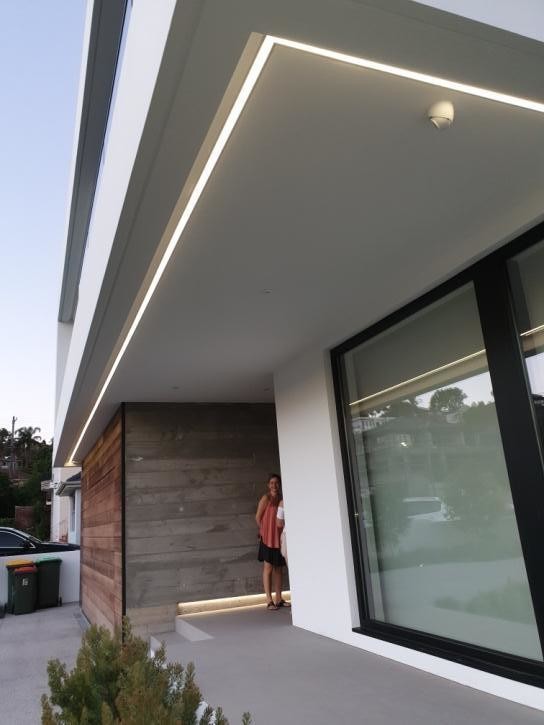

Application

Alloy 6063 T5 LED Strip Aluminium Profile 5
FAQ:

Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoan, Shenzhen, Guangdong, China. The nearest airport is Baoan International Airport. Welcome to visit us.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
