Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K31
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Length: Standard 2m, 2.5m Or Max.6m On Request Indstallation: Mounted
Material: 6063 T5 Aluminum Alloy Diffuser: PMMA/PC, Opal/Frosted/Clear
Process: Extrusion Shape: Flat
Packing: PE Bag + Carton / Customized Package IP Rate: IP44
High Light:

Suspending Oval Bendable Aluminium Profile

,

20*27mm Oval Bendable Aluminium Profile

,

IP44 Led Strip Aluminium Extrusion


Product Description

20mm Wide Oval Shape Surface Mounting LED Strip Aluminium Profile

High quality anodized LED aluminum profiles do not rust due to anodizing and are suitable for indoor use as well as indoor bathrooms, kitchen interiors, and outdoor use. The covers, ie diffusers, are of high quality and UV protected. The opal “milk glass” lid better fades the ledges and smoothes light and prevents reflections from the shiny work surface. The clear lid allows all light to pass through. indirect lighting and just want to protect the tape from dust.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting

Assembly
- Mounted to the surface with appropriate mounting clips

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 16mm width

Main Specifications


Model No.:   K31
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)20*(H)27mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 16mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black

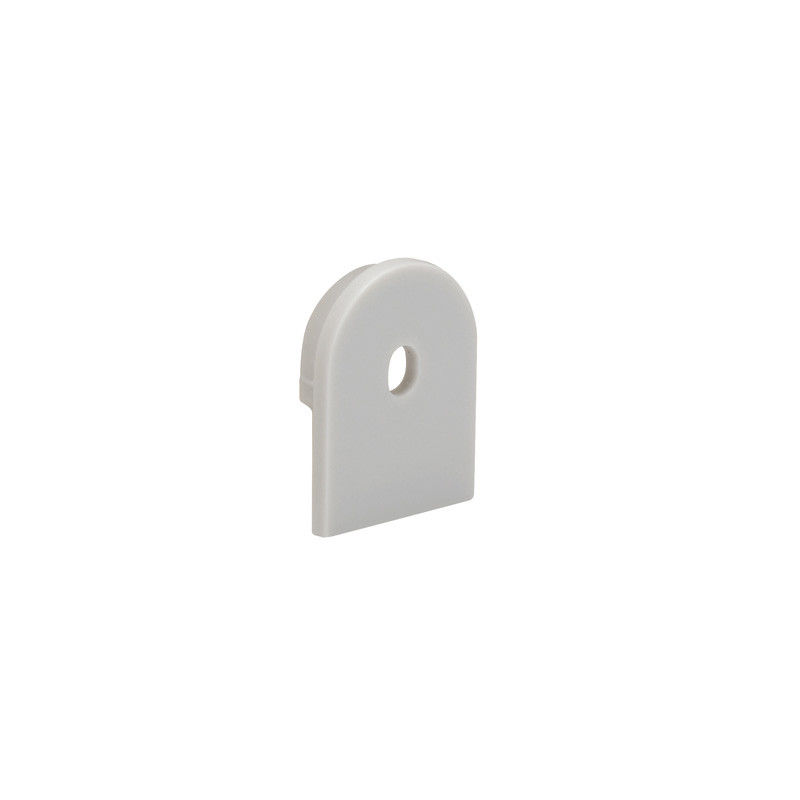

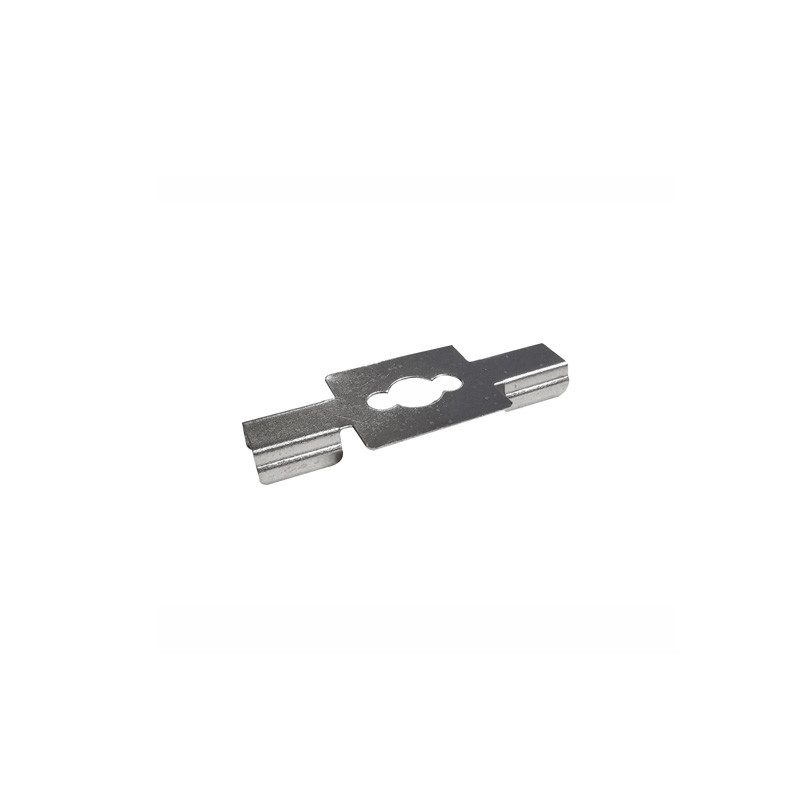

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

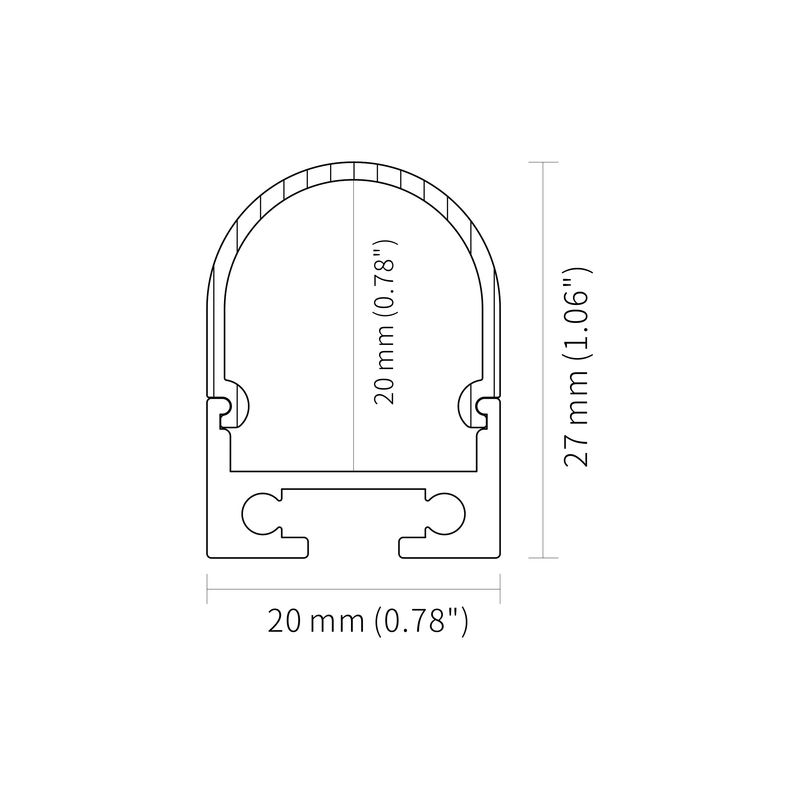

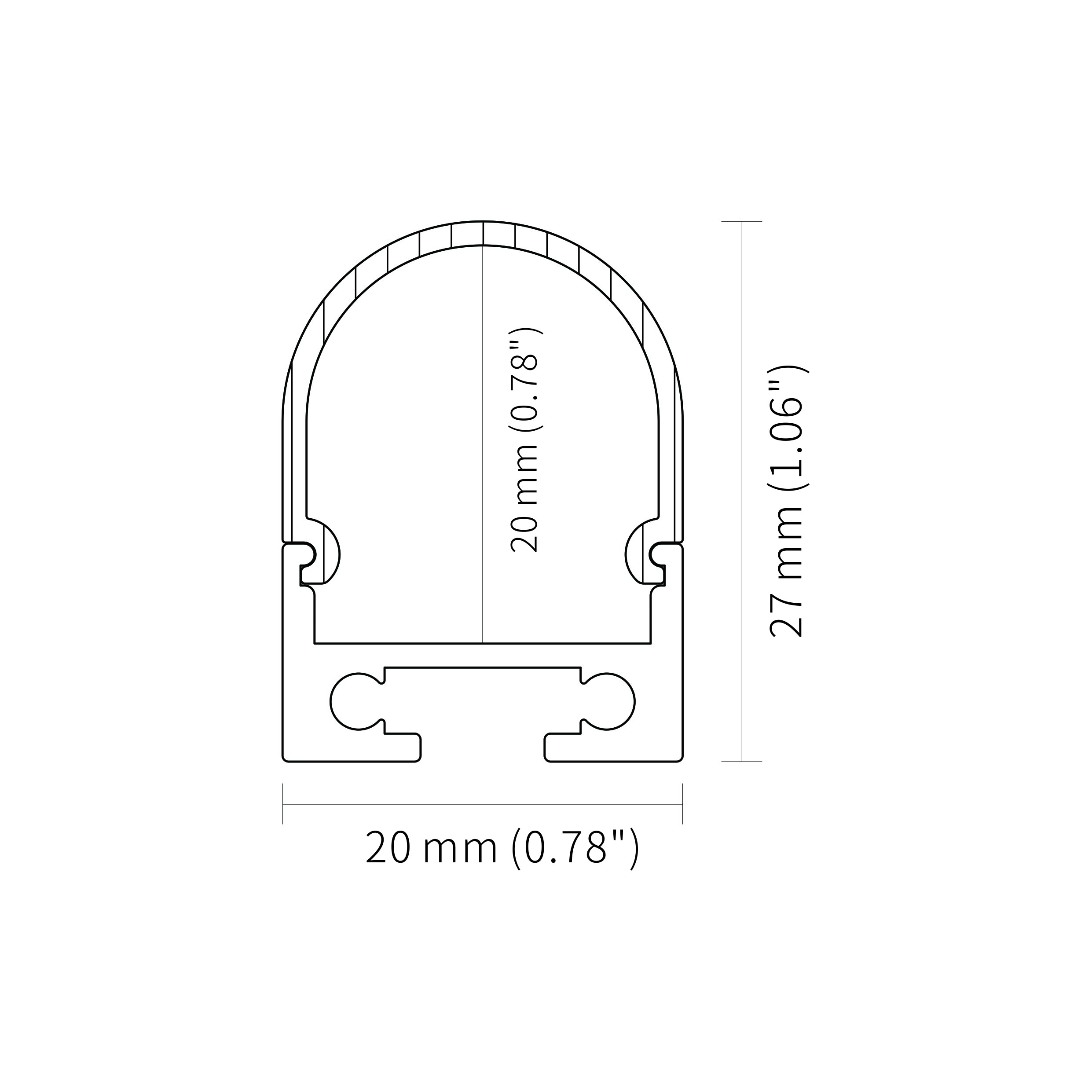

Drawing:
Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting 0
Installation(suspending and surface mounted)
Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting 1
Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting 2
Application

Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting 3


Catalogue

Suspending 20*27mm Oval Bendable Aluminium Profile IP44 For Surface Mounting 4


FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.


Q: How to choose the high quality led aluminum profile?
A: 1. For the same design, the weight higher, the quality will better.
2. Check the vision, the vision will, surface oxidation good, no scratches. Then the quality will good.
3. The cover light transmittance higher, then the quality good.
4. The end cap fits the led profile, then the quality good.


Q: How to use the led aluminum profile with led strip light?
A: 1. Cut the right side of the led aluminum profile.
2. Stick the led strip light into the led aluminum profile.
3. Fixed the cover and end cap of the led aluminum profile.
4. Fixed the led aluminum profile to where you want to install.
5. Connect the Led linear light power supply with led strip light.
