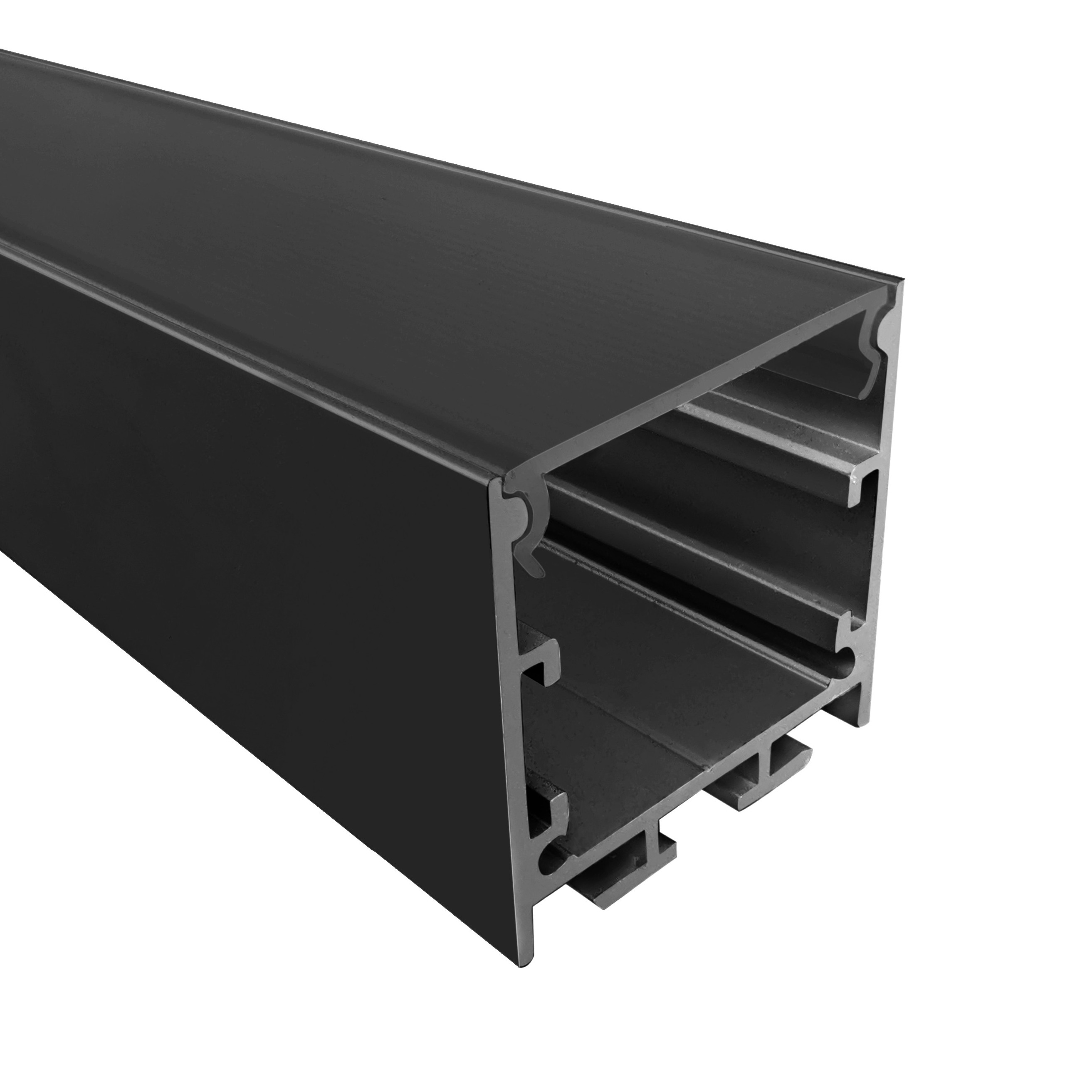

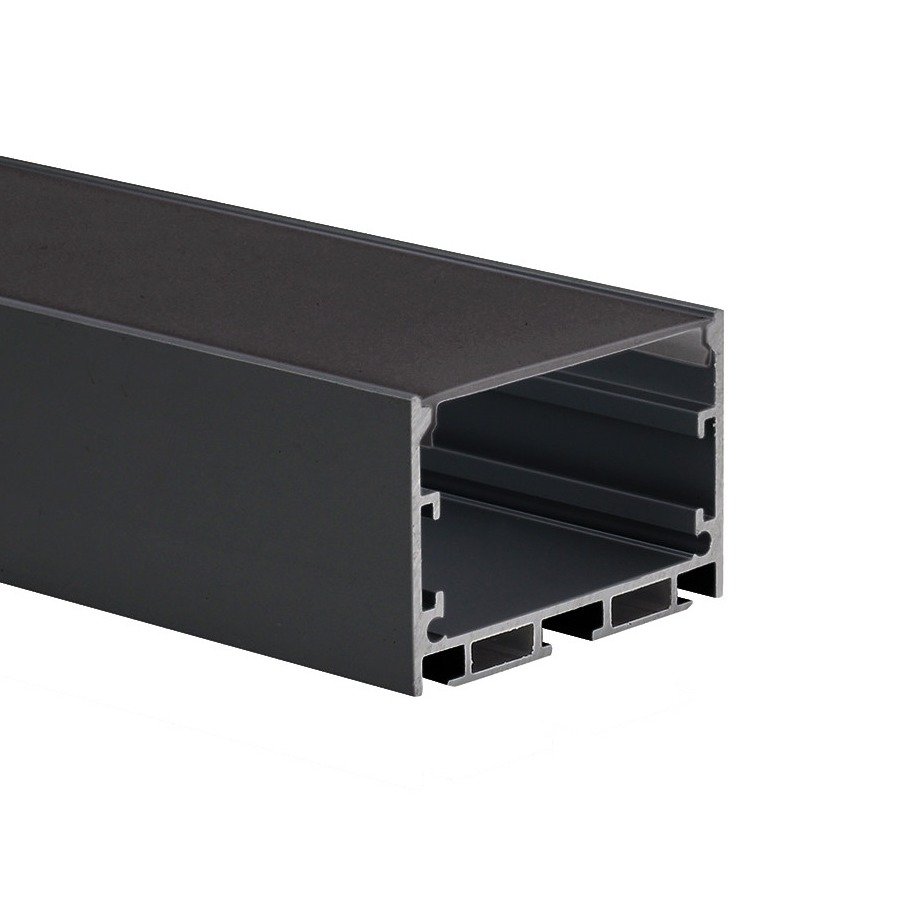

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K14 K15 K17 KN21 KN24
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC
Color: Black, Frosted Usage: Led Strip Heat Sink
Length: 2m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted, Suspended Application: Office Decoration, Room Lighting
High Light:

6063 t5 lightbox aluminium profile

,

lightbox 6063 aluminium profile

,

aluminium alloy 6063 t5 led profile


Product Description

Black Aluminum Extrusion Black PC Cover LED Strip Aluminum Profile​​​


Surface-mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.

Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended by spring wiring systems

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 12mm width

Main Specifications



Model No.:   K14 K15 K17, KN20, KN24 multiple models
Item Type:   LED Strip Aluminium Profile
Dimensions: (W)17*(H)15mm  (W)17*(H)9mm, (W)50*(H)35mm, (W)50*(H)50mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 12mm, 24mm, 39mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC, PMMA
Diffuser finished:   Frosted, Opal, Clear, black
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option



Drawings

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 0

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 1

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 2

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 3




Pictures:

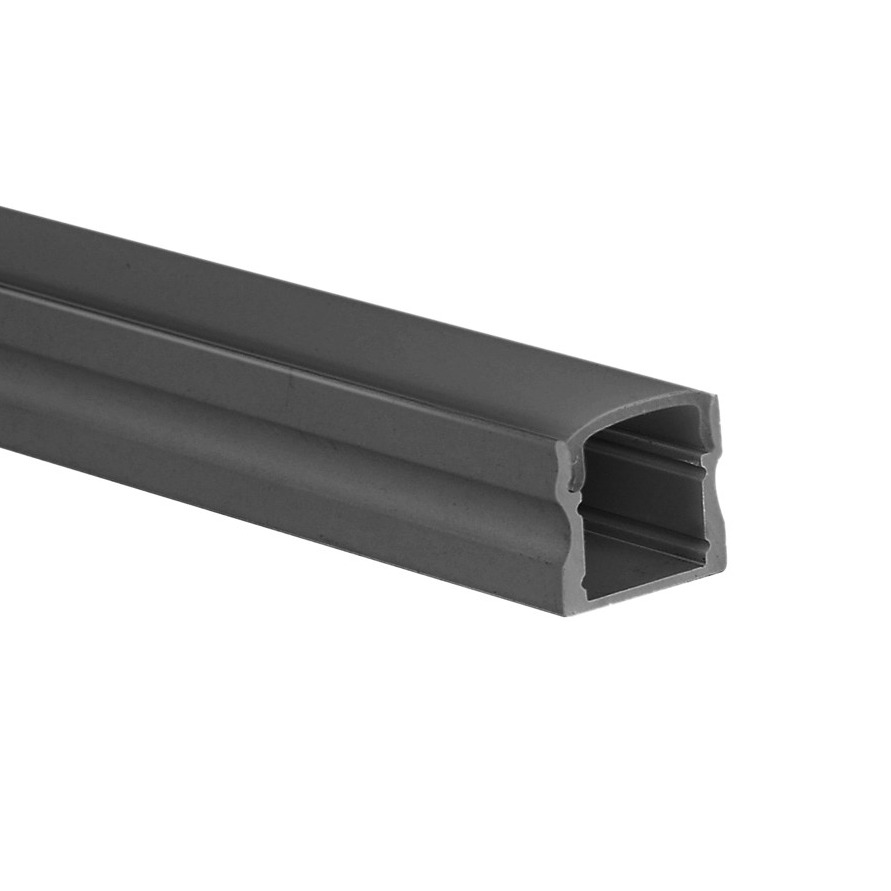

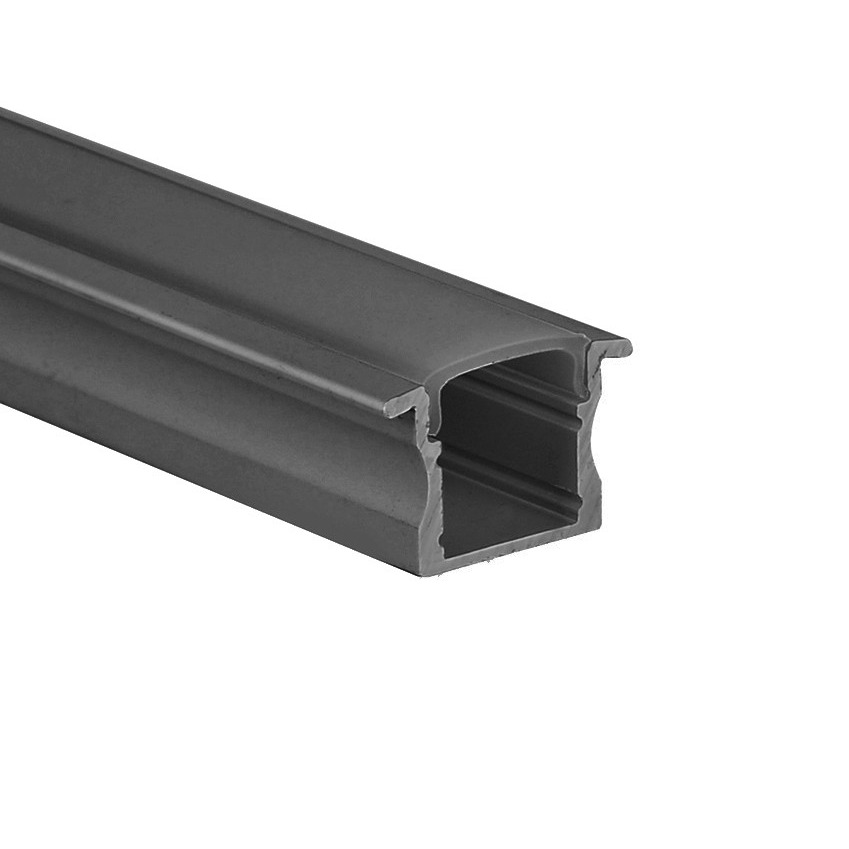

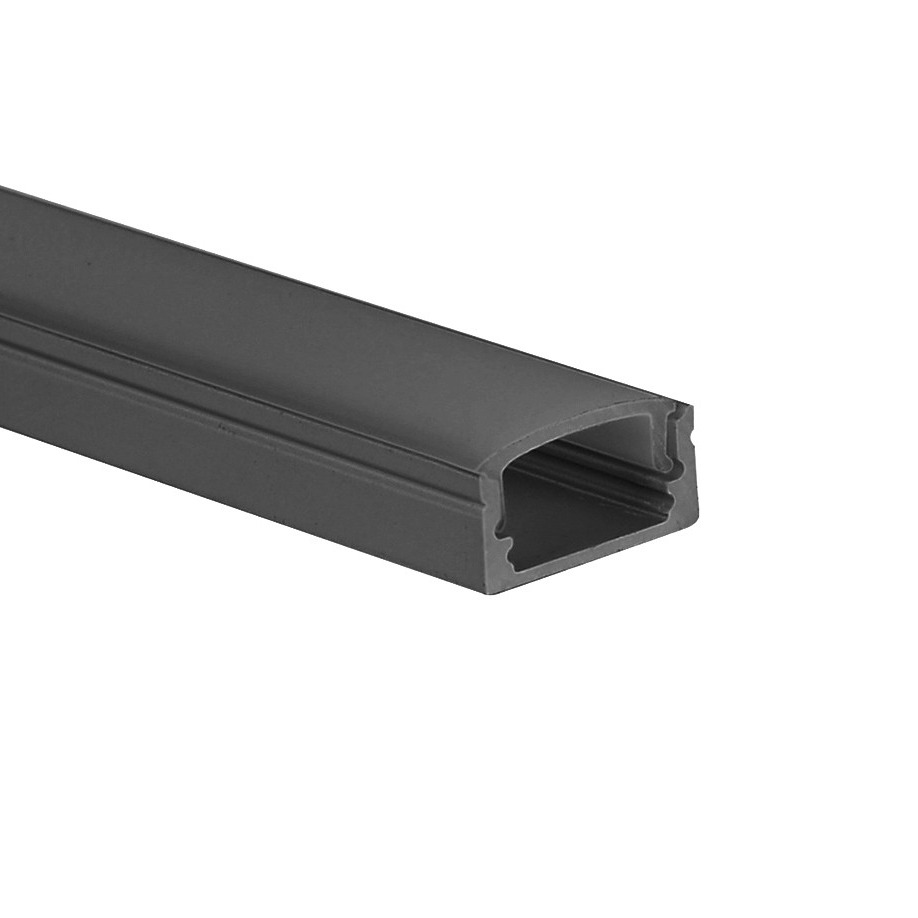

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 4

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 5

Installation

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 6



W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 7

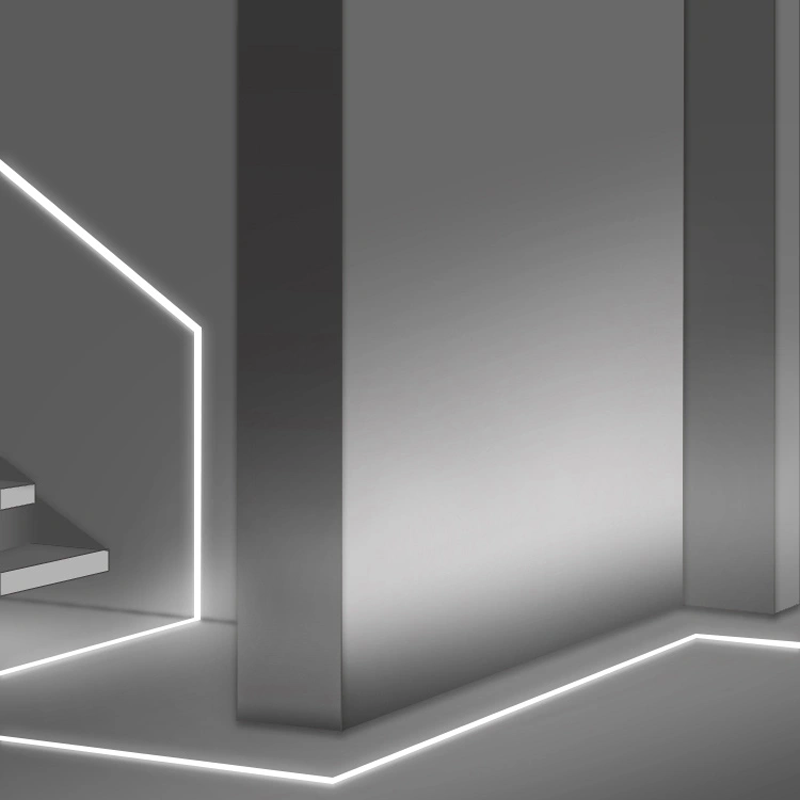

Application

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 8



W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 9

W50*H35 Surface mounted Black Led Aluminum profile with Black PC Cover LED Strip extrusion profile 10



FAQ:

Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.



Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.



Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
