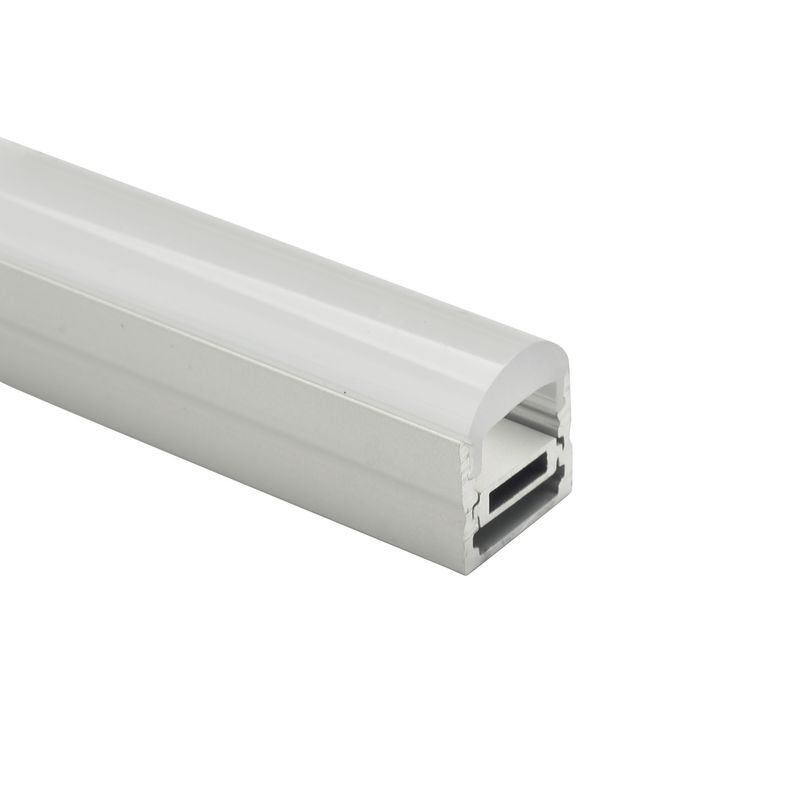

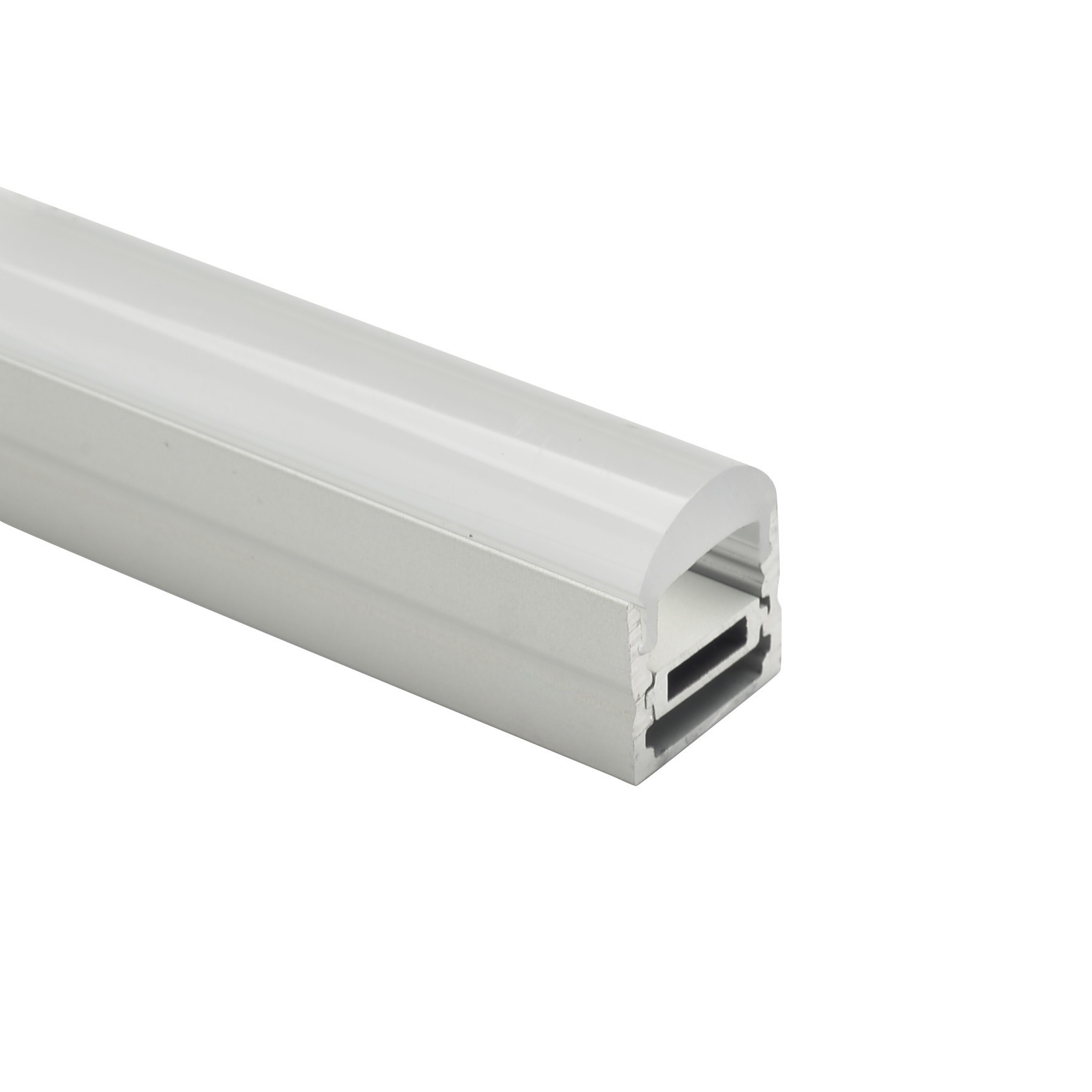

10d 30d 60d 90d 20mm Lighting Beam Angle LED Strip Aluminum Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA27
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PMMA/ PC, Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted Dimension: 17*12(inside Width)*20
Part No.: KA27 Application: Led Linear Lighting Project
Port: Shekou Or Yantian
High Light:

90d LED Strip Aluminum Profile


20mm LED Strip Aluminum Profile


90d led strip channel

Product Description

10 30 60 90 degree Lighting Beam Angle LED Strip Aluminum Profile
KC Lighting's high-quality surface mounted extrusions are designed where a recessed installation is not an option. It is designed to prolong the life of your LED strip lights and to provide a sleek and professional finish. Explore the wide range of our surface mounted extrusions. Do not hesitate to call or email us for your lighting requirement!
1. Architectural decorative lighting
2. Recessed storage shelves lighting
3. Archway. canopy and bridge edge lighting
4. Amusement park. theater and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting

- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 10mm width
Main Specifications

Model No.:   KA27
Item Type:   LED Strip Aluminium Profile

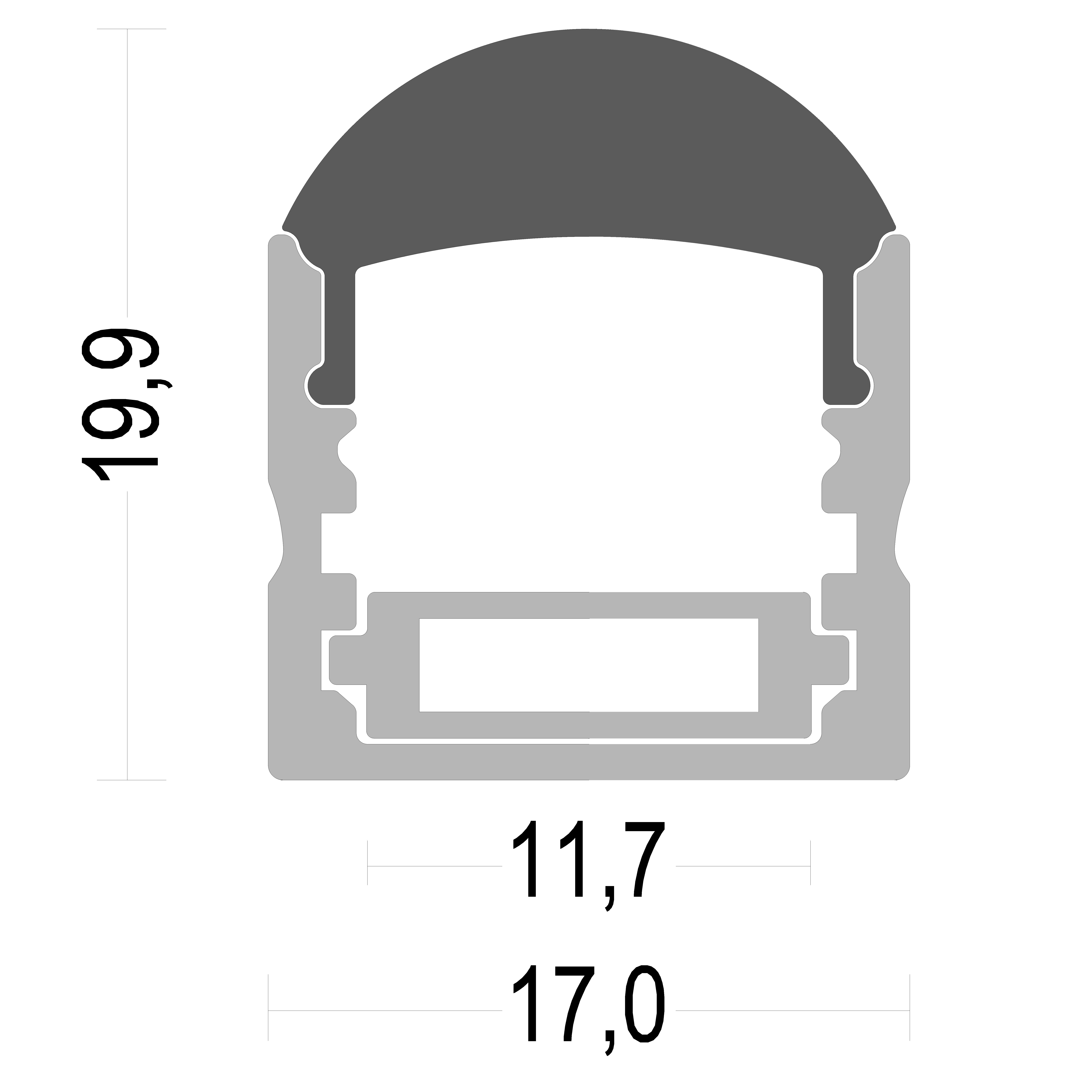

Dimensions:   (W)17.0*(H)20.0 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 10mm
Material:   6063 T5 Aluminum Alloy

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

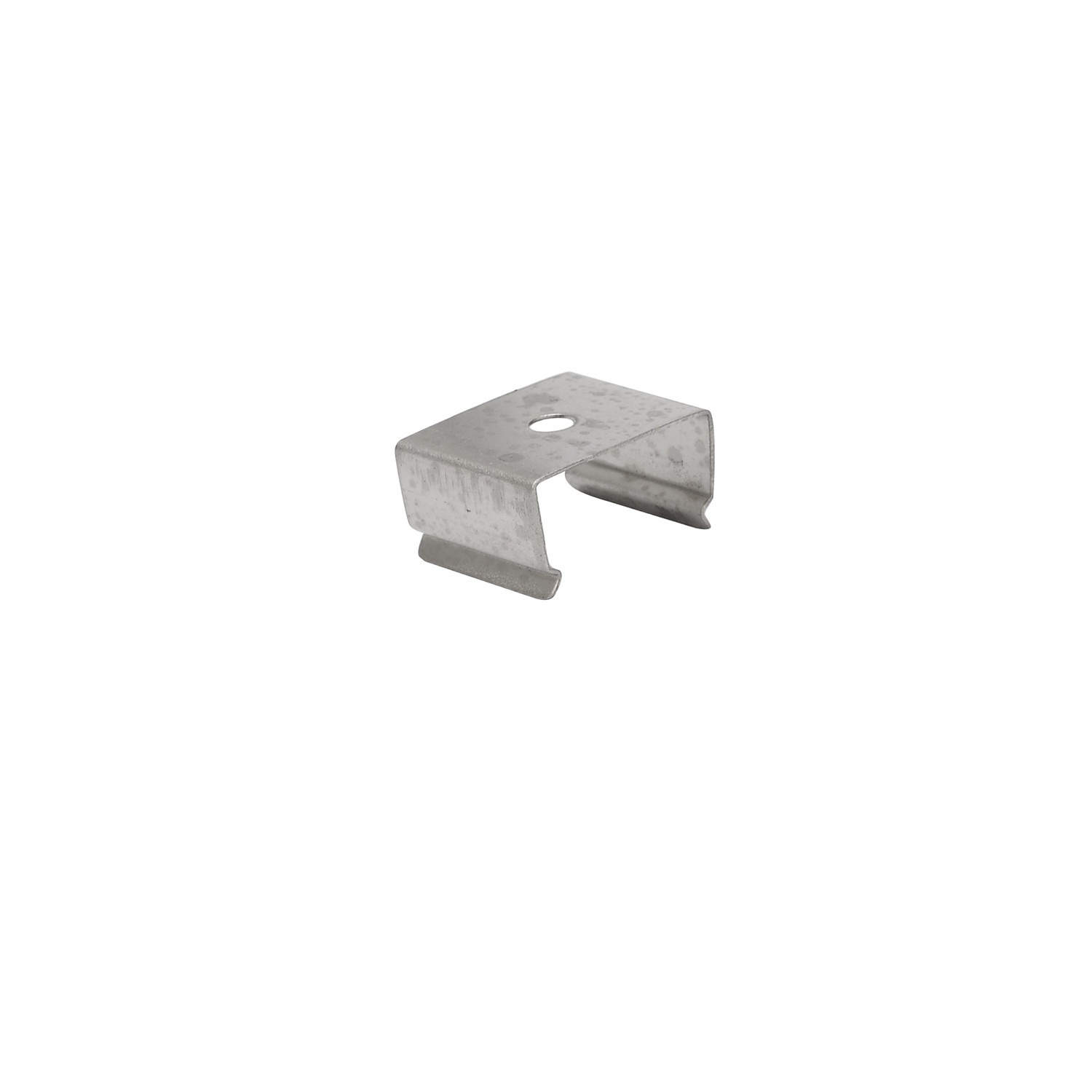

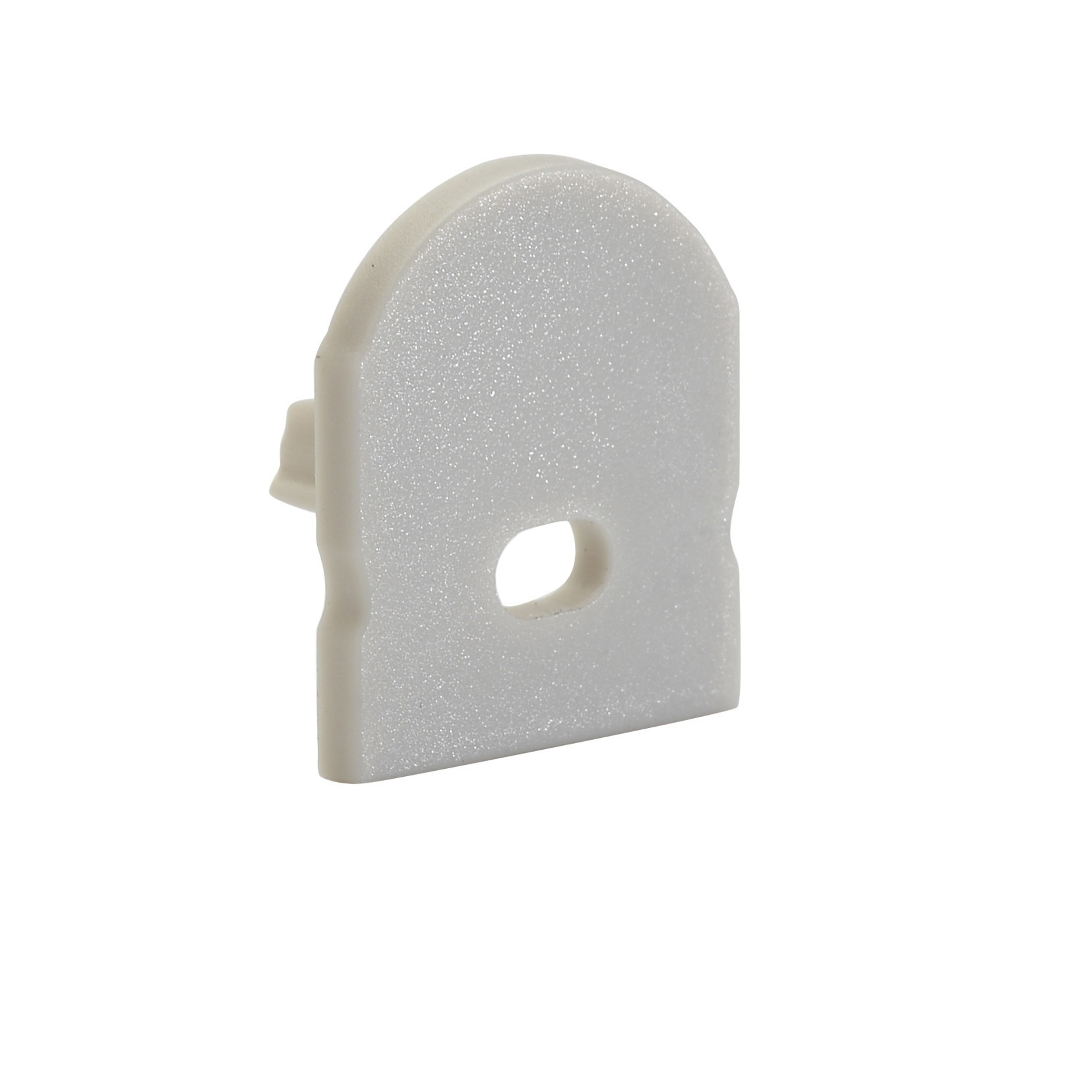

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

10d 30d 60d 90d 20mm Lighting Beam Angle LED Strip Aluminum Profile 0
10d 30d 60d 90d 20mm Lighting Beam Angle LED Strip Aluminum Profile 1
10d 30d 60d 90d 20mm Lighting Beam Angle LED Strip Aluminum Profile 2
10d 30d 60d 90d 20mm Lighting Beam Angle LED Strip Aluminum Profile 3
Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.

Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.

Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.

Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.

Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
