Led aluminum profile 12*8mm Thin LED Strip Aluminium Profile Mount House 10mm LED Strip Light

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA14
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Dimension: 12x8mm Length: Standard 2m/pc
Indstallation: Surface Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Line Packing: PE Bag + Carton / Customized Package
High Light:

KA14 LED Strip Aluminium Profile

,

12*8mm LED Strip Aluminium Profile

,

12*8mm led profile channel


Product Description

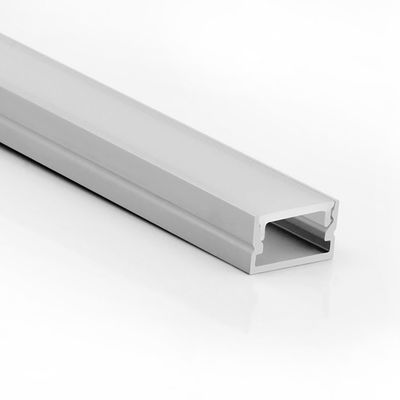

Small Thin LED Strip Aluminium Profile Mount House 10mm LED Strip Light

An LED Extrusion profile is a type of casing designed to fit around strip lighting. Using an LED aluminum profile allows the strip lighting to look more ‘finished’ than it would on its own. It can also prevent your LED strip lighting from getting damaged, as it protects from dust and other harmful materials like water, although the casing isn’t fully waterproof.

Application
1. Architectural decorative lighting
2. Recessed storage shelves lighting
3. Archway. canopy and bridge edge lighting
4. Amusement park. theater and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting

Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 10mm width

Main Specifications


Model No.:  KA14
Item Type:  LED Strip Aluminium Profile
Dimensions:  (W)12*(H)8mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 10mm
Material:  6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PMMA/PC
Diffuser finished:  Opal/Frosted/Clear/ Black
Accessories:  End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

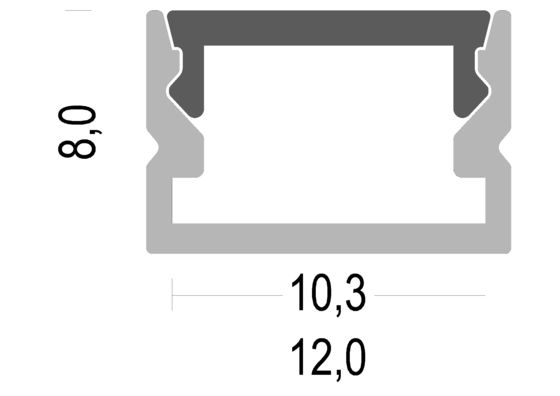

Drawing:
Led aluminum profile 12*8mm Thin LED Strip Aluminium Profile Mount House 10mm LED Strip Light 0
Installation
Led aluminum profile 12*8mm Thin LED Strip Aluminium Profile Mount House 10mm LED Strip Light 1

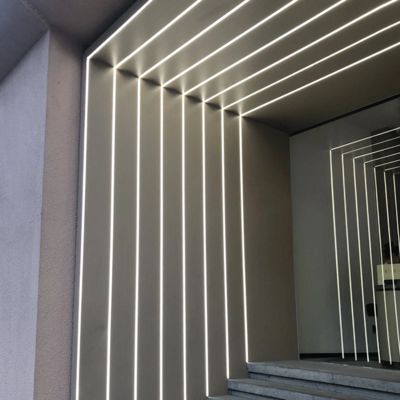

Application

Led aluminum profile 12*8mm Thin LED Strip Aluminium Profile Mount House 10mm LED Strip Light 2

FAQ:

Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.


Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.


Q: Can we order a special length for aluminium profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
