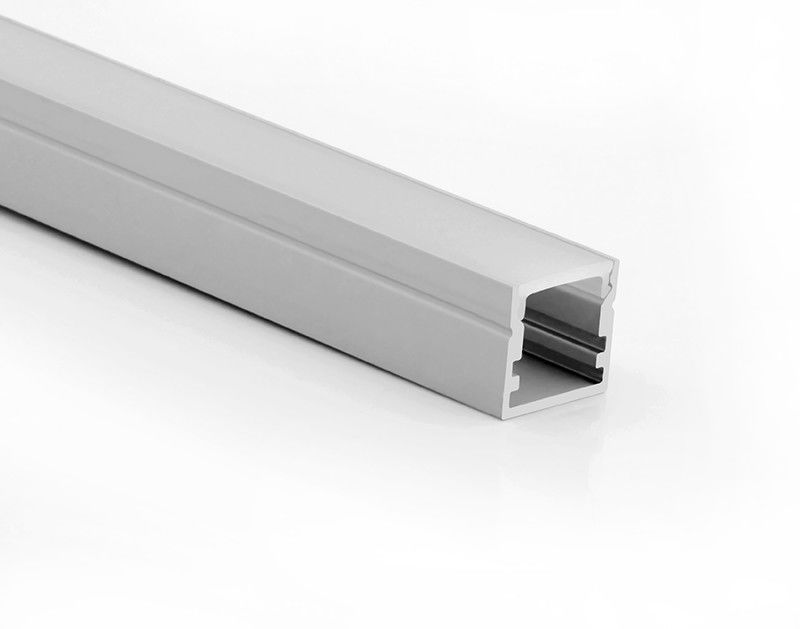

LED Strip Aluminium Profile with 12mm 14*13mm Linear Aluminum Heatsink surface Mount

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA15
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Dimension: W14*H13mm Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Surface Mount Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Line Packing: PE Bag + Carton / Customized Package
High Light:

14*13mm LED Strip Aluminium Profile


14mm LED Strip Aluminium Profile


12mm recessed led channel

Product Description

W12mm H8mm Linear Aluminum Heatsink LED Strip Aluminium Profile Mount
KC Lighting offering many kinds of led aluminum profiles. Such as Surface-mounted aluminum profile, Recessed aluminum profile, Pendant aluminum profile, Corner aluminum profile, Round aluminum profile, Stair aluminum profile and Flex aluminum profile. As a led aluminum profile factory, We offer this aluminum housing all over the world. We offer customized led strip light aluminum extrusion in different lengths, just according to your request. Many customers are using this led aluminum profile to make led linear light with led strip lights. We can offer led power supply, led aluminum profile and led strip lights. That is easy for customer sourcing lighting material in one fact.
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections

- Mounted to the surface with appropriate mounting clips

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 10mm width
Main Specifications

Model No.:  KA15
Item Type:  LED Strip Aluminium Profile

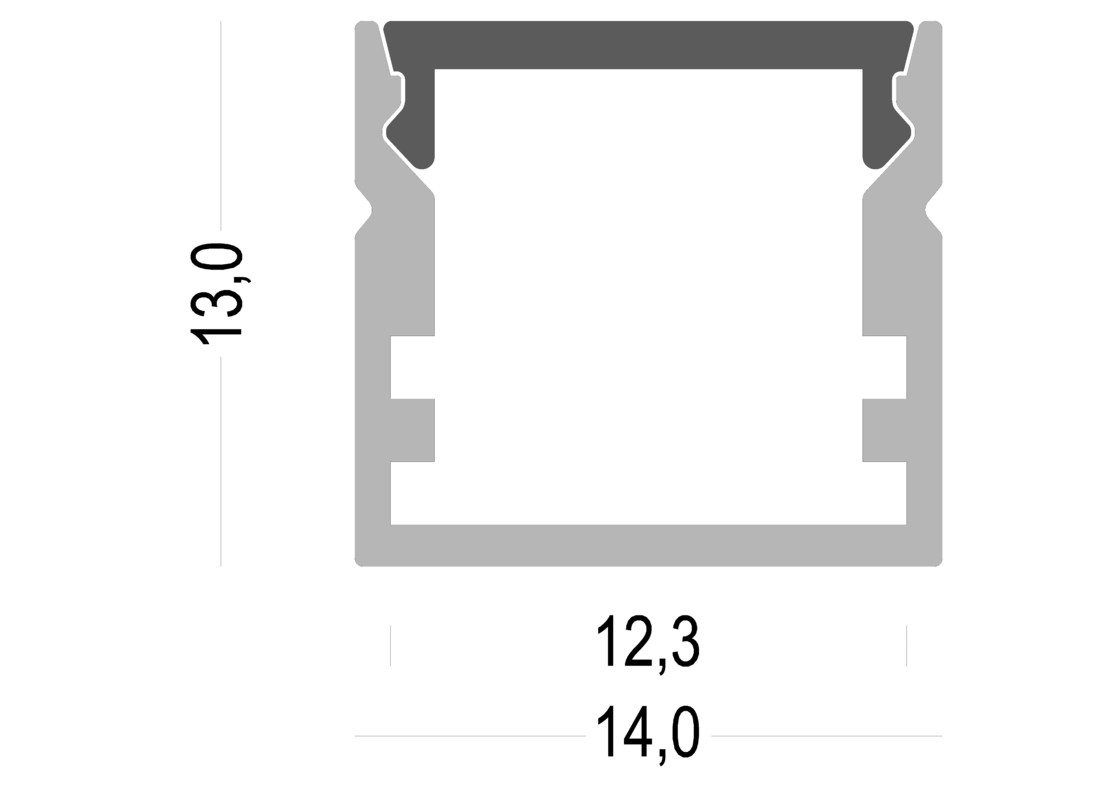

Dimensions:  (W)14*(H)13mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 12mm
Material:  6063 T5 Aluminum Alloy

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PMMA/PC
Diffuser finished:  Opal/Frosted/Clear/ Black
Accessories:  End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

LED Strip Aluminium Profile with 12mm 14*13mm Linear Aluminum Heatsink surface Mount 0
LED Strip Aluminium Profile with 12mm 14*13mm Linear Aluminum Heatsink surface Mount 1
LED Strip Aluminium Profile with 12mm 14*13mm Linear Aluminum Heatsink surface Mount 2
LED Strip Aluminium Profile with 12mm 14*13mm Linear Aluminum Heatsink surface Mount 3
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.

Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.

Q: Can we order a special length for aluminum profiles?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.

Q: How to choose the high quality led aluminum profile?
A: 1. For the same design, the weight higher, the quality will better.
2. Check the vision, the vision will, surface oxidation good, no scratches. Then the quality will good.
3. The cover light transmittance higher, then the quality good.
4. The end cap fits the led profile, then the quality good.

Q: How to use the led aluminum profile with led strip light?
A: 1. Cut the right side of the led aluminum profile.
2. Stick the led strip light into the led aluminum profile.
3. Fixed the cover and end cap of the led aluminum profile.
4. Fixed the led aluminum profile to where you want to install.
5. Connect the Led linear light power supply with led strip light.
