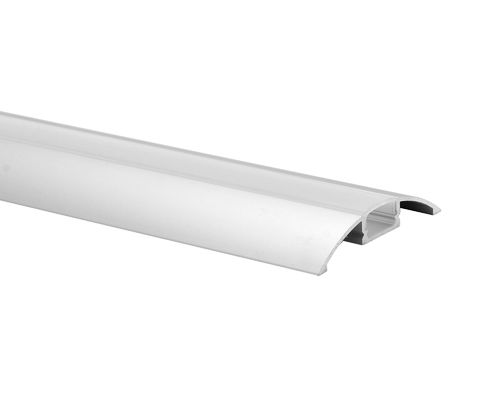

Surface Mount profile 56.8*11.2mm Led Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K18
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Process: Extrusion Packing: PE Bag + Carton / Customized Package
Certificates: Rohs Application: Led Linear Lighting Project
IP Rate: IP44 Accessories: End Caps, Clips, Spring Wiring System
High Light:

56.8mm LED Strip Aluminium Profile

,

11.2mm LED Strip Aluminium Profile

,

11.2mm led aluminum channel


Product Description

Surface Mount Cabinet Low Profile Led Strip Aluminium Profile


These models presented here are suitable for surface installation. The aluminum LED profiles can be installed either directly on the surface with a screwdriver or fixed by dedicated mounting brackets. The customer has a large variety of products to choose from: very small profiles through the midsize ones, up to large size LED profiles.

Application
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections


Assembly

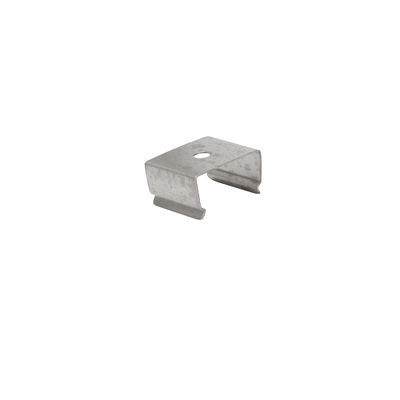

- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 12mm width

Main Specifications



Model No.:   K18
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)56.8*(H)11.2 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 12mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

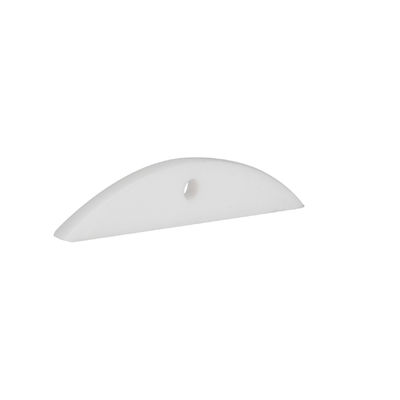

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

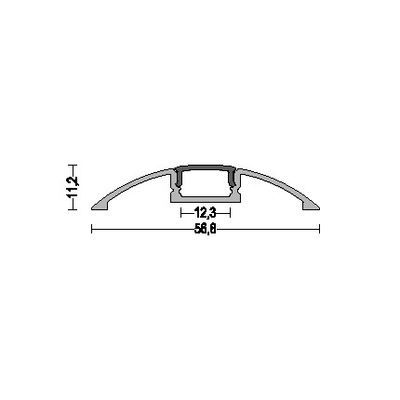

Drawing:
Surface Mount profile 56.8*11.2mm Led Strip Aluminium Profile 0



Installation

Surface Mount profile 56.8*11.2mm Led Strip Aluminium Profile 1

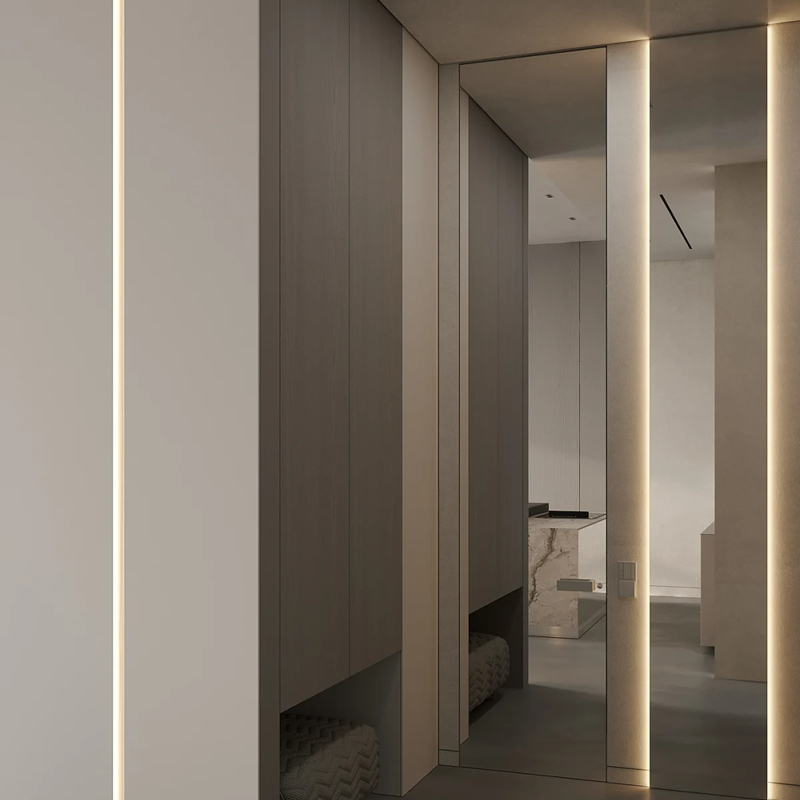

Application

Surface Mount profile 56.8*11.2mm Led Strip Aluminium Profile 2

FAQ:


Q: How many kinds of led aluminum profiles do you have?
A: We are a professional led aluminum profile supplier, we have more than 200 kinds of led aluminum profile. We can offer different size, different design-led aluminum profile. And if you have your special design, we can make it for you.



Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.



Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover (Frosted, clear).



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
