| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | K18 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PC Frosted |
|---|---|---|---|
| Process: | Extrusion | Packing: | PE Bag + Carton / Customized Package |
| Certificates: | Rohs | Application: | Led Linear Lighting Project |
| IP Rate: | IP44 | Accessories: | End Caps, Clips, Spring Wiring System |
| High Light: | 56.8mm LED Strip Aluminium Profile,11.2mm LED Strip Aluminium Profile,11.2mm led aluminum channel |
||

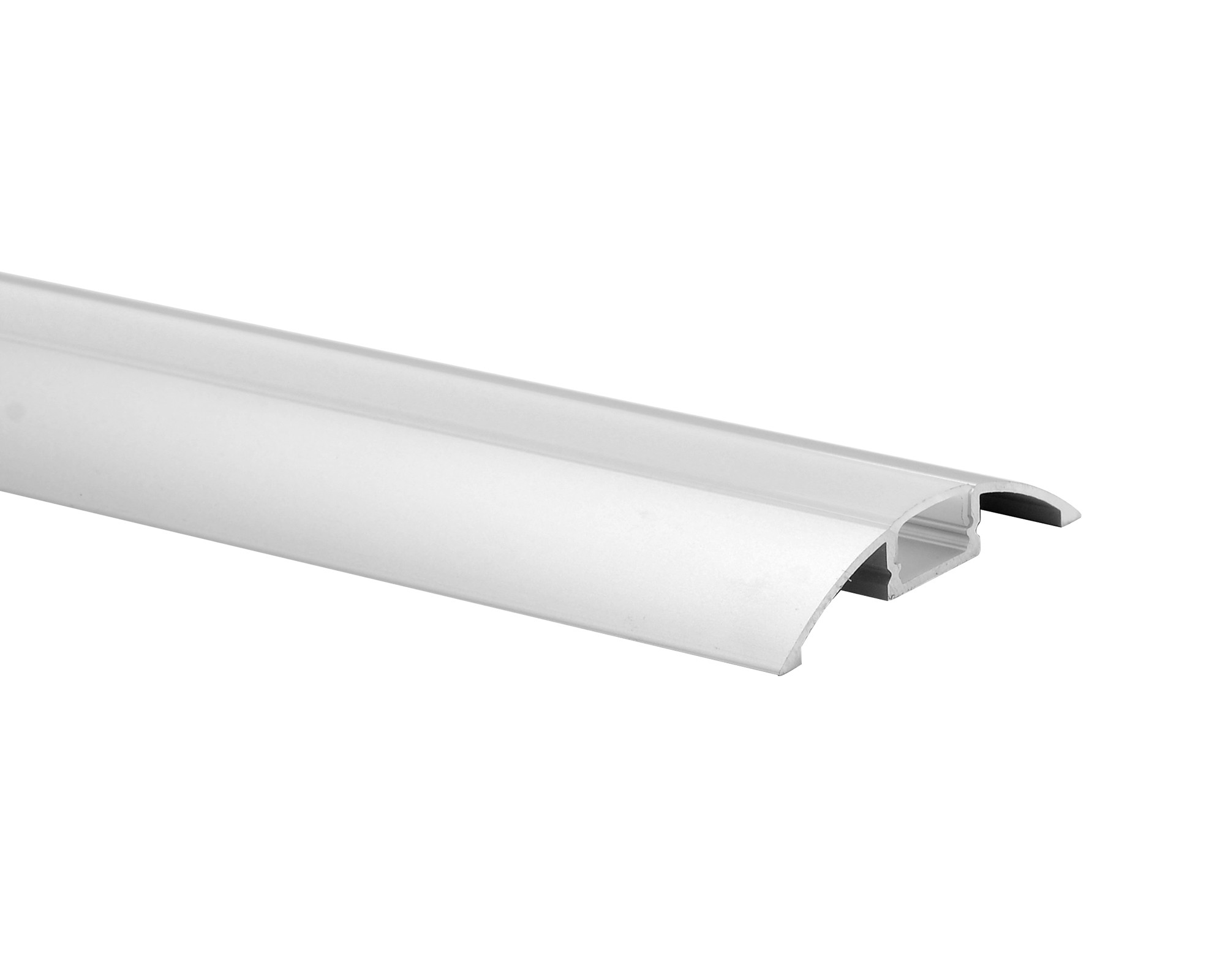

Surface Mount Cabinet Low Profile Led Strip Aluminium Profile
These models presented here are suitable for surface installation. The aluminum LED profiles can be installed either directly on the surface with a screwdriver or fixed by dedicated mounting brackets. The customer has a large variety of products to choose from: very small profiles through the midsize ones, up to large size LED profiles.
Application
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 12mm width
Main Specifications
| Model No.: | K18 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)56.8*(H)11.2 mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |

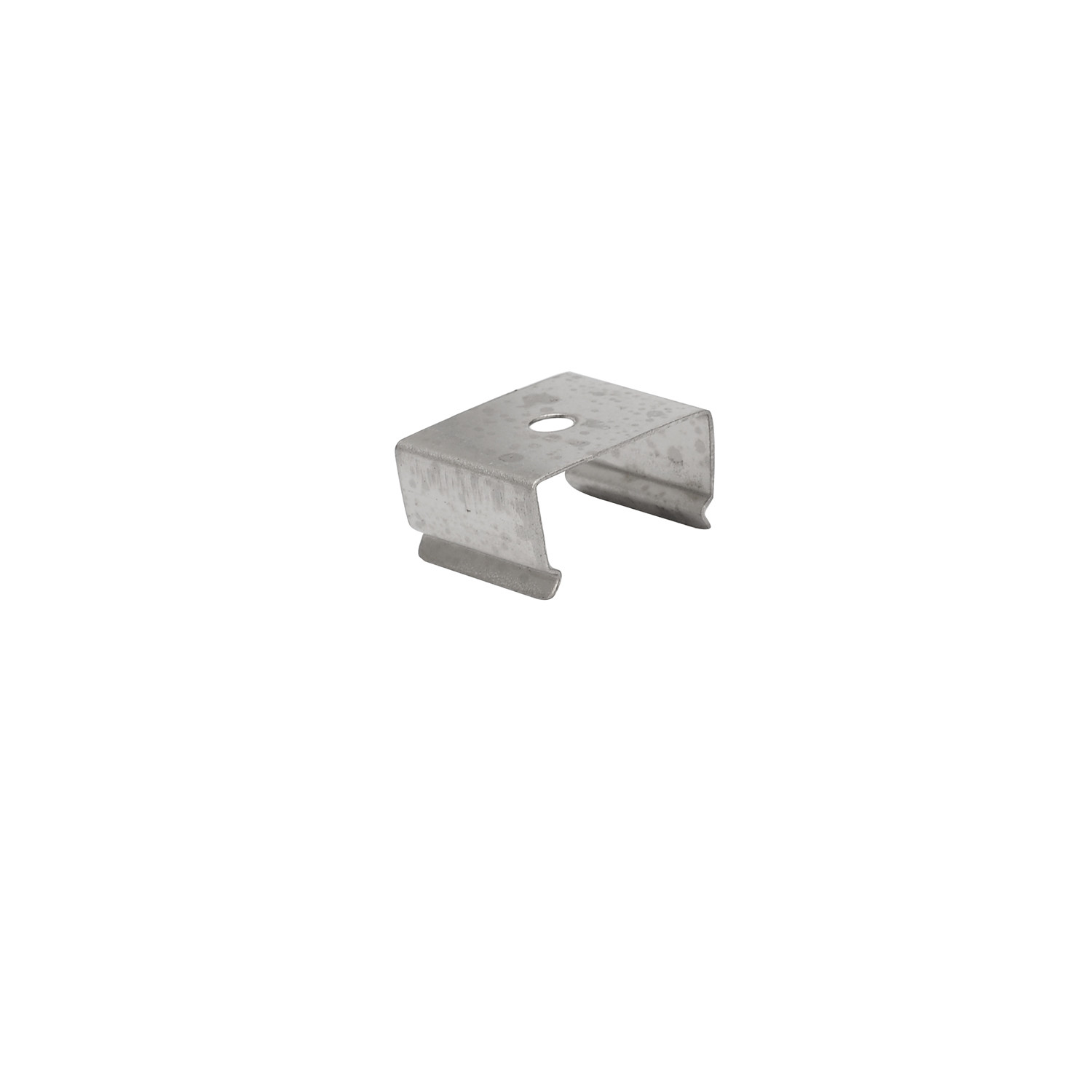

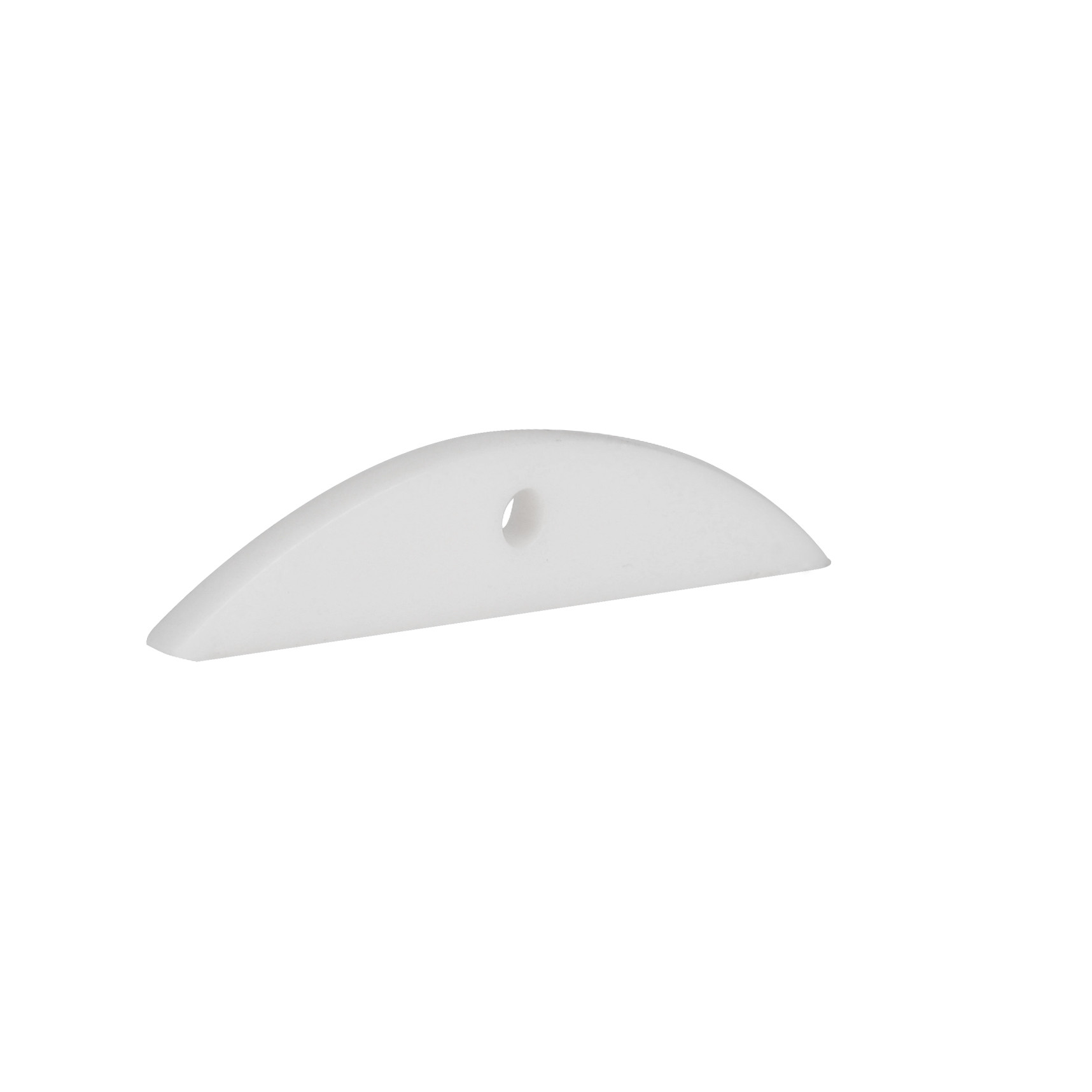

| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

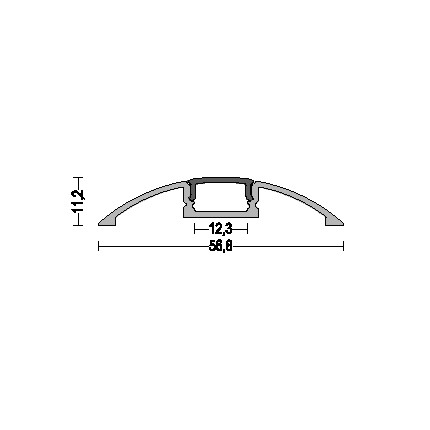

Drawing:
Installation
Application
FAQ:
Q: How many kinds of led aluminum profiles do you have?
A: We are a professional led aluminum profile supplier, we have more than 200 kinds of led aluminum profile. We can offer different size, different design-led aluminum profile. And if you have your special design, we can make it for you.
Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.
Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover (Frosted, clear).
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
