LED Strip Aluminium Profile
Created with Pixso.

KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface

KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface

MOQ: 100
Price: $1.11-1.14
Detail Information
Material:
Aluminum 6063-T5
Dimensions:
H8.0mm*W12.0mm
Model:
KA14
Installation:
Surface Mounted
Surface Treatment:
Anodized
Cover Material:
PC
Cover Colors:
Opal, Semi-clear, Clear
PCB Width:
Within 12.3mm
Standard Length:
1m, 2m
LED Strip Width:
Up To 10mm
Shape:
Rectangular
Temper:
T3~T8
AL Material:
Aluminum 6063-T5
Surface:
Anodizing
Accessories:
2pcs Metal End Caps, Clips, Suspending Kits
Highlight:

6063-T5 Aluminum Alloy LED Strip Aluminum Profile

,

Anodized Surface LED Aluminum Channel

,

KA14 Model LED Extrusion Profile

Product Description

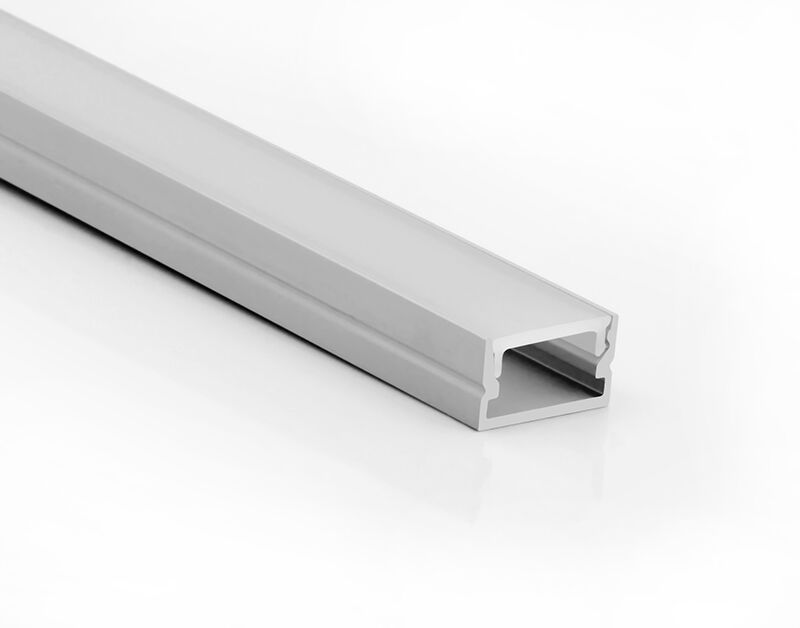

KA14 Small Surface Mounted LED Aluminum Profile
Profile channel designed for 10mm light strips, featuring anodized aluminum alloy construction for professional lighting applications.
Product Overview

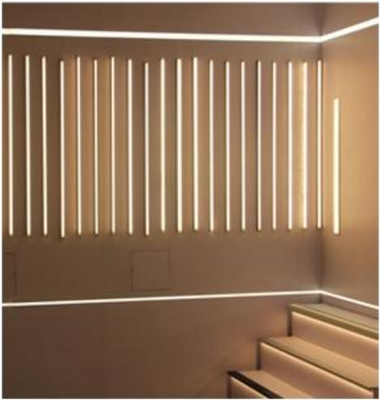

These aluminum extrusions are ideal for installation on flat surfaces including ceilings, walls, cabinets, display cases, shelving, and art niches. Easy installation with standard 1m or 2m lengths available, with custom cut-lengths and fitting colors available upon request.
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 0 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 1 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 2 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 3
Product Specifications
Product Name Aluminum Profile for Cabinet
Model No. KA14

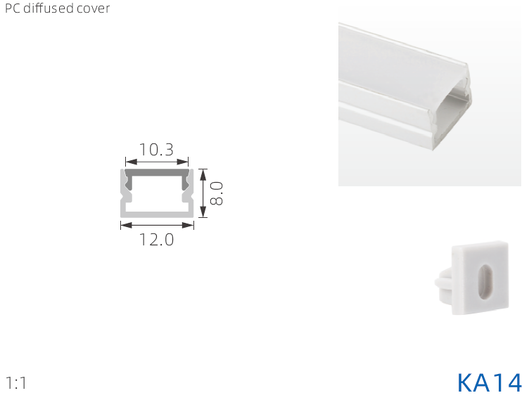

Dimension W12.0 × H8.0mm
Length 1m, 2m standard, customized available
Materials Aluminum 6063-T5: Silver, black, white
Rohs PMMA cover: Opal, frosted, clear
Accessories 2pcs Metal end caps, clips, suspending kits
Surface Treatment Anodized
Installation Surface mounted, suspended
Product Features
This small thin LED strip aluminum profile mount houses 10mm LED strip lights, providing a finished appearance while protecting strips from dust and damage. The casing offers basic protection though is not fully waterproof.

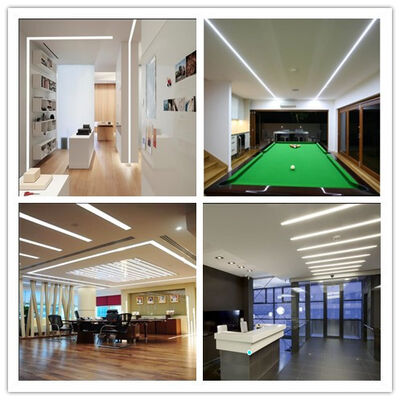

Applications
  • Architectural decorative lighting
  • Recessed storage shelves lighting
  • Archway, canopy and bridge edge lighting
  • Amusement park, theater and aircraft cabin mood lighting
  • Emergency hallway lighting
  • Auditorium walkway lighting
Assembly & Additional Information
- Mounted to surfaces with appropriate mounting clips
- Suitable for bending into gentle arches adjacent to the LED strip plane
- Compatible with transparent and frosted covers
- Accommodates LED strips up to 10mm width
Product Advantages
  • Aluminum Profile: High-quality aluminum alloy 6063-T5 material with surface coating, anti-corrosion, rust-proof and non-discoloring properties
  • PC Extrusion: Environmentally friendly flame-retardant PC cover with high definition and light transmittance to protect LEDs from dust
  • Smooth Cut: Advanced laser cutting for smooth edges and easy installation

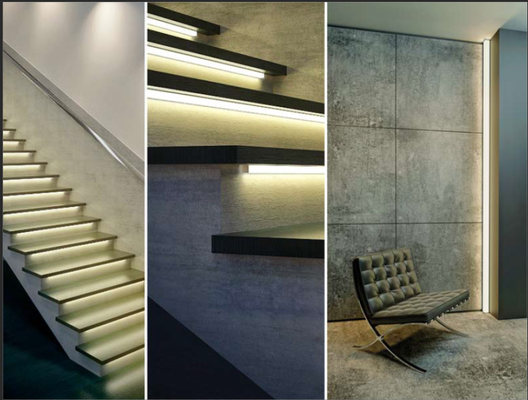

Ideal for cabinets, stairs, closets, exhibits, furniture, workstations, and more.
Installation Instructions
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 4 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 5 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 6 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 7 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 8 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 9 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 10 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 11 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 12 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 13
Additional Product Series
  • Over 200 models across multiple product series for different applications
  • Extensive stock availability for fast delivery
  • In-house tooling for OEM & ODM orders
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 14
Packing & Shipping
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 15
Certifications
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 16
Company Introduction
K&C's aluminum profiles enable broader LED strip installation applications, combining design excellence with superior lighting performance. Our extensive range allows architects, interior designers, and retailers to create diverse lighting effects.
With over 200 aluminum profile options available from stock, we ensure fast delivery. Standard lengths include 2 meters and 2.5 meters, with custom specifications available.
Our aluminum extrusion LED profile systems enable custom lighting fixture designs in any size and shape, compatible with cold, warm, RGB, and daylight LEDs with regulated light intensity.
Visit our website WWW.LEDS-KC.COM for more company and product information.
K&C Lighting Factory Overview
  • Floor space: Approximately 66,000 square meters
  • Workforce: 200 people
  • Extrusion machines: 1500 tons, 1800 tons, 2500 tons specifications
  • Machinery: 11 units with seamless pipe production workshop
  • Oxidation pond: 6.2 meters long
  • Office staff: 12 people
  • Aluminum tank packers: 20 people
KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 17 KA14 Model 6063-T5 Aluminum Alloy LED Strip Aluminum Profile with Anodized Surface 18
Frequently Asked Questions
Q1: Can I take samples?
A1: Yes, we provide 10CM-20cm samples with free accessories.
Q2: What is your standard length and maximum length?
A2: Standard lengths: 2m, 2.5m, 3m. Maximum length: 6m. Minimum order: 100M.
Q3: Do you accept OEM and ODM?
A3: Yes, we have our own mold shop and extensive OEM/ODM experience.
Q4: How do you pack the goods?
A4: Normal profiles, diffusers, and accessories are individually packaged, with custom packaging available.
Q5: What is your delivery time?
A5: Samples: 3 working days. Batch orders: 3-15 working days.
Q6: How do you ship goods and how long does it take?
A6: International express (DHL, UPS, FEDEX, TNT): 3-7 working days. Air or sea freight available.
Q7: Which lighting exhibitions do you participate in?
A7: Hong Kong International Lighting Fair (April & October), Guangzhou International Lighting Fair (June), Light + Building, LFI, and others.
