LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K53-1
Minimum Order Quantity: 100meters
Price: 1
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC
Color: Frosted, Black, Clear Usage: Led Strip Heat Sink
Finished Color: Silver, Black, White Installation: Surface Mounted, Suspended
Application: Office Decoration, Room Lighting Grade: 6000 Series
Shape: Square Length: 1-6 M Or Customized Length
Name: Aluminium Led Lighting Profile,LED Strip Light Aluminum Extrusion
High Light:

6063 t5 Suspended LED Strip Profile

,

PC diffuser Suspended LED Strip Profile

,

hoisting aluminum led profile housing


Product Description

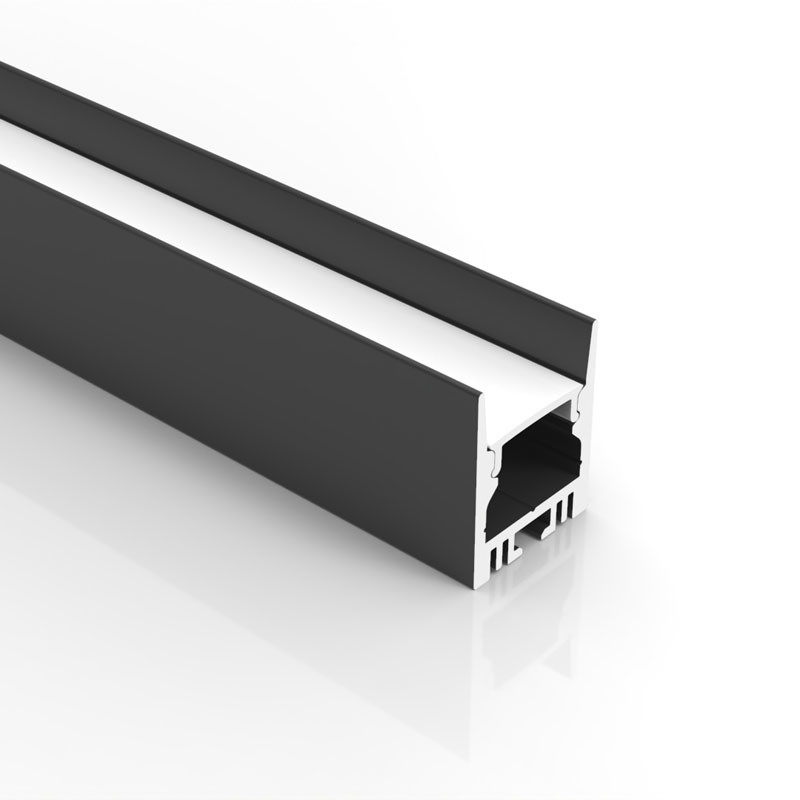

LED Strip Aluminium Profile suspending pendant linear light led strip alu channel extrusion with PC diffuser

LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 0LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 1LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 2


KC Lighting is one of the best led aluminum profile manufacturers in China. We are manufacturing over 200 high-quality types of Led Aluminium Profiles / LED Extrusions in factory prices. Surface-mounted, Recessed, Pendant, Corner, Round, Stair, Wall, Trimless, up-down, driver-in, and Flexible version. We can help you or offer free samples for quality evaluation.

Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended by spring wiring systems

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 12mm width

Main Specifications



Model No.:   K53-1
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)19.72*(H)24.82mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 12mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC, PMMA
Diffuser finished:   Frosted, Opal, Clear, black
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

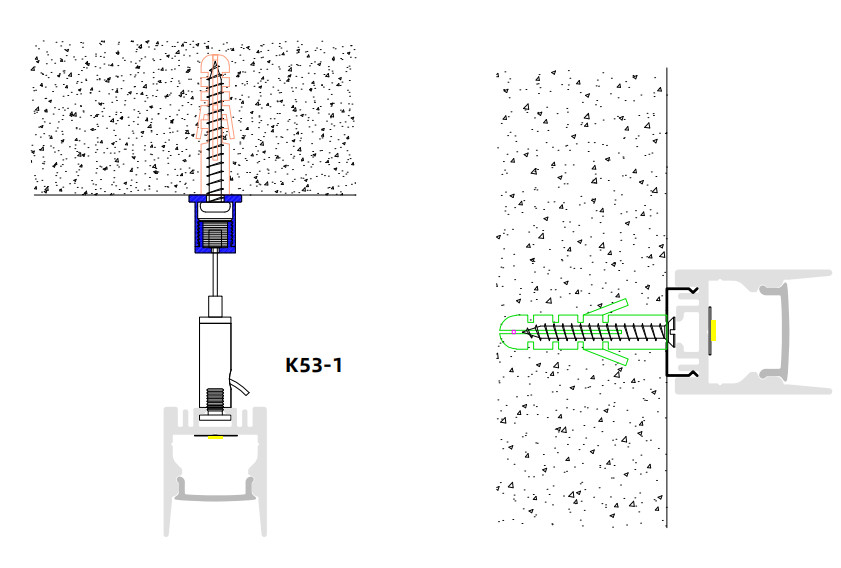

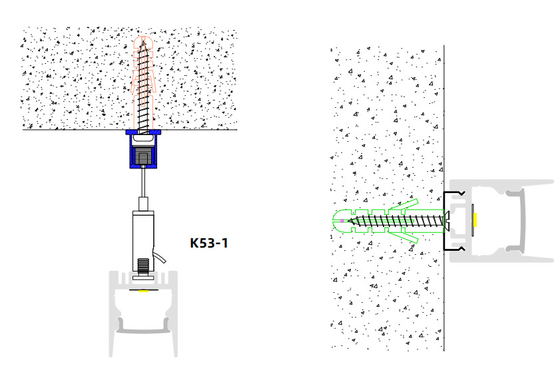

Drawing:

LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 3

LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 4

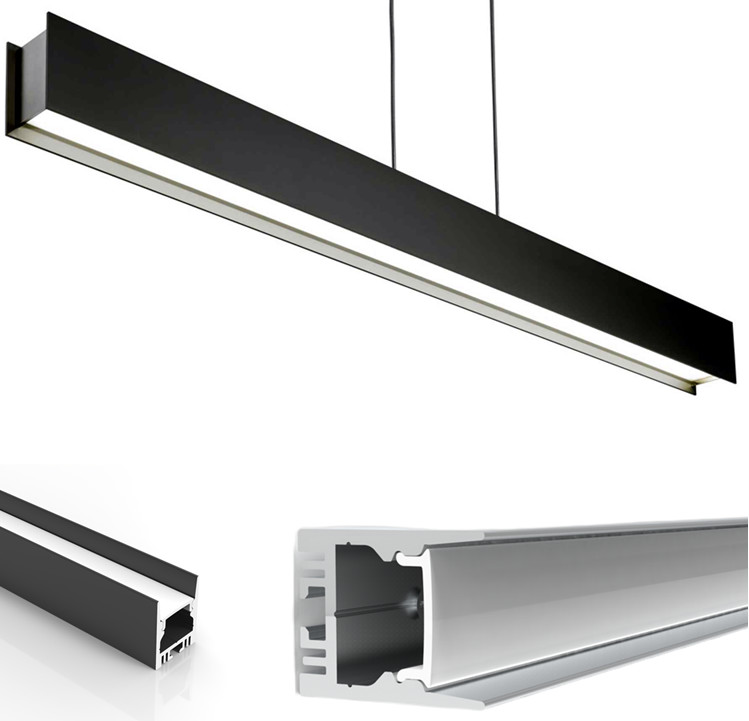

Application

LED Strip Aluminium Profile Suspending Pendant Linear Light Led Strip Alu Channel Extrusion With PC Diffuser 5

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.



Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.



Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
