| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | K3 |
| Minimum Order Quantity: | 10meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Type: | Small Aluminum Profile | Application: | Decorations |
|---|---|---|---|
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PMMA/PC, Opal/Frosted/Clear |
| Process: | Extrusion | Packing: | PE Bag + Carton / Customized Package |
| Certificates: | Rohs | Warranty: | 5 Years |
| High Light: | 10*13mm LED Strip Channel With Diffuser,IP20 LED Strip Channel With Diffuser,10*13mm LED Strip Light Channel |
||
Small Square Ceiling Light 10*13mm LED Strip Channel With Diffuser
Small Square LED Profile Aluminium Extrusion Housing Channel For Ceiling Light
LED Aluminum Profiles can be useful for furniture lighting, glass cabinet, counter lighting, ceiling decorating light, etc. LED Aluminum Profiles also keep IP20 LED strips away from dust and give better heat-dissipating for LED strips to extend lifetime.
Application
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 8mm width
Main Specifications
| Model No.: | K3 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)10*(H)13mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 8mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

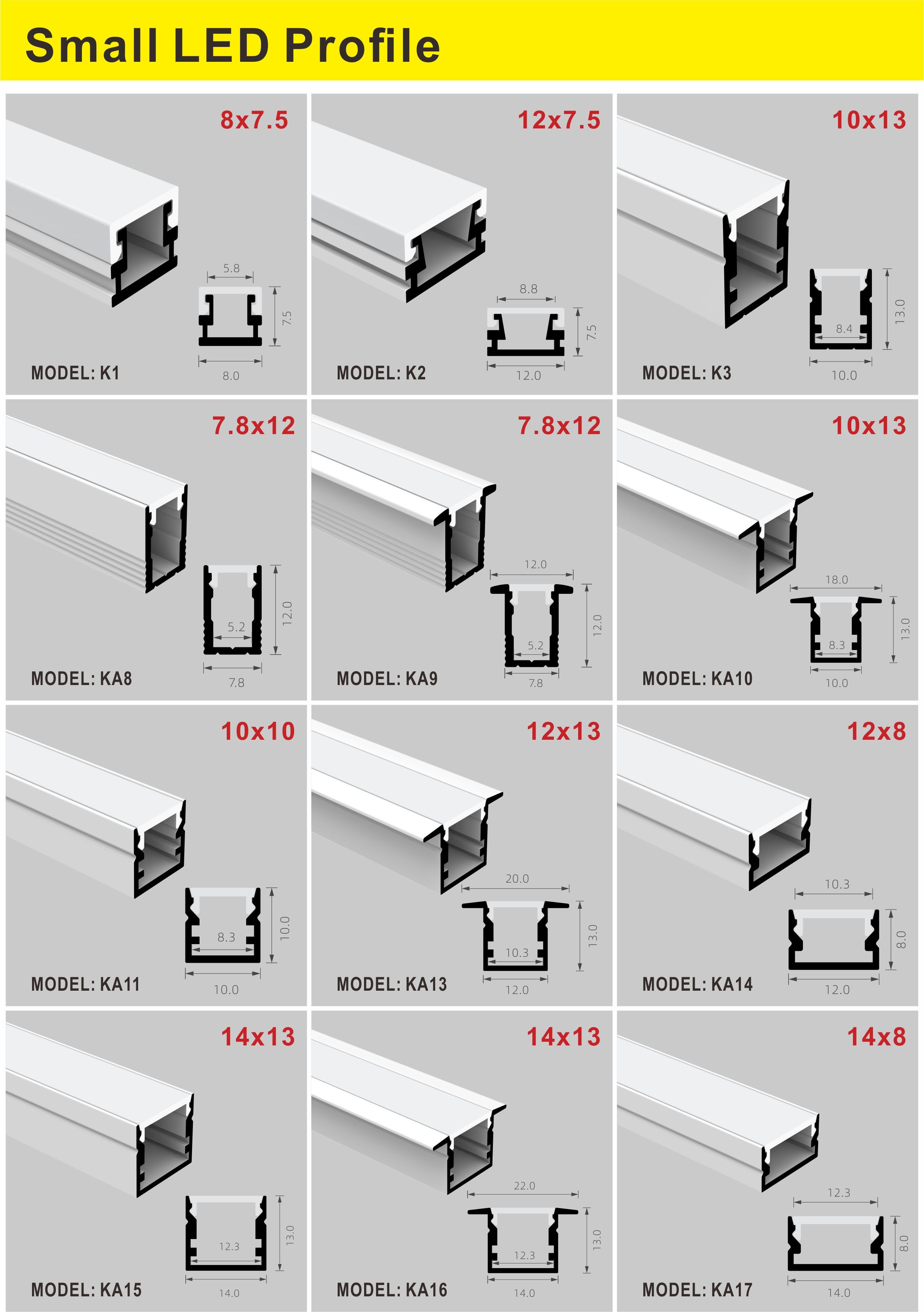

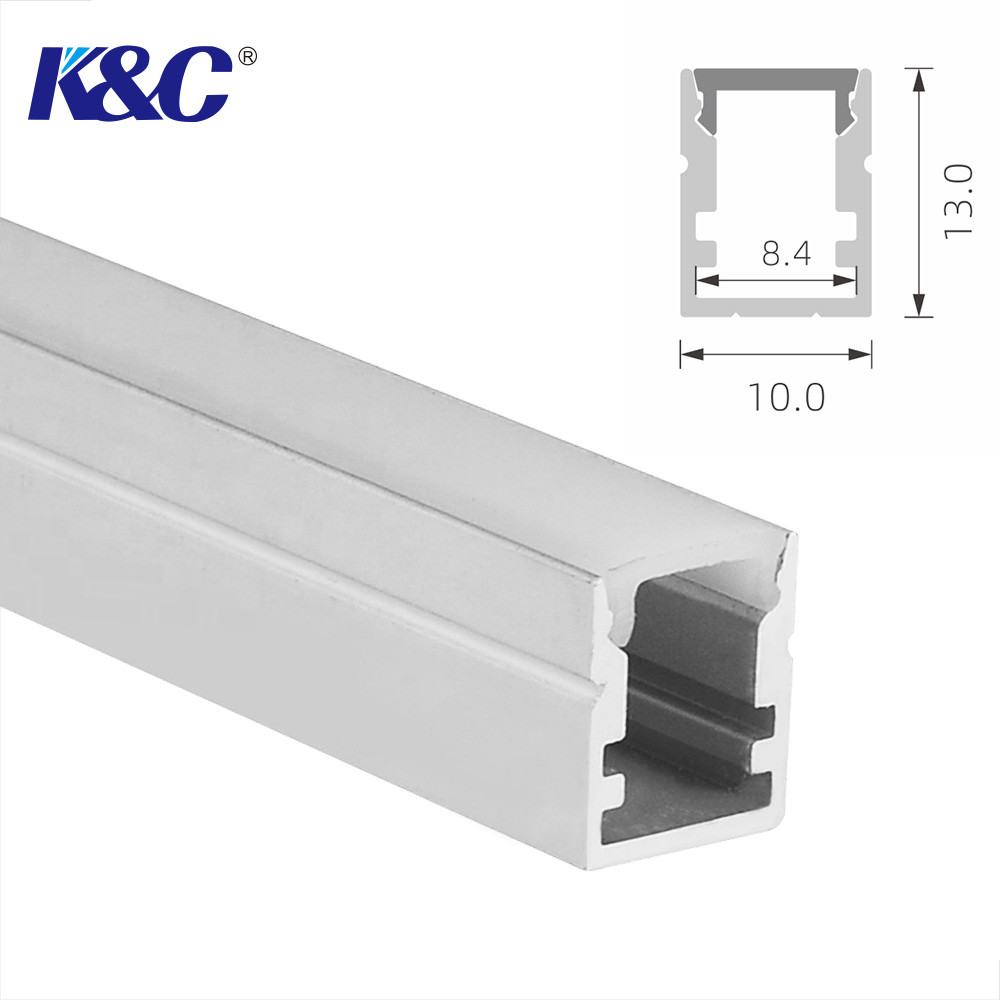

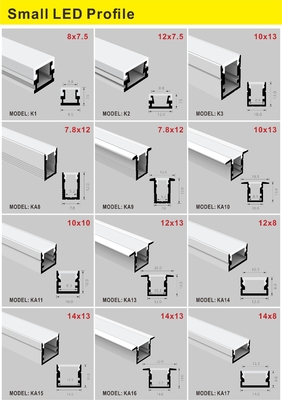

Drawing:
Installation

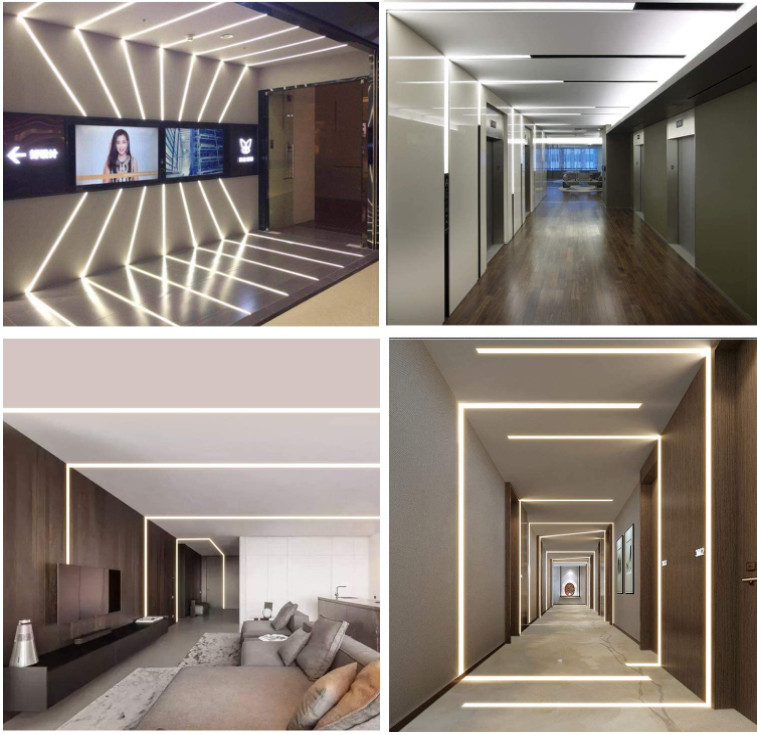

Application
FAQ:
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.
Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.
Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.
