PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting

Basic Information
Place of Origin: China,Guangdong
Brand Name: K&C
Certification: ROHS,SGS,TUV,Glow-wire test
Model Number: K14
Minimum Order Quantity: 100 Meters
Price: Negotiate
Packaging Details: 1 Aluminum profile+1 PC cover in a PE bag,2 end caps+2 clips in a PE bag,Pearl cotton inside , carton for outsdie packing
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000.0 Meter/Meters per Month
Detail Information
Warranty(Year): 3-Year Lighting Solutions Service: According To Your Requirement
Style: LED Aluminum Profile Produce Name: Aluminium Led Profile
Size: H15mm*W16.9mm W22mm Function: Decorative Illumination
IP Grade: IP20 Installation: Surface Mounted
Usage: Pcb Width Within 12.3mm AL Material: Aluminum 6063-T5
Cover Material: PC,PMMA IP Rate: IP20
Cover Colors: Opal, Semi-clear, Clear Port: SHEKOU OR YANTIAN
High Light:

PMMA Decorative Recessed Aluminum LED Profile


W16.9mm Recessed Aluminum LED Profile


Sandblasting Led Strip Light Profile

Product Description

6063 Anodized Aluminum Aluminium Led Profile 6063 Anodized Aluminum In 2m/Pc For Decoration Light

Height 15mm is recessed a high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffuser: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern


Main Specifications
Model No.: K14
Item Type: LED Strip Aluminium Profile

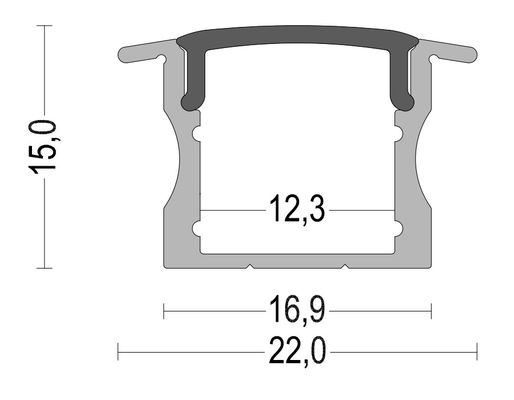

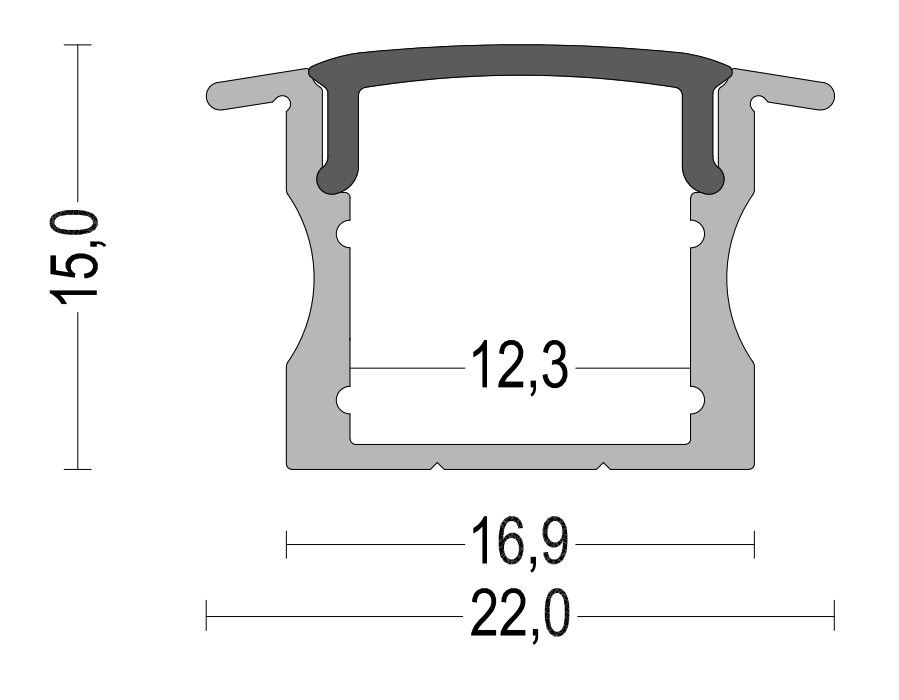

Dimensions: (W)22mm (W)16.9mm*(H)15mm
Standard length: 2m/pcs 2.5m/pcs 3m/pcs
Customized-length: Available on request
Suitable for led strip: PCB width up to 12.3mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver, black, white
Diffuser material: PMMA/PC
Diffuser finished: Opal/Frosted/Clear/ Black

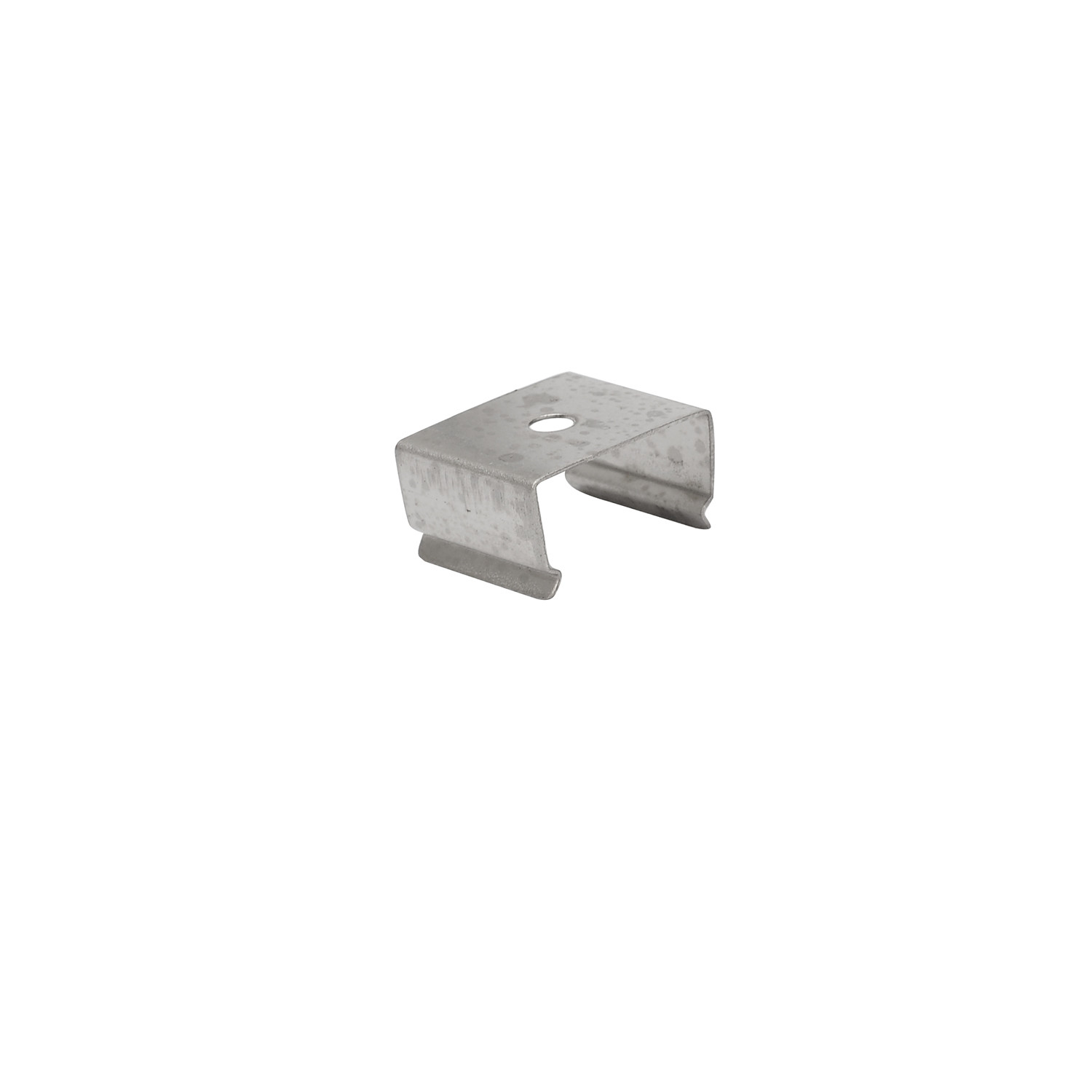

Accessories: End caps, clips
Installation: Surface-mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request
Handling time: Samples within 3 working days
Batch order: 3-15 working days upon stocks
Shipment : By sea, by air, by express for option

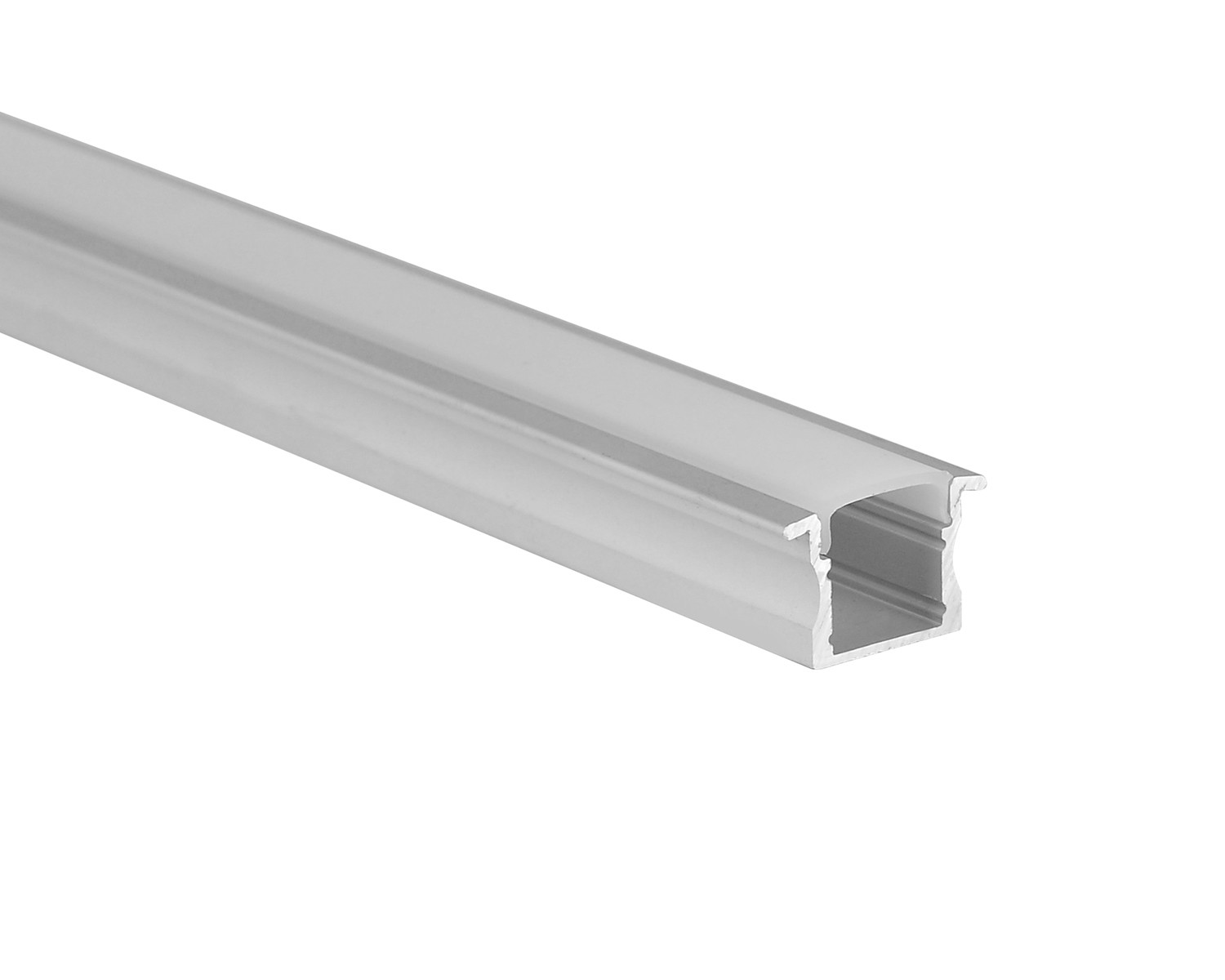

PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting 0

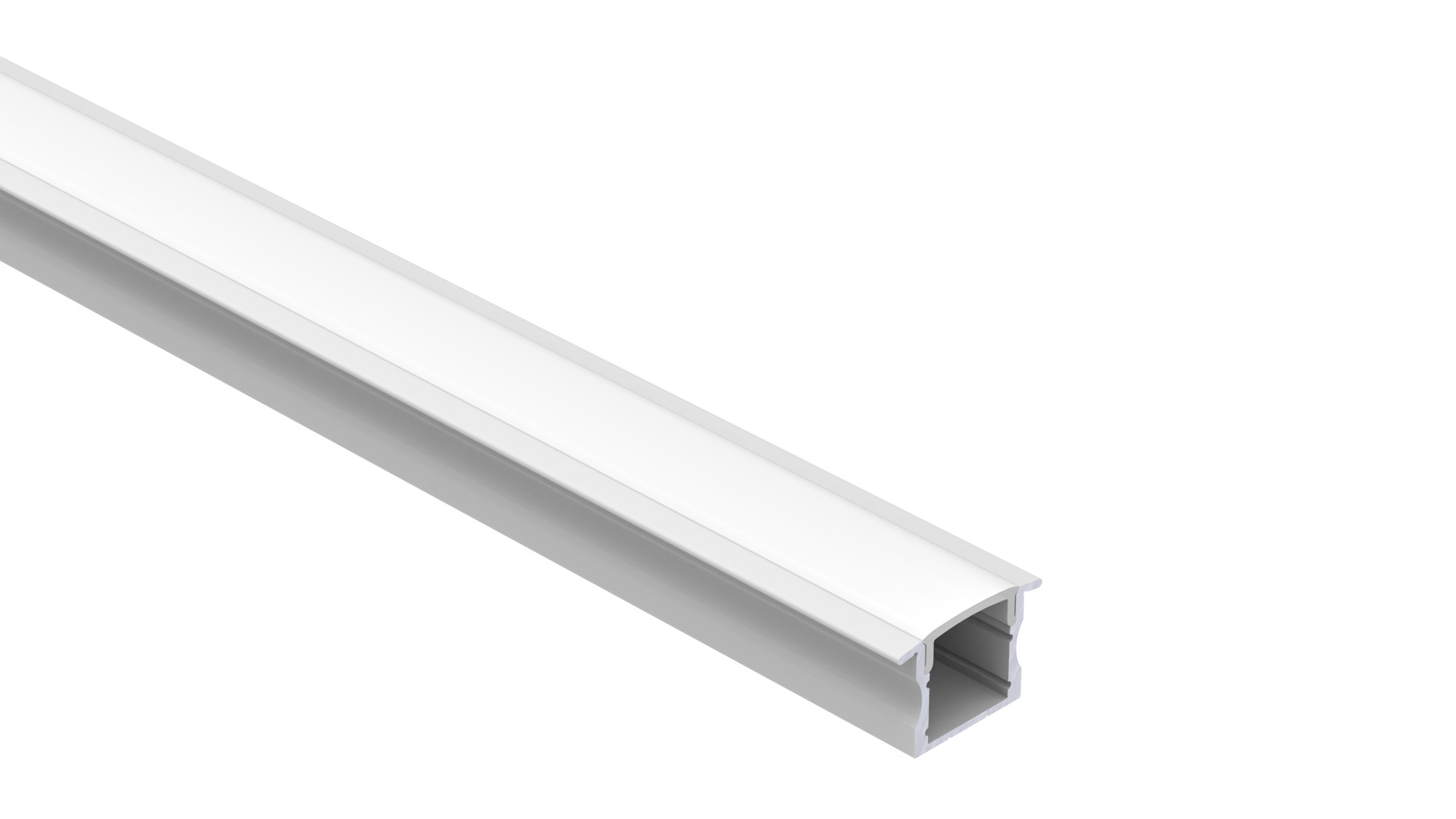

PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting 1
PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting 2
Company Introduction
K&C’s Aluminum profiles are the perfect choice for you to broaden your LED light strips installation to wider ranges. K&C offers a wide range of aluminum profiles, which is the perfect combination of designing and lighting. This enables the architects, in-door designers and retailers to offer more diverse lighting effects to their customers.

We have over 200 kinds of aluminum profiles for you to choose, and we also have a lot of profiles in stock, therefore, the fast delivery is available. Our standard length is 2 meters, and some in 2.5 meters, but we will also customized for you if you have any special requirements.

The aluminum extrusion led profile systems for LED strips make it possible to design lighting fixtures in any size and shape on desire. Recessed, corner, pendant and surface mount profiles can come with cold, warm, RGB and day light LEDs with regulated intensity of light.

We are flexible towards the needs of the market, and sensitive to the market trends. We are dedicated to offering the best
products to our customers . We do wish to open up the long and trustworthy cooperation with you.
For more information on our company and other products, please visit our website WWW.LEDS-KC.COM
PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting 3
PMMA Decorative Recessed Aluminum LED Profile W16.9mm Sandblasting 4
Q1: Can I take samples? A1: Yes, we provide 10CM-20cm / pc samples and free accessories. Q2: What is your standard length? And maximum length? A2: We have 2 meters, 2.5 meters or even 3 meters long, the maximum length is 6 meters, and the minimum order quantity is 100M. Q3: Do you accept OEM and ODM? A3: Yes, we have own mold shop and rich experience in OEM and ODM services. Q4: How do you pack the goods? A4: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request. Q5: What is your delivery time? A5: Samples within 3 working days, batch order 3-15 working days Question 6: How do you ship the goods and how long? A6: Usually by international express delivery such as DHL, UPS, FEDEX, TNT (3-7 working days), air or sea Q7: Which lighting exhibitions do you participate in? A7: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.
