products

H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA4
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver/Black/White Length: Standard 2m, 2.5m Or Max.6m On Request
Dimensions: W26*H8.7mm Indstallation: Recessed-mounted
Material: 6063 T5 Aluminum Alloy Diffuser: Opal/Frosted/Clear
Shape: Square Packing: PE Bag + Carton / Customized Package
High Light:

IP65 Square Waterproof LED Channel

,

H8.7mm Waterproof LED Channel

,

6063 T5 Recessed Led Aluminium Profile


Product Description

http://www.ledstripaluminiumprofile.com/

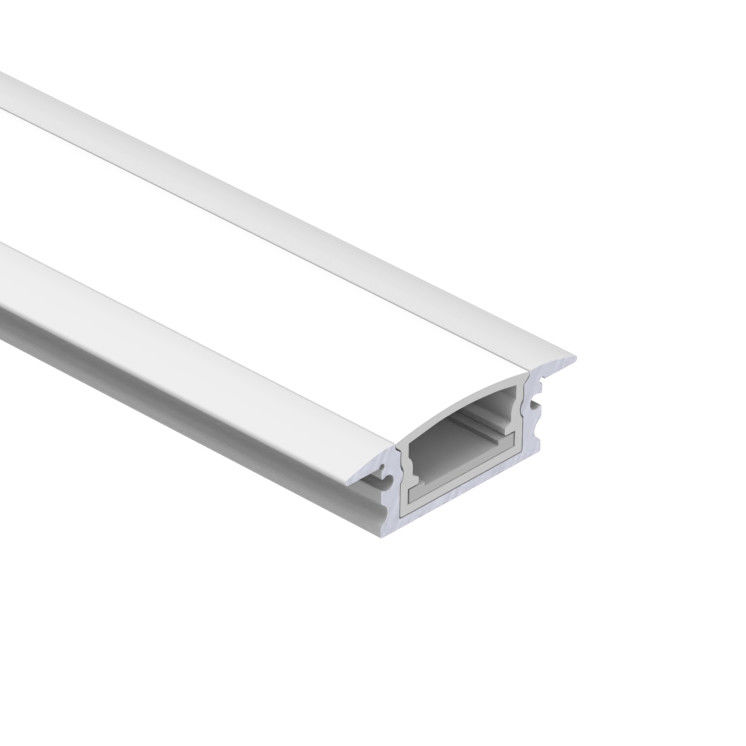

IP65 Recessed Waterproof LED Channel W26mm H8.7mm Aluminum Profile


Recessed-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 5mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip.


Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting


Assembly
- Mounted to the recessed with appropriate mounting clips


Additional information
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 5mm width

Main Specifications



Model No.:   KA4
Item Type:   Waterproof LED Channel
Dimensions:   (W)26mm*(H)8.7mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 8mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver/Black/white
Diffuser material:   PC
Diffuser finished:   Opal/Frosted/Clear
Accessories:   PC Cover,End caps, clips
Installation:   Recessed-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

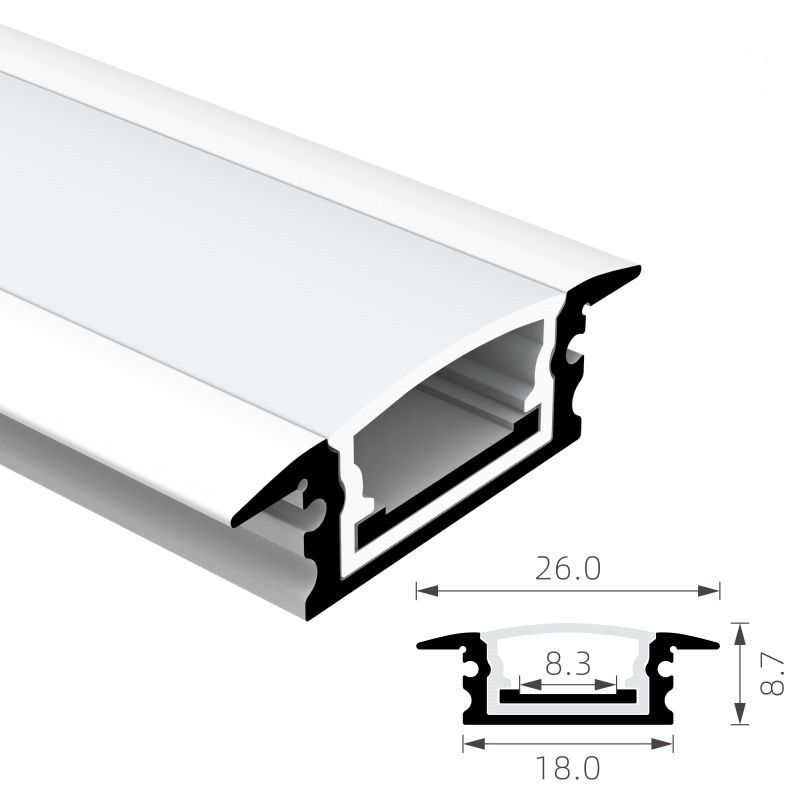

Drawing:

H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 0H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 1H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 2H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 3
Application

H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 4

H8.7mm IP65 Square Waterproof LED Channel 6063 T5 Recessed Led Aluminium Profile 5

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
