PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA10
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
Finishing Surface: Anodized And Coating Port: Shekou Or Yantian
High Light:

PMMA Recessed Led Aluminum Extrusion

,

8.3m Width Recessed Led Aluminum Extrusion

,

IP20 Led Strip Aluminum Channel


Product Description

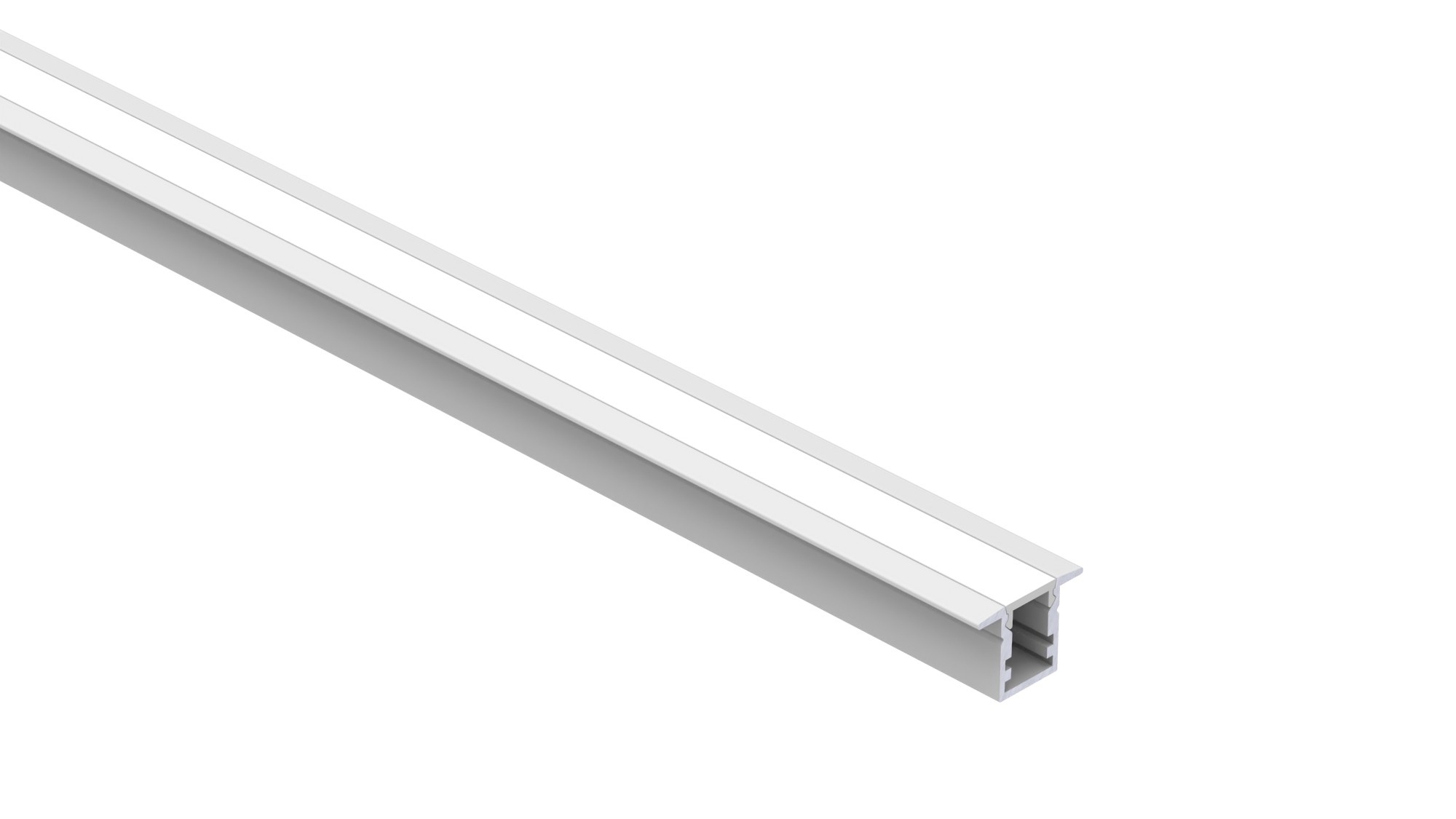

 U Shape PC Diffused Cover Recessed Aluminum LED Profile 13mmH Silver Color for Cool light

U shape pc diffused cover recessed aluminum LED profile which is dedicated for standard led stripe light up to 8.3m width. The profile is performing as the heat sink to the LED strip. We support to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern. Customized is avaliable, helping customized for lighting solution.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting

Assembly
- Mounted to the groove with appropriate mounting clips

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 5mm width

Main Specifications


Model No.:   KA10
Item Type:   Recessed Aluminum LED Profile
Dimensions:   (W)18*(H)13mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 8mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

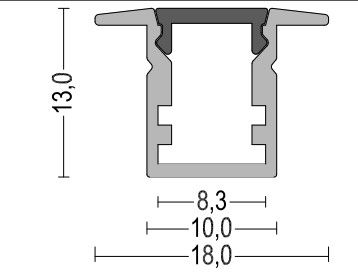

Drawing:
PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip 0

Installation
PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip 1
Application
PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip 2
Recommendation
PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip 3
PMMA 8.3m Width Recessed Led Aluminum Extrusion IP20 For Led Strip 4
