| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KA20 |
| Minimum Order Quantity: | 100meters |
| Price: | $1~$20 |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PMMA/ PC, Frosted |
|---|---|---|---|
| Length: | 2m/pcs, 3m/pcs | Finished Color: | Silver, Black, White |
| Installation: | Surface Mounted | Dimension: | 12.2*2.0mm |
| No.: | KA20 | Usage: | Led Strip Heat Sink |
| High Light: | K&C aluminum led strip light profile,12mm led tape light profiles,12mm alu alloy 6063 t5 led profile |
||

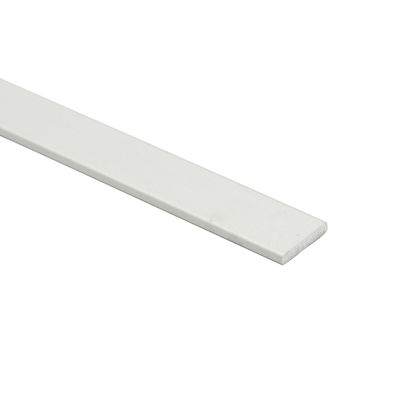

12mm Wide LED Strip Light Heatsink Bar Light Without PC Cover
We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern. Surface mount high quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip.
Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips
- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers
- Space for LED strip up to 12mm width
Main Specifications
| Model No.: | KA20 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)12.2*(H)2.0 mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted, suspended |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

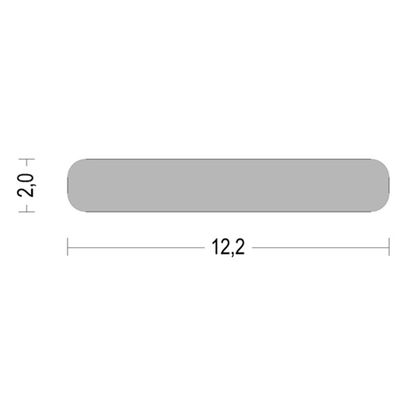

Drawing:
Application
FAQ:
Q: How to choose the high quality led aluminum profile?
A: 1. For the same design, the weight higher, the quality will better.
2. Check the vision, the vision will, surface oxidation good, no scratches. Then the quality will good.
3. The cover light transmittance higher, then the quality good.
4. The end cap fits the led profile, then the quality good.
Q: How to use the led aluminum profile with led strip light?
A: 1. Cut the right side of the led aluminum profile.
2. Stick the led strip light into the led aluminum profile.
3. Fixed the cover and end cap of the led aluminum profile.
4. Fixed the led aluminum profile to where you want to install.
5. Connect the Led linear light power supply with led strip light.
Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.
2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.
