Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN21
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Suspended / Surface Mount Dimension: 35*35mm
Part No.: KN21 Application: Led Linear Lighting Project
Port: Shekou Or Yantian
High Light:

35x35mm led channel diffuser

,

35x35mm led aluminium profile 3m

,

35x35mm led strip light channel


Product Description

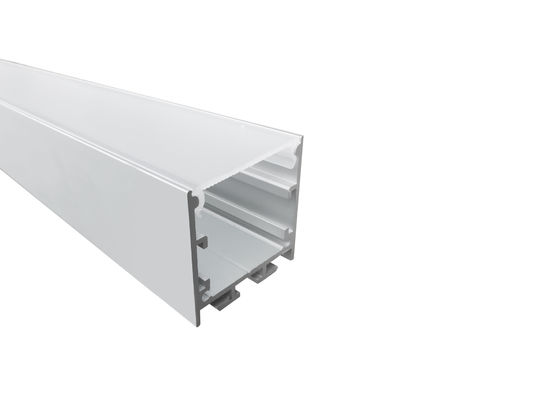

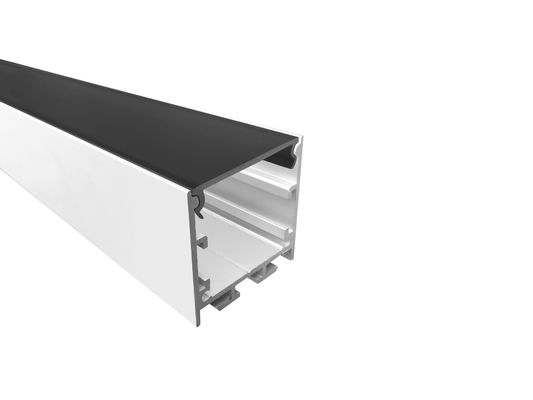

35x35mm Wall Mounted Pendant Light Extrusion LED Strip Aluminum Profile

High quality anodized LED aluminum profiles do not rust due to anodising and are suitable for indoor use as well as indoor bathrooms, kitchen interiors and outdoor use.The covers, ie diffusers, are of high quality and UV protected. The opal “milk glass” lid better fades the ledges and smoothes light and prevents reflections from the shiny work surface. The clear lid allows all light to pass through. indirect lighting and just want to protect the tape from dust.

Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 24mm width

Main Specifications


Model No.:   KN21
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)35*(H)35mm
Standard length:   2m/pcs 2.5m/pcs 3m/pvcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 24mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

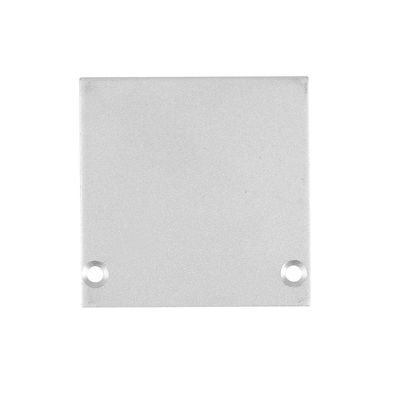

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

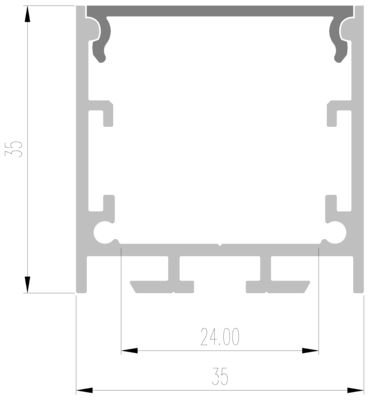

Drawing:

Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile 0

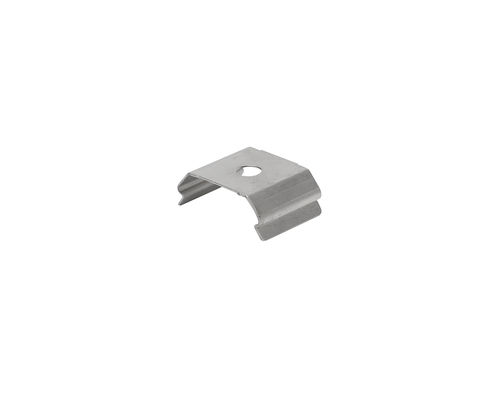

Installation
Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile 1

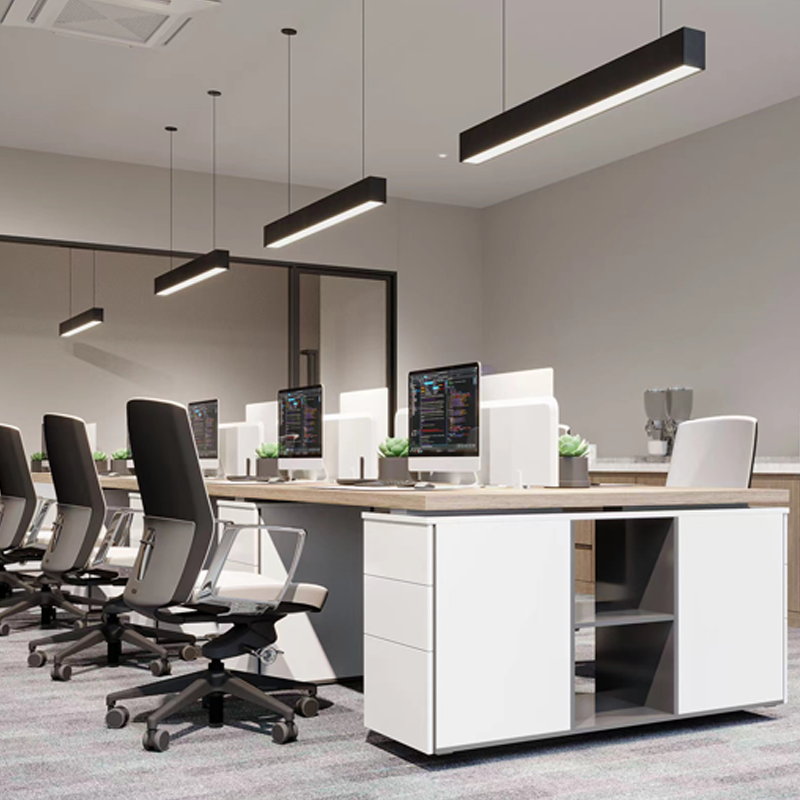

Application
Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile 2
 Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile 3
Led aluminum profile W35*H35mm with PC diffuser for LED Strip Aluminium Profile 4

FAQ:
Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.


Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
