Linear light extrusion 75x50mm with PC cover LED Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN29
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Usage: Led Strip Heat Sink Length: 2m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted, Suspended
Dimension: 75*50mm No.: KN29
High Light:

75x50mm led strip light channel


6063t5 led aluminium profile 3m


6063t5 Anodized led channel diffuser

Product Description

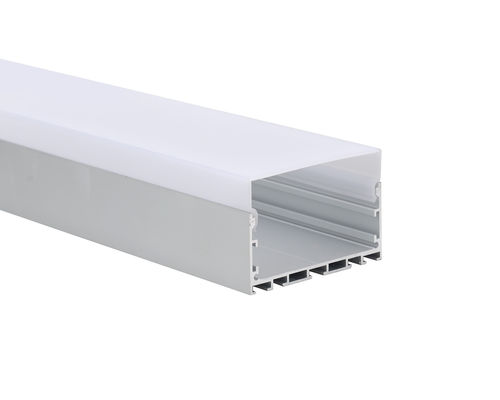

75x50mm LED Linear Light Anodized LED Strip Aluminum Profile

Surface mount LED aluminum profile for a clean, finished look. The LED linear extrusions are available in various shapes that may be cut to any size. Complete the look with end caps and diffuser (lens). Suitable for any application including kitchen lighting, interior lighting design, architectural lighting, commercial lighting, retail display lighting, and more.


- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 64mm width
Main Specifications


Model No.:   KN29
Item Type:   LED Strip Aluminium Profile

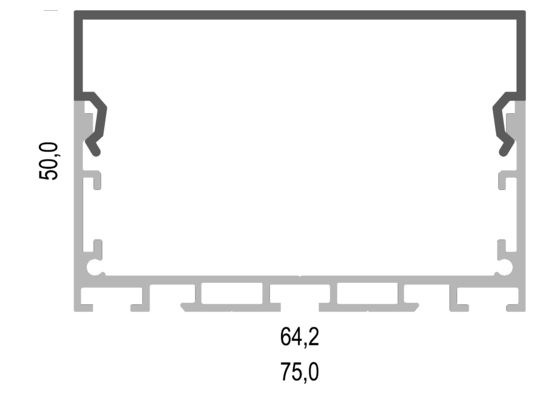

Dimensions:   (W)75.0*(H)50.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 64mm
Material:   6063 T5 Aluminum Alloy

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

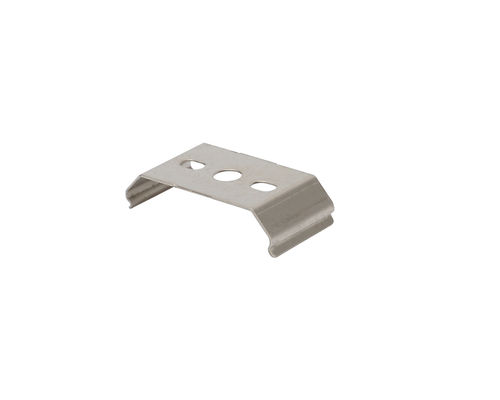

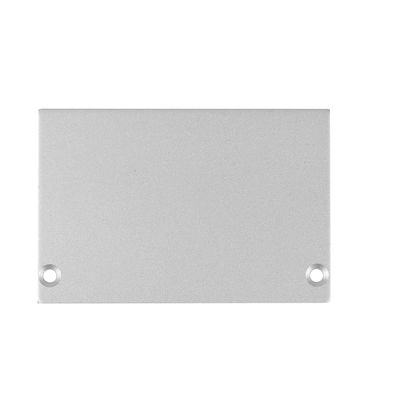

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option



Linear light extrusion 75x50mm with PC cover LED Strip Aluminium Profile 0


Linear light extrusion 75x50mm with PC cover LED Strip Aluminium Profile 1

Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.


Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.
2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.


Q: How to make a led aluminum profile connector?
A: We can offer some kinds of led aluminum profile connectors to you. Of course, some clients can use a soldering machine to connect the led aluminum profile.
