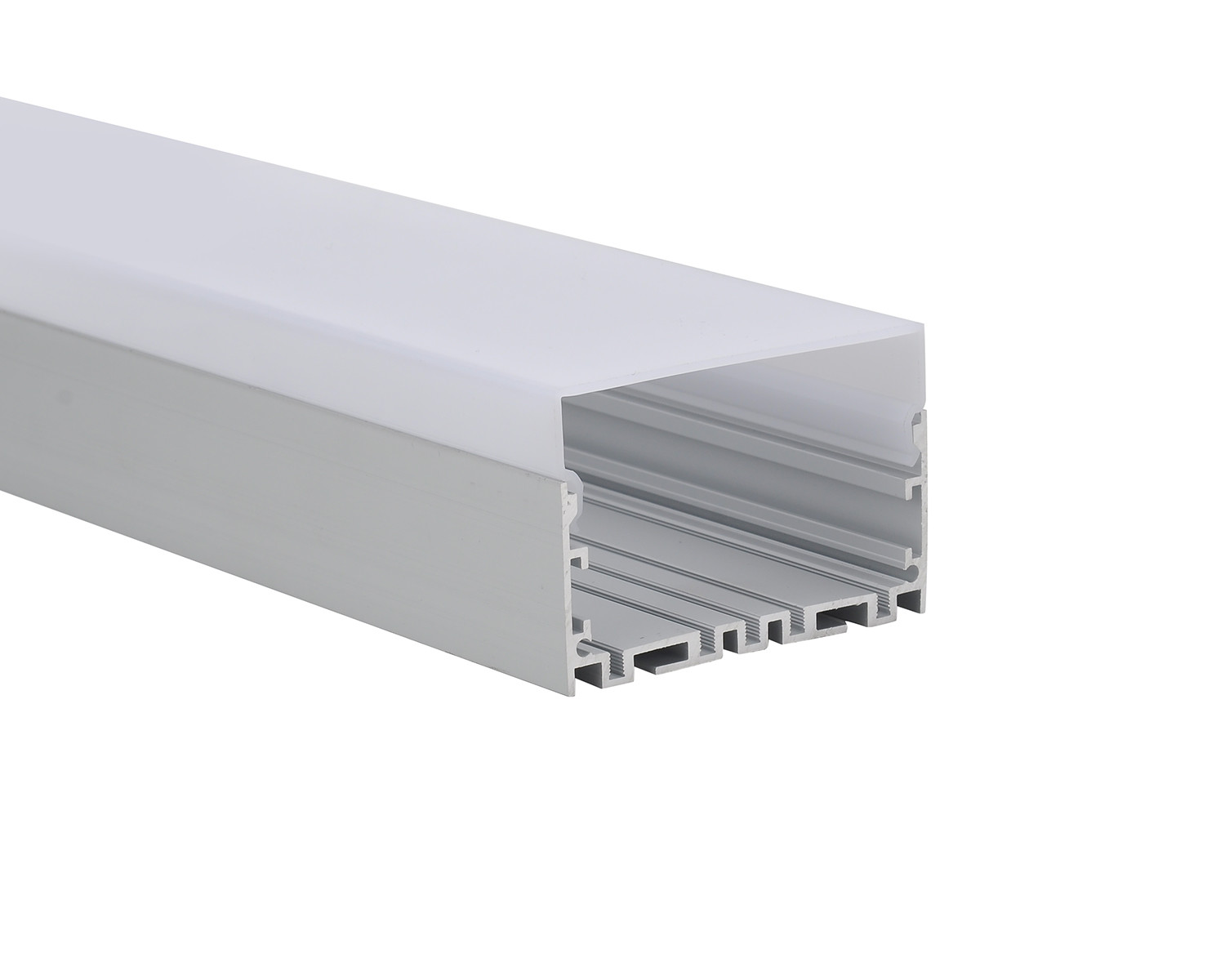

75*50mm Indoor Extrusion Aluminum Profile For Led Strip Lighting

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN37
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC
Color: Frosted Usage: Led Strip Heat Sink
Length: 2m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted, Suspended Dimension: 75*50mm
High Light:

75*50mm led strip light profile

,

75*50mm led tape profile

,

75*50mm led tape channel


Product Description

Indoor Big Size Mount LED Extrusion Pendant LED Strip Aluminum Profile


These surface mounted models presented on our website are suitable to be installed on a ceiling or a wall and some of them also can be suspended. The shape and weight of the aluminum LED profile to play a key role in the heat dissipation of the LEDs. All our models are made from fast heat transferring aluminum


Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly

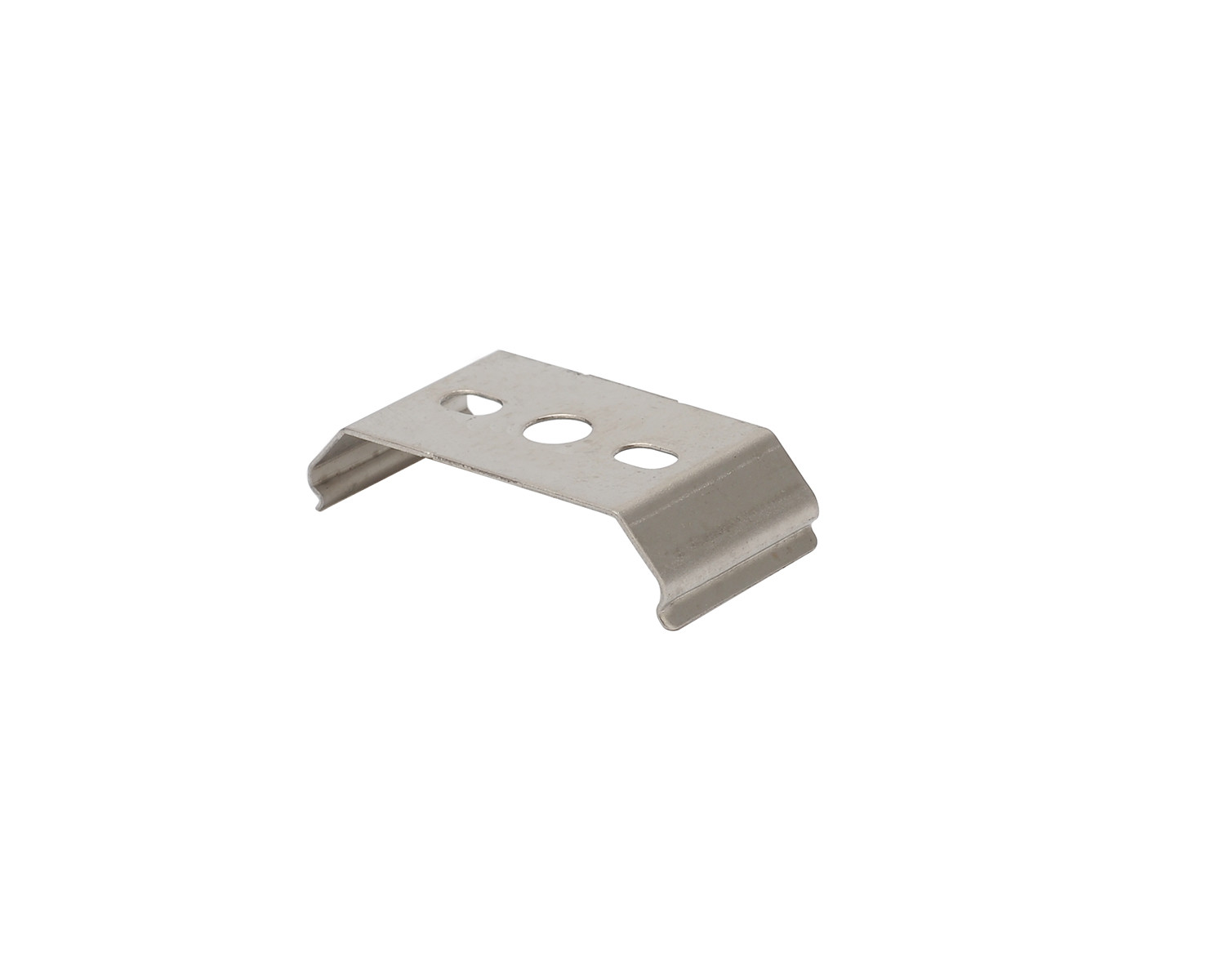

- Mounted to the surface with appropriate mounting clips

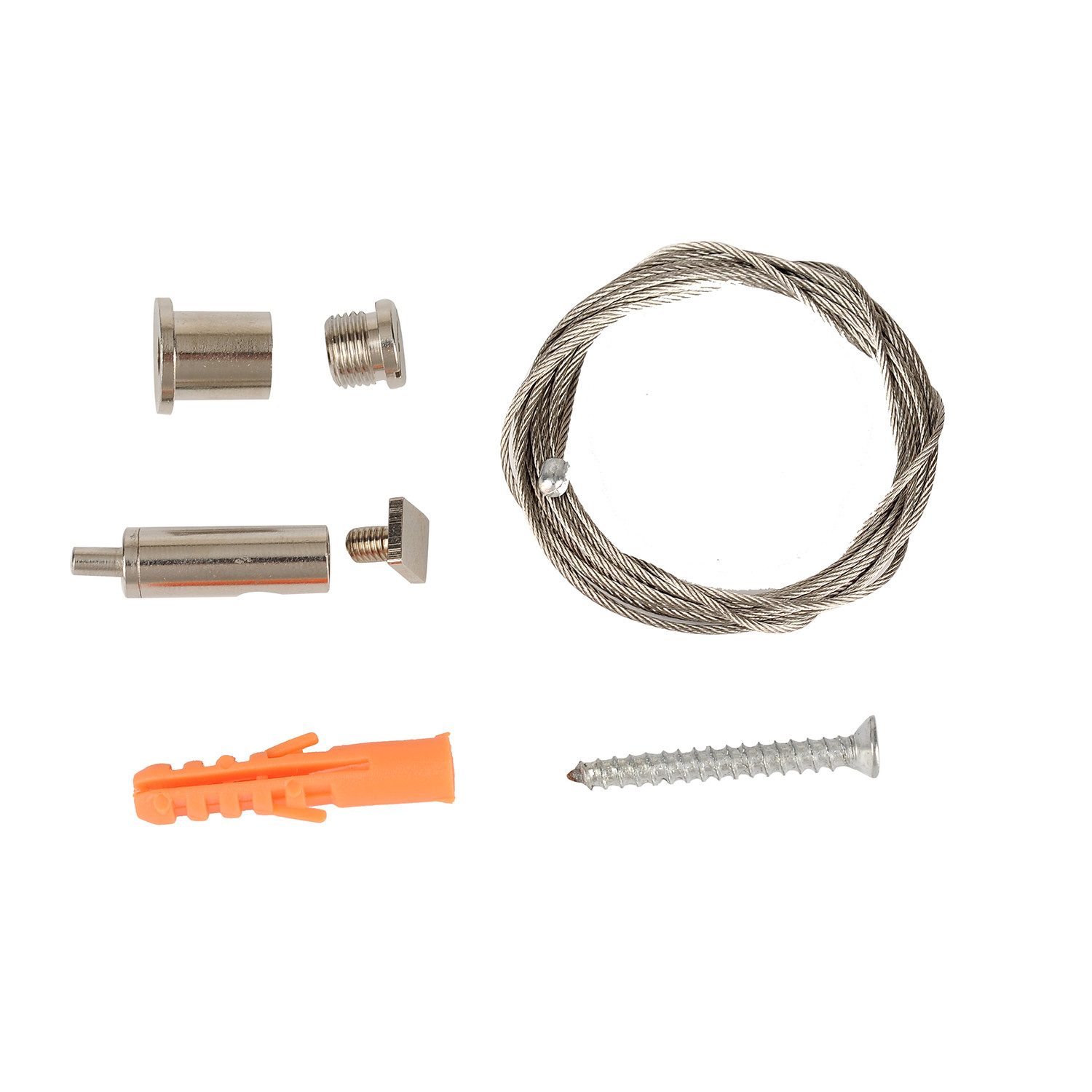

- Suspended with the spring wiring system


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 64mm width

Main Specifications



Model No.:   KN37
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)75.0*(H)50.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 64mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

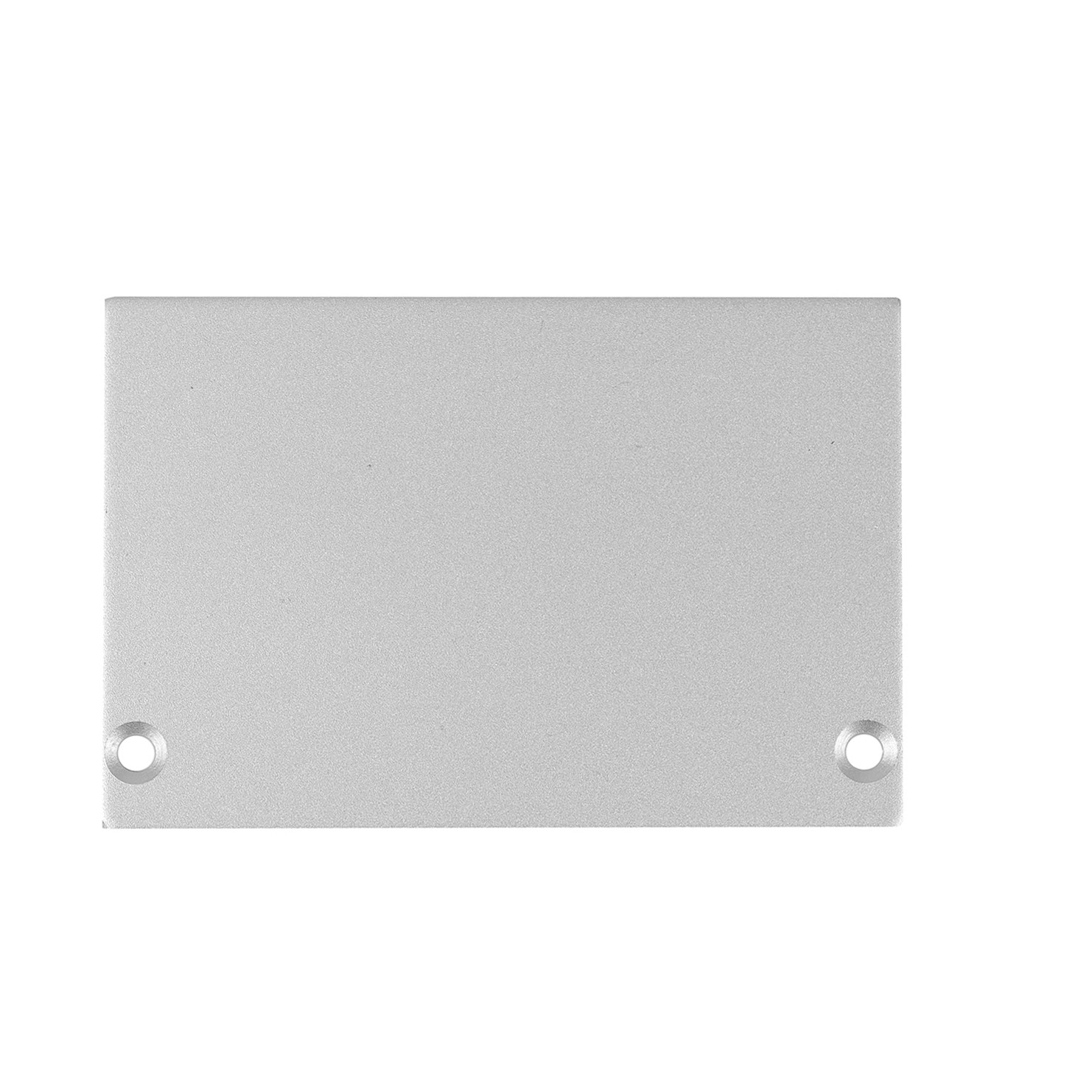

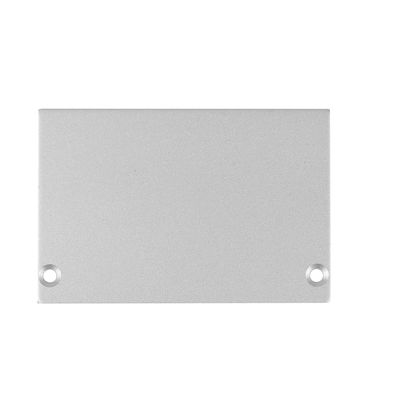

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

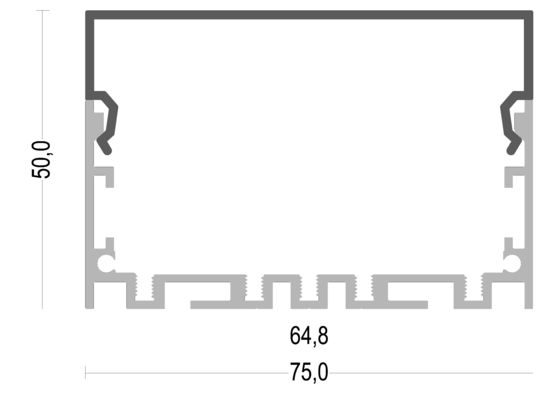

Drawing:


75*50mm Indoor Extrusion Aluminum Profile For Led Strip Lighting 0

Application

75*50mm Indoor Extrusion Aluminum Profile For Led Strip Lighting 1

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.



Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
