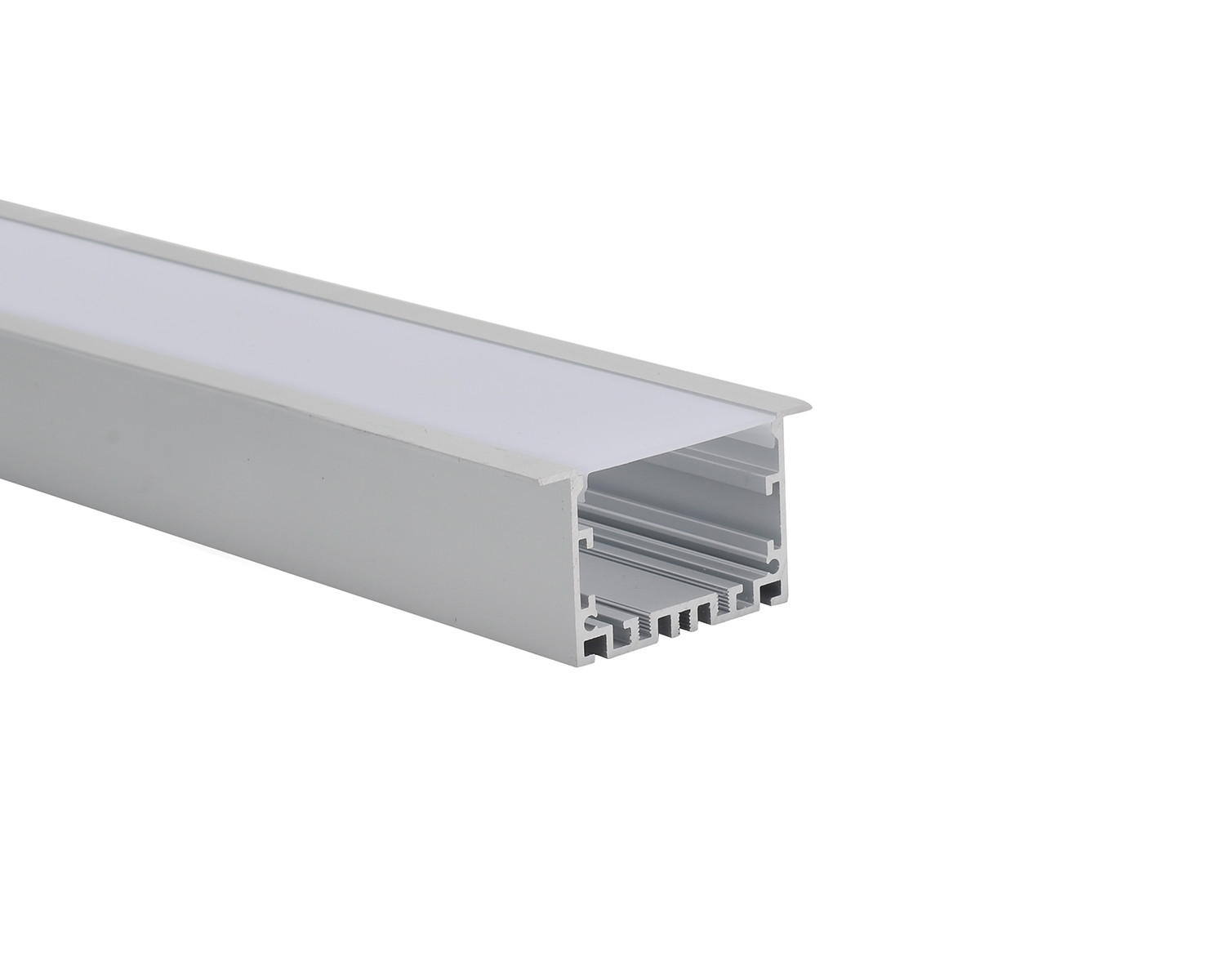

W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN30
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2.5m, 3m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear/Black Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
High Light:

50*35mm led lamp housing

,

35mm PCB Board led aluminum channel

,

35mm recessed led channel diffuser


Product Description

PCB Board Big Power LED Lamp Housing 50*35 Using with Black PC Cover Recessed Aluminum LED Profile
High-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 39.5m width. The profile is performing as the heat sink to the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We have two kinds of pc cover: straight and high pc cover for choosen. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern. Customized services helpping customers for solving lighting solution.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting

- Exhibition booth LED lighting

Assembly
- Mounted to the groove with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 5mm width

Main Specifications


Model No.:   KN30
Item Type:   Recessed Aluminum LED Profile
Dimensions:   (W)64*(H)35mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 39.5mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white

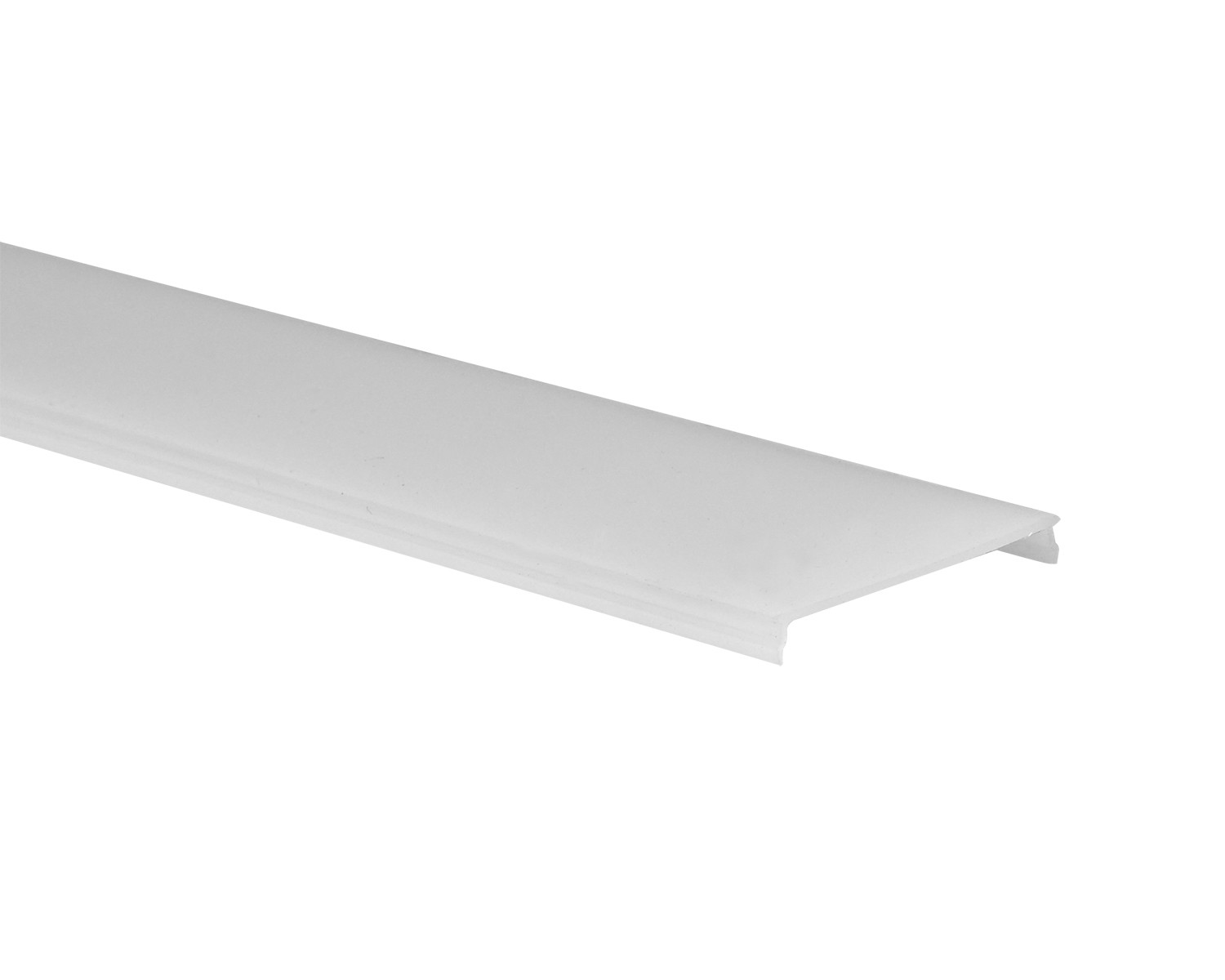

Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black

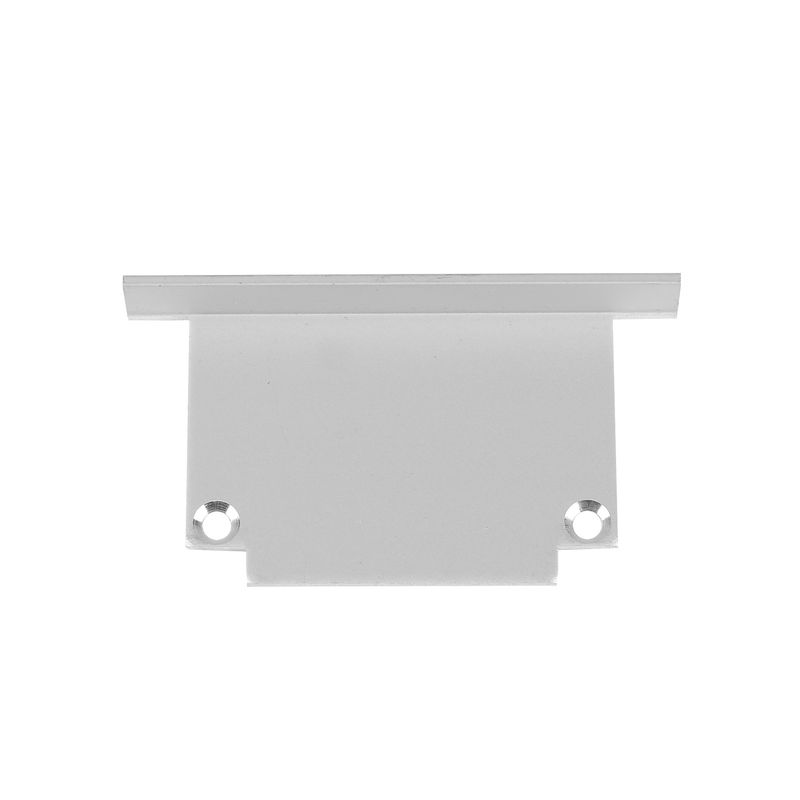

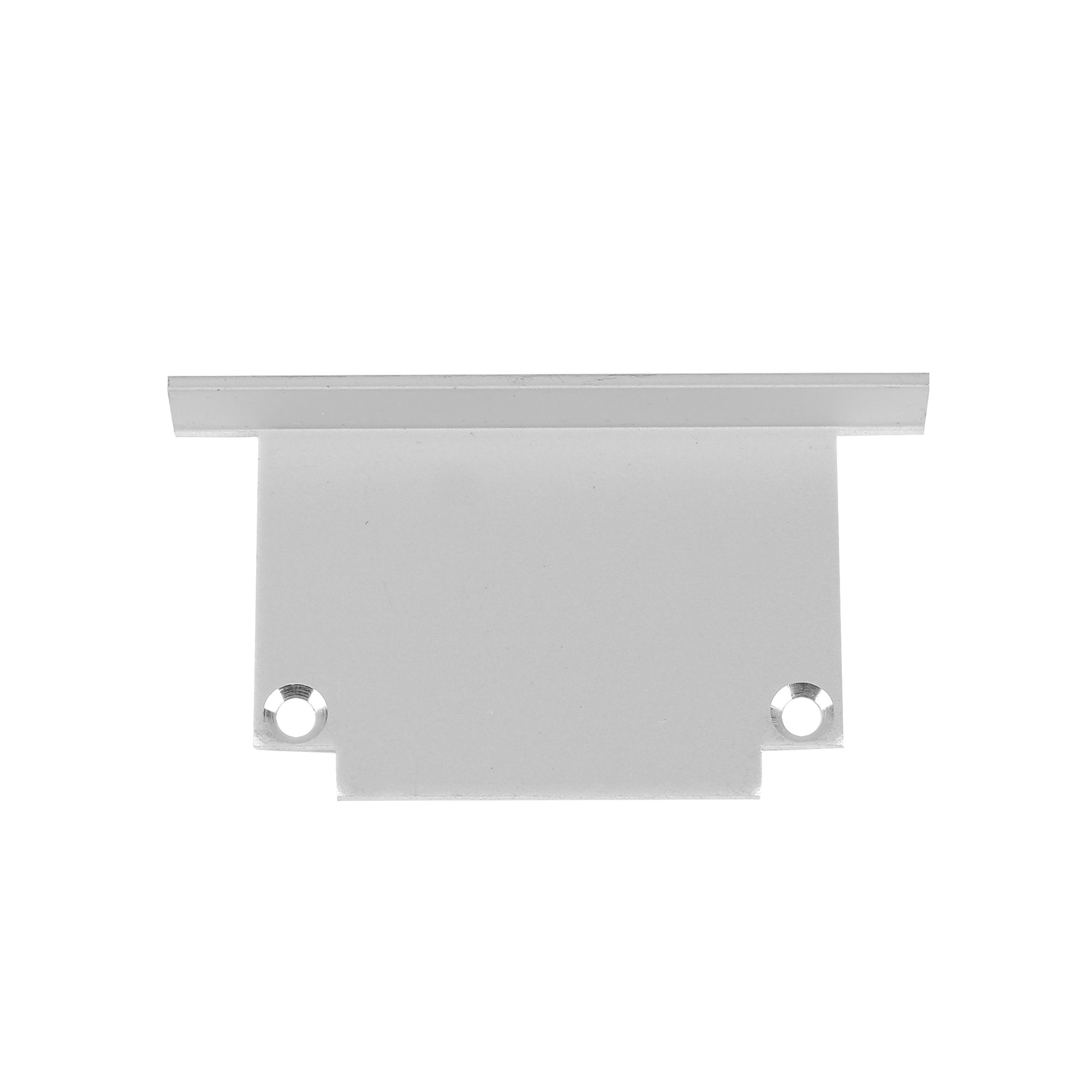

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 0
W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 1
W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 2

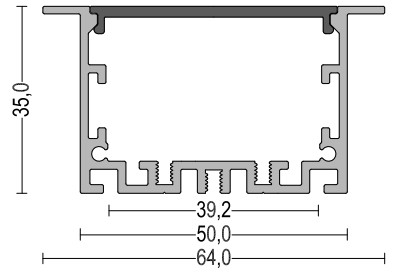

Drawing:
W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 3

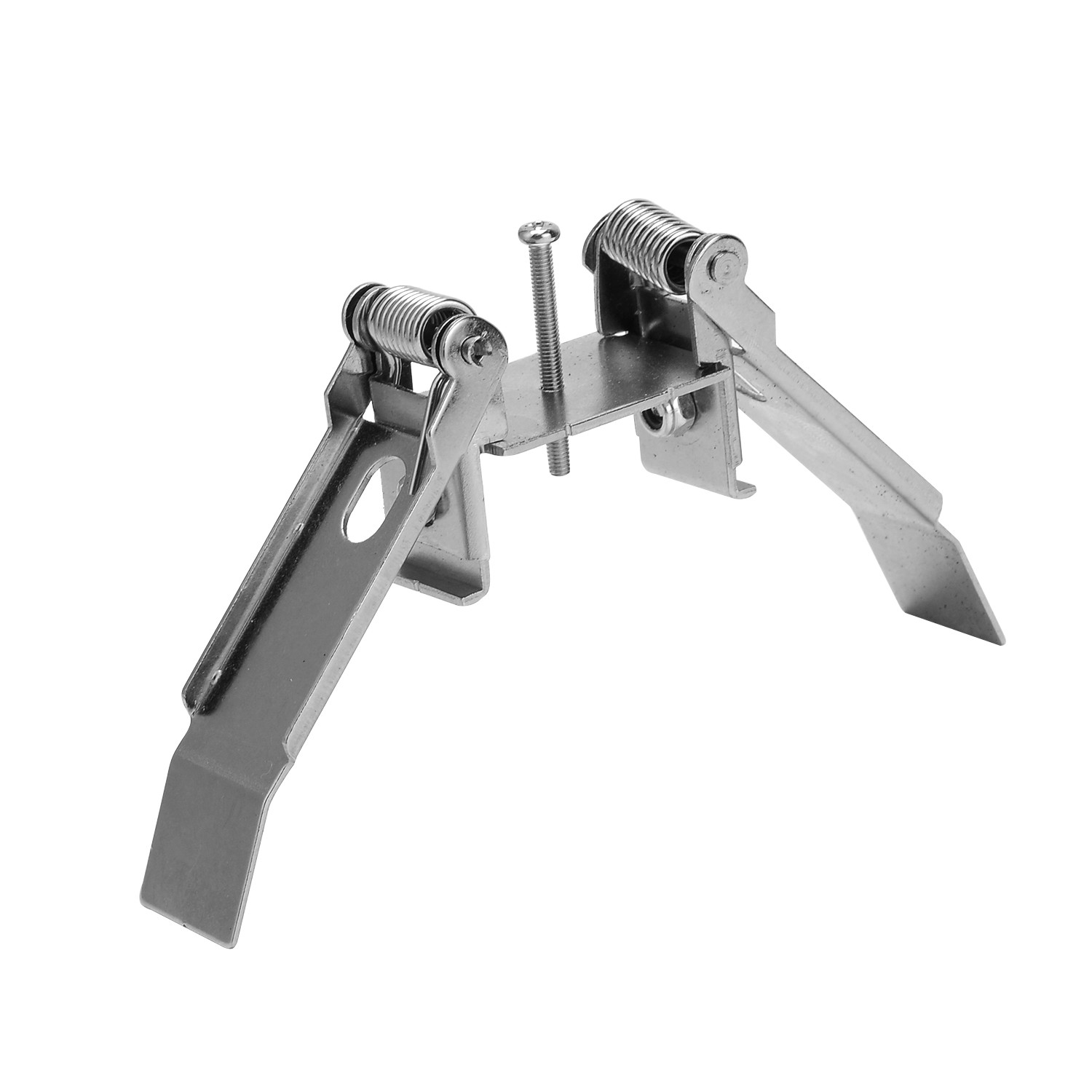

Installation
W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 4

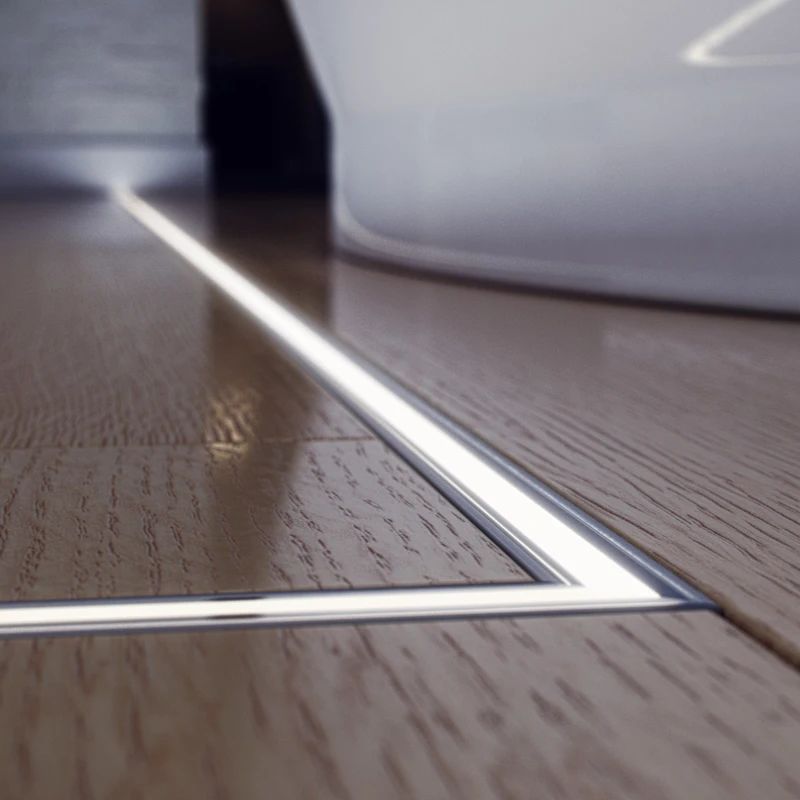

Application

W50*H35mm Recessed Aluminum LED Profile with PC diffuser for linear light 5

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.

Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
