| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KO15 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PC |
|---|---|---|---|
| Color: | Frosted | Usage: | Led Strip Heat Sink |
| Length: | 2m/pcs | Finished Color: | Silver, Black, White |
| Packing: | PE Bag + Carton | Installation: | Surface Mounted |
| High Light: | 6063 t5 led extrusion channel,12mm Mounted led strip light extrusion,12mm led strip cover diffuser |
||

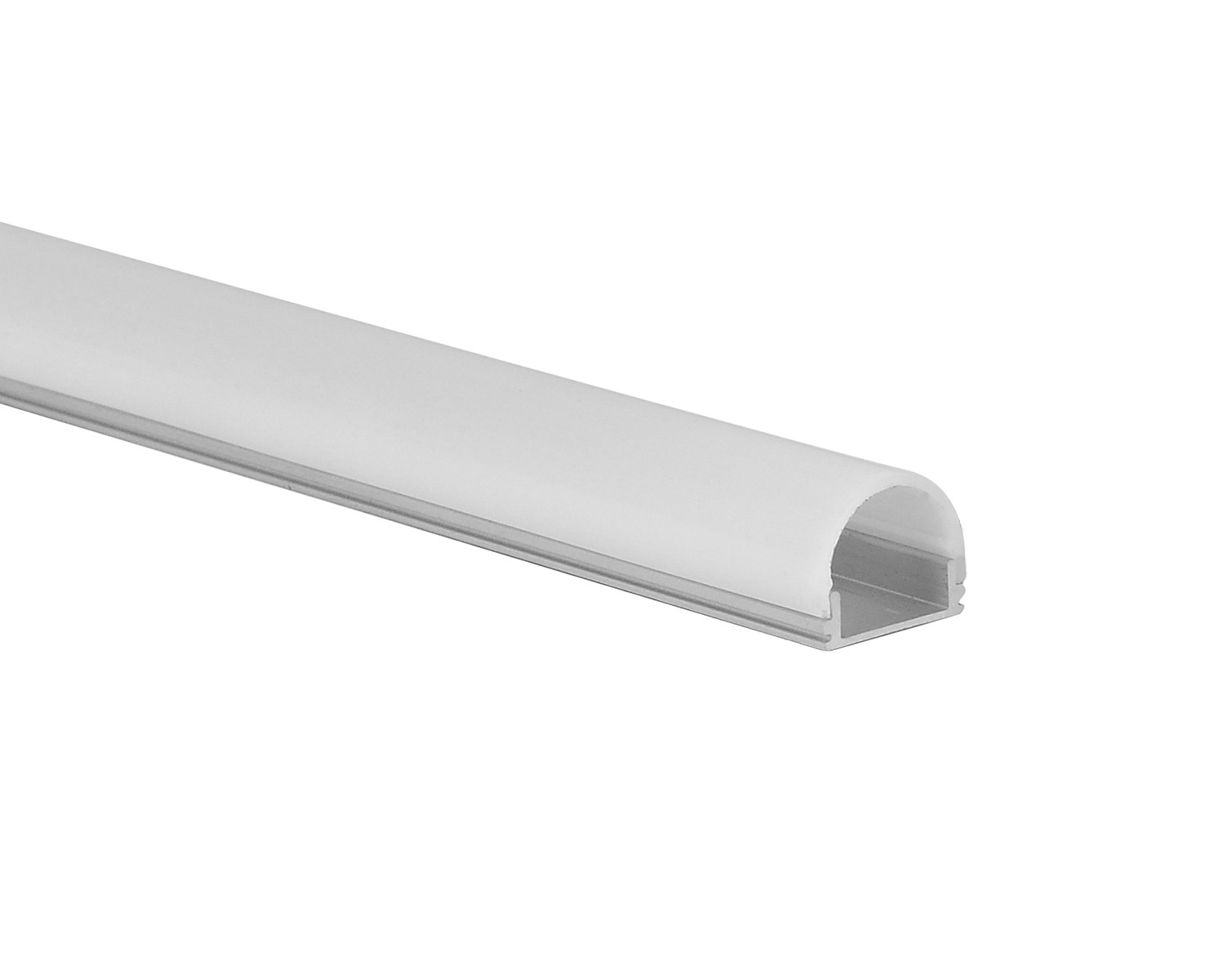

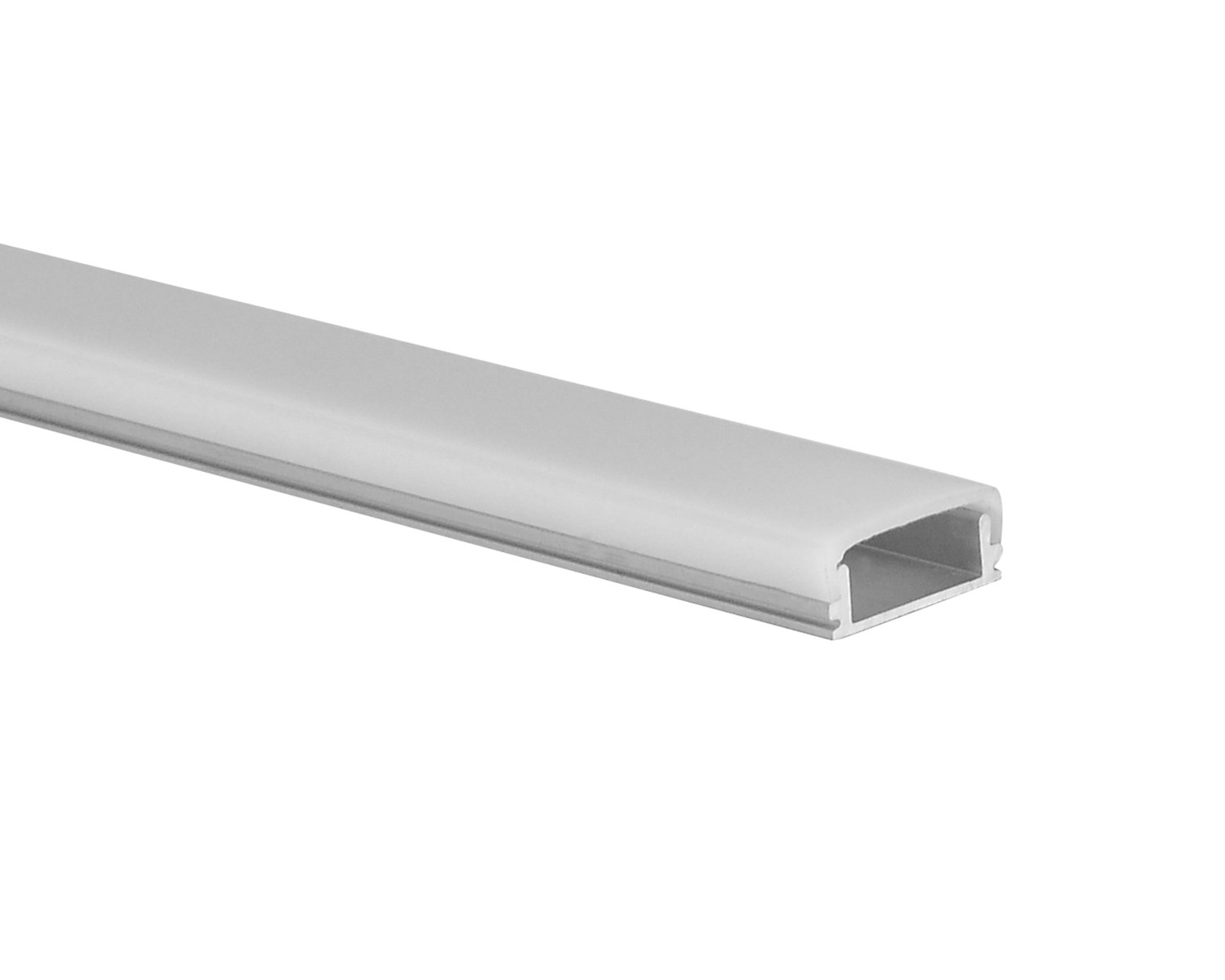

Mounted LED Channel Extrusion LED Strip Aluminum Profile Housing
The LED strip profiles have a favorable effect on the life of your LED strips. Led strips can be applied to different substrates and types of surfaces, the better a surface insulates, the less well the LED strips can lose their heat. And the better the LED strips can lose their heat, the longer the LED strip will last. LED strips lose the heat better and more efficiently through the aluminum in the profile.
Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 12mm width
Main Specifications
| Model No.: | KO15 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)16.0*(H)5.1 mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

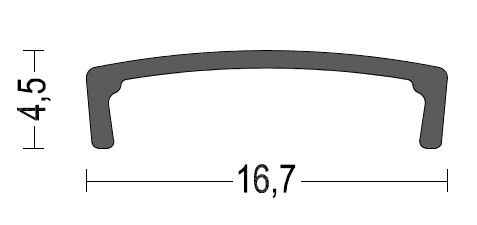

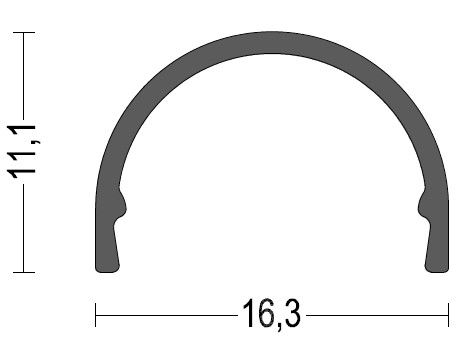

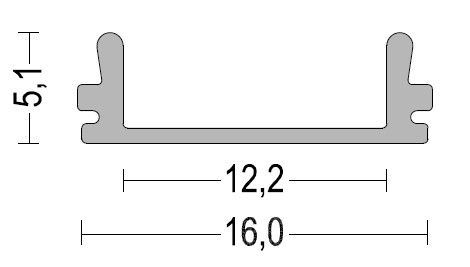

Drawing:
Installation
Application
FAQ:
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: How to choose the high quality led aluminum profile?
A: 1. For the same design, the weight higher, the quality will better.
2. Check the vision, the vision will, surface oxidation good, no scratches. Then the quality will good.
3. The cover light transmittance higher, then the quality good.
4. The end cap fits the led profile, then the quality good.
Q: How to use the led aluminum profile with led strip light?
A: 1. Cut the right side of the led aluminum profile.
2. Stick the led strip light into the led aluminum profile.
3. Fixed the cover and end cap of the led aluminum profile.
4. Fixed the led aluminum profile to where you want to install.
5. Connect the Led linear light power supply with led strip light.
