|Place of Origin:||Guangdong China|
|Minimum Order Quantity:||100meters|
|Packaging Details:||Inner Clear PE bag+EPE FOAM+Carton Box|
|Delivery Time:||3-10 work days|
|Payment Terms:||T/T, Western Union, L/C|
|Length:||Standard 2m, 2.5m Or Max.6m On Request||Indstallation:||Mounted|
|Material:||6063 T5 Aluminum Alloy||Diffuser:||PMMA/PC, Opal/Frosted/Clear|
|Packing:||PE Bag + Carton / Customized Package||IP Rate:||IP44|
20mm Oval aluminum profile for led light,
20mm Oval lightbox aluminium profile,
20mm profile for led strip lights

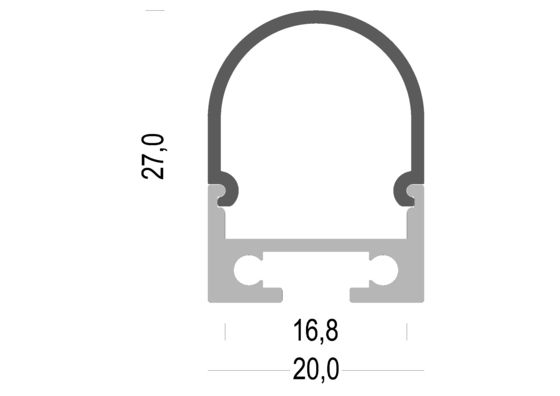

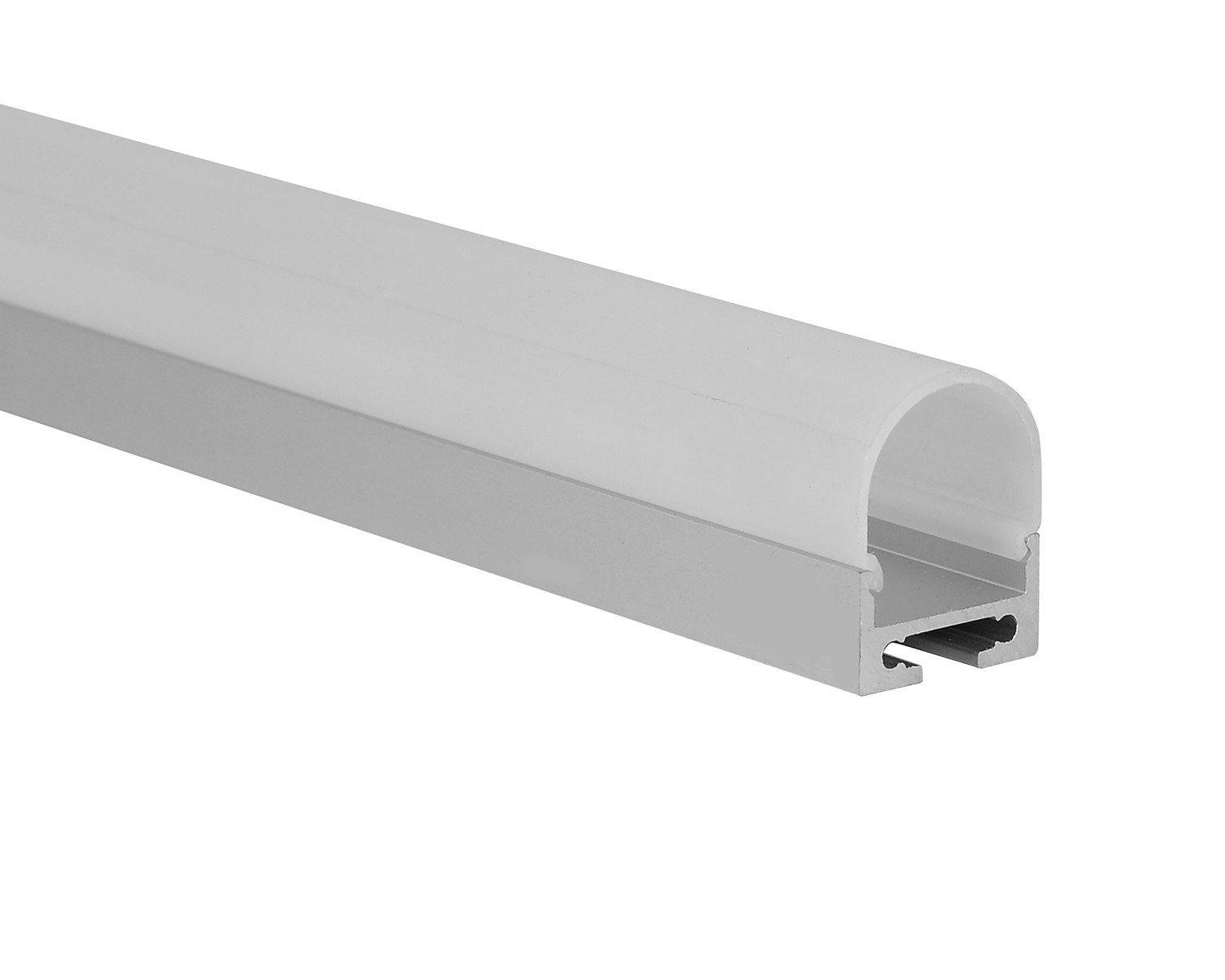

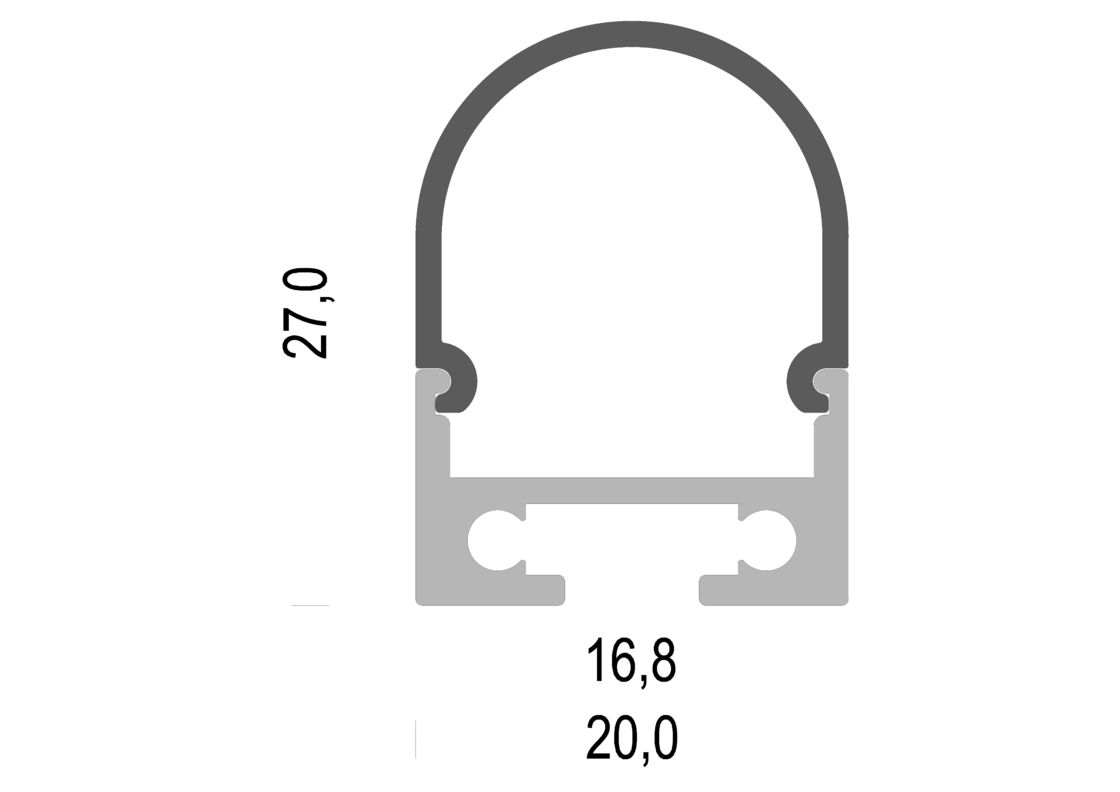

20mm Wide Oval Shape Surface Mounting LED Strip Aluminium Profile
High quality anodized LED aluminum profiles do not rust due to anodizing and are suitable for indoor use as well as indoor bathrooms, kitchen interiors, and outdoor use. The covers, ie diffusers, are of high quality and UV protected. The opal “milk glass” lid better fades the ledges and smoothes light and prevents reflections from the shiny work surface. The clear lid allows all light to pass through. indirect lighting and just want to protect the tape from dust.
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting

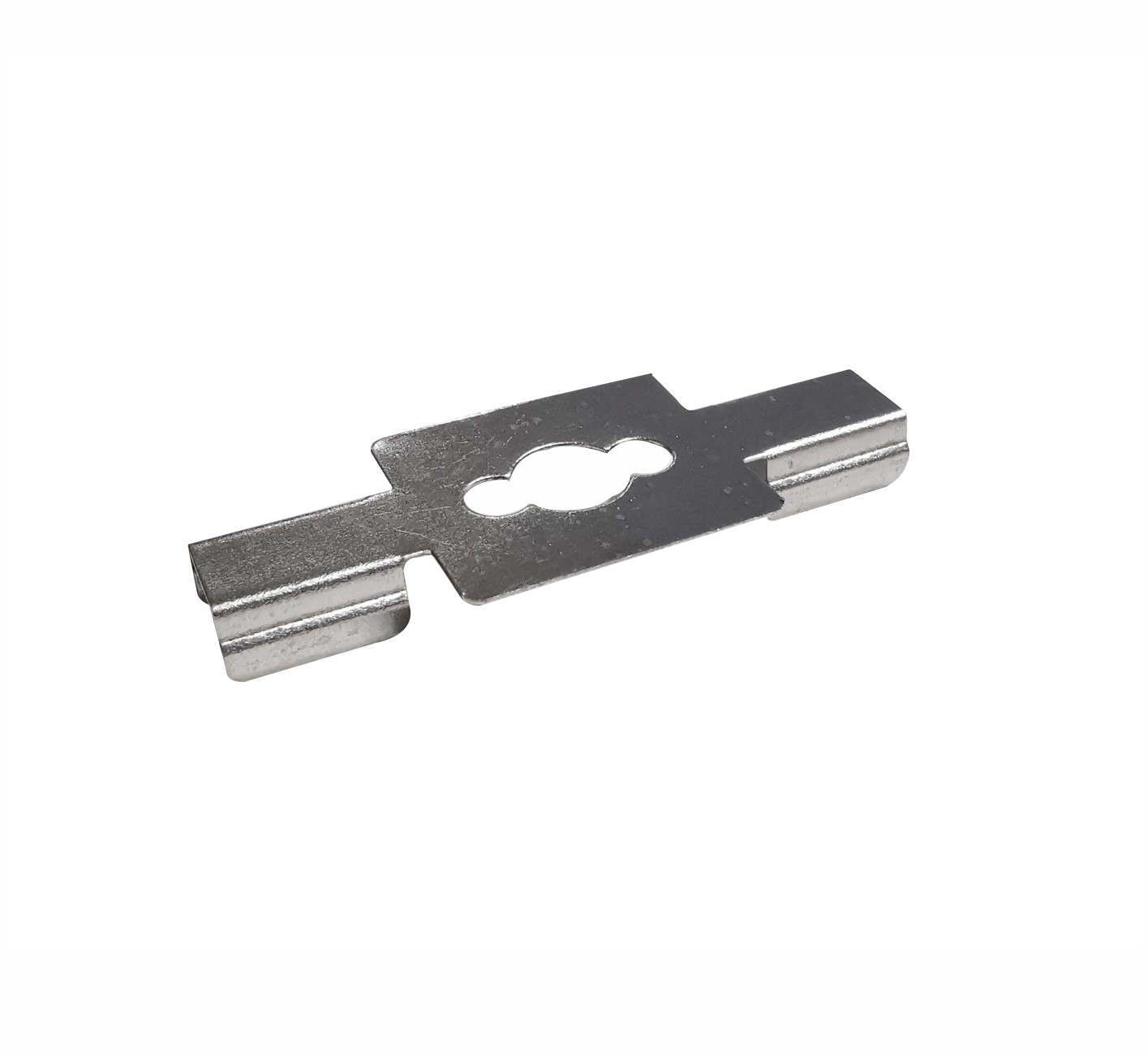

- Mounted to the surface with appropriate mounting clips
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 16mm width
|Item Type:||LED Strip Aluminium Profile|
|Customized-length:||Available on request|
|Suitable for led strip:||PCB width up to 16mm|
|Material:||6063 T5 Aluminum Alloy|
|Finished color:||Silver, black, white|
|Diffuser finished:||Opal/Frosted/Clear/ Black|

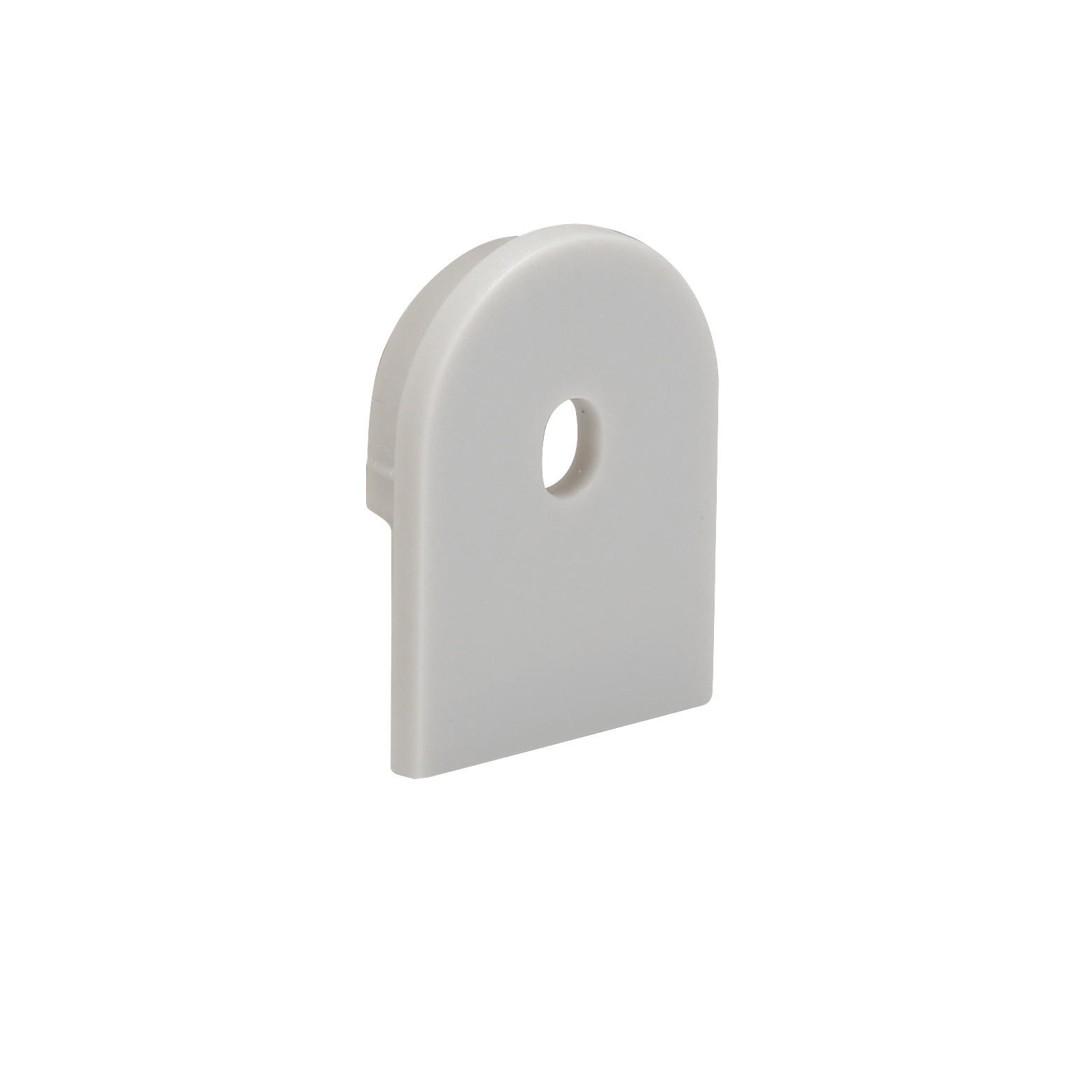

|Accessories:||End caps, clips|
|Standard Package:||Inner Clear PE bag+EPE FOAM+Carton Box|
|Customized Package:||Available on request|
|Handling time|| Samples within 3 working days|
Batch order 3-15 working days upon stocks
|Shipment||By sea, by air, by express for option|

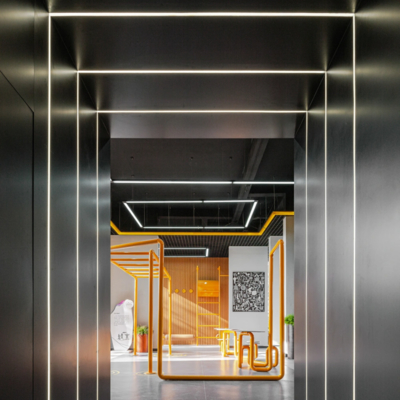

Installation(suspending and surface mounted)
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.
Q: How to choose the high quality led aluminum profile?
A: 1. For the same design, the weight higher, the quality will better.
2. Check the vision, the vision will, surface oxidation good, no scratches. Then the quality will good.
3. The cover light transmittance higher, then the quality good.
4. The end cap fits the led profile, then the quality good.
Q: How to use the led aluminum profile with led strip light?
A: 1. Cut the right side of the led aluminum profile.
2. Stick the led strip light into the led aluminum profile.
3. Fixed the cover and end cap of the led aluminum profile.
4. Fixed the led aluminum profile to where you want to install.
5. Connect the Led linear light power supply with led strip light.
