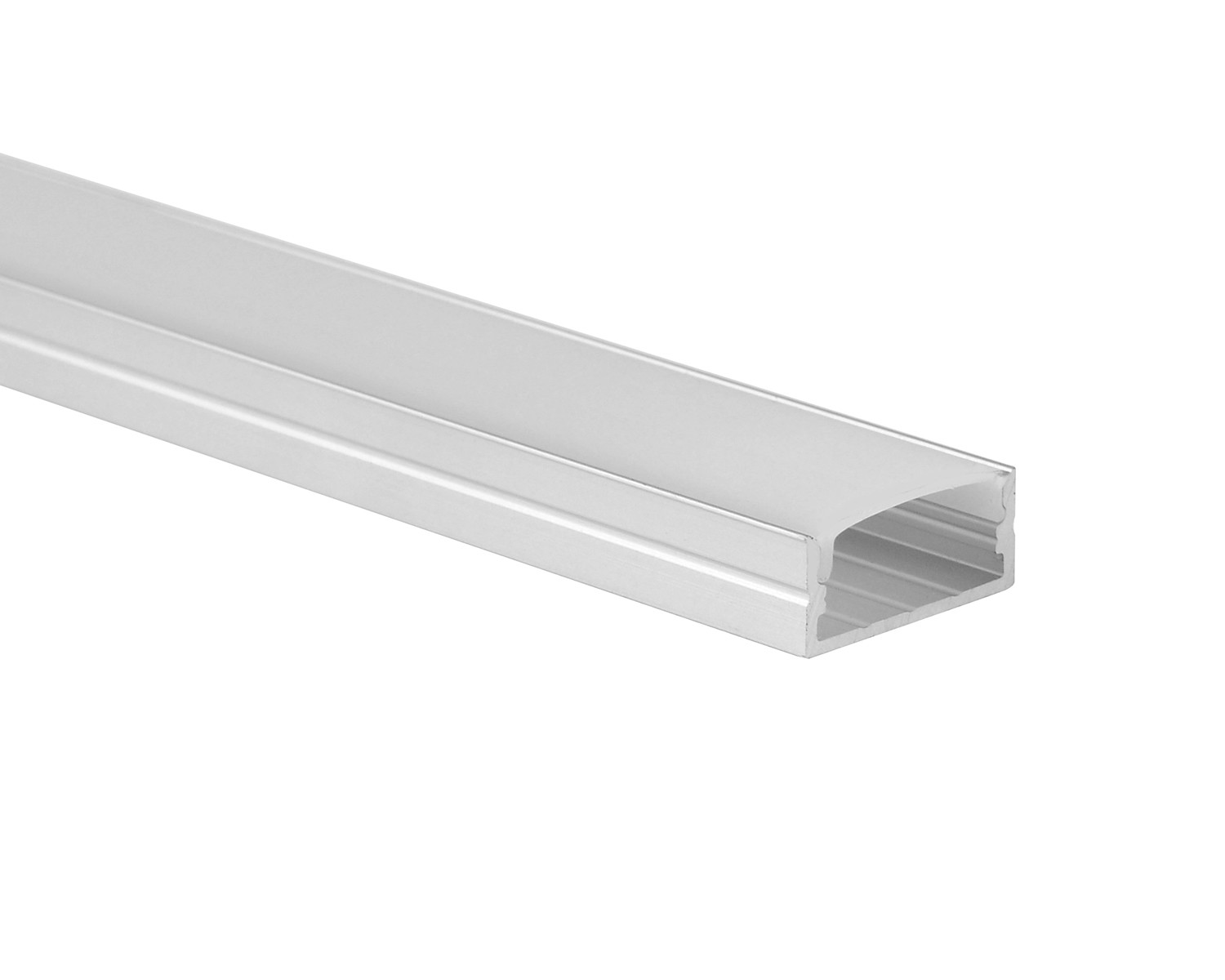

Width16*High6mm Flat Mounted LED Strip Aluminium Profile with PC diffuser Cover

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K38
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Flat Treatment: Sandblasting Oxidation
High Light:

K22 LED Strip Aluminium Profile

,

16*6mm LED Strip Aluminium Profile

,

16*6mm led strip light extrusion


Product Description

Wide Flat Mounted LED Strip Aluminium Profile And PMMA Opal Cover


LED aluminum profiles are available in many different designs and styles: different depths, widths, and shapes as well as simple designs. All LED aluminum profiles are available in three different color shades. With high-quality, low-cost aluminum profiles, the installation of the LED strip is easy and the LED aluminum profiles clean the installation neatly.



Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting


Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 20 mm width

Main Specifications


Model No.:   K22
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)16*(H)6mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 10mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black

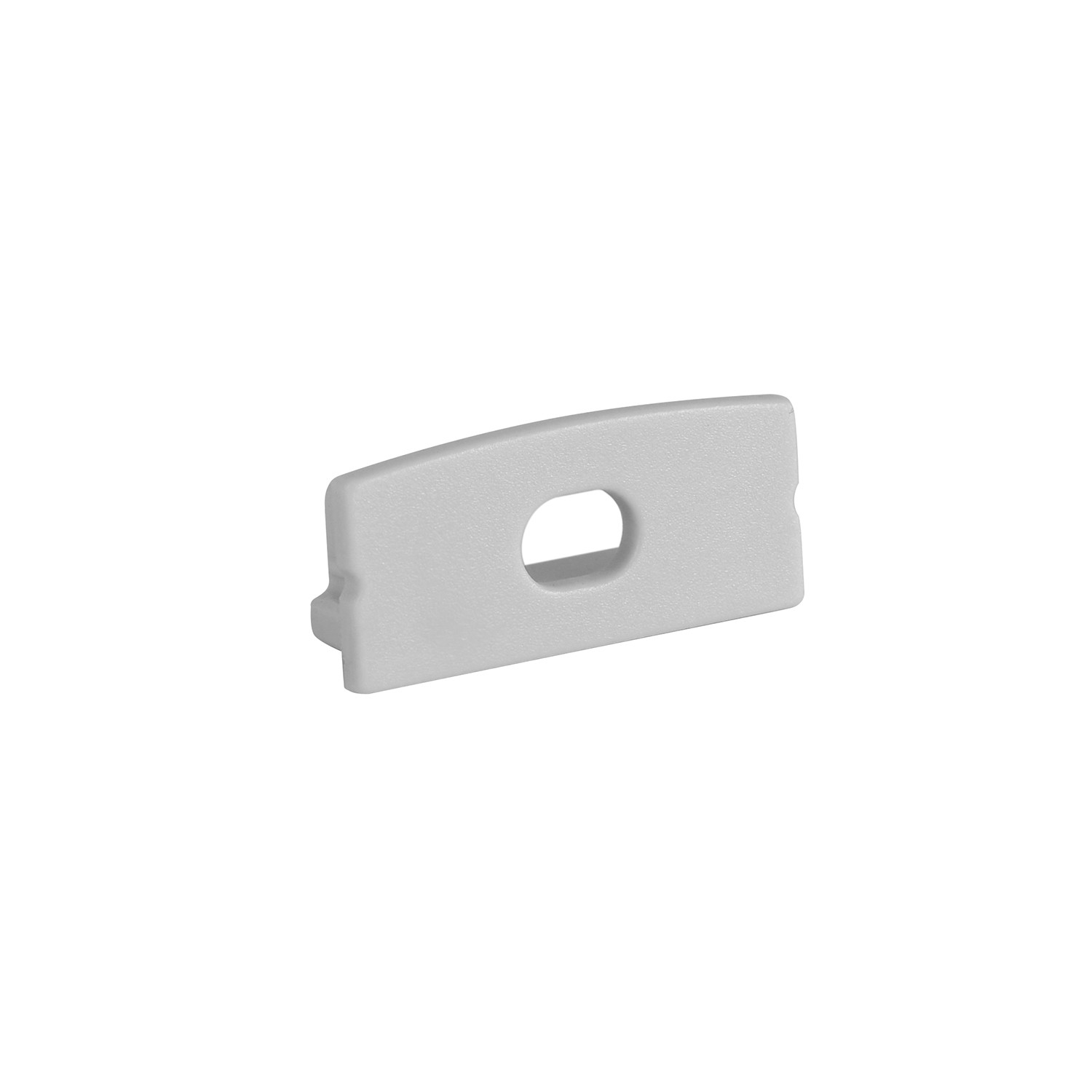

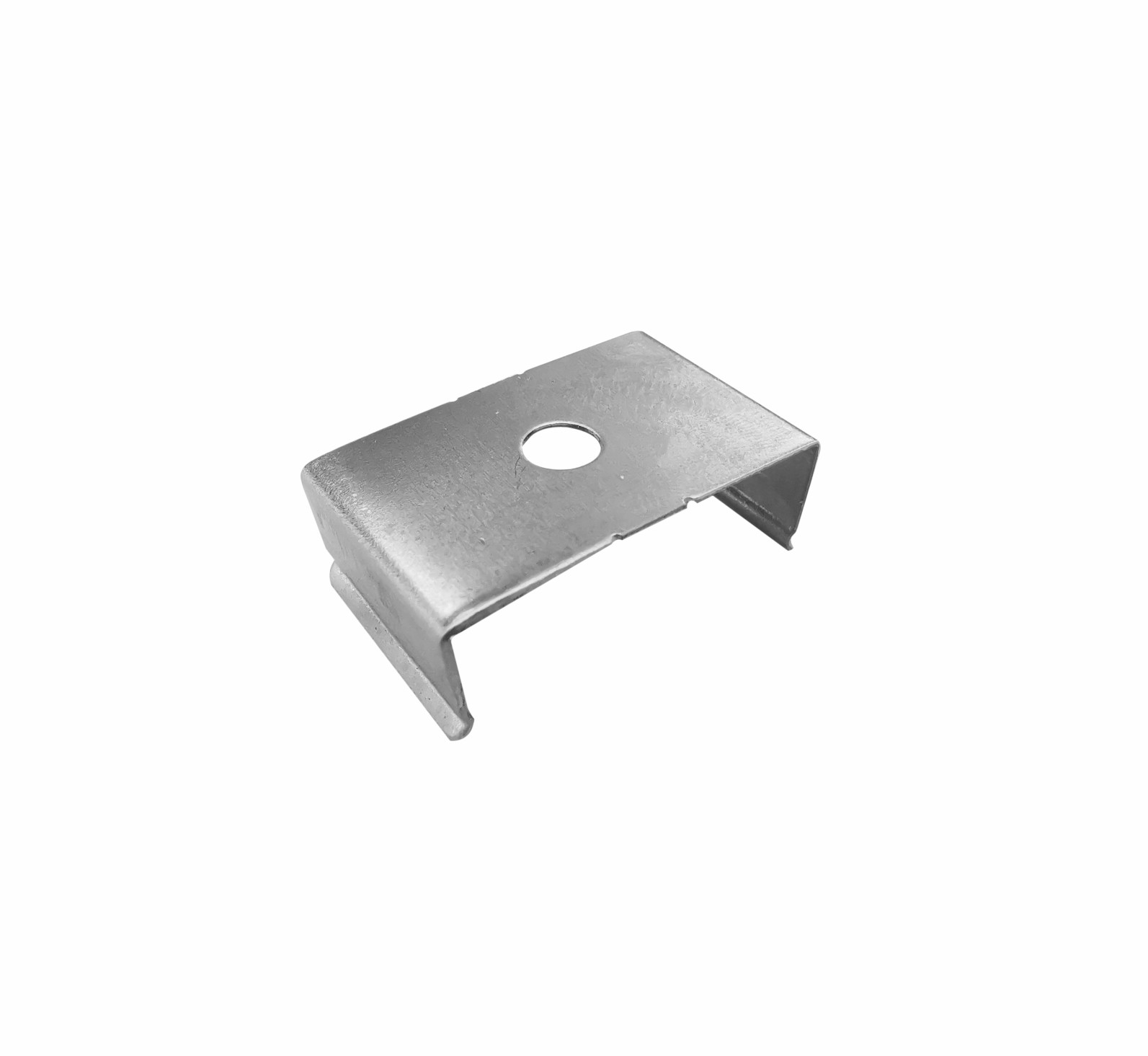

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

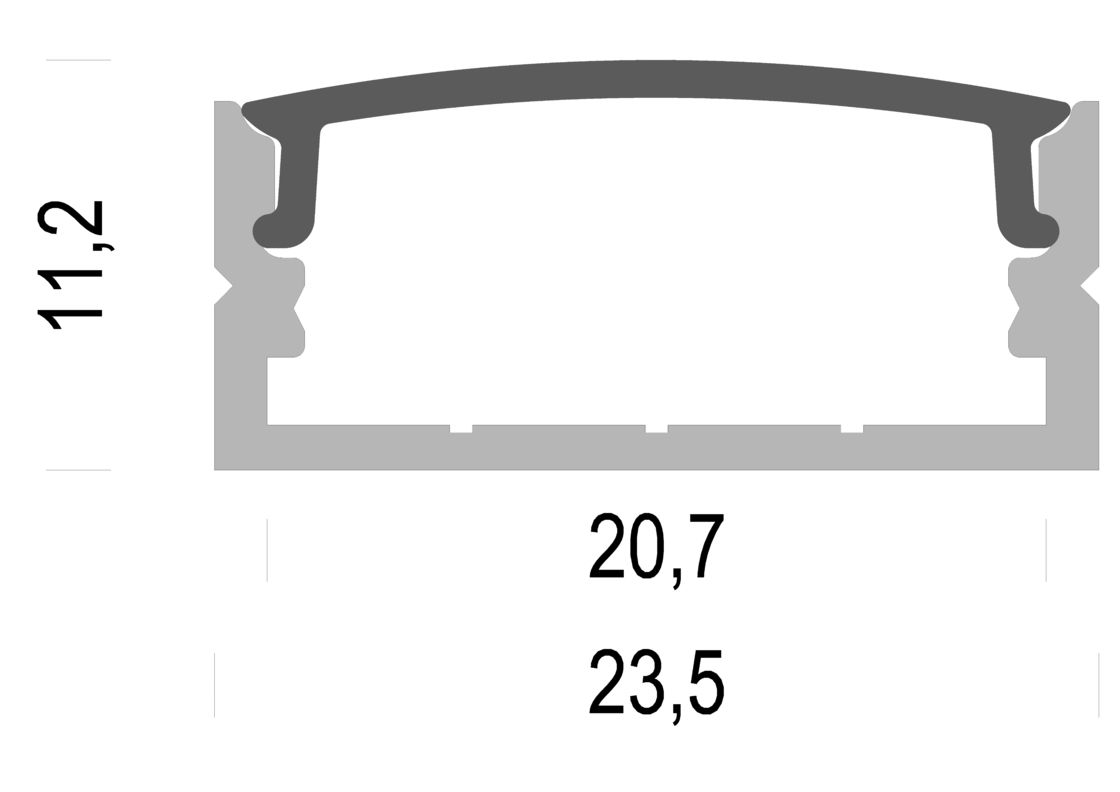

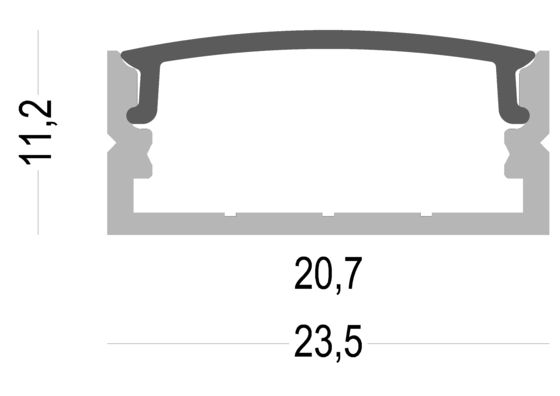

Drawing:
Width16*High6mm Flat Mounted LED Strip Aluminium Profile with PC diffuser Cover 0

Installation
Width16*High6mm Flat Mounted LED Strip Aluminium Profile with PC diffuser Cover 1

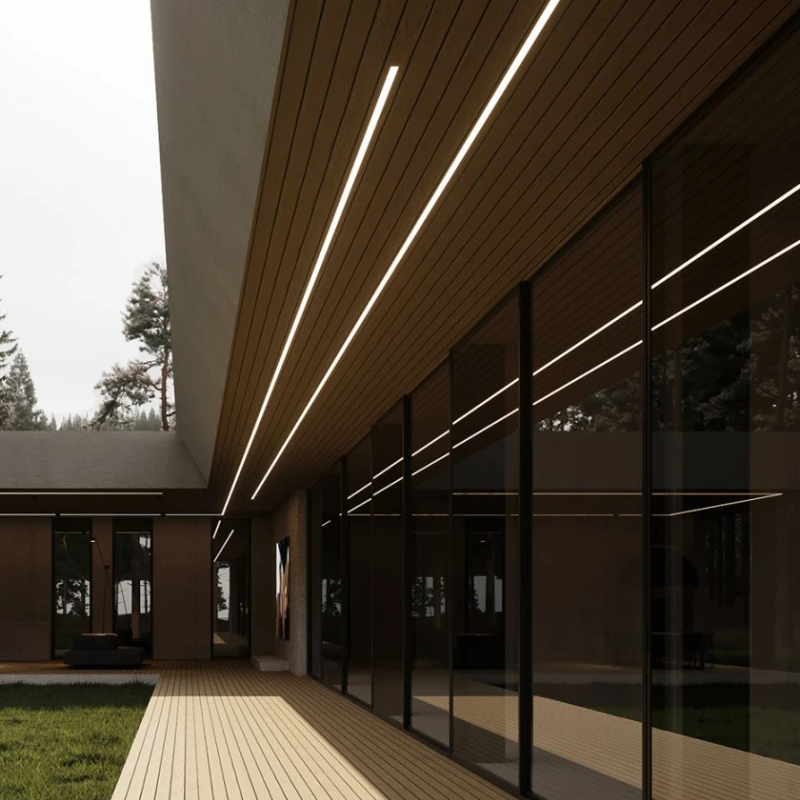

Application

Width16*High6mm Flat Mounted LED Strip Aluminium Profile with PC diffuser Cover 2

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.


Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
