| Place of Origin: | China,Guangdong |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS,SGS,TUV,Glow-wire test |
| Model Number: | K17 |
| Minimum Order Quantity: | 100 Meters |
| Price: | $1.31 |
| Packaging Details: | Pearl cotton inside , carton for outsdie packing with 4 cornor protection |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 100000.0 Meter/Meters per Month |
| Warranty(Year): | 3-Year | Lighting Solutions Service: | According To Your Requirement |
|---|---|---|---|
| Style: | LED Aluminum Profile | Produce Name: | Aluminium Led Profile |
| Size: | H17mm*W9mm | Function: | Decorative Illumination |
| IP Grade: | IP20 | Installation: | Surface Mounted |
| Usage: | Pcb Width Within 8mm | AL Material: | Aluminum 6063-T5 |
| Cover Material: | PC,PMMA | IP Rate: | IP20 |
| Cover Colors: | Opal, Semi-clear, Clear | Port: | SHEKOU OR YANTIAN |
| Highlight: | 6063 Anodized Aluminium Led Profile,IP20 Aluminium Led Profile,PC PMMA Led Profile Channel |
||

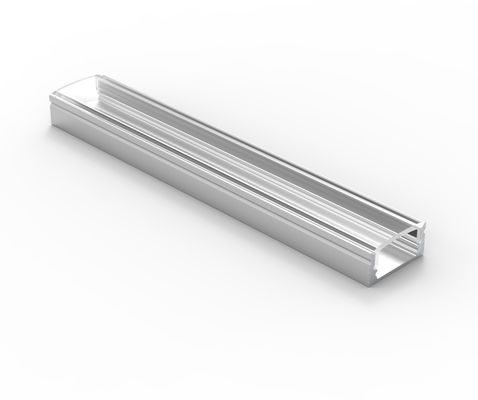

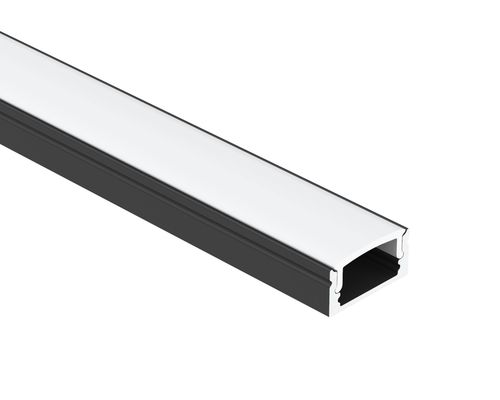

Slim 9mm is a surface mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffuser: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern
| Main Specifications | |
| Model No.: | K17 |
| Item Type: | LED Strip Aluminium Profile |

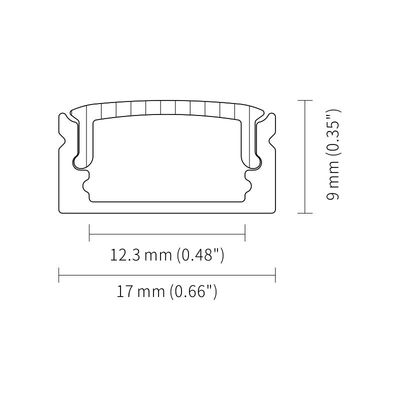

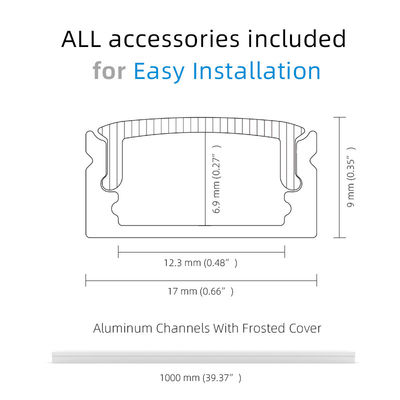

| Dimensions: | (W)17*(H)9 mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12.3mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PMMA/PC |
| Diffuser finished: | Opal/Frosted/Clear/ Black |
| Accessories: | End caps, clips |

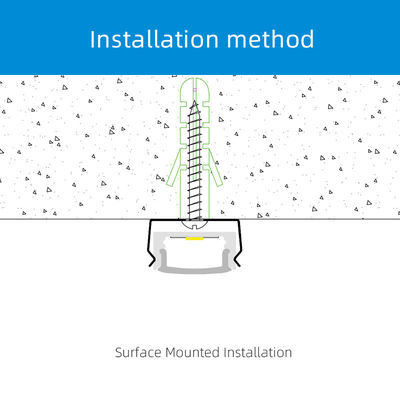

| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time: | Samples within 3 working days |
| Batch order: | 3-15 working days upon stocks |
| Shipment : | By sea, by air, by express for option |
|
