Led Aluminium Channel W75*H35mm For Led Strip Aluminum profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN28
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Usage: Led Strip Heat Sink Length: 2m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted, Suspended
Dimension: Width75*High35mm No.: KN28
High Light:

75x35mm led channel diffuser

,

6063 t5 led strip mounting channel

,

6063 t5 led channel diffuser


Product Description

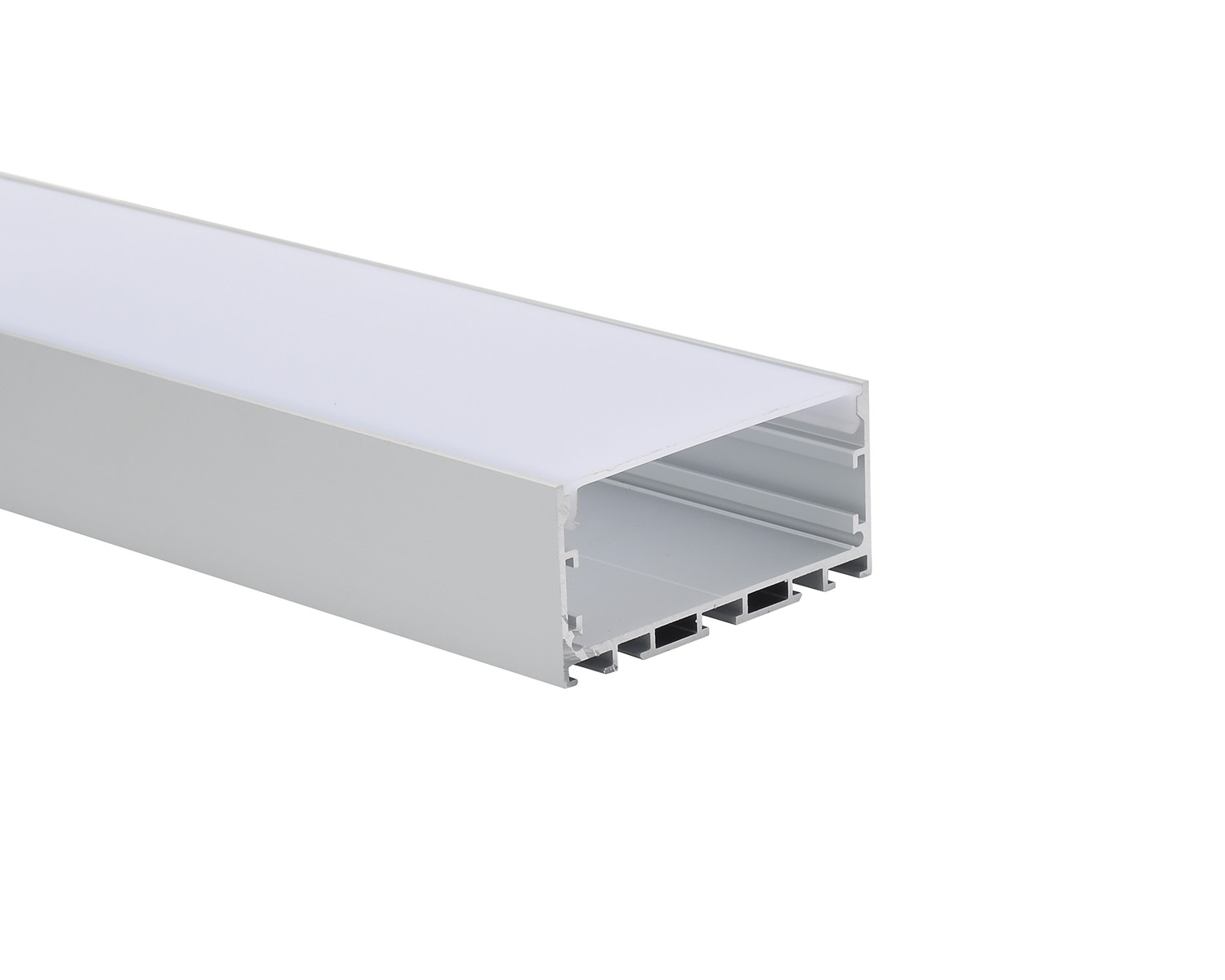

75x35mm Office decoration LED lighting LED Strip Aluminum Profile

An LED Extrusion profile is a type of casing designed to fit around strip lighting. Using an LED aluminium profile allows the strip lighting to look more ‘finished’ than it would on its own. It can also prevent your LED strip lighting from getting damaged, as it protects from dust and other harmful materials like water, although the casing isn’t fully waterproof.

Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 64mm width

Main Specifications


Model No.:  KN28
Item Type:  LED Strip Aluminium Profile
Dimensions:  (W)75.0*(H)35.0mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 64mm
Material:  6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PC
Diffuser finished:  Frosted

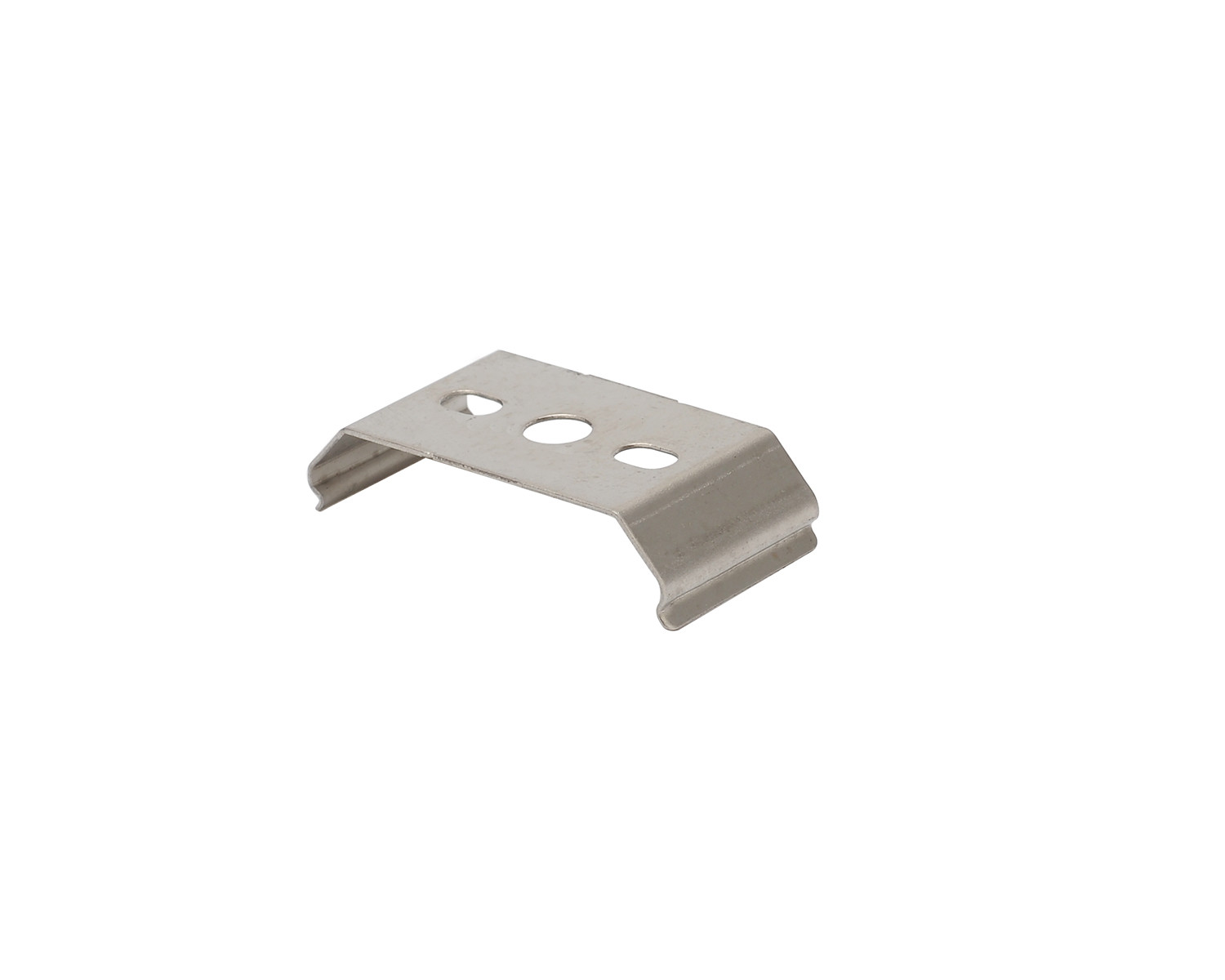

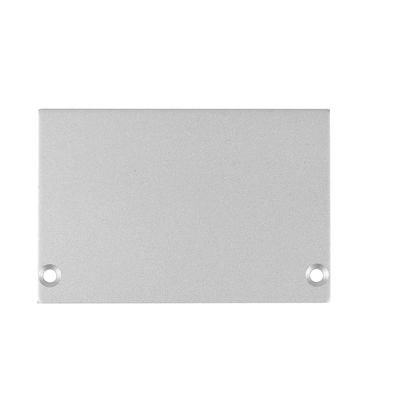

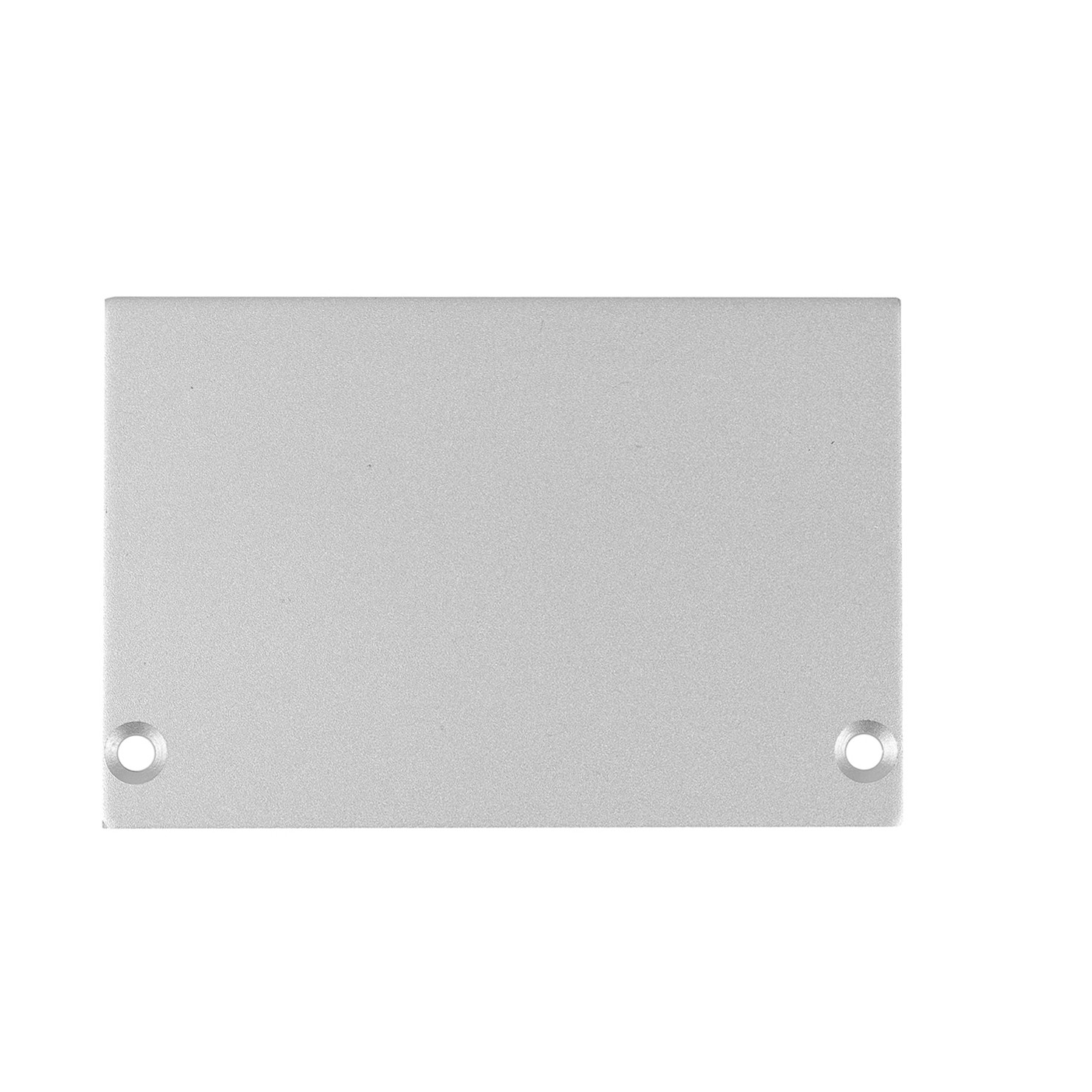

Accessories:  End caps, clips
Installation:  Surface-mounted, suspended
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

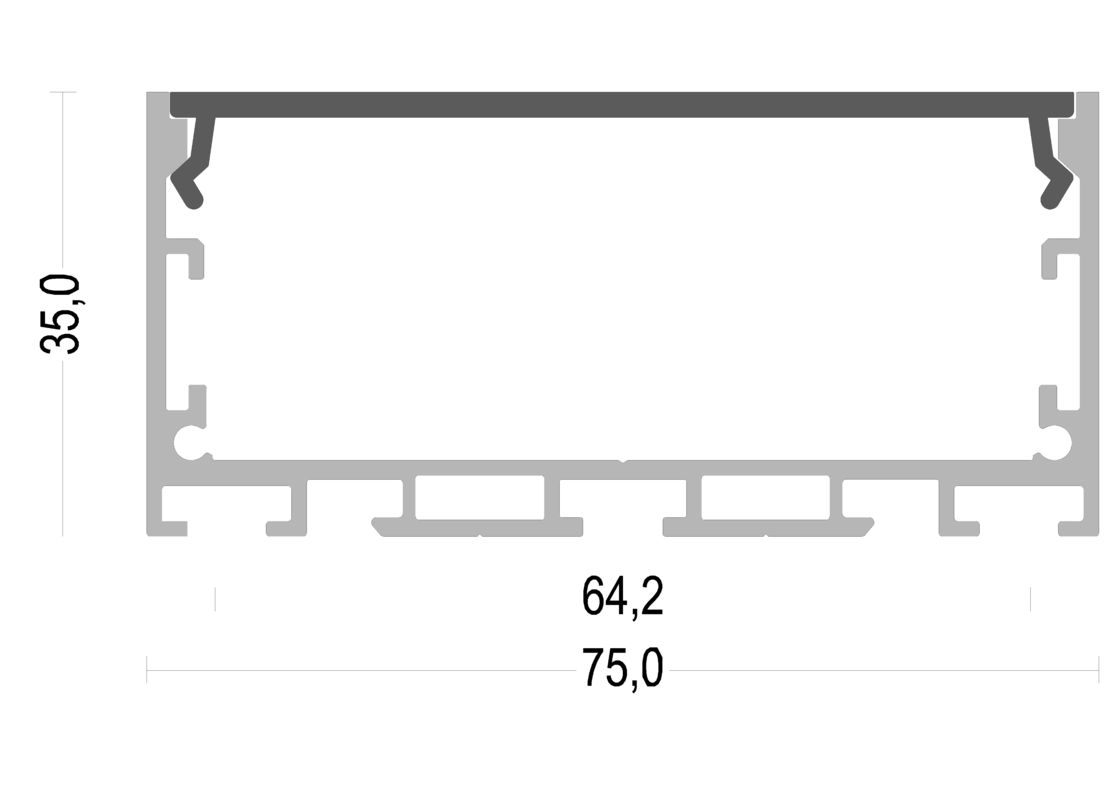

Drawing:

Led Aluminium Channel  W75*H35mm For Led Strip Aluminum profile 0
Installation

Led Aluminium Channel  W75*H35mm For Led Strip Aluminum profile 1
Application

Led Aluminium Channel  W75*H35mm For Led Strip Aluminum profile 2

FAQ:
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.

Q: Can we order a special length for the aluminium profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
