Led aluminum channel Alloy Aluminum 30x30mm 45 Degree Led Profile

Basic Information
Place of Origin: China,Guangdong
Brand Name: K&C
Certification: SGS
Model Number: K40
Minimum Order Quantity: 100 - 999 Meters
Price: Negotiate
Packaging Details: Pearl cotton inside , carton for outsdie packing with 4 cornor protection
Supply Ability: 100000 Meter/Meters per Month
Detail Information
Warranty(Year): 3-YEAR Material: 6063 Alloy Aluminum
Shape: Line Function: Decorative Illumination
Surface Treatment: Anodized Usage: Pcb Width Within 20.0mm
Cover Material: PC, PMMA Cover Colors: Opal, Semi-clear, Clear
High Light:

K&C angled 45 degree led profile

,

30x30mm 45 degree led profile

,

K&C led aluminium angle profile


Product Description

Big Size 30x30mm 45 Degrees Angle LED Corner Aluminium Profile


Our quality Corner led profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. Easy Installation. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.
Application

- The extrusion directs the light at a 45-degree angle

- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners

Assembly
- with a 45-degree mounting bracket for easy installation


Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm

Main Specifications



Model No.: K40
Item Type: LED Corner Aluminum Profile
Dimensions: (W)30.0*(H)30.0mm
Standard length: 2m/pcs, 3m/pc
Customized-length: Available on request
Suitable for led strip: PCB width up to 20.0mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver, black, white
Diffuser material: PC, PMMA
Diffuser finished: Frosted, Opal, Semi-clear, Clear

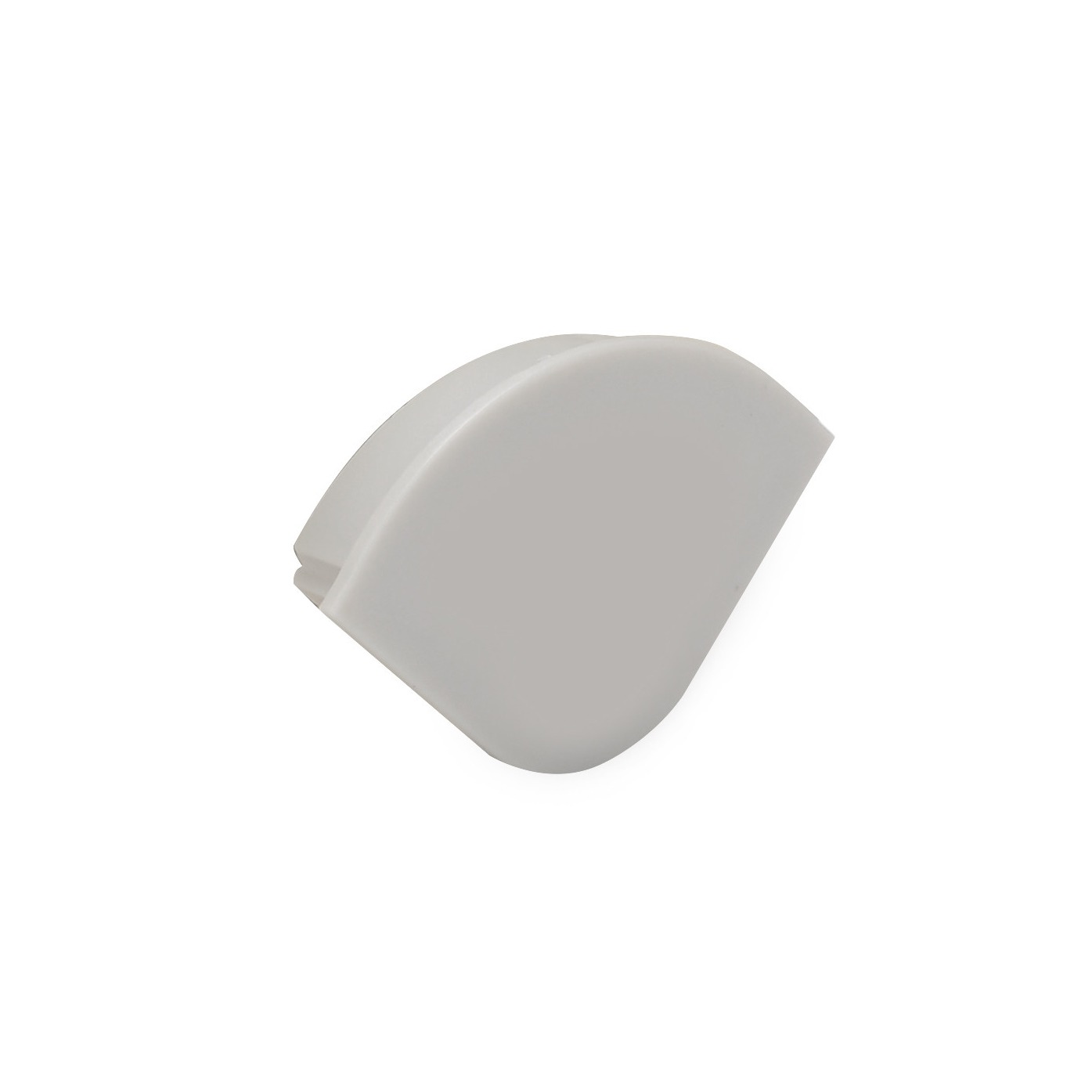

Accessories: End caps, clips
Installation: Surface-mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request
Handling time Samples within 3 working days
Batch order 3-15 working days upon stocks
Shipment By sea, by air, by express for option


Drawing:

Led aluminum channel Alloy Aluminum 30x30mm 45 Degree Led Profile 0

Installation

Led aluminum channel Alloy Aluminum 30x30mm 45 Degree Led Profile 1

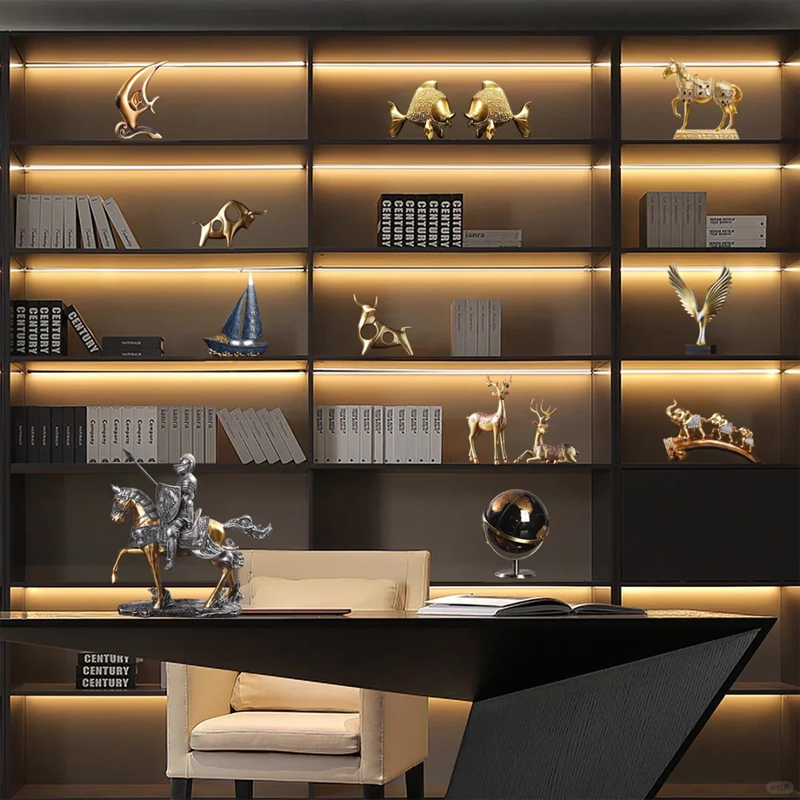

Application
30x30mm Big Size LED Corner Aluminum Profile House 20mm LED Strip 1
FAQ:


Q: How many kinds of led aluminum profiles do you have?
A: We are a professional led aluminum profile supplier, we have more than 200 kinds of led aluminum profile. We can offer different size, different design-led aluminum profile. And if you have your special design, we can make it for you.


Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.


Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover ( Frosted, clear).


Q: How many colors of led aluminum profile available? Collapse
A: We can offer 3 kind colors of led aluminum profile. White, black, and sliver.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
