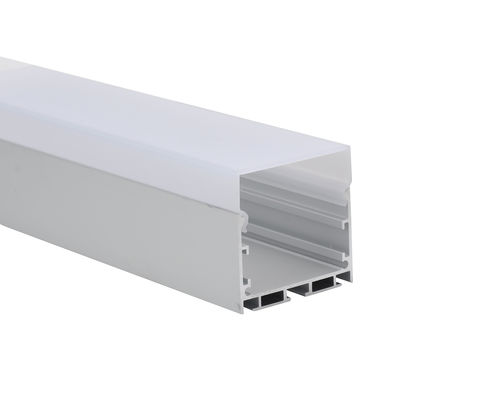

W50*H50mm LED Strip Aluminium Profile Sandblasting 6063 T5 PC Diffuser Cover

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN25
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Length: 2m/pcs, 3m/pcs 2.5m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted, Suspended Dimension: 50*50mm
No.: KN25 Application: Led Linear Lighting Project
High Light:

H50mm LED Strip Aluminium Profile

,

LED Strip Aluminium Profile Sandblasting

,

6063 T5 Led Light Aluminium Profile


Product Description



50x50mm 2m 3m length Interior accent lighting LED Strip Aluminum Profile

Our LED Aluminium Profiles (also known as Extrusion) are designed to complement the range of IP33, IP65 and IP67 Flexible LED Strips. We offer a range of Aluminium Profiles, including Surface, Mounted Profiles, Recessed Profiles, and Corner Surfaced Mounted Profiles. Accessories include end caps, end caps with cable entry, and mounting support clips.


Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 40mm width

Main Specifications


Model No.:  KN25
Item Type:  LED Strip Aluminium Profile
Dimensions:  (W)50.0*(H)50.0mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 40mm
Material:  6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:  Silver, black, white

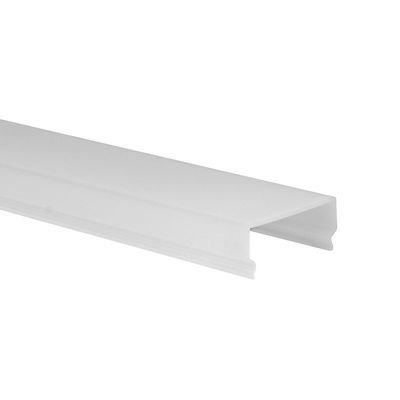

Diffuser material:  PC
Diffuser finished:  Frosted

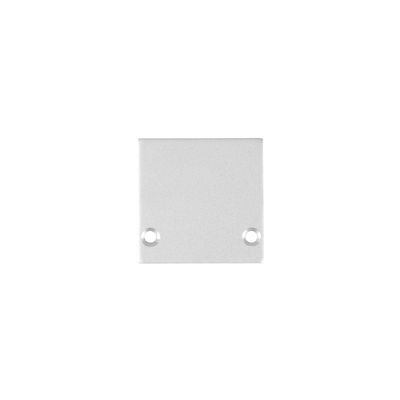

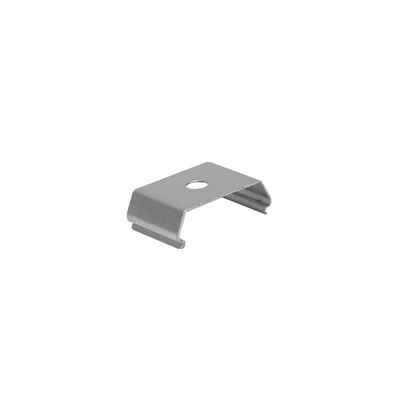

Accessories:  End caps, clips
Installation:  Surface-mounted, suspended
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

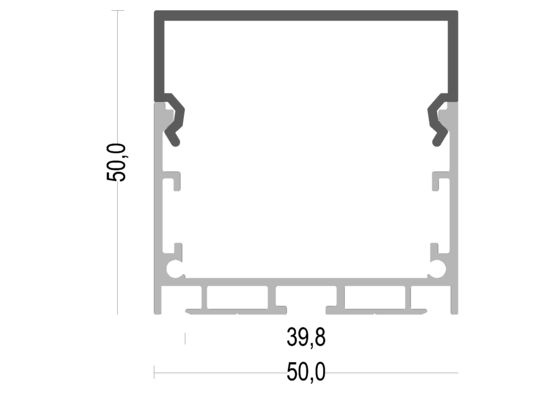

Drawing:

W50*H50mm LED Strip Aluminium Profile Sandblasting 6063 T5 PC Diffuser Cover 0

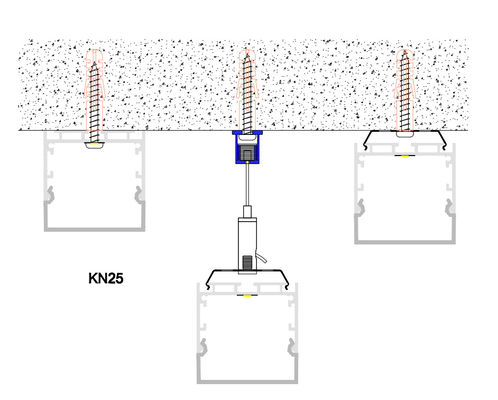

Installation
W50*H50mm LED Strip Aluminium Profile Sandblasting 6063 T5 PC Diffuser Cover 1
Application

W50*H50mm LED Strip Aluminium Profile Sandblasting 6063 T5 PC Diffuser Cover 2
Recommendation
W50*H50mm LED Strip Aluminium Profile Sandblasting 6063 T5 PC Diffuser Cover 3
FAQ:
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.

Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
