Surface mount width17mm high16mm LED Aluminum Extrusion with PC diffuser

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K53
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PC, Opal/Frosted/Clear/Black/UGR Cover Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
High Light:

17*15mm Square LED Aluminum Extrusion

,

IP20 Square LED Aluminum Extrusion

,

PC Cover LED Wall Profile


Product Description

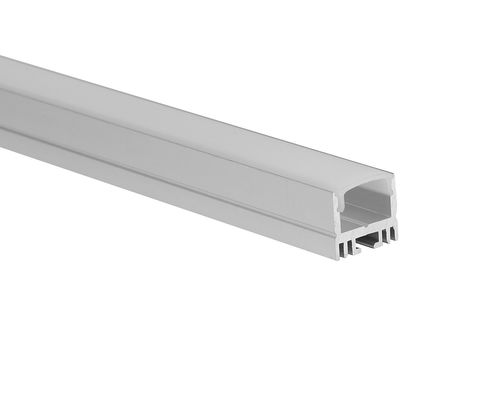

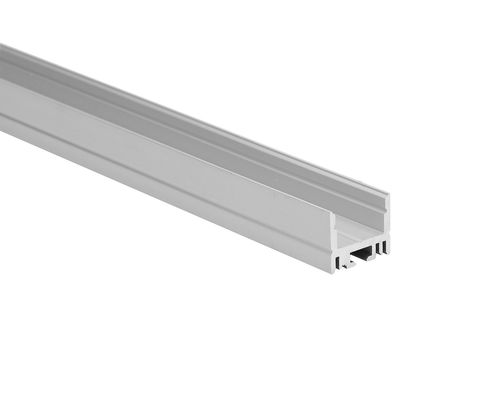

Square 17*15mm PC Cover LED Aluminum Extrusion


Square 17*15mm PC Cover LED Aluminum Extrusion which is dedicated for standard led stripe light up to 13m width. The profile is performing as the heat sink to the LED strip. We would advise our customers three different diffusers: opal, frosted and clear. We also offer several different accessories such as PC cover, mounting clips, and end caps which make it look professional and modern. Body color and length could be customized.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting

- Exhibition booth LED lighting

Assembly
- Mounted to the groove with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip

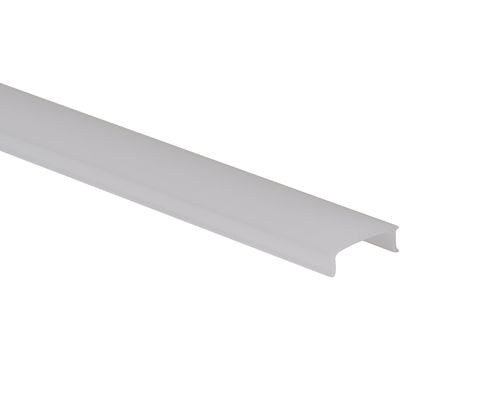

- Can be equipped with transparent and frosted covers

- Space for LED strip up to 13mm width

Main Specifications



Model No.:   K53
Item Type:  Aluminum LED Wall Profile
Dimensions:   (W)17*(H)15.7mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 13mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver
Diffuser material:   PMMA/PC/UGR
Diffuser finished:   Opal/Frosted/Clear/ Black

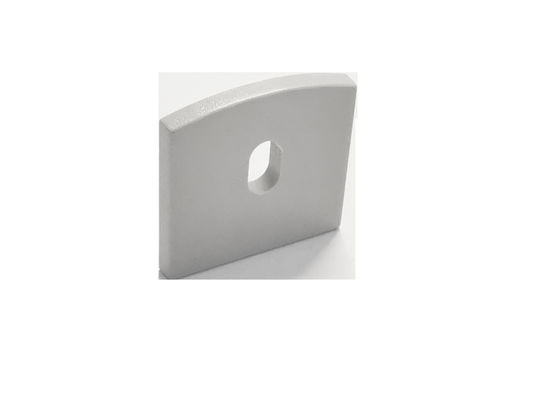

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option


Drawing:
Surface mount width17mm high16mm LED Aluminum Extrusion with PC diffuser 0
Application

Surface mount width17mm high16mm LED Aluminum Extrusion with PC diffuser 1

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
