Suface Mount Width20*High20mm Anodized Arc PC cover LED Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K28
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2m, 2.5m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
High Light:

17mm LED Strip Aluminium Profile

,

20*20mm LED Strip Aluminium Profile

,

20*20mm led strip light aluminum channel


Product Description

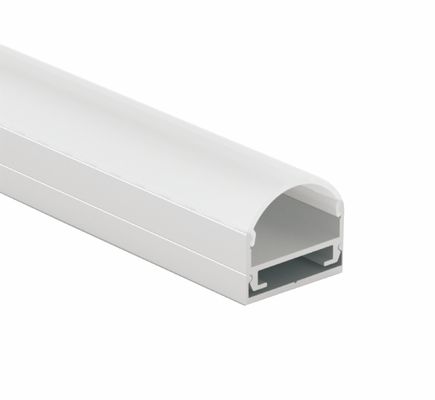

Anodized Arc LED Strip Aluminium Profile Surface Mount Installation


LED aluminum strips is anodized aluminum, the covers are made of plastic. The aluminum profile can be shortened with an iron saw. Covers can be shortened with saws and scissors (slide diffusers). LED aluminum profile you also need LED strip ja transformer, ie a constant voltage source, a diffuser suitable for installation, or a diffuser, as well as a choice of fasteners and end pieces that you will find in our wide range of accessories.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting

- Exhibition booth LED lighting

Assembly
- Mounted to the surface with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with frosted covers

- Space for LED strip up to 17mm width

Main Specifications



Model No.:   K28
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)20*(H)20mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 17mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PMMA/PC
Diffuser finished:   Opal/Frosted/Clear/ Black

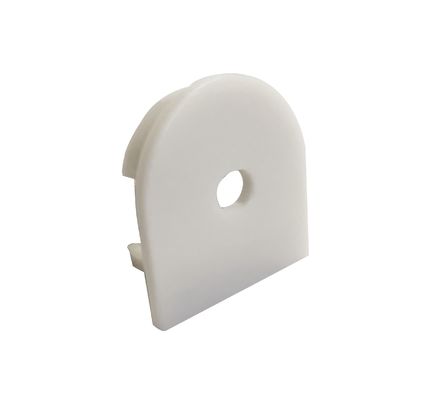

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

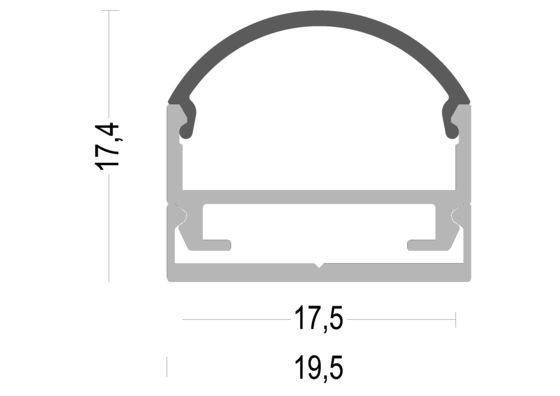

Drawing:
Suface Mount Width20*High20mm Anodized Arc PC cover  LED Strip Aluminium Profile 0

Installation

Suface Mount Width20*High20mm Anodized Arc PC cover  LED Strip Aluminium Profile 1

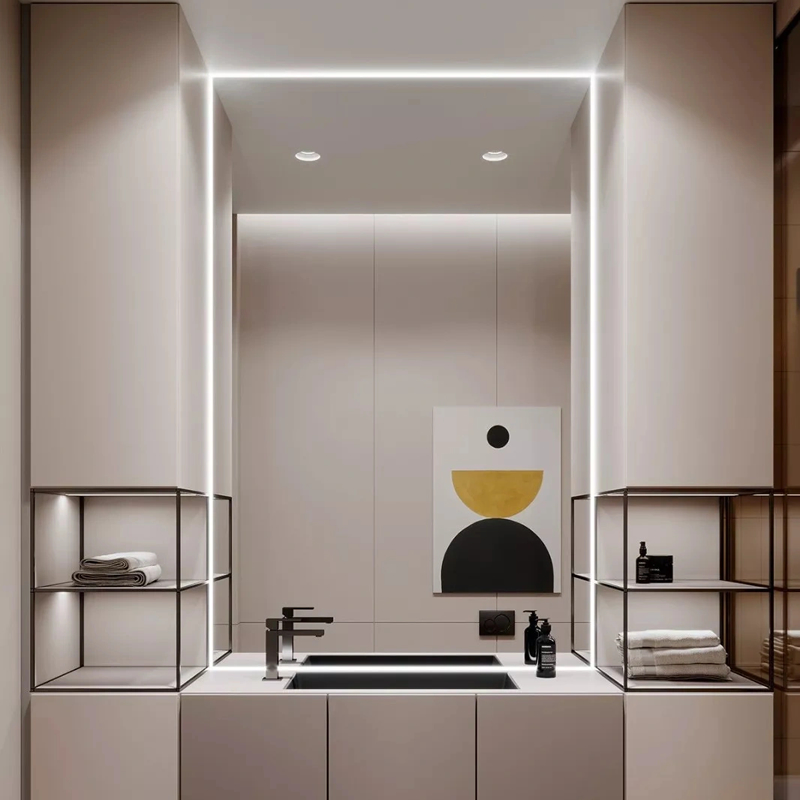

Application

Suface Mount Width20*High20mm Anodized Arc PC cover  LED Strip Aluminium Profile 2

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
