products

Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating

Basic Information
Place of Origin: Shenzhen China
Brand Name: K&C
Certification: RoSH
Model Number: K86
Minimum Order Quantity: 100 Meters
Price: Negotiate
Packaging Details: PE Bag Per Aluminium Profile+ Pearl cotton inside +carton for outsdie packing with 4 cornor protection
Delivery Time: 3-10days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 100 Tons Per Month
Detail Information
Dimensions: W65*H27.5mm Body Material: 6063 T5 Aluminum Profile
Diffuser Material: PC/PMMA(Acrylic) Suitable For Led Strip: PCB Width Up To 13mm
Diffuser Color Option: Opal Matte/Clear/Semi-Clear/Black Certificate: RoSH
Application: Home/Mall Store/ Commercail Office/ Education Alloy Or Not: Is Alloy
High Light:

Opal Anodized LED Aluminium Extrusion Profiles

,

H27.5mm LED Aluminium Extrusion Profiles

,

Spray Coating Led Aluminium Extrusion Channel


Product Description

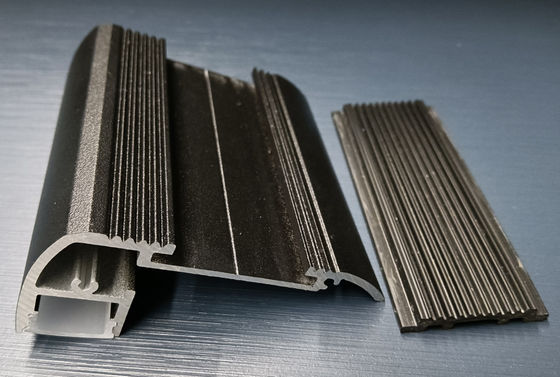

LED Aluminium Extrusion Profiles led strip aluminium extrusion channel profiles Is Alloy

Surface-recessed high-quality anodized/Spary Caoting LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 10-13mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal Matte, Semi-Clear and Clear. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.

.Main Specifications

Model No.: K86
Product name: stair LED Profile

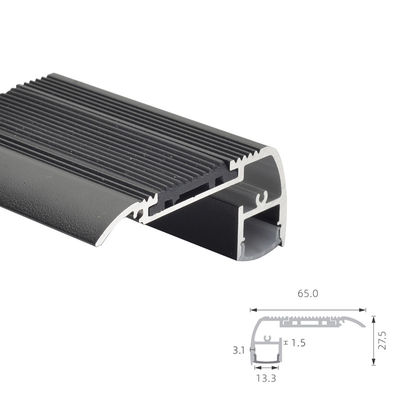

Dimensions: W65*H27.5mm
Standard length: 2m/pcs
Suitable for led strip: PCB width up to 13mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver/Black/white
Diffuser material: PC/PMMA
Diffuser finished: Opal/Frosted/Clear
Accessories: PC Cover,End caps,
Installation: Stair Wall mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request

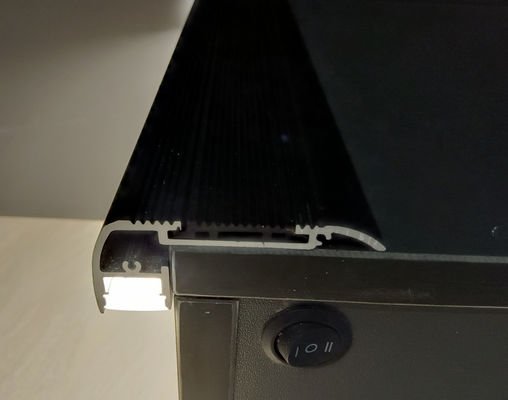

Application
-  for anywhere stair to anti-slip and stair lighting;


Assembly
- Screw it on the stair;




Additional information
- The LED profile is 13.3mm in channel width,it can work when it just installs generall LED strip width-13mm;
- Can be equipped with transparent and frosted covers;

Aluminum profile system is an innovative way for LED strip lights application. It not only provides a great housing for LED strips by keeping the dust and contaminates away, but also route the heat away to further extend the life time of the light strips. It is designed for recessed and surface mount. These anodized aluminum profiles provide a unique way to make use of linear low voltage lighting and are the designer and professional choice for applying light fixtures for commercial and residential LED strip lighting.






Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 0Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 1

How to Install ?

Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 2

Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 3Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 4Opal Anodized H27.5mm LED Aluminium Extrusion Profiles Spray Coating 5

Application







FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.



Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
