Led aluminum channel 45degree 90degree LED Corner Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K41
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy + PC Diffuser Length: 2m/pcs, 3m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted
Dimension: 16*16mm Shape: 90 Degree Corner
Application: Corner Light Model No.: K42
High Light:

90 Degree led tape channel

,

90 Degree led profile channel

,

90 Degree led strip diffuser tube


Product Description

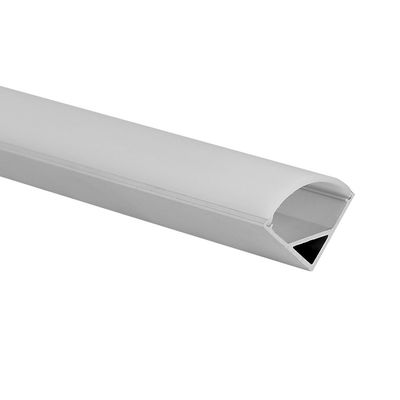

16x16mm 90 Degree Corner Installation LED Corner Aluminum Profile ​

Our quality Corner Aluminum profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. We also offer trimless designs for inner and outer corners for a more seamless and plush finish.

Application
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners

Assembly
- with a 45-degree mounting bracket for easy installation

Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm


Main Specifications


Model No.:  K42
Item Type:  LED Corner Aluminum Profile
Dimensions:  (W)16.0*(H)16.0mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 11.0mm
Material:  6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PC
Diffuser finished:  Frosted

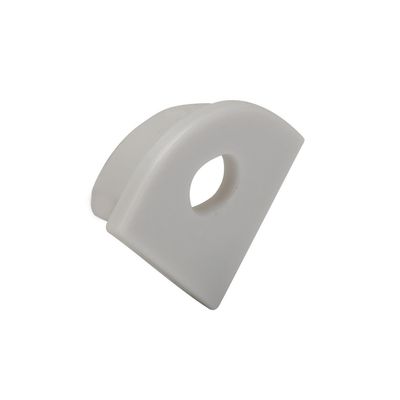

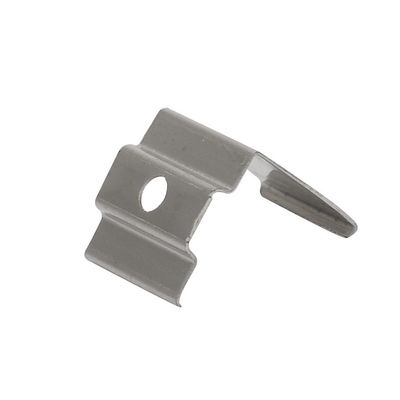

Accessories:  End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

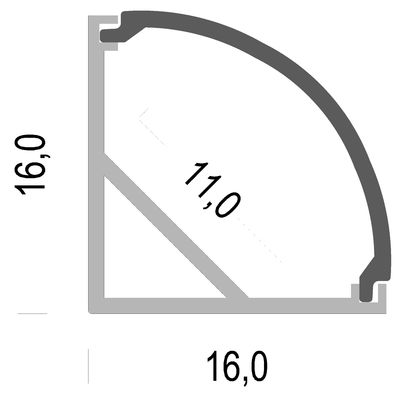

Drawing:
Led aluminum channel 45degree 90degree LED Corner Aluminium Profile 0
Led aluminum channel 45degree 90degree LED Corner Aluminium Profile 1
Led aluminum channel 45degree 90degree LED Corner Aluminium Profile 2
Installation
Led aluminum channel 45degree 90degree LED Corner Aluminium Profile 3

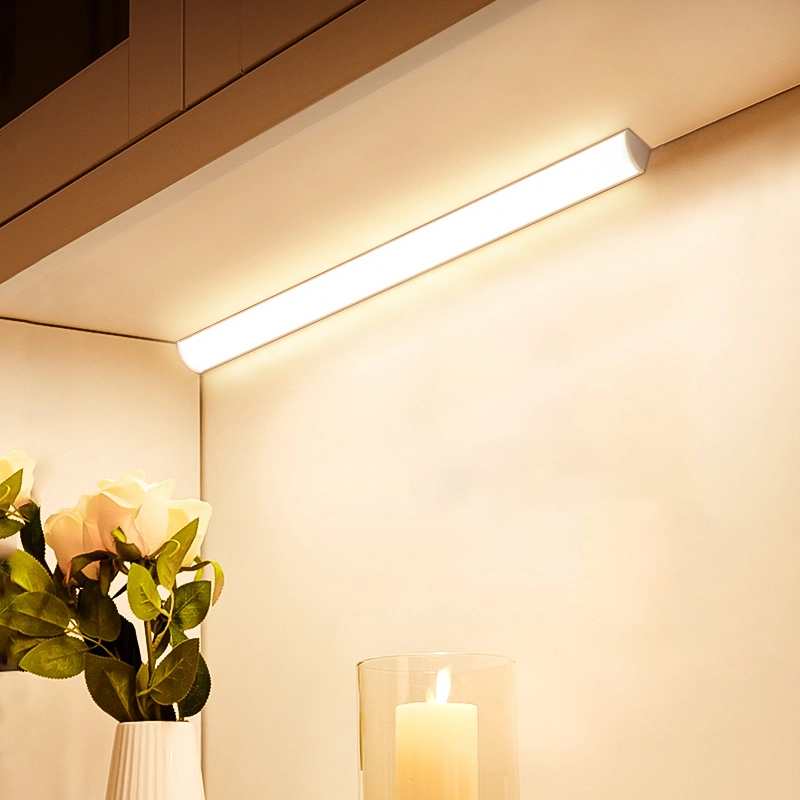

Application

Led aluminum channel 45degree 90degree LED Corner Aluminium Profile 4

FAQ:

Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.


Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.


Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
