Flex PMMA Sandblasting PC Recessed Led Strip Channel 6063 T5

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA13
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10Tons/Month
Detail Information
No.: KA13 Alloy Or Not: Is Alloy
Temper: T3-T8 Grade: 6063
Dimension: Standard 2m/pc Indstallation: Recessed
Diffuser: PMMA/PC, Opal/Frosted/Clear Process: Extrusion
Shape: Line Plan Packing: PE Bag + Carton / Customized Package
High Light:

Flex PMMA Recessed Led Strip Channel

,

Sandblasting PC Recessed Led Strip Channel

,

6063 T5 Aluminum LED Extrusion Profile


Product Description



LED Strip Aluminium Profile Recessed Led Strip Housing Is Alloy Light Channel Aluminum Extrusion Profile


KC Lighting offering many kinds of led aluminum profiles. Such as Surface-mounted aluminum profile, Recessed aluminium profile, Pendant aluminium profile, Corner aluminium profile, Round aluminium profile, Stair aluminium profile and Flex aluminium profile. As a led aluminium profile factory, We offer this aluminium housing all over the world. We offer customized led strip light aluminium extrusion in different lengths, just according to your request. Many customers are using this led aluminium profile to make led linear light with led strip lights. We can offer led power supply, led aluminium profile and led strip lights. That is easy for customer sourcing lighting material in one fact

Application
- Intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows, etc.
- With their small size, the lighting fixtures can be concealed in the walls of the furniture with small cross-sections

Assembly
- Mounted to the surface with appropriate mounting clips

Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 12mm width

Main Features:
1. Narrow light angle, hides the light source.
2. The recessed cover eliminates the gleaming effect.
3. This fixture minimizes glare without causing discomfort.

4. Can be equipped with frosted or transparent covers.
5. Surface mounted or suspended installation.
6. Allows to create continuous light arrangements by interconnections.
7. White and Black powder coating for option.

We have stocks, samples are available on request.

Model No.: KA13
Item Type: recessed LED Profile
Dimensions: W20*H13mm
Standard length: 2m/pcs
Suitable for led strip: PCB width up to 8mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver/ Black/ White
Diffuser material: PC
Diffuser finished: Frosted
Accessories: PC Cover, End caps, clips
Installation: Recessed-mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request




Main Specifications

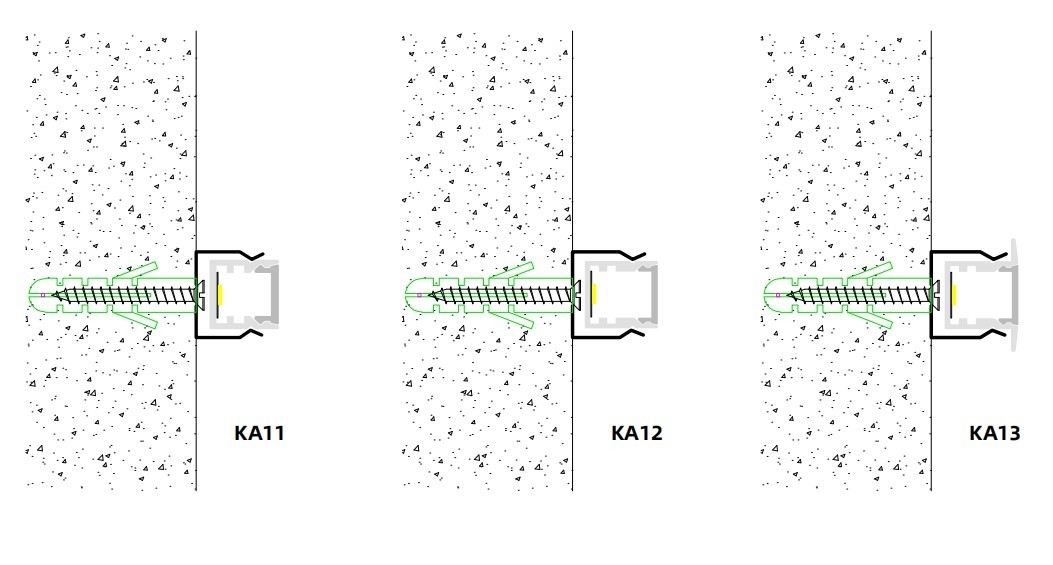

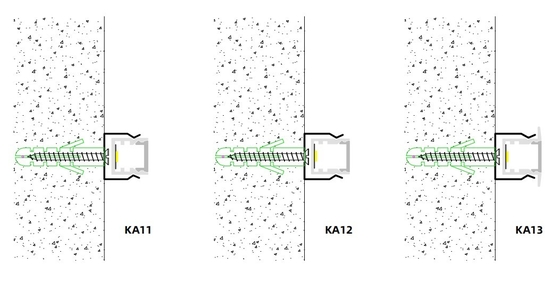

Installation

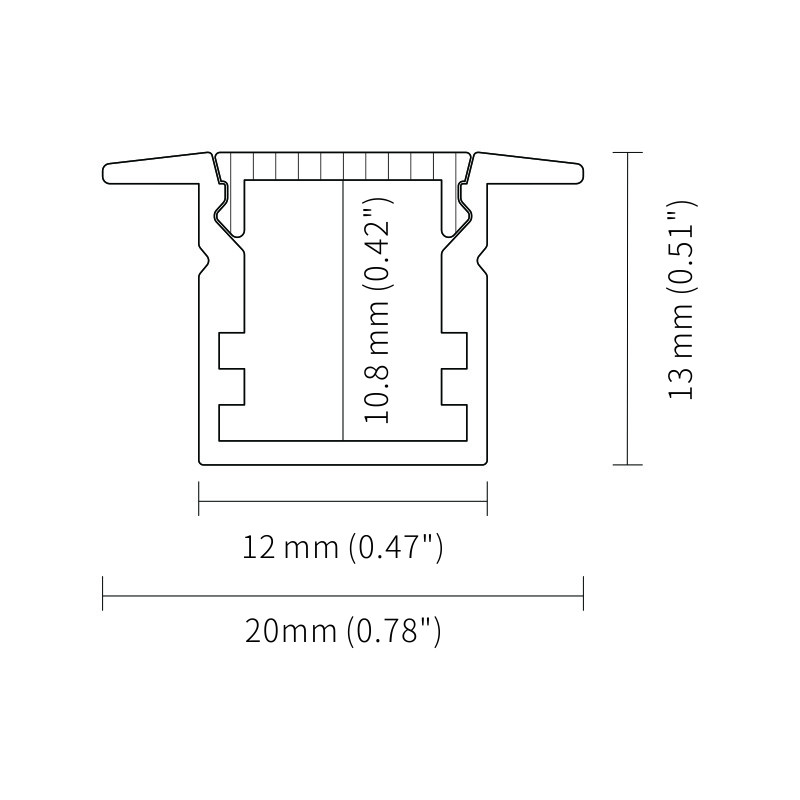

Drawing:

Flex PMMA Sandblasting PC Recessed Led Strip Channel 6063 T5 0Flex PMMA Sandblasting PC Recessed Led Strip Channel 6063 T5 1



Application

Flex PMMA Sandblasting PC Recessed Led Strip Channel 6063 T5 2

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.



Q: How do you pack the goods well?
A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.



Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.



Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
