| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | K&C |
| Certification: | RoHS |
| Model Number: | KN20 |
| Minimum Order Quantity: | 100 |
| Price: | Real-time quotation |
| Packaging Details: | Normal Package:1.led light in PE bag2. 1pcs inner3. 50pcs per cartonCustomized special package available |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Tons/Month |
| Model: | Kn20 | Regular Length: | 2m/pcs Other Lengths Can Be Customized |
|---|---|---|---|
| Dimensions:: | (W)35*(H)35 Mm | Item Type:: | Recessed Aluminum LED Profile |
| Material: | T5 6063 | IP Grade: | 20-44 |
| Installation:: | Surface-mounted | Installation: | Hoisting |
| LED Source: | PCB Width Up To 12.2mm | Treatment:: | Sandblasting Oxidation |
| High Light: | Anti Glare Led Channel Profile,T5 6063 Led Channel Profile,Hoisting Recessed Aluminum LED Profile |
||

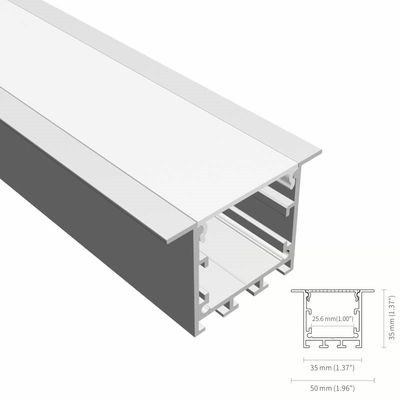

Anti Glare Led Strip Channel Recessed-Mounted Wide Led Aluminum Profiles For Main Light KN20
Recessed-mounted high-quality anodized LED Linear Light which is dedicated for standard led stripe light up to 24m width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffuser: opal, frosted and clear, UGR below 19. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern. Customized is available, helping customized for lighting solution.
Main Specifications
| Model No.: | KN20 |
| Item Type: | Recessed Aluminum LED Profile |

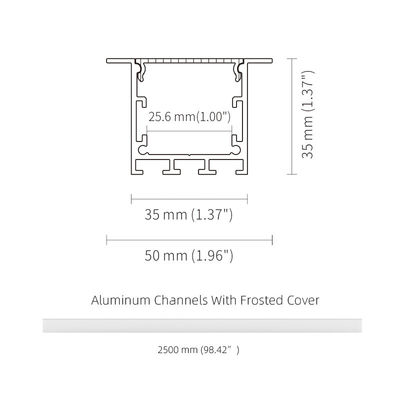

| Dimensions: |
(W)50*(H)35mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 20mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver/Black/white |
| Diffuser material: | PC |
| Diffuser finished: | Opal/Frosted/Clear |

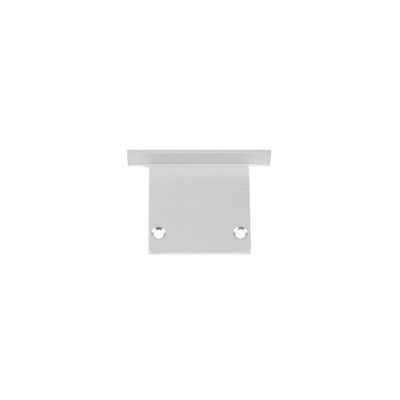

| Accessories: | PC Cover,End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: |
Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |
Application
- Main Lighting,decorative lighting
- Kitchen cabinets LED Lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

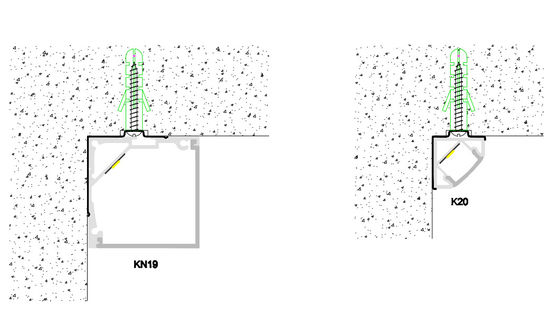

Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip

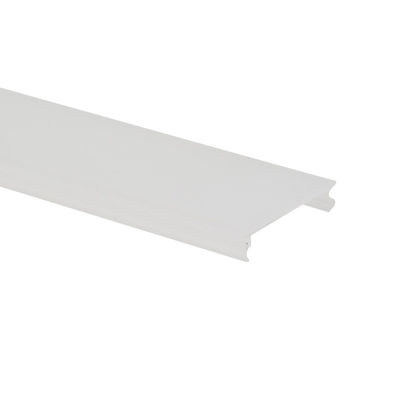

- Can be equipped with transparent and frosted covers
- Space for LED strip up to 12mm width
How to Install ?
http://mao.ecer.com/index.php?r=product/edit&pid=14153142KN25
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.
Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.
Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
