6063 t5 Black Aluminium LED Profile Extruded Heat Sink Profiles

Basic Information
Place of Origin: China
Brand Name: kc
Certification: Rohs
Model Number: KL10
Minimum Order Quantity: 100
Price: US 1-2 / pcs
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Detail Information
Product Name: Aluminum Profil Type: KL10
Material: 6063 T5 Size: 16.8*12.97mm
Color: Black /Silver/White Treatment: Anodized
Cover: Clear/Semi-clear/Black Temper: T3-t8 Temper
Warranty: 3-5years Delivery: 15-21 Days
Waterproof: IP20
High Light:

T5 Black Aluminium LED Profile

,

6063 Black Aluminium LED Profile

,

T5 Extruded Heat Sink Profiles


Product Description

6063 T5 Black Aluminium LED Profile Extruded Heat Sink Profiles



KL10 Surfaced LED Strip Housing for LED Strip Anodized Aluminu with Black Cover Recessed Aluminum LED Profile


Advantages of LED Aluminium Profile

1. Designed for flexible LED strip & rigid bar

2. Extremely contribute to heat dissipation

3. Presents soft and excellent linear lighting

4. Recessed types, corner types, bendable types and etc. for choice

5. Widely used in home lighting, office lighting and commercial lighting



Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 5mm width

Main Specifications

Model No.: KL10
Item Type: Surfaced Aluminum LED Profile

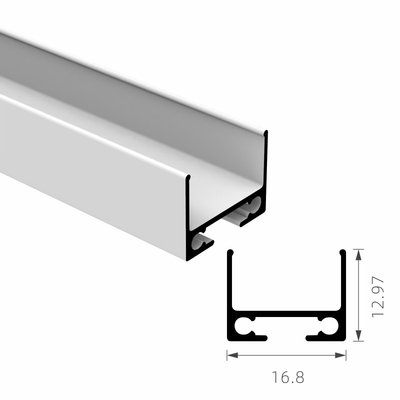

Dimensions: (W)16.8*(H)12.97mm
Standard length: 2m/pcs
Customized-length: Available on request
Suitable for led strip: PCB width up to 16.4mm
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver, black, white
Diffuser material: PMMA/PC
Diffuser finished: Opal/Frosted/Clear/ Black
Accessories: End caps, clips
Installation: Surface-mounted
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request
Handling time Samples within 3 working days
Batch order 3-15 working days upon stocks
Shipment By sea, by air, by express for option

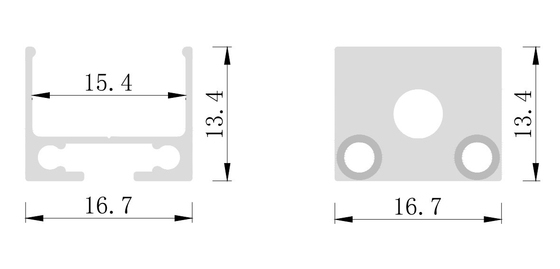

Drawing:
6063 t5 Black Aluminium LED Profile Extruded Heat Sink Profiles 0
Application

6063 t5 Black Aluminium LED Profile Extruded Heat Sink Profiles 1

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.

Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by s
