|Place of Origin:||Guangdong China|
|Minimum Order Quantity:||100meters|
|Packaging Details:||Inner Clear PE bag+EPE FOAM+Carton Box|
|Delivery Time:||3-10 work days|
|Payment Terms:||T/T, Western Union, L/C|
|Material:||6063 T5 Aluminum Alloy + PC Diffuser||Length:||2m/pcs, 3m/pcs|
|Finished Color:||Silver, Black, White||Installation:||Surface Mounted|

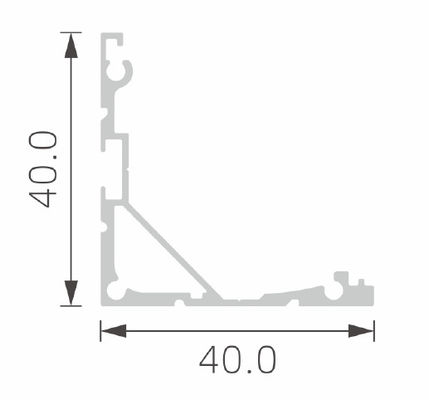

|Dimension:||40*40mm||Shape:||90 Degree Corner|
|Application:||Corner Light||Model No.:||KN19|
40x40mm led corner extrusion,
45D aluminium profile corner,
45D Angle extruded aluminum corner

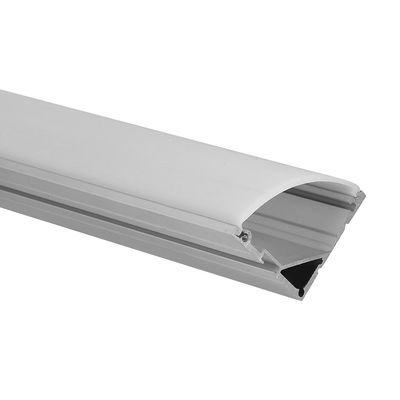

40x40mm Corner Light 45 Degree Angle LED Corner Aluminum Profiles
With corner-mounted profiles, you can easily make LED lighting in the kitchen space, in the corridors between the roof and wall, inside the cabinet, under the stairs… there are many options! Angle profiles are available in a variety of sizes and designs, with different mounting methods.
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners
- with a 45-degree mounting bracket for easy installation
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm
|Item Type:||LED Corner Aluminum Profile|
|Customized-length:||Available on request|
|Suitable for led strip:||PCB width up to 12.5mm|
|Material:||6063 T5 Aluminum Alloy|
|Finished color:||Silver, black, white|

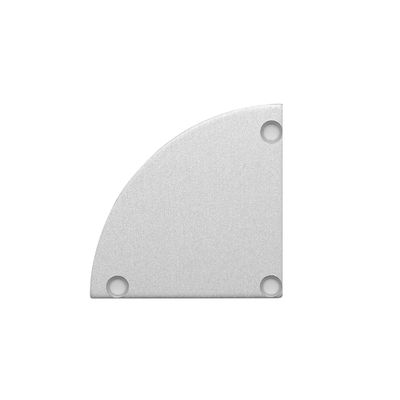

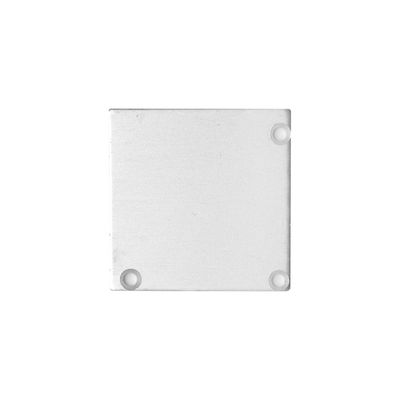

|Accessories:||End caps, clips|
|Standard Package:||Inner Clear PE bag+EPE FOAM+Carton Box|
|Customized Package:||Available on request|
|Handling time|| Samples within 3 working days
Batch order 3-15 working days upon stocks
|Shipment||By sea, by air, by express for option|
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.
Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.
Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.
Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
