17*9mm lED strip light mounting channel 6063 T5 Aluminum Profile

Basic Information
Place of Origin: China
Brand Name: K&C
Model Number: K17
Minimum Order Quantity: 50
Price: 1.379USD/m
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 15-25
Payment Terms: L/C
Supply Ability: 100000+
Detail Information
Name: LED Strip Aluminium Profile Dimensions:: (W)17*(H)9 Mm
Suitable For Led Strip:: PCB Width Up To 12.3mm Finished Color:: Silver, Black, White
Accessories:: End Caps, Clips Installation:: Surface-mounted
Diffuser Finished:: Opal/Frosted/Clear/ Black Customized-length:: Available On Request
High Light:

17*9mm LED Strip Light Mounting Channel

,

AL6063 LED Strip Light Mounting Channel

,

6063 LED Aluminum Profile


Product Description

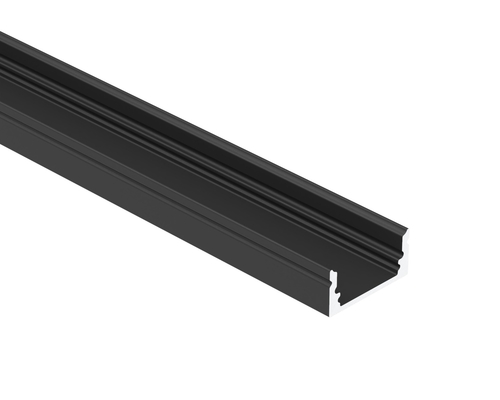

17*9mm LED Strip Light Mounting Channel 6063 T5 Aluminum Profile



Surface Mounted Installation Slim LED Strip Aluminium Profil



Slim 9mm is a surface mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffuser: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.

17*9mm lED strip light mounting channel 6063 T5 Aluminum Profile 0

Main Specifications

Model No.: K17

Item Type: LED Strip Aluminium Profile

Dimensions: (W)17*(H)9 mm

Standard length: 2m/pcs

Customized-length: Available on request

Suitable for led strip: PCB width up to 12.3mm

Material: 6063 T5 Aluminum Alloy

Treatment: Sandblasting oxidation

Finished color: Silver, black, white

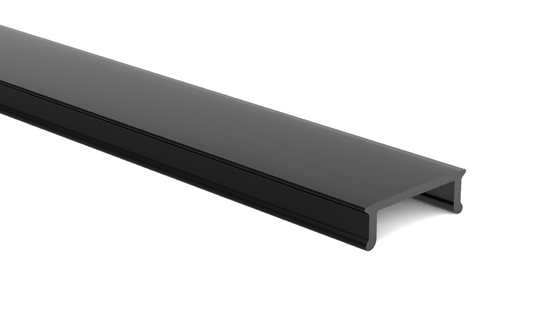

Diffuser material: PMMA/PC

Diffuser finished: Opal/Frosted/Clear/ Black

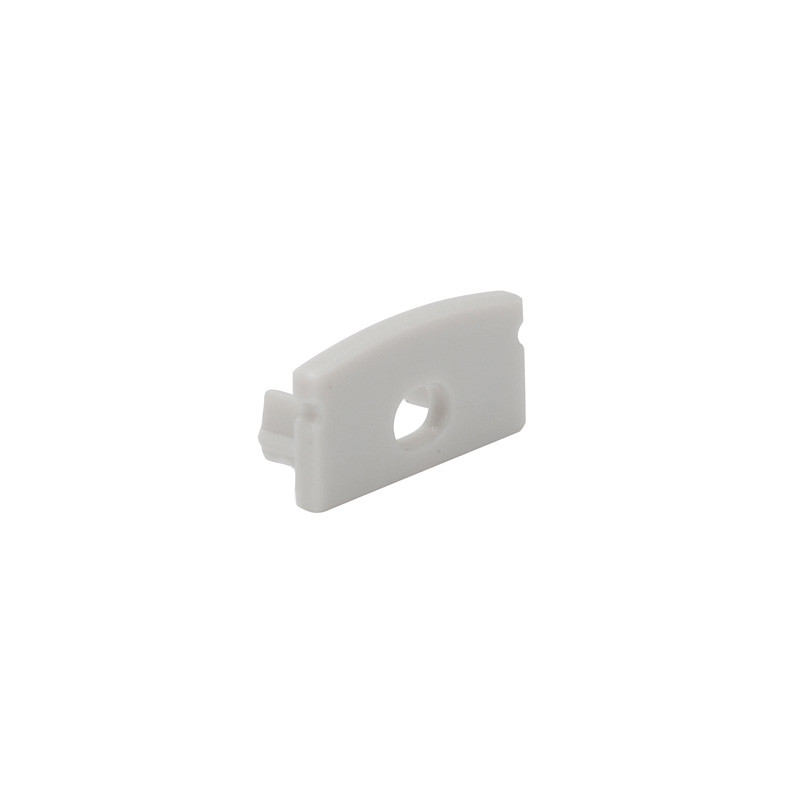

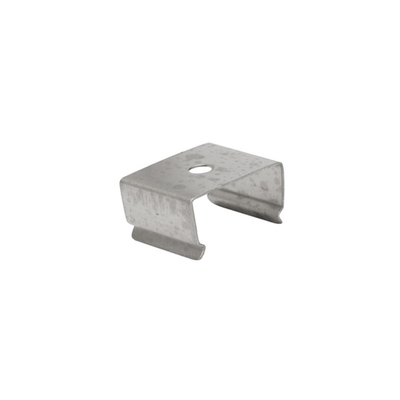

Accessories: End caps, clips

Installation: Surface-mounted

Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box

Customized Package: Available on request

Handling time: Samples within 3 working days

Batch order: 3-15 working days upon stocks

Shipment : By sea, by air, by express for option

Features:
1. Designed for flexible LED strip & rigid bar
2. Extremely contribute to heat dissipation
3. Presents soft and excellent linear lighting
4. Recessed types, corner types, bendable types and etc. for choice

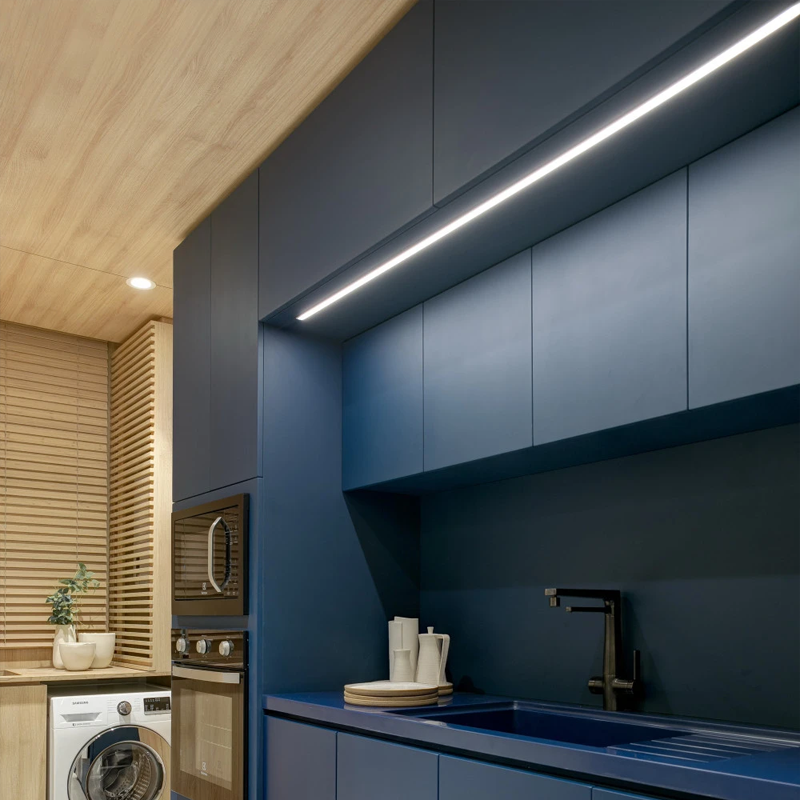

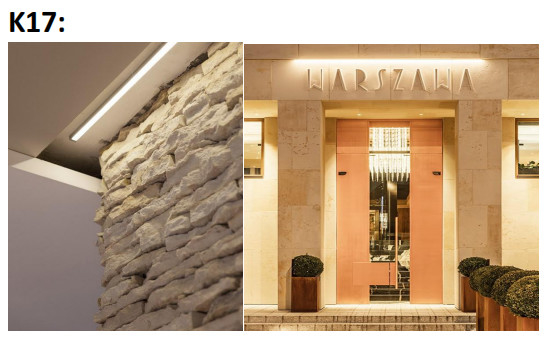

5. Widely used in home lighting, office lighting and commercial light

Installation method: surface installation
1. The aluminum bar can be directly screwed
2. Use the buckle to install the buckle on the wall, and then jam the aluminum groove



17*9mm lED strip light mounting channel 6063 T5 Aluminum Profile 1


Aluminum Profiles System from K&C Lighting

1.Ensure the product quality with the best price performance

2.Intelligent product design and unique product compatibility

3.Professional OEM service to customers upon drawing.

4.Simple installation and material saving


17*9mm lED strip light mounting channel 6063 T5 Aluminum Profile 2
