Place of Origin: | Guangdong China |
---|---|
Brand Name: | K&C |
Certification: | ROHS |
Model Number: | KN20 |
Minimum Order Quantity: | 100meters |
Price: | Negotiate |
Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
Delivery Time: | 3-10 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 100Tons/Month |
Finished Color: | Silver, Black, White | Size: | L2000*W35*H35mm |
---|---|---|---|
Indstallation: | Mounted | Material: | 6063 T5 Aluminum Alloy |
Diffuser: | PMMA/PC, Opal/Frosted/Clear/Black | Process: | Extrusion |
Shape: | Flat | Waterproof: | IP20 |
Color: | Black/Silver/White | ||
High Light: | 6063 LED Corner Aluminium Profile,IP20 LED Corner Aluminium Profile,IP20 Aluminium Corner Profile |

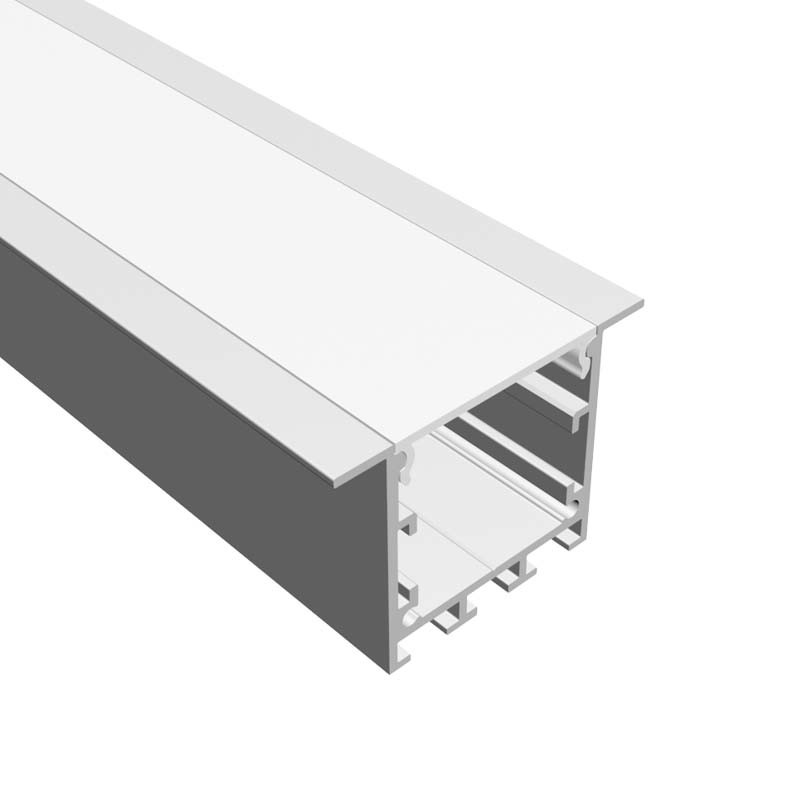

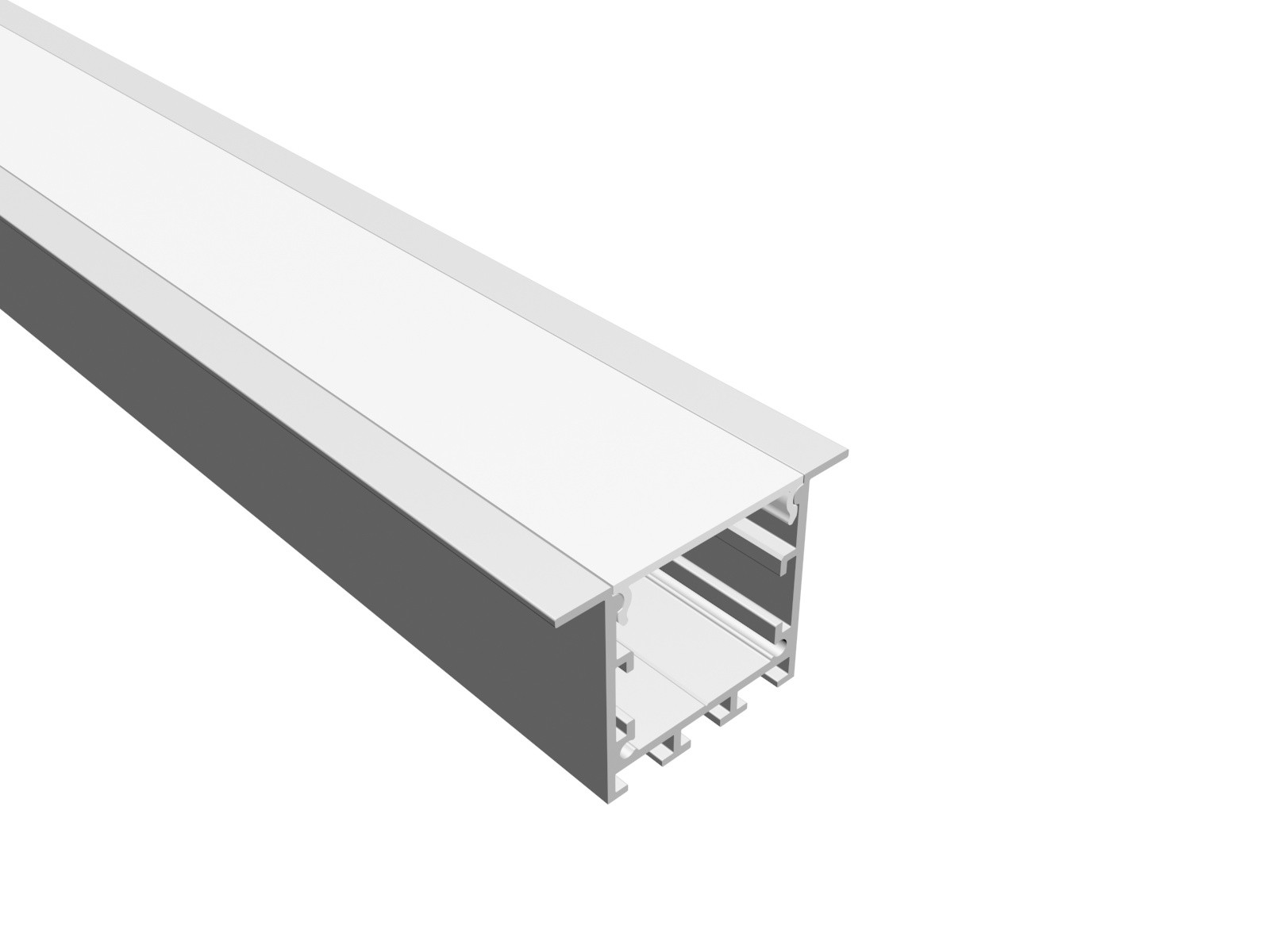

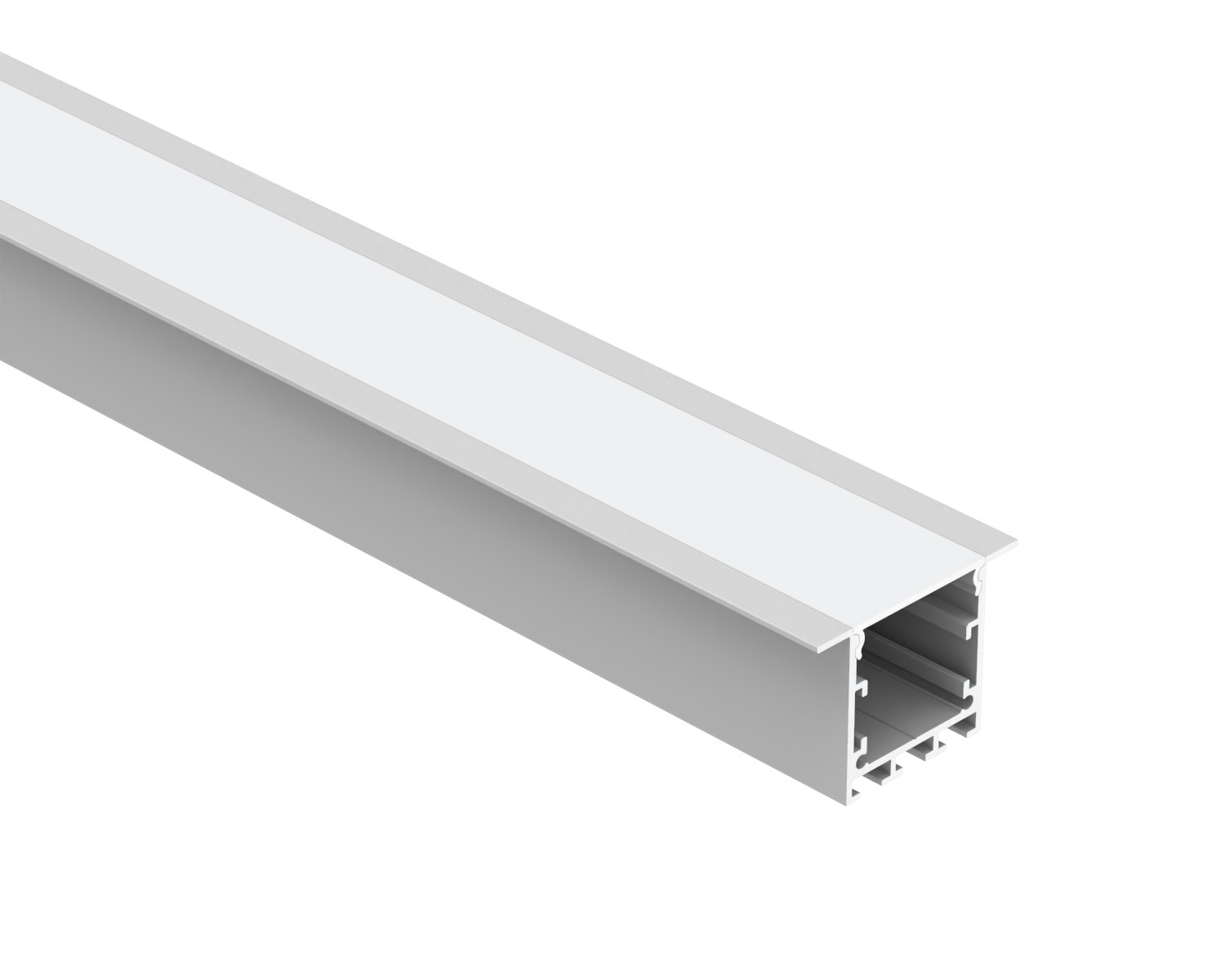

6063 T5 LED Reccessed Aluminium Profile IP20 Waterproof Heatsink
KN20 Recessed LED Strip Housing for LED Strip Anodized Aluminu with Black Cover Recessed Aluminum LED Profile
Recessed-mounted high-quality anodized LED Lamp Housing which is dedicated for standard led stripe light up to 12.5m width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers four different diffusers: opal, frosted and clear and black. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern. Customized is avaliable, helping customized for lighting solution.
Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
Assembly
- Mounted to the groove with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 5mm width
Main Specifications
Model No.: | KN20 |
Item Type: | Recessed Aluminum LED Profile |
Dimensions: | (W)35*(H)35mm |
Standard length: | 2m/pcs |
Customized-length: | Available on request |
Suitable for led strip: | PCB width up to 12.5mm |
Material: | 6063 T5 Aluminum Alloy |
Treatment: |
Sandblasting oxidation |
Finished color: | Silver, black, white |
Diffuser material: | PMMA/PC |
Diffuser finished: | Opal/Frosted/Clear/ Black |
Accessories: | End caps, clips |
Installation: | Surface-mounted |
Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
Customized Package: | Available on request |
Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
Shipment | By sea, by air, by express for option |

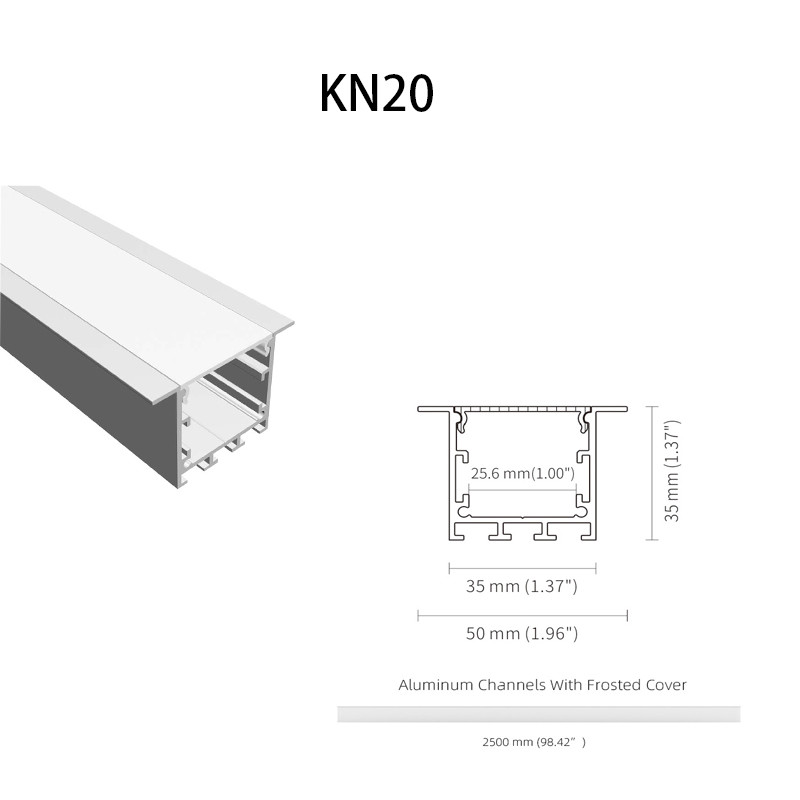

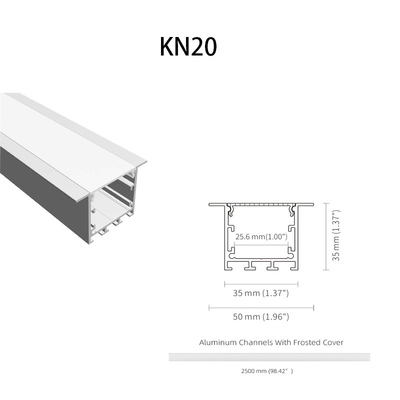

Drawing:
Application
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.
Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.
Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
