Led aluminium channel Recessed Aluminum LED Extrusion With PC Diffusers

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN50
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Finished Color: Silver, Black, White Length: Standard 2.5m, 3m Or Max.6m On Request
Indstallation: Mounted Material: 6063 T5 Aluminum Alloy

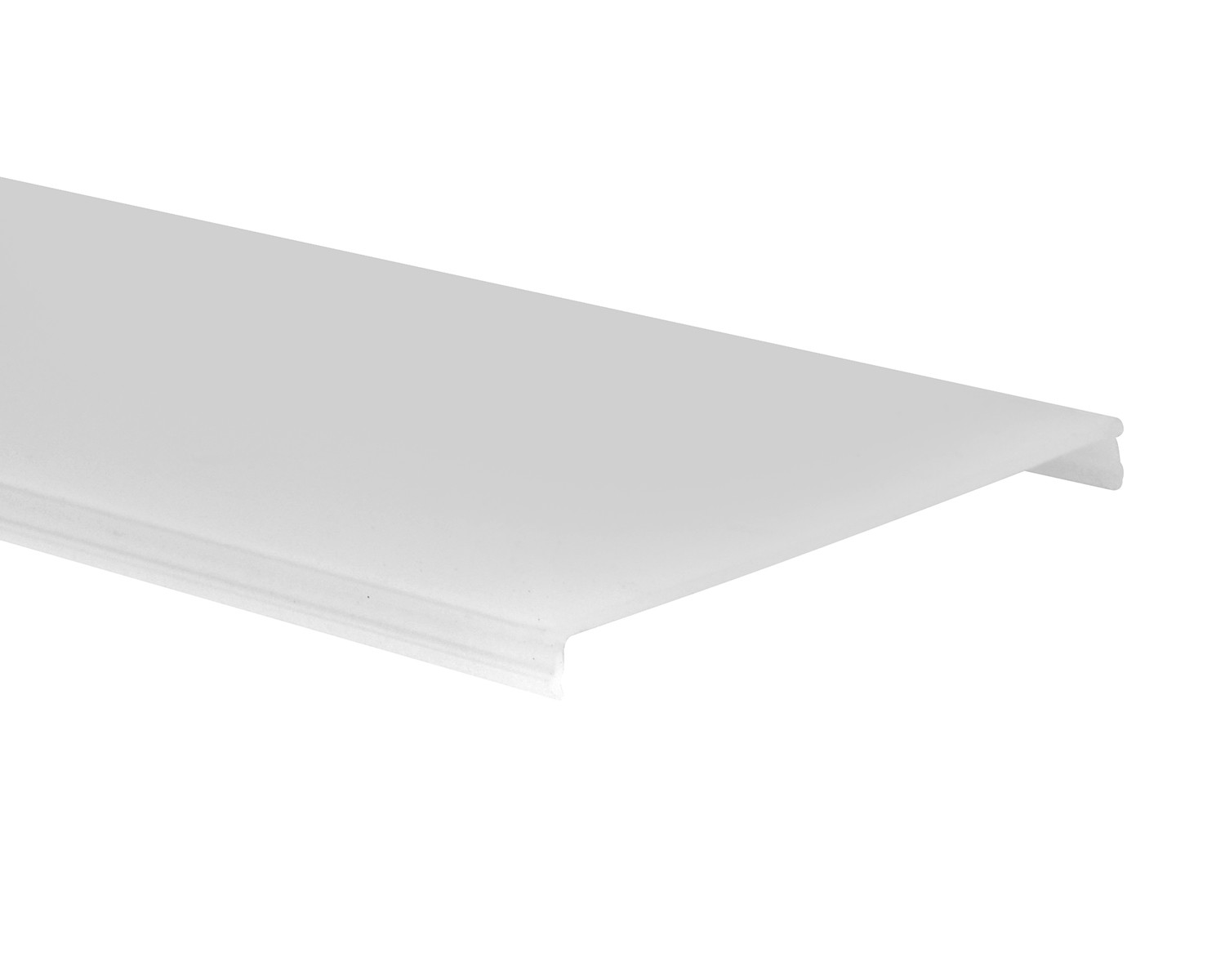

Diffuser: PMMA/PC, Opal/Frosted/Clear/Black Process: Extrusion
Shape: Flat Packing: PE Bag + Carton / Customized Package
Finish: Anodize / Coating Port: Shekou Or Yantian

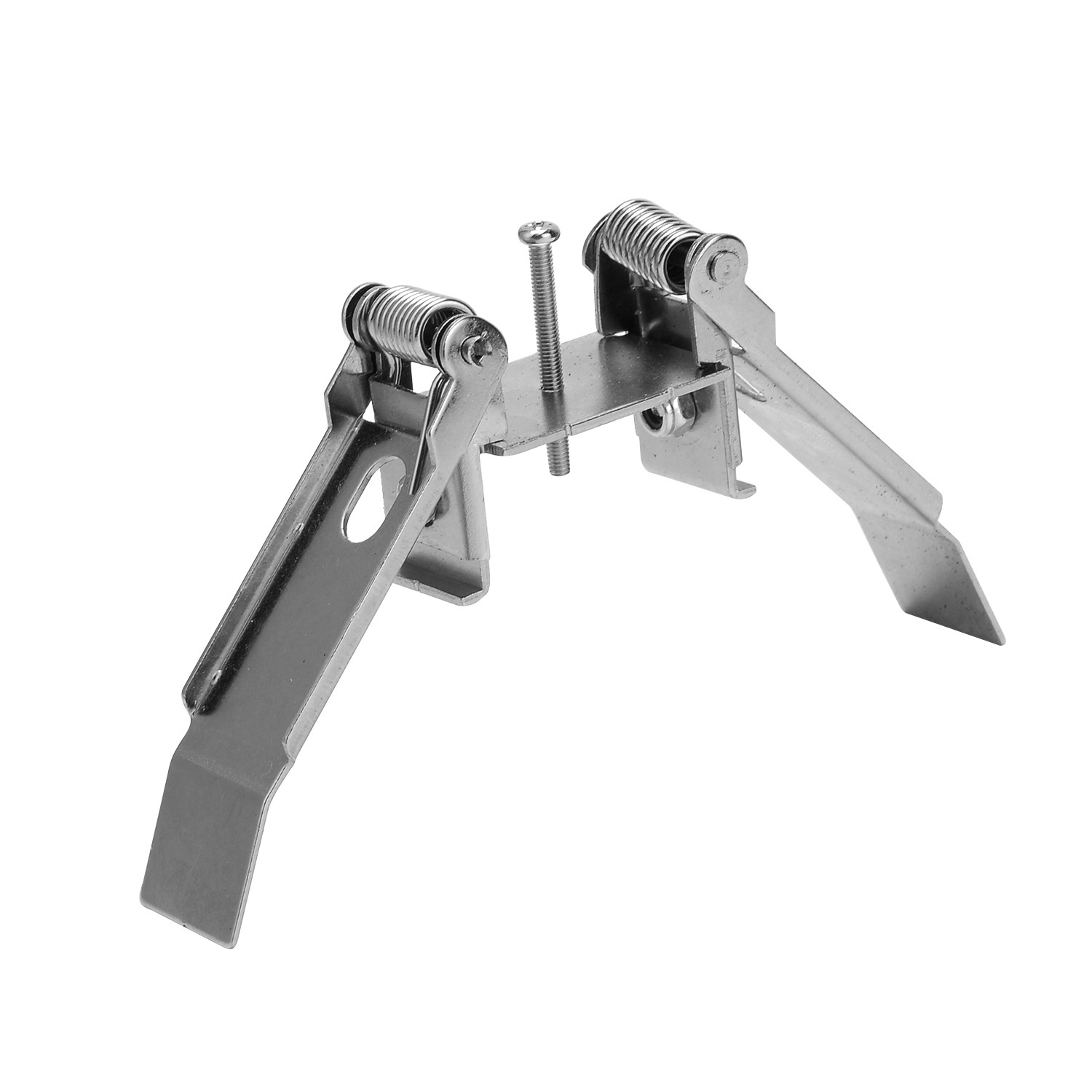

Model No.: KN50 Accessories: PC Cover, End Caps, Spring Clip
High Light:

T5 Recessed Aluminum LED Extrusion

,

6063 Recessed Aluminum LED Extrusion

,

2.5m Heatsink LED Aluminium Profile


Product Description

PCB Big size LED Lamp Housing 101.4*35 Using with PC Cover Recessed Aluminum LED Profile for Office and Home

Big Size Recessed-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 77.6m width. The profile is performing as the heat sink to the LED strip for wall for mainlight. We propose to our customers three different diffusers: opal, frosted and clear. We also offer several different accessories such as PC cover, spring clips, and end caps which make it look elegant appearance.

Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting

- Exhibition booth LED lighting

Assembly
- Mounted to the groove with appropriate mounting clips


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers

- Space for LED strip up to 5mm width

Main Specifications


Model No.:  KN50
Item Type:  Recessed Aluminum LED Profile
Dimensions:  (W)123*(H)35mm
Standard length:  2.5m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 64mm
Material:  6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PMMA/PC
Diffuser finished:  Opal/Frosted/Clear/ Black
Accessories:  End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option


Drawing:

Led aluminium channel Recessed Aluminum LED Extrusion With PC Diffusers 0
How to Install ?
Led aluminium channel Recessed Aluminum LED Extrusion With PC Diffusers 1
Application

Led aluminium channel Recessed Aluminum LED Extrusion With PC Diffusers 2

FAQ:

Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.

Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.


Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.


Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
