| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | K39 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PC Frosted |
|---|---|---|---|
| Length: | 2m/pcs, 3m/pcs | Finished Color: | Silver, Black, White |
| Installation: | Surface Mounted, Suspended | Dimension: | 30*30mm |
| Shape: | 90 Degree Corner | Application: | Corner Light |
| Finish: | Anodize / Coating | Port: | Shekou Or Yantian |
| Model No.: | K39 | Accessories: | PC Cover, End Caps, Metal Clips |
| High Light: | T5 LED Corner Aluminium Profile,6063 LED Corner Aluminium Profile,30x30mm Surface Mounted LED Corner |
||

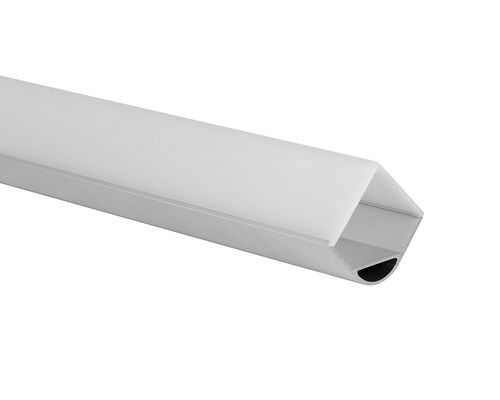

30x30mm Big Size LED Corner Aluminum Profile House 20mm LED Strip
Our quality Corner led profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. Easy Installation. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.
Application
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners
Assembly
- with a 45-degree mounting bracket for easy installation
Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm
Main Specifications
| Model No.: | K39 |
| Item Type: | LED Corner Aluminum Profile |
| Dimensions: | (W)30.0*(H)30.0mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 20.0mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC, PMMA |
| Diffuser finished: | Frosted, Opal, Semi-clear, Clear |

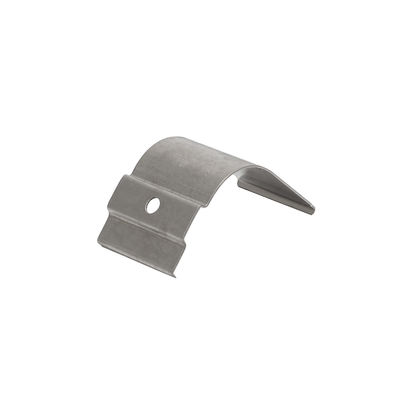

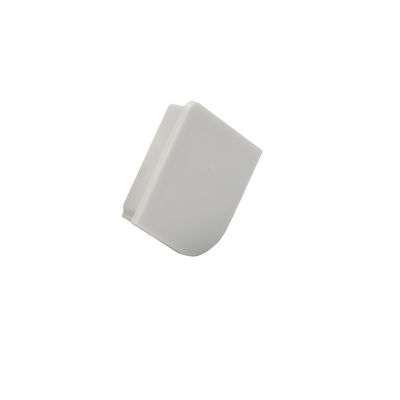

| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |
Drawing:
Application
FAQ:
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.
Q: Can we order a special length for an aluminium profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.
Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.
2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.
Q: How to make a led aluminum profile connector?
A: We can offer some kinds of led aluminum profile connectors to you. Of course, some clients can use a soldering machine to connect the led aluminum profile.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
