| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KN19 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotitation |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Length: | 2m/pcs, 3m/pcs |
|---|---|---|---|
| Finished Color: | Silver, Black, White | Installation: | Surface Mounted |
| Dimension: | 40*40mm | Shape: | 90 Degree Corner |
| Application: | Corner Light | Model No.: | KN19 |
| Finish: | Anodize / Coating | ||
| High Light: | Width 40mm Aluminium Extrusion Corner Profiles,Anodized Aluminium Extrusion Corner Profiles,90 Degrees Aluminum Alloy Corner Profiles |
||

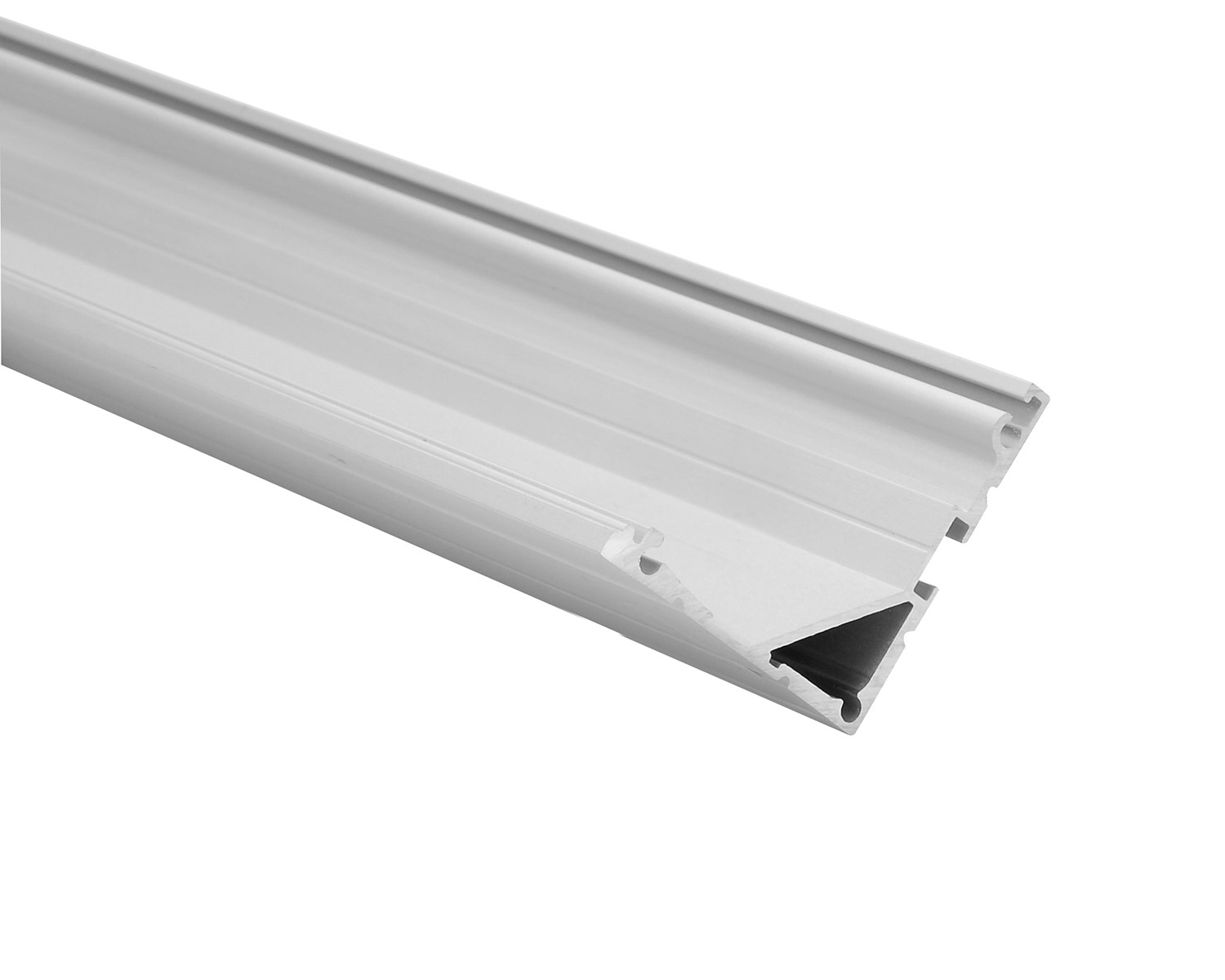

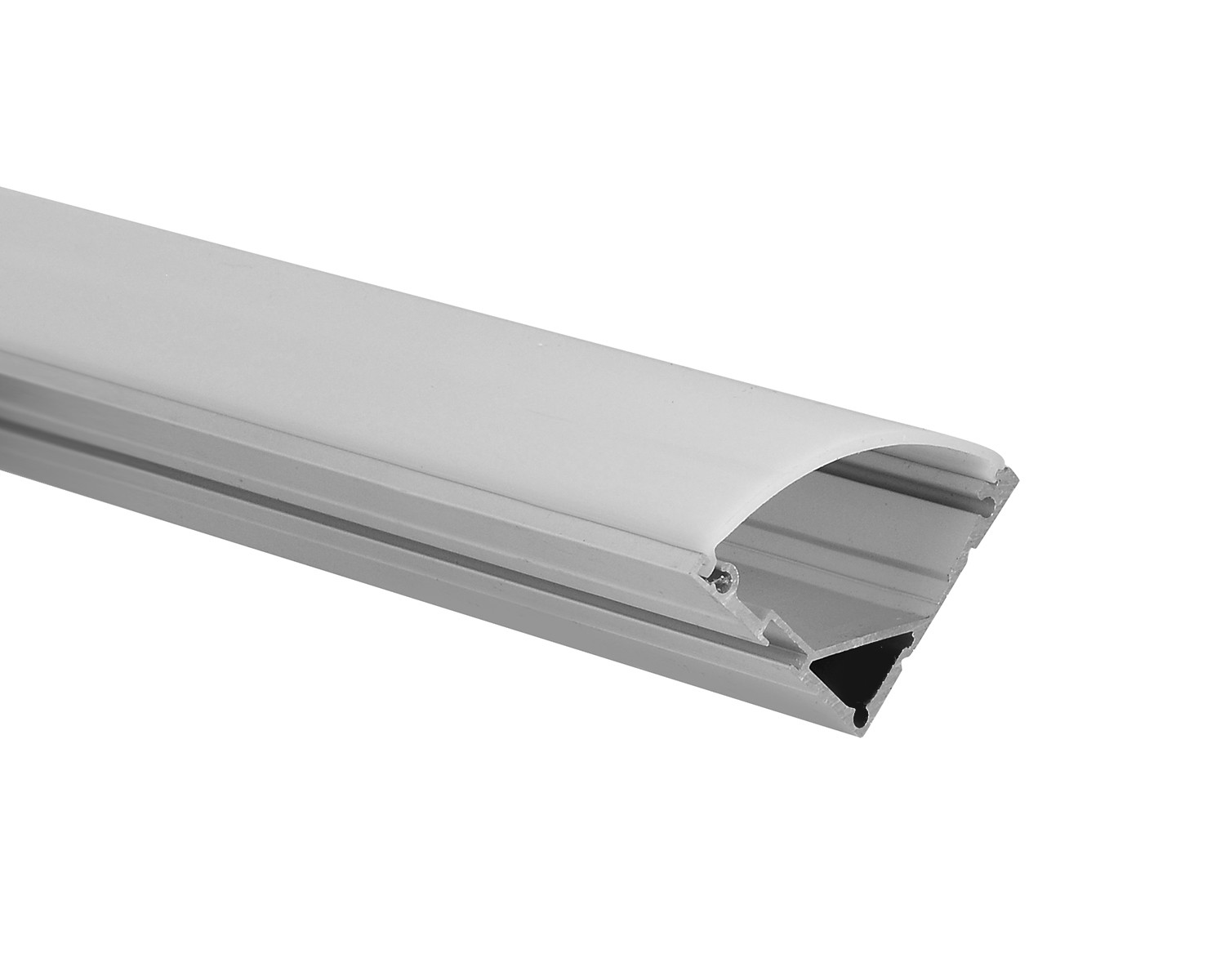

40x40mm Corner Light 45 Degree Angle LED Corner Aluminum Profiles
With corner-mounted profiles, you can easily make LED lighting in the kitchen space, in the corridors between the roof and wall, inside the cabinet, under the stairs… there are many options! Angle profiles are available in a variety of sizes and designs, with different mounting methods.
Application
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners
Assembly
- with a 45-degree mounting bracket for easy installation
Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm
Main Specifications
| Model No.: | KN19 |
| Item Type: | LED Corner Aluminum Profile |
| Dimensions: | (W)40.0*(H)40.0mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12.5mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |

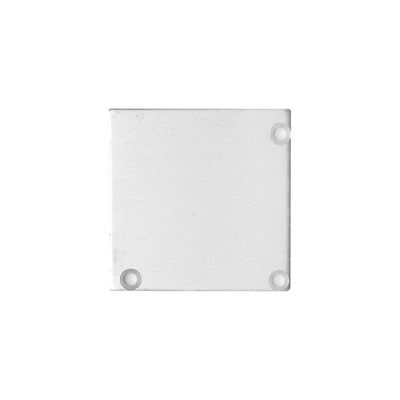

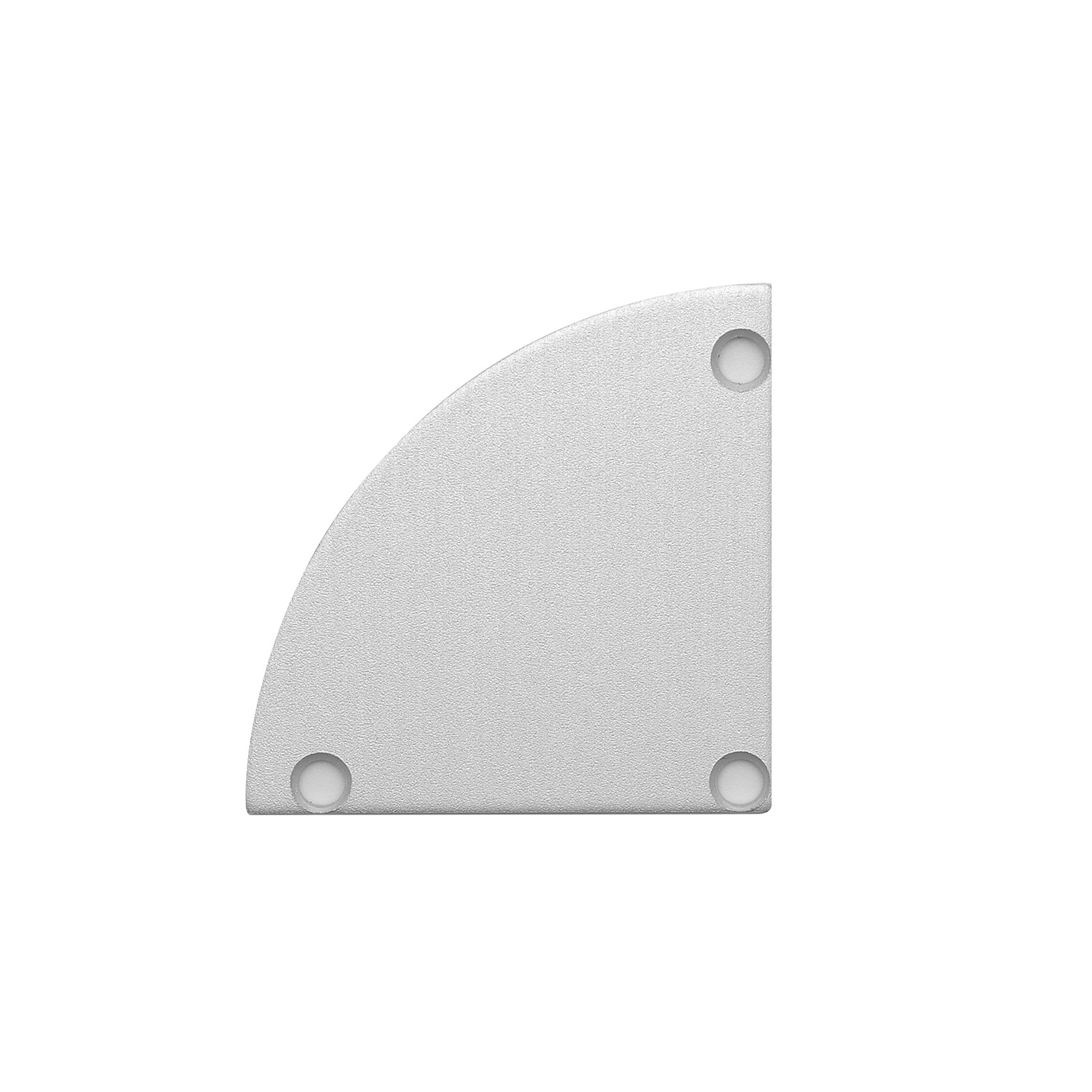

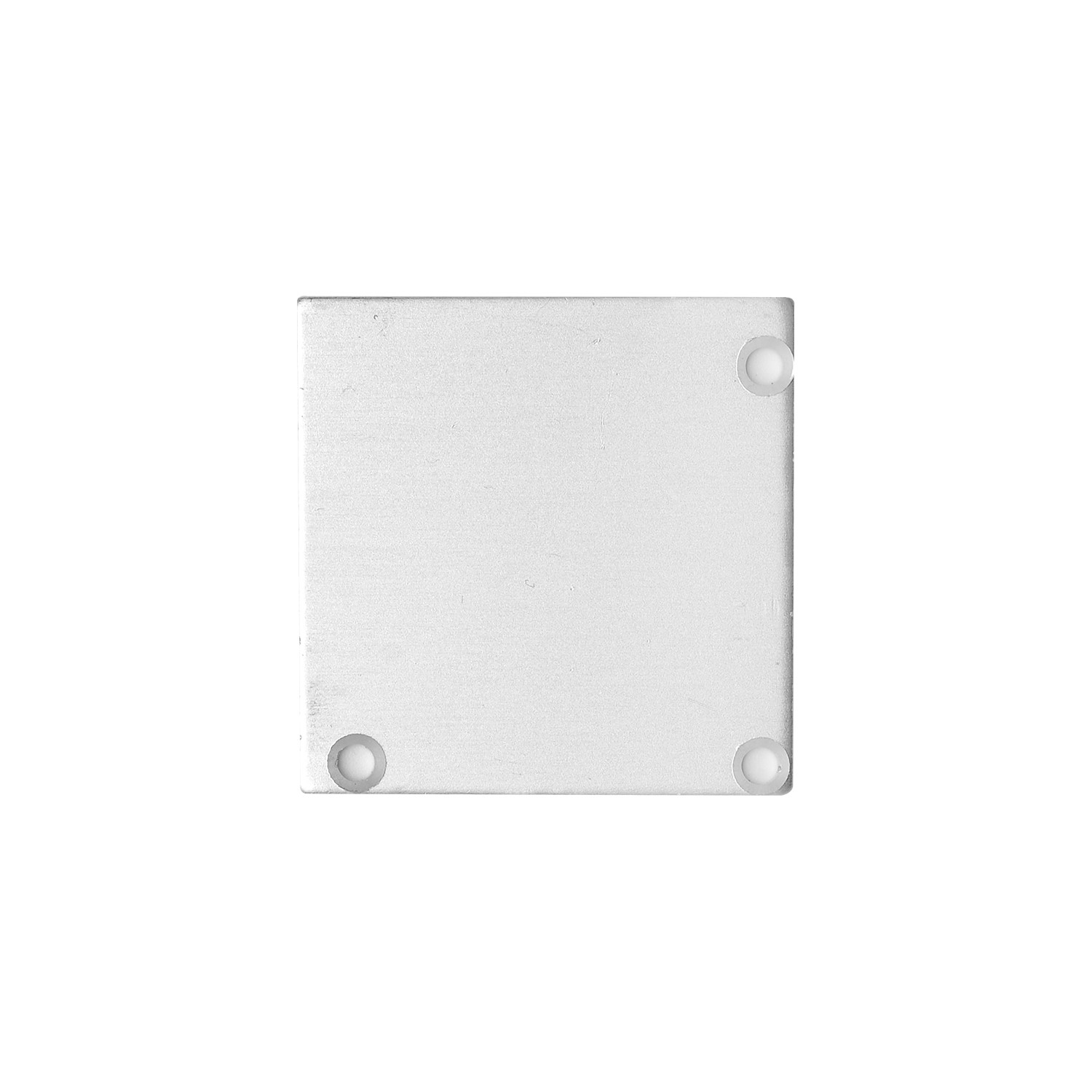

| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |
Drawing:
Application
FAQ:
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.
Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.
Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.
Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
