16x16mm Square 3m LED Corner Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K41
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted Dimension: 16*16mm
Shape: 90 Degree Corner Application: Corner Light
High Light:

16x16mm corner led channel

,

3m aluminum outside corner extrusion

,

3m Square led strip corner profile


Product Description

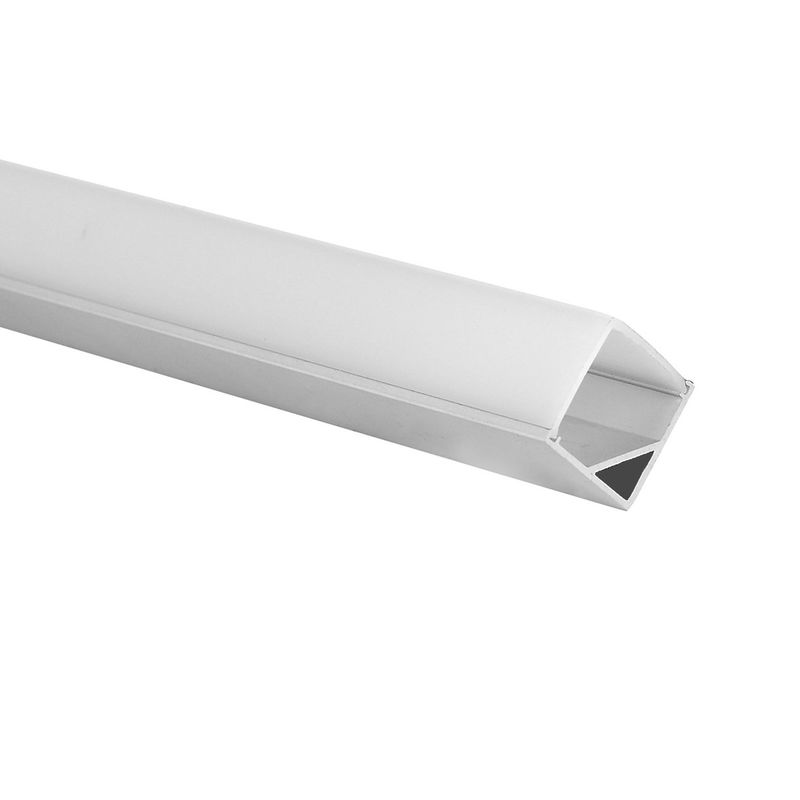

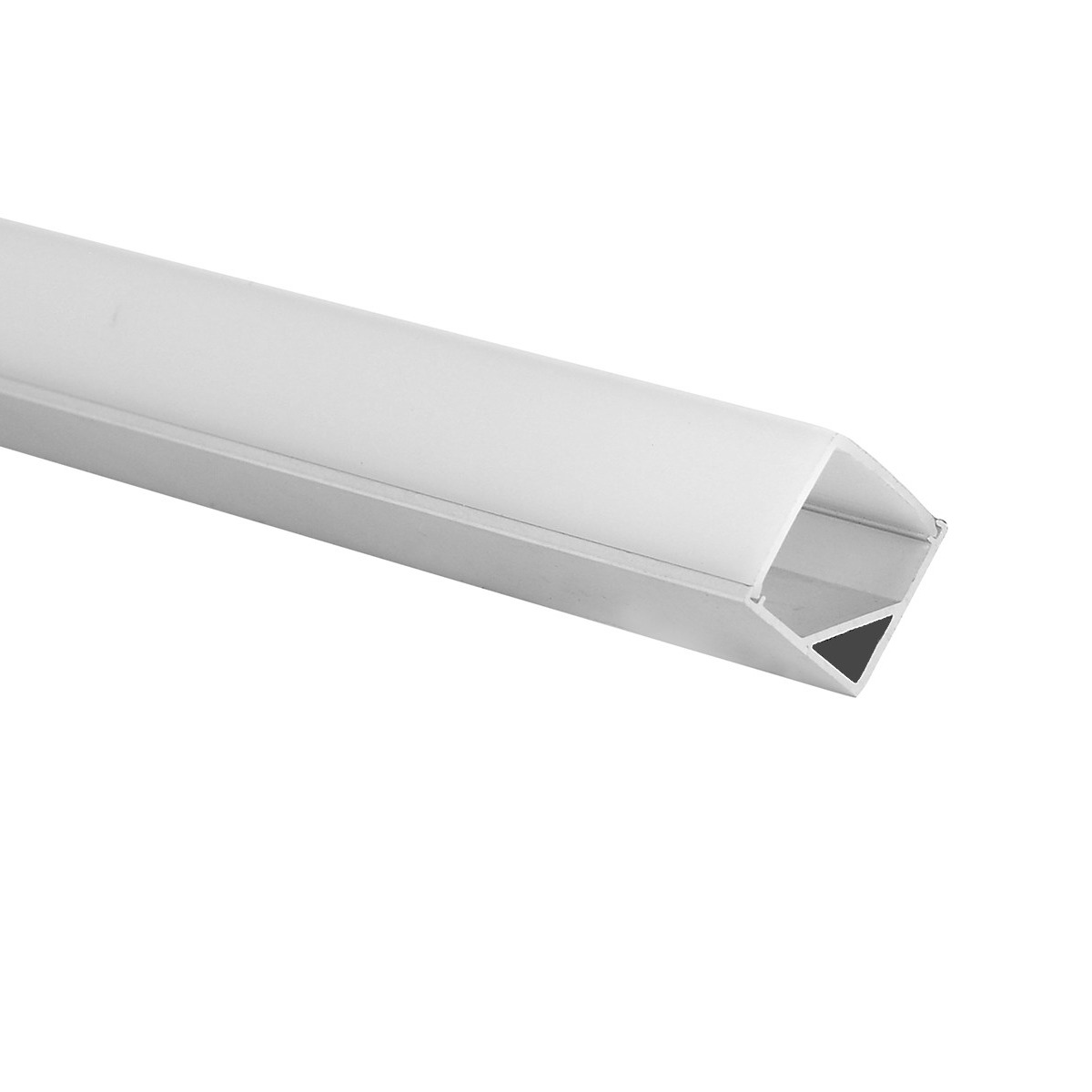

16x16mm Square Shaped PC PMMA Cover LED Corner Aluminum Profile ​


Our quality Corner led profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. Easy Installation. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.

Application

- The extrusion directs the light at a 45-degree angle

- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners


Assembly
- with a 45-degree mounting bracket for easy installation


Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm


Main Specifications



Model No.:   K41
Item Type:   LED Corner Aluminum Profile
Dimensions:   (W)16.0*(H)16.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 11.0mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

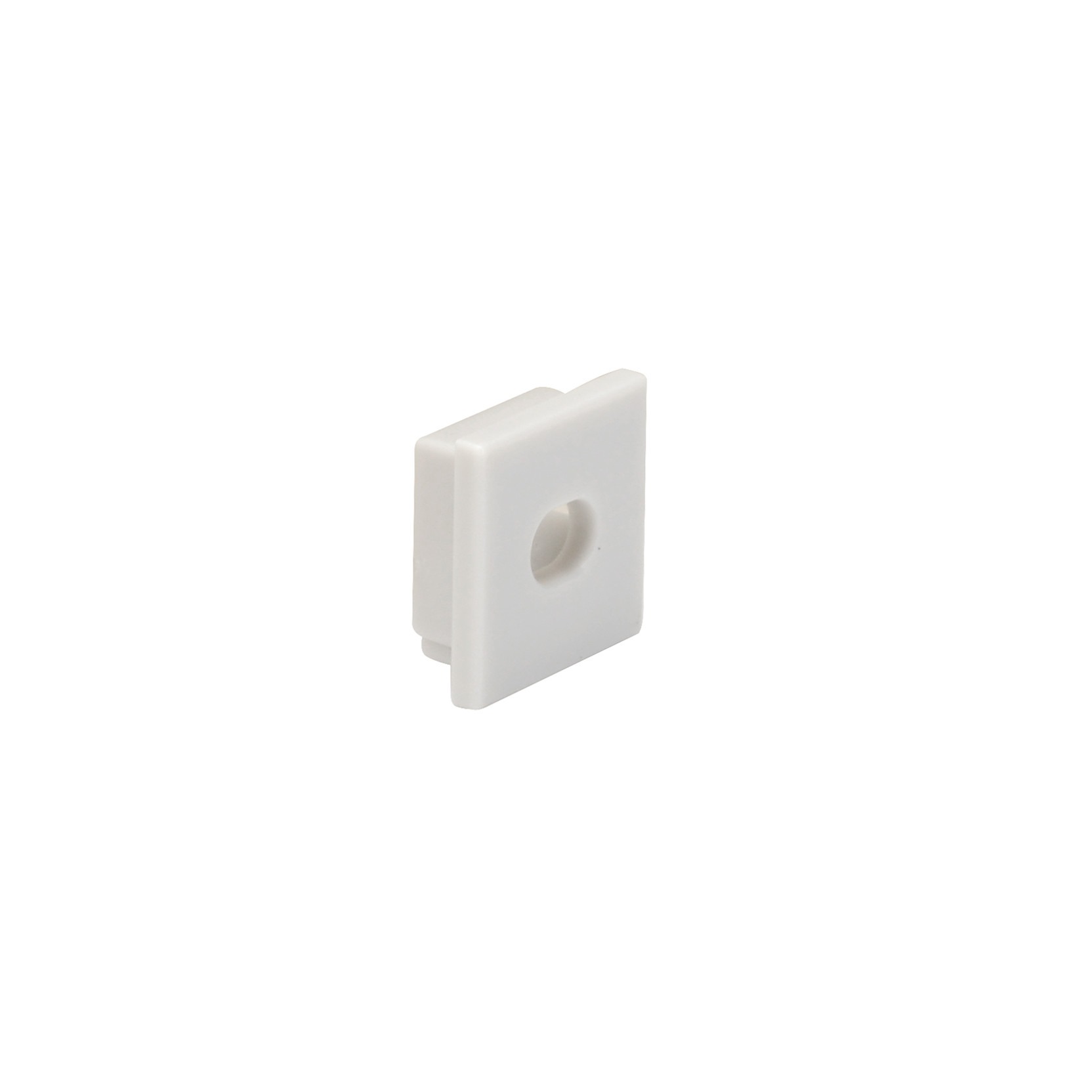

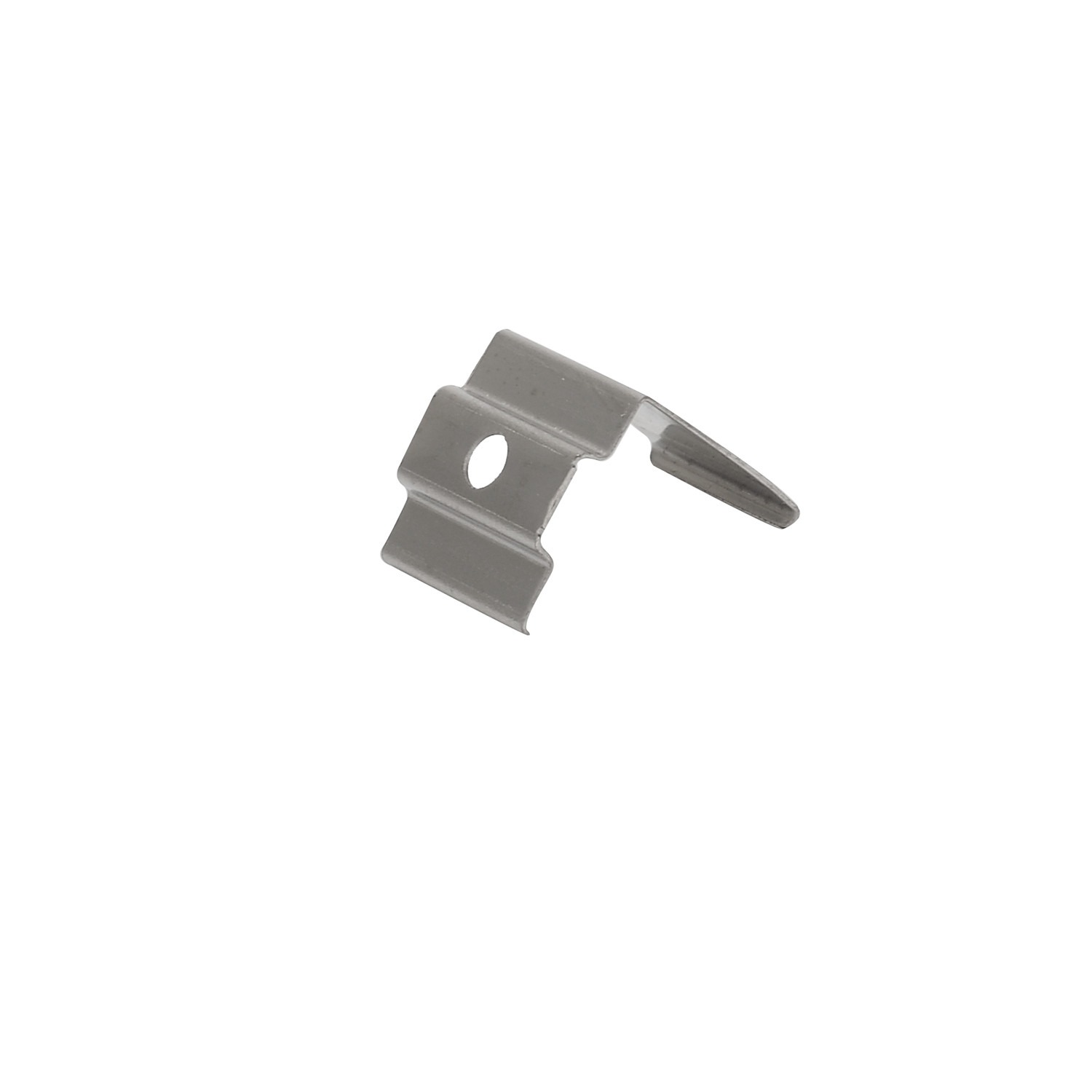

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

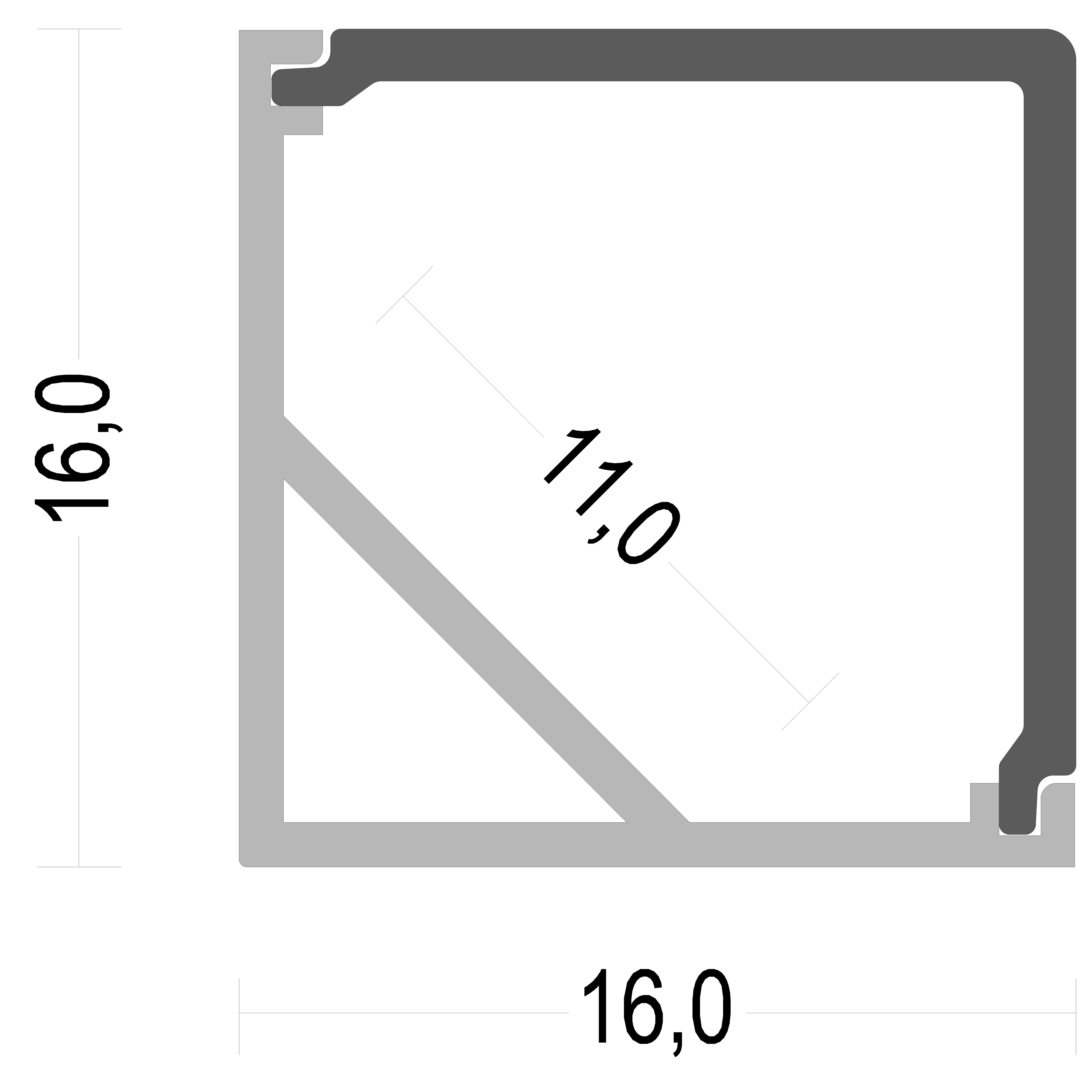

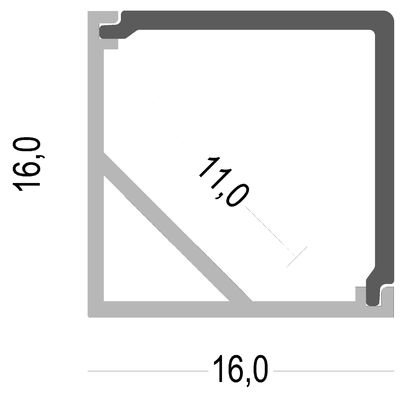

Drawing:

16x16mm Square 3m LED Corner Aluminium Profile 0

Application

16x16mm Square 3m LED Corner Aluminium Profile 1

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.



Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.



Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.



Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
