Led strip aluminum profie Surface Mounted 30x30mm 90d LED Corner Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K39
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted, Suspended Dimension: 30*30mm
Shape: 90 Degree Corner Application: Corner Light
High Light:

30x30mm corner aluminium profile


90d led corner channel


90d led corner profile

Product Description

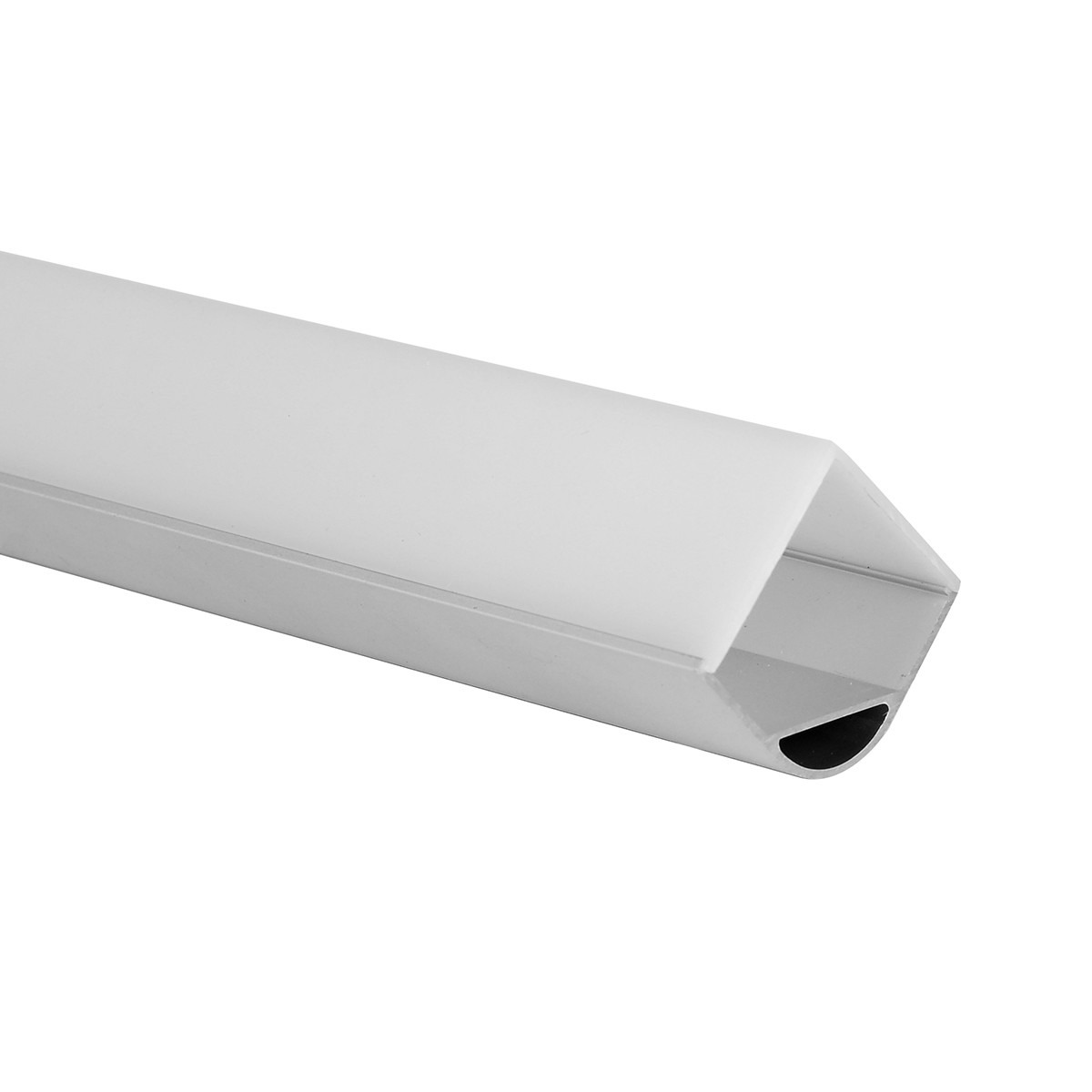

30x30mm Big Size LED Corner Aluminum Profile House 20mm LED Strip
Our quality Corner led profiles are very well designed for 90-degree corner installations. Designed to highlight corners, perfect to provide an attractive and modern atmosphere on your commercial or architectural lighting projects. Easy Installation. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners

- with a 45-degree mounting bracket for easy installation

Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm

Main Specifications

Model No.:  K39
Item Type:  LED Corner Aluminum Profile

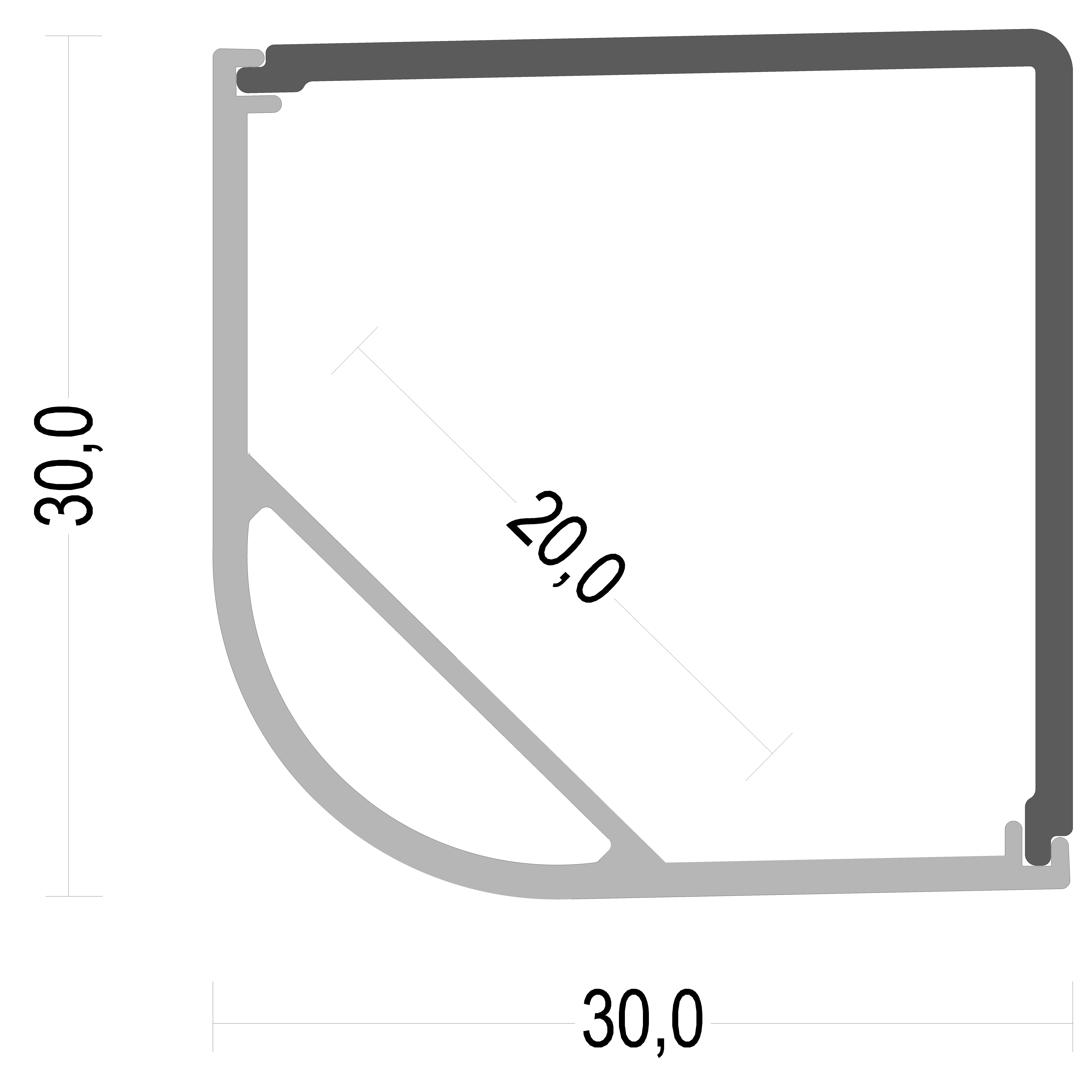

Dimensions:  (W)30.0*(H)30.0mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 20.0mm
Material:  6063 T5 Aluminum Alloy

  Sandblasting oxidation

Finished color:  Silver, black, white
Diffuser material:  PC, PMMA
Diffuser finished:  Frosted, Opal, Semi-clear, Clear

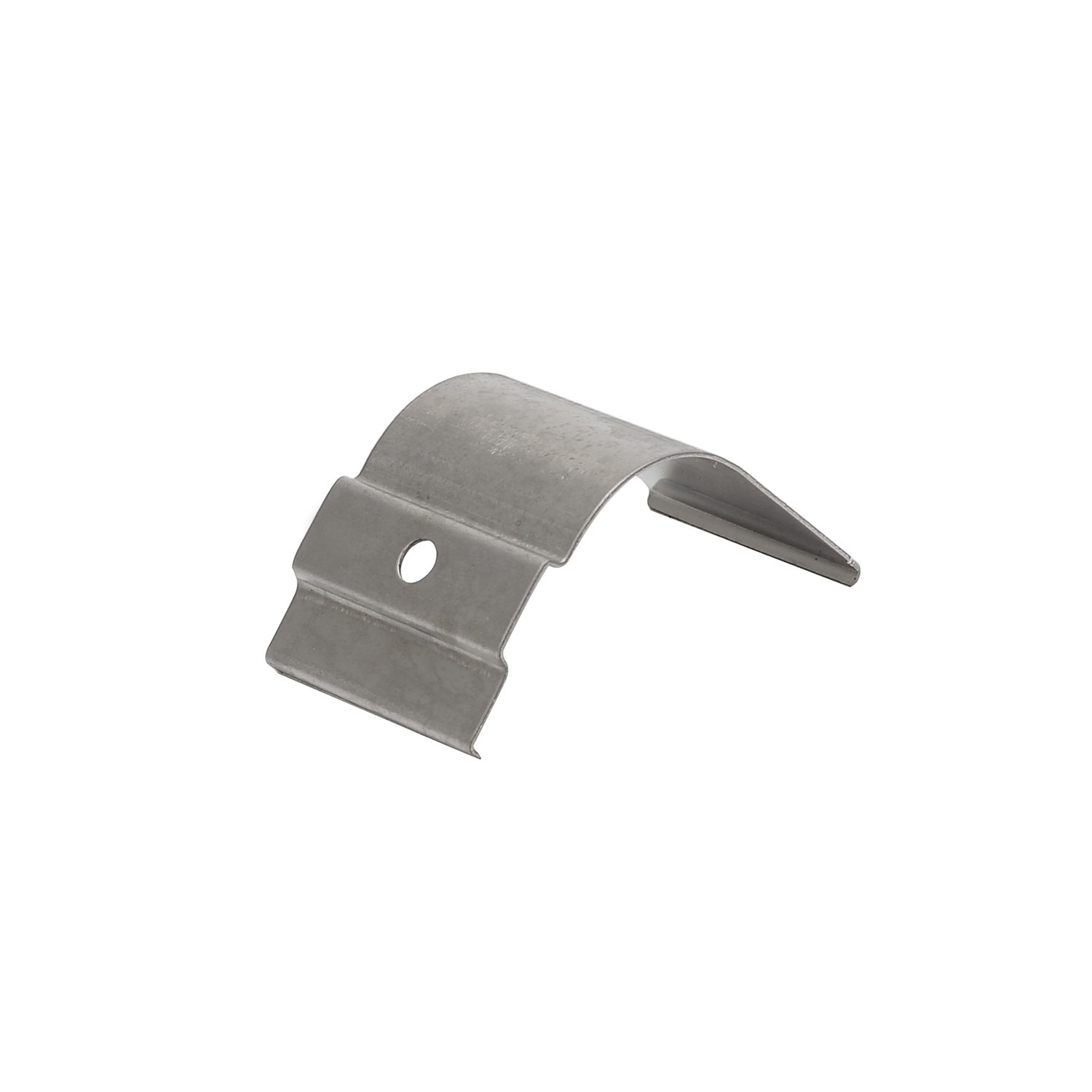

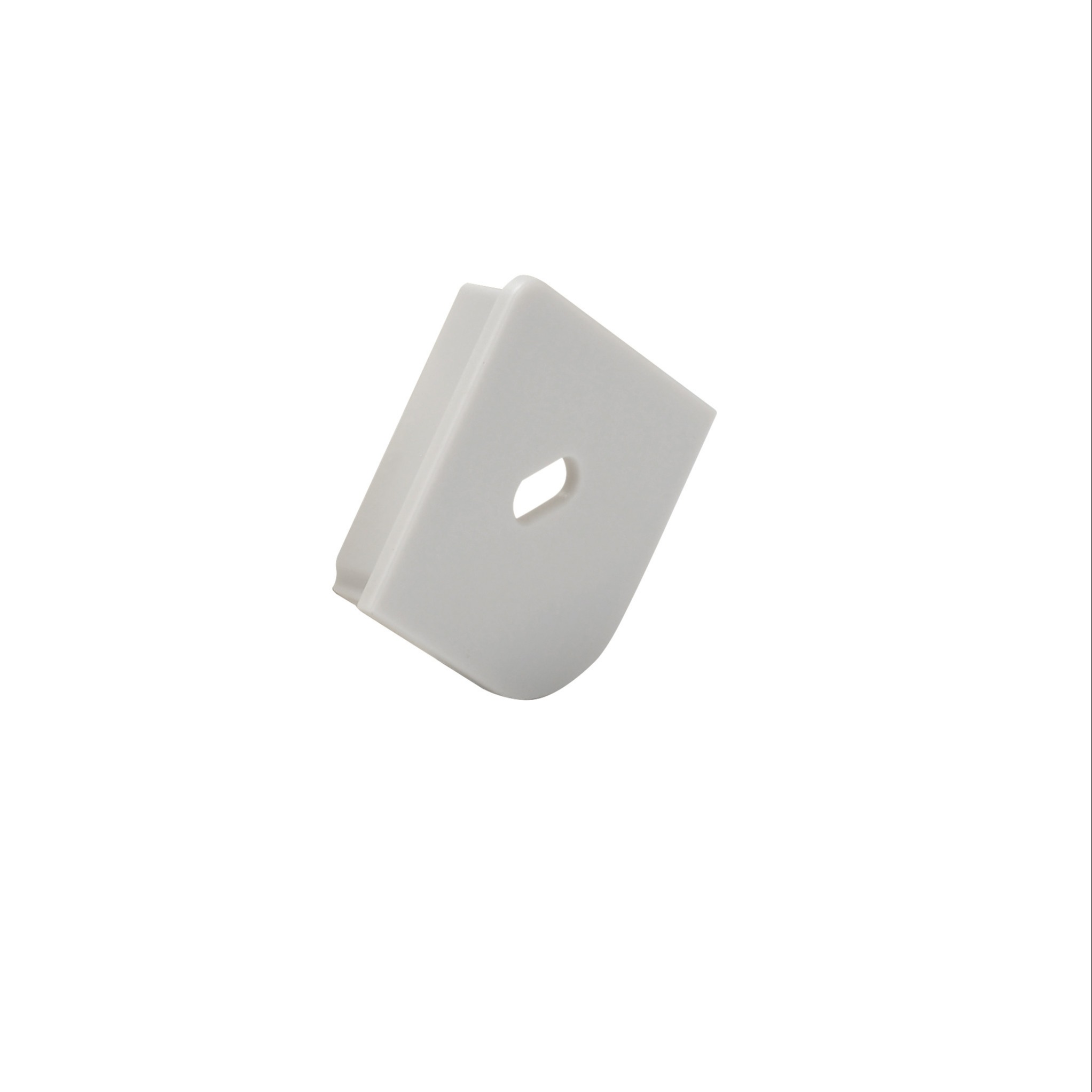

Accessories:  End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option

Led strip aluminum profie Surface Mounted 30x30mm 90d LED Corner Aluminium Profile 0
Led strip aluminum profie Surface Mounted 30x30mm 90d LED Corner Aluminium Profile 1
Led strip aluminum profie Surface Mounted 30x30mm 90d LED Corner Aluminium Profile 2
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.

Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.

Q: Can we order a special length for an aluminium profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.

Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.

2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.

Q: How to make a led aluminum profile connector?
A: We can offer some kinds of led aluminum profile connectors to you. Of course, some clients can use a soldering machine to connect the led aluminum profile.

Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
