K&C 6063t5 Square Mount Pendant LED Strip Aluminium Profile

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN33
Minimum Order Quantity: 100meters
Price: $1~$20
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PC Frosted
Usage: Led Strip Heat Sink Length: 2m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted, Suspended
Dimension: 75*50mm No.: KN33
High Light:

6063t5 led strip mounting channel

,

K&C aluminum channel for led strips

,

6063t5 led mounting profile


Product Description

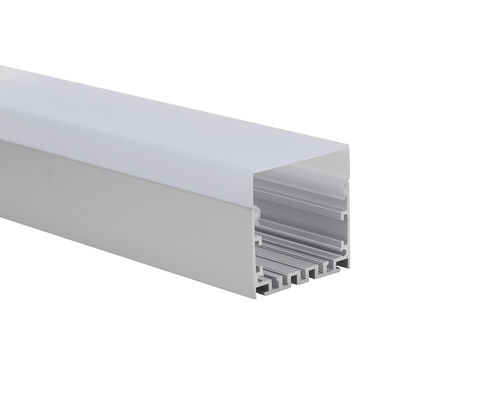

50x50mm Square Shape Mount Pendant LED Strip Aluminum Profile


These extrusions are perfect to be installed but not limited to, in any flat surfaces whether it is a ceiling or wall, under or on top of the cabinet, display cases, shelvings, and art niches. Installation is simple and can be done easily. Supplied in standard 1m or 2m lengths and cut-lengths can be customized upon request. Fitting colors can be customized as well.


Application

- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.

Assembly

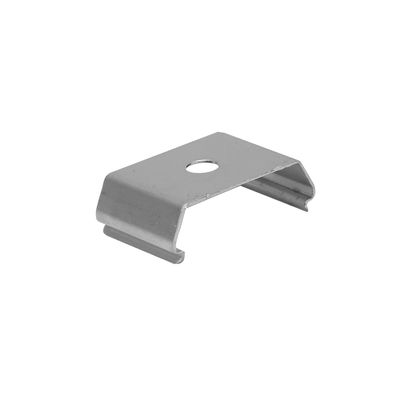

- Mounted to the surface with appropriate mounting clips

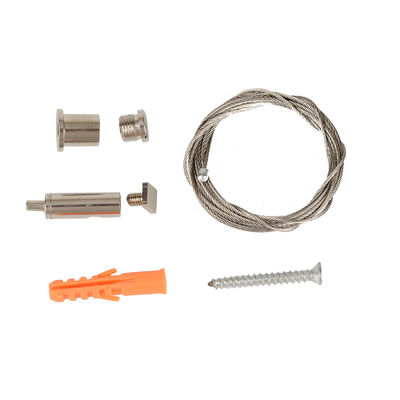

- Suspended with the spring wiring system


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 39mm width

Main Specifications



Model No.:   KN33
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)50.0*(H)50.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 39mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

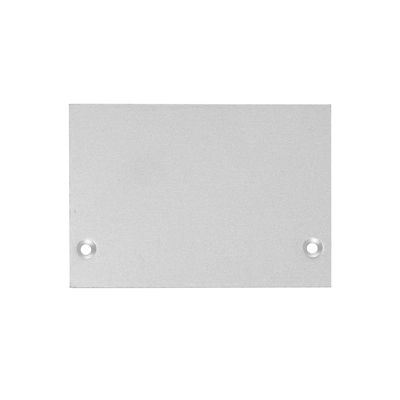

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

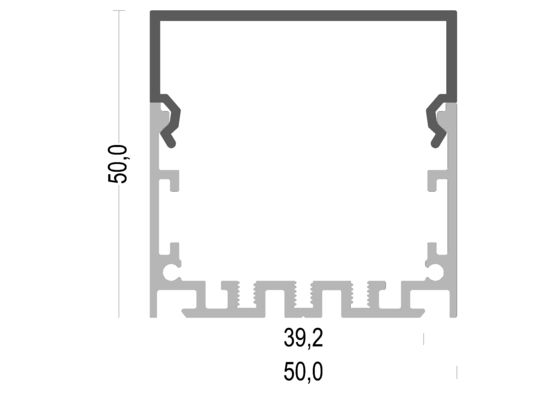

Drawing:


K&C 6063t5 Square Mount Pendant LED Strip Aluminium Profile 0

Application

K&C 6063t5 Square Mount Pendant LED Strip Aluminium Profile 1

FAQ:


Q: How many kinds of led aluminum profiles do you have?
A: We are a professional led aluminum profile supplier, we have more than 200 kinds of led aluminum profile. We can offer different size, different design-led aluminum profile. And if you have your special design, we can make it for you.



Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.



Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover ( Frosted, clear).



Q: How many colors of led aluminum profile available? Collapse
A: We can offer 3 kind colors of led aluminum profile. White, black, and sliver.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
