| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KA2 |
| Minimum Order Quantity: | 100meters |
| Price: | 1.15 |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Finished Color: | White | Length: | Standard 2m, 2.5m Or Max.6m On Request |
|---|---|---|---|
| Indstallation: | Surface Mounted | Material: | PC Cover |
| Diffuser: | Opal/Frosted/Clear | Process: | Extrusion |
| Shape: | Square | Packing: | PE Bag + Carton / Customized Package |
| Aluminum Type: | 6063 Alloy Aluminum | ||
| High Light: | H13mm led tape aluminum channel,W10mm led profile ip65,K&C led profile ip65 |
||

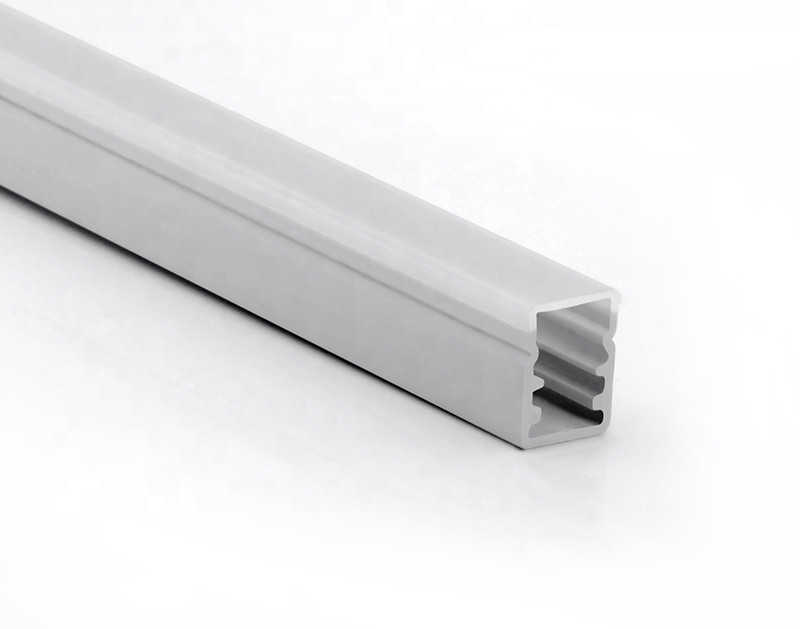

Square Waterproof LED Channel W10mm H13mm LED Strip Full PC Cover
Surface-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 5mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip.
Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
Main Specifications
| Model No.: | KA2 |
| Item Type: | Waterproof LED Profile |
| Dimensions: | (W)10mm*(H)13mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 5mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | white |
| Diffuser material: | PC |
| Diffuser finished: | Opal/Frosted/Clear |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

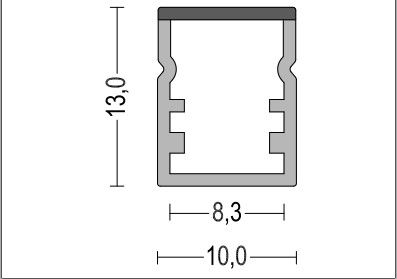

Drawing:

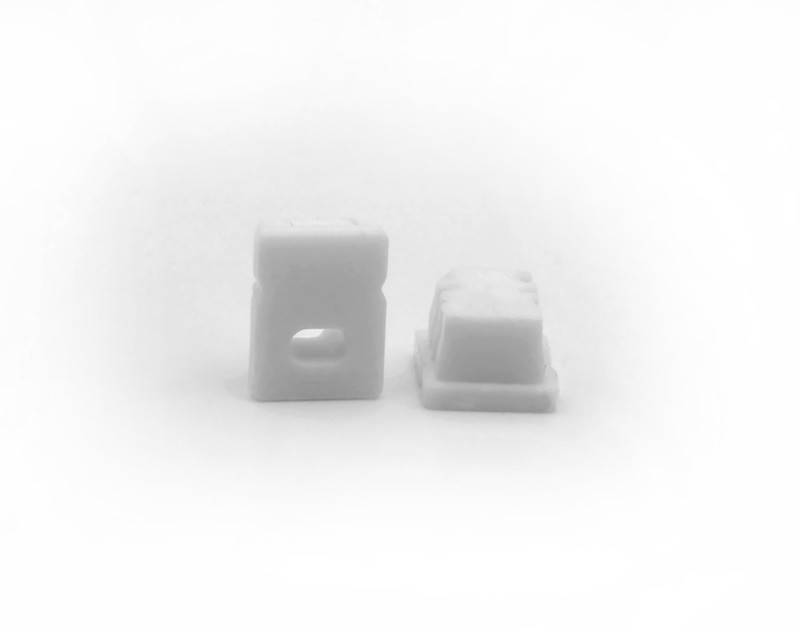

Accessories

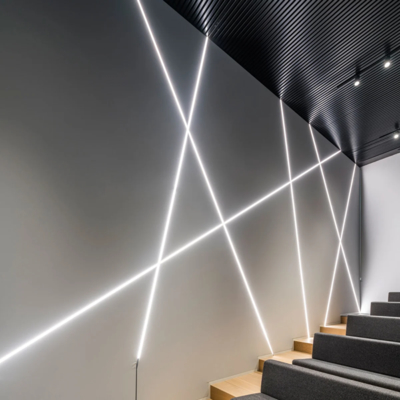

Application
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.
Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.
Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
