| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KA6 |
| Minimum Order Quantity: | 100meters |
| Price: | USD2.5/m |
| Packaging Details: | Standard Package: 1.Aluminum with PE bag 2.PC with protective sheet 3. Mixed packed into strong outer carton 4. Carton protect with angle bead . |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Color: | Silver, Black, White | Lenght: | Standard In 2m |
|---|---|---|---|
| Installation: | Mounted | Application: | Linear Lighting System |
Main Descriptions

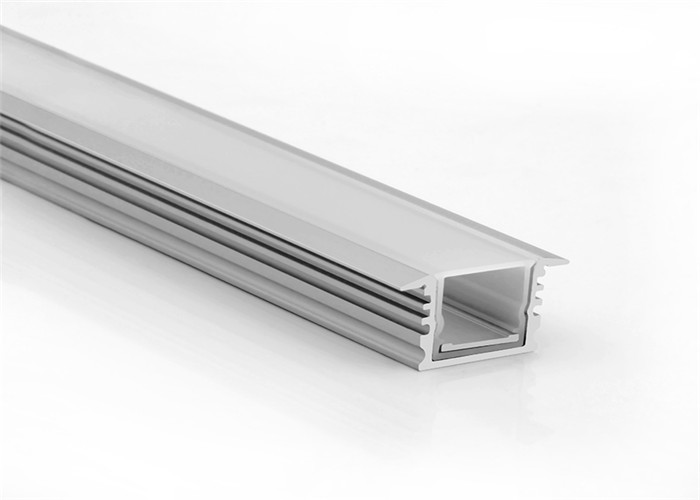

Our IP65 waterproof aluminium extrusion for LED strip light. This profile works by using an inner aluminum bar inserted into a plastic outer body which works to eliminate water ingress. Simply lay the LED strip onto the Aluminium bar and insert it into the channel, then use the provided end caps to seal the ends. We suggest using a further silicone glue coating inside and out.
Main Specifications
| Model No.: | KA6 |

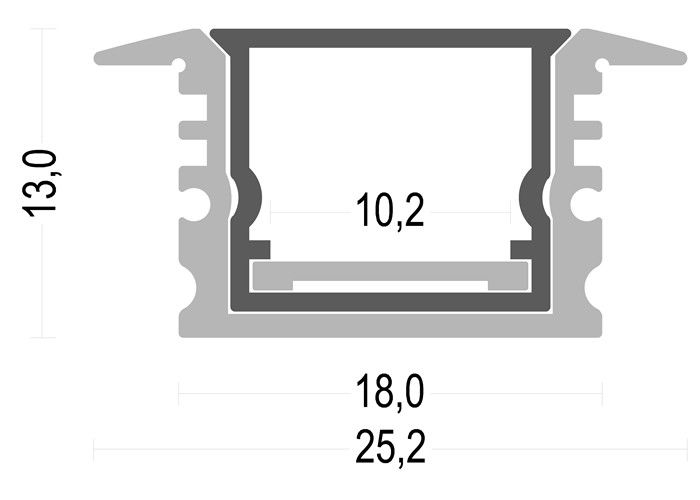

| Dimensions: | W13*H25.2mm |
| Inside PCB width: | Up to 10mm |
| Length: | 2meters/pcs (Standard) |
| IP rating | IP65 |
| Surface treatment | Anodized |
| Materials |
6063-T5 aluminum PC covers |
| Accessories | End caps, clips |
Installation
