Drywall gypsum Led aluminum channel Wall Plasterboard with UGR diffuser PC cover

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K9
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Standard Package: 1.Aluminum with PE bag 2.PC with protective sheet 3. Mixed packed into strong outer carton 4. Carton protect with angle bead .
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Color: Silver, Black, White Lenght: Standard In 2m
Indstallation: Recessed Application: Linear Lighting System
Finish: Anodize / Coating Port: Shekou Or Yantian
Dimension: 75*35(inside Width)*35 Accessories: PC Cover, End Caps
High Light:

75*35mm plaster in led strip lights

,

75*35mm plaster in led strip channel

,

35mm wall plaster in led strip channel


Product Description

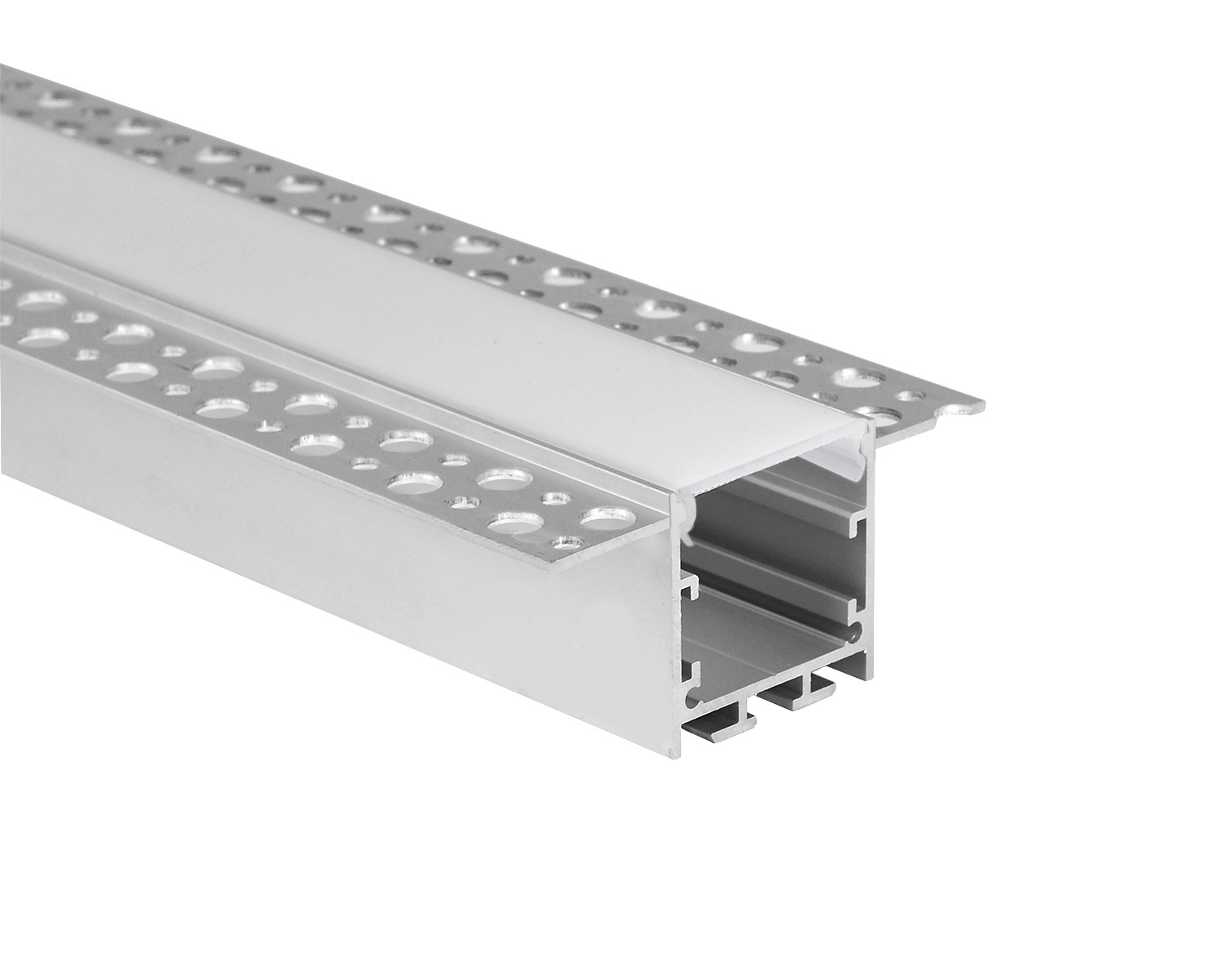

75*35mm big size plaster-in led profile for wall led linear lighting



Main Descriptions

The seamless version of led aluminum profiles is designed to be completely seamless once installed into plaster ceilings or walls, with no aluminum frames showing. Combined with led strip lights and power drivers, it creates continuously lighting effects in any room without shadows or overlapping. At the same time, the extrusions protect wall edges from cracking and chipping, eliminate the need for caulking, and provide easy transitions between wall-to-wall, floor-to-wall, or ceiling-to-wall coverings.

Drywall gypsum Led aluminum channel Wall Plasterboard with UGR diffuser PC cover 0

Main Specifications

Model No.:   K9

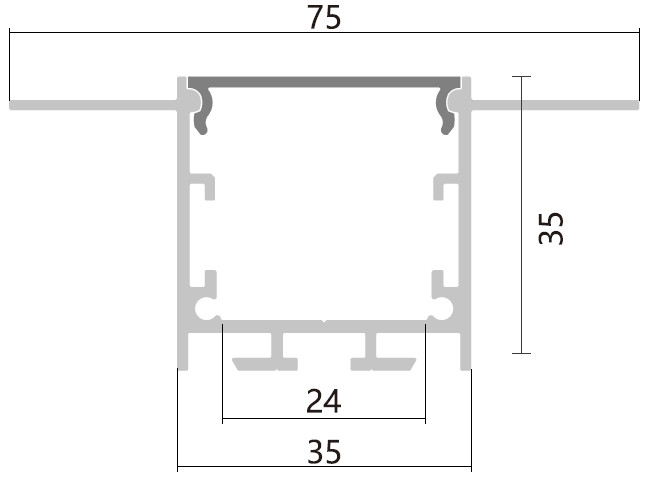

Dimensions:   W75*H35mm
Inside PCB width:   Up to 25mm
Length:   2meters/pcs (Standard)
IP rating   IP20
Surface treatment   Anodized
Materials

  6063-T5 aluminum

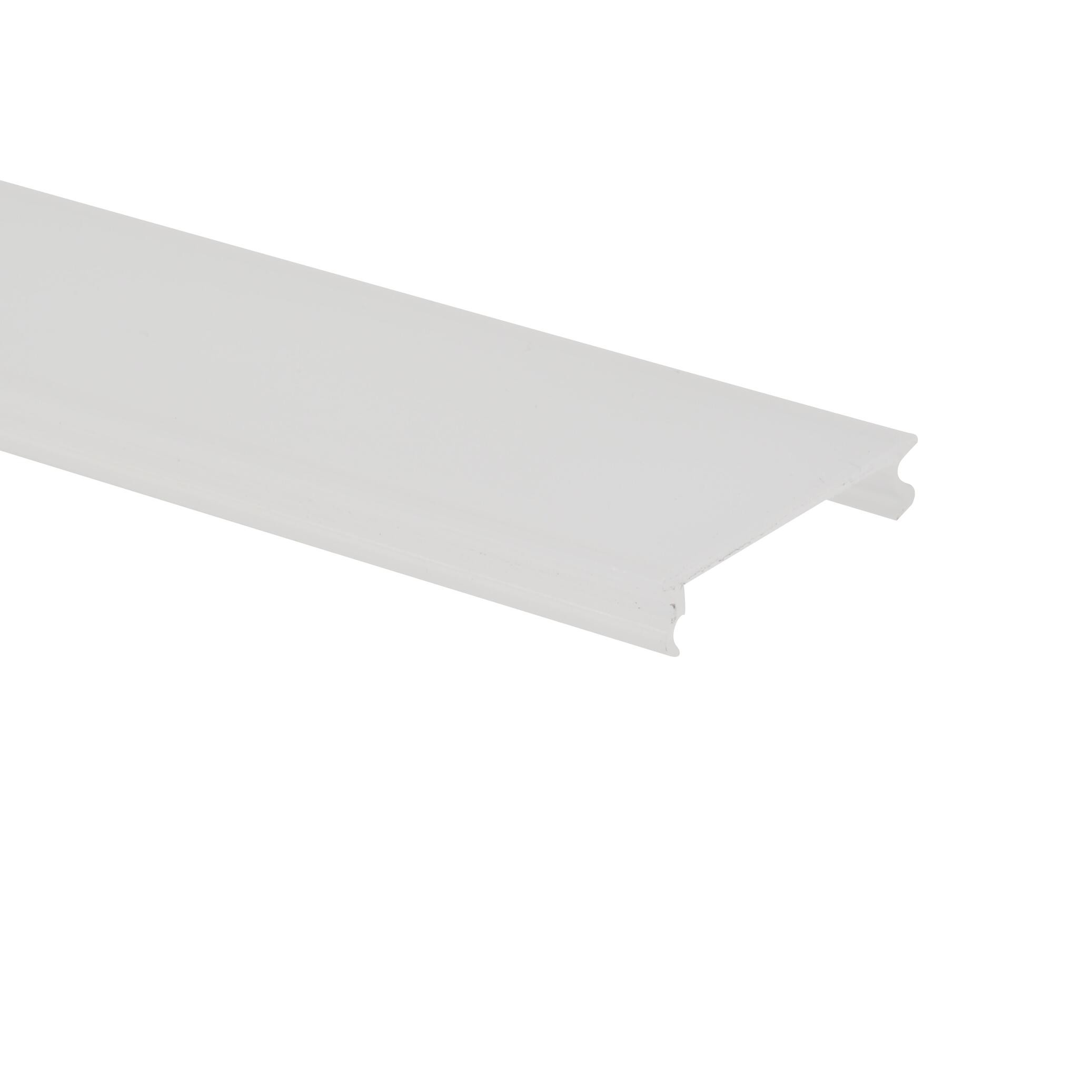

  PC covers & PMMA covers

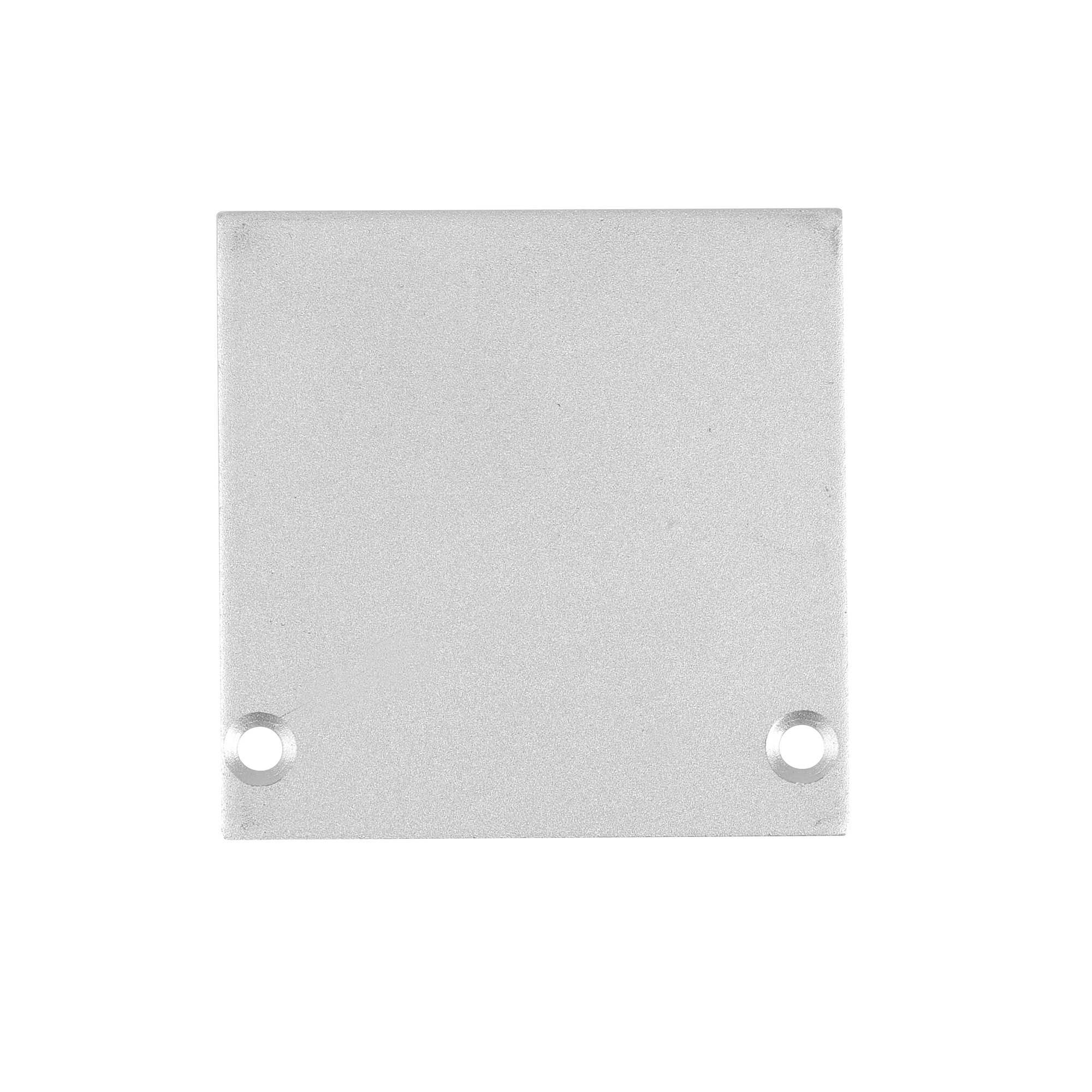

Accessories   End caps



Installation

Drywall gypsum Led aluminum channel Wall Plasterboard with UGR diffuser PC cover 1
