Exhibition Booth H19.8mm Round LED Profile IP44 K48 W20mm

Basic Information
Place of Origin: Guangdong, China
Brand Name: K&C
Certification: RoHS
Model Number: K48
Minimum Order Quantity: 100
Price: Real-time quotation
Packaging Details: Normal Package:1.led light in PE bag2. 1pcs inner3. 50pcs per cartonCustomized special package available
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons/Month
Detail Information
Product Name: K48 Standard Length:: 2m/pcs
Dimensions:: (W)20mm*(H)19.8mm Item Type:: Round LED Profile
Material: T5 6063 IP Grade: 20-44
Installation: Hoisting LED Source: PCB Width Up To 12mm
Treatment:: Sandblasting Oxidation
High Light:

H19.8mm Round LED Profile

,

Exhibition Booth Round LED Profile

,

IP44 LED Lighting Aluminum Profile


Product Description

            Round LED Profile W20mm H19.8mm Exhibition Booth LED Lighting Aluminum Profile K48



Surface-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 10mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffuser: opal, frosted and transparent. We also offer several different accessories such as mounting clips, and end caps which make it look professional and modern.





Application

- Main Lighting,decorative lighting
- Kitchen cabinets LED Lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting





Assembly

- Mounted to the surface with appropriate mounting clips


 Additional information

- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 12mm width



Main Specifications

Model No.:  K48
Item Type:  Round LED Profile

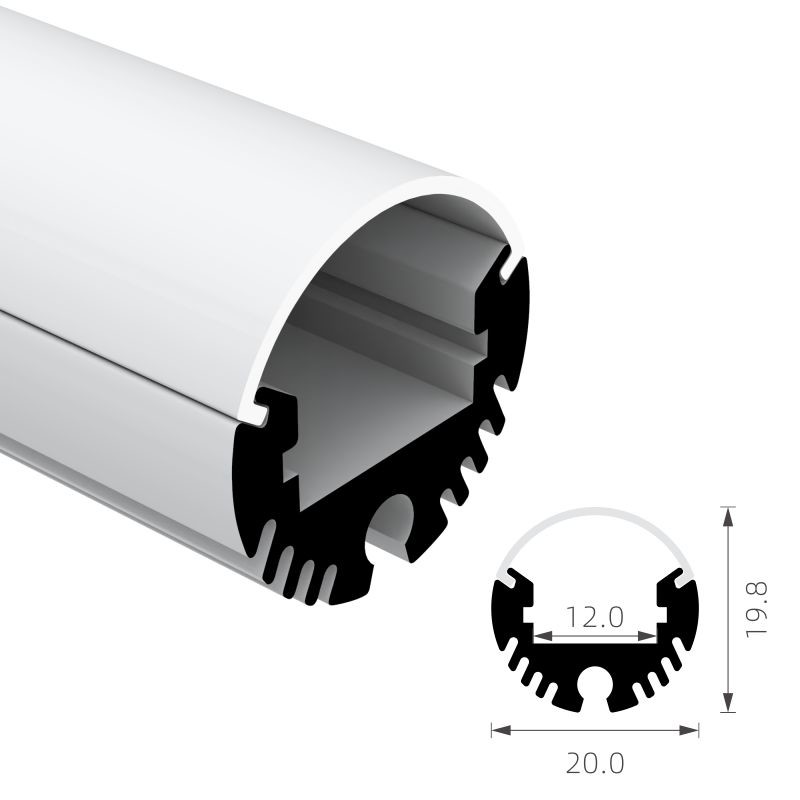

Dimensions:  (W)20mm*(H)19.8mm
Standard length:  2m/pcs
Customized-length:  Available on request
Suitable for led strip:  PCB width up to 12mm
Material:  6063 T5 Aluminum Alloy
Treatment:  Sandblasting oxidation
Finished color:  Silver/Black/white
Diffuser material:  PC
Diffuser finished:  Opal/Frosted/Clear
Accessories:  PC Cover,End caps, clips
Installation:  Surface-mounted
Standard Package:  Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:  Available on request
Handling time  Samples within 3 working days
 Batch order 3-15 working days upon stocks
Shipment  By sea, by air, by express for option














How to Install ?



Exhibition Booth H19.8mm Round LED Profile IP44 K48  W20mm 0

Exhibition Booth H19.8mm Round LED Profile IP44 K48  W20mm 1



FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.

Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.

Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.

Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
