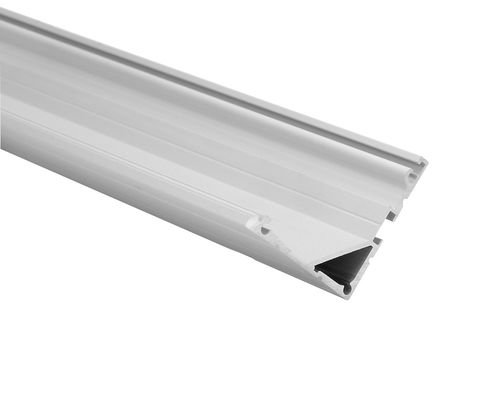

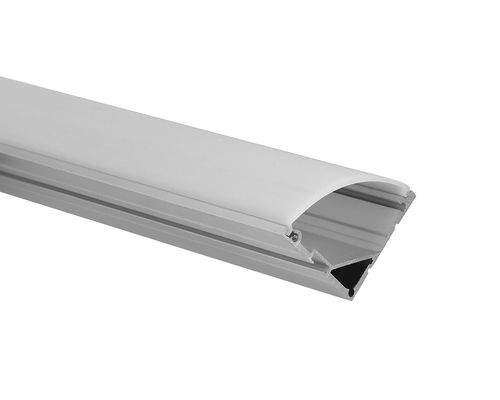

Triangle 6063 40x40mm Aluminium Led Corner Profiles

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KN19
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy + PC Diffuser Length: 2m/pcs, 3m/pcs
Finished Color: Silver, Black, White Installation: Surface Mounted
Dimension: 40*40mm Shape: 90 Degree Corner
Application: Corner Light Model No.: KN19
Finish: Anodize / Coating Acceossories: Pc Cover, End Caps
High Light:

40x40mm Aluminium Led Corner Profiles

,

6063 Aluminium Led Corner Profiles

,

90 Degrees LED Aluminium Profile


Product Description

40x40mm Corner Light 45 Degree Angle LED Corner Aluminum Profiles ​


With corner-mounted profiles, you can easily make LED lighting in the kitchen space, in the corridors between the roof and wall, inside the cabinet, under the stairs… there are many options! Angle profiles are available in a variety of sizes and designs, with different mounting methods.

Application

- The extrusion directs the light at a 45-degree angle

- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners


Assembly
- with a 45-degree mounting bracket for easy installation


Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm


Main Specifications



Model No.:   KN19
Item Type:   LED Corner Aluminum Profile
Dimensions:   (W)40.0*(H)40.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 12.5mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

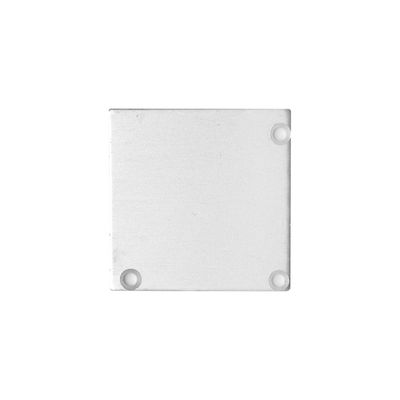

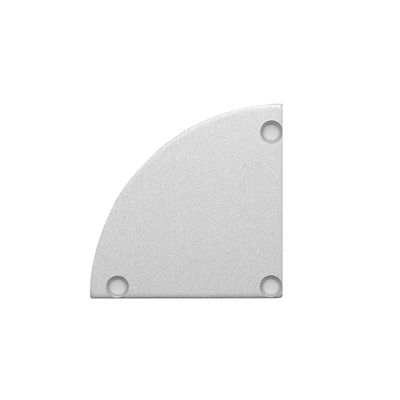

Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option


Drawing:

Triangle 6063 40x40mm Aluminium Led Corner Profiles 0

Application

Triangle 6063 40x40mm Aluminium Led Corner Profiles 1

FAQ:


Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.



Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.



Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.



Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.



Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.



Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
