T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: K41,k42
Minimum Order Quantity: 1meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Tons/Month
Detail Information
Product Name: Aluminum Profile For LED Material: 6063 T5 Aluminum Alloy + PC Diffuser
Length: 1m/2m/3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted Dimension: 16*16mm
Shape: 45 90 Degree Corner Application: Corner Light
Surface Treatment: Anodized Certification: ROHS
High Light:

t5 led aluminum channel corner

,

Heat Sink led aluminum channel corner

,

Pmma Cover corner aluminium led profile


Product Description

LED Corner Aluminium Profile 90 45 Degree Strip Light Heat Sink With Pc Diffuser Pmma Cover Clip

Surface led lights
Surface LED lights are a great way to provide ample illumination to large spaces with a relatively easy path to the installation. Because suspended linear LED lights are so visible, you’ll need an aluminum channel that is durable, functional and aesthetically pleasing. K&C Lighting supplies a wide range of aluminum channels and profiles for suspended LED lighting. You can find appropriate aluminum channels in various widths, heights and lengths. Welcome to contact us for more details.
Application
- The extrusion directs the light at a 45-degree angle
- For the construction of directional lighting fixtures
- For mounting on surfaces and in internal 90° corners

Assembly
- with a 45-degree mounting bracket for easy installation

Additional information
- Cover with simplified construction
- Lighting or illumination of certain areas.
- All types of grooves, inputs or surface edges
- Space for LED strip 11.3mm

 T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 0T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 1
Main Specifications

Model No.:   K42
Item Type:   LED Corner Aluminum Profile
Dimensions:   (W)16.0*(H)16.0mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 11.0mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted
Accessories:   End caps, clips
Installation:   Surface-mounted
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

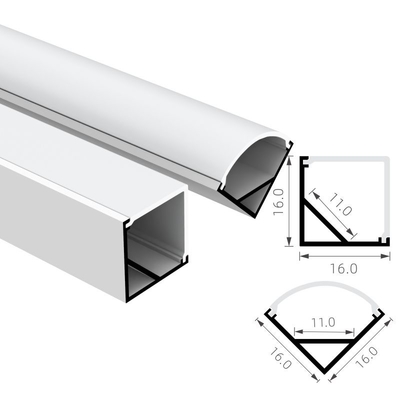

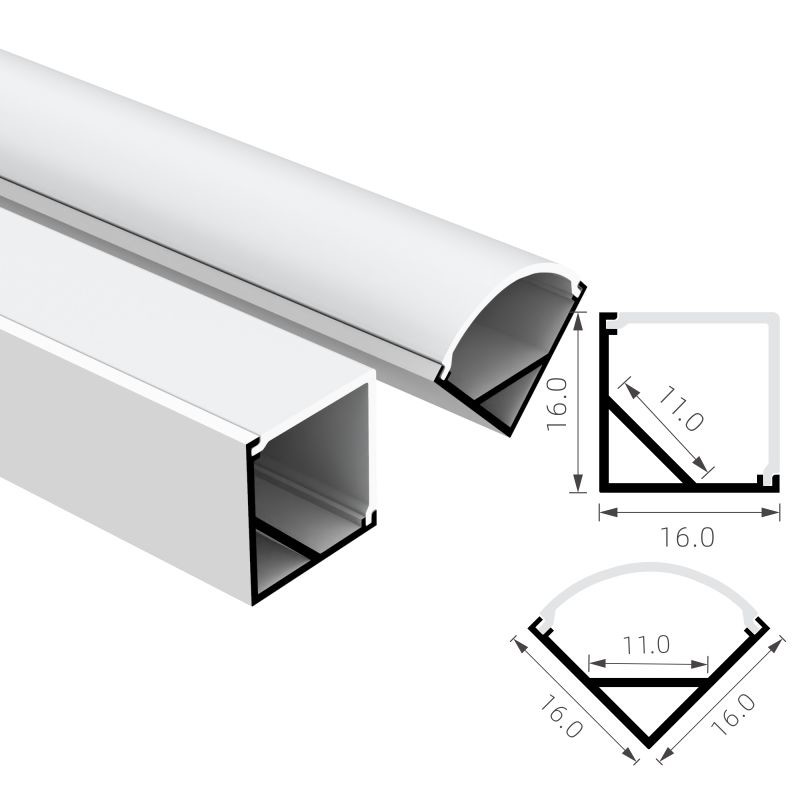

Drawing:
T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 2
T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 3T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 4

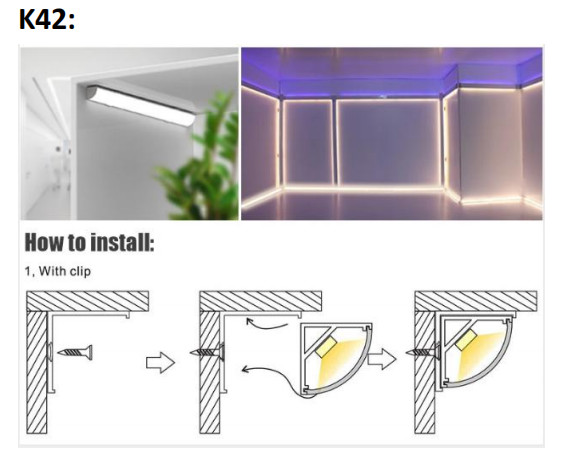

Installation

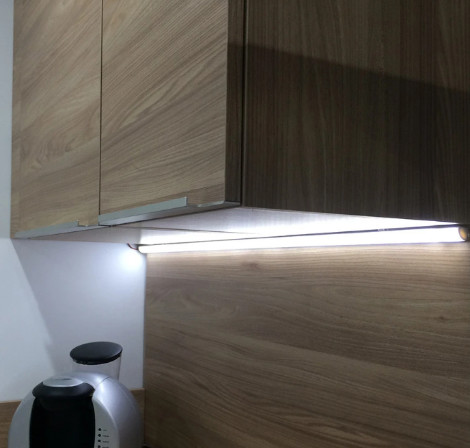

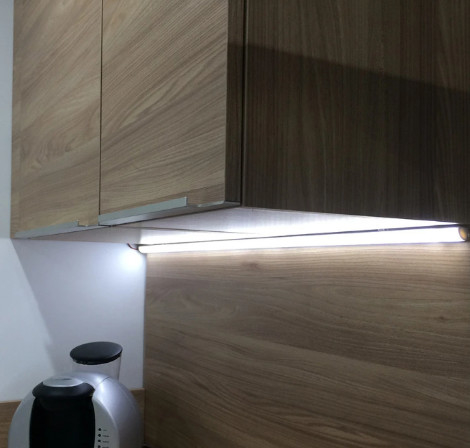

Application

T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 5
T5 90 45 Degree Led Aluminum Channel Corner Strip Light Heat Sink With Pmma Cover Clip 6

FAQ:

Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.


Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.


Q: Can we order a special length for an aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: What is the MOQ for the aluminum profiles and diffusers?
A: General MOQ for aluminum profiles and diffusers is 100meters per item, but it's upon to the exact item due to the different size and weight.


Q: What's your terms of payment?
A: Payment<2000USD, 100% In advance, Payment>=2000USD, 30% deposit and 70% balance before shipment.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
