| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KN20 |
| Minimum Order Quantity: | 100meters |
| Price: | Negotiate |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Material: | 6063 T5 Aluminum Alloy | Diffuser: | PC Frosted,UGR Cover |
|---|---|---|---|
| Length: | 2m/pcs, 3m/pcs | Finished Color: | Silver, Black, White |
| Installation: | Recessed Mount | Dimension: | 35*35mm |
| Application: | Led Linear Lighting Project | Port: | Shekou Or Yantian |
| High Light: | H35mm LED Aluminium Extrusion Profiles,W35mm LED Aluminium Extrusion Profiles,PC Diffuser Alum Extrusion Profile |
||

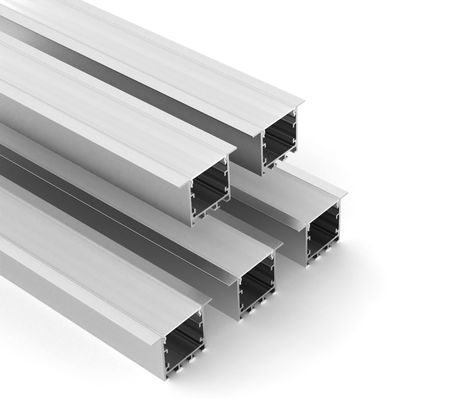

35x35mm Wall Mounted Pendant Light Extrusion LED Strip Aluminum Profile
High quality anodized LED aluminum profiles do not rust due to anodising and are suitable for indoor use as well as indoor bathrooms, kitchen interiors and outdoor use.The covers, ie diffusers, are of high quality and UV protected. The opal “milk glass” lid better fades the ledges and smoothes light and prevents reflections from the shiny work surface. The clear lid allows all light to pass through. indirect lighting and just want to protect the tape from dust.
Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.
Assembly
- Mounted to the surface with appropriate mounting clips
- Suspended with the spring wiring system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers
- Space for LED strip up to 24mm width
Main Specifications
| Model No.: | KN21 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)35*(H)35mm |
| Standard length: | 2m/pcs 2.5m/pcs 3m/pvcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 24mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted, suspended |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |
Drawing:
Installation
Accessories
Application
FAQ:
Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.
Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
