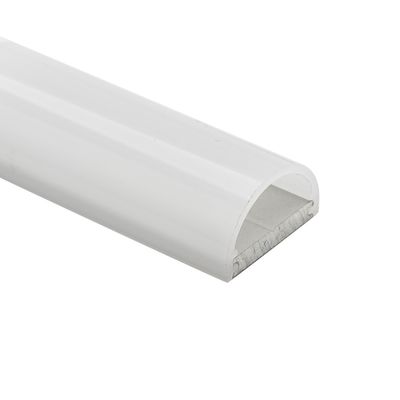

Led aluminum profile frosted Surface mounted Aluminum T Bar Extrusion suir to 10mm led strip

Basic Information
Place of Origin: Guangdong China
Brand Name: K&C
Certification: ROHS
Model Number: KA18
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: Inner Clear PE bag+EPE FOAM+Carton Box
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100Tons/Month
Detail Information
Material: 6063 T5 Aluminum Alloy Diffuser: PMMA/ PC, Frosted
Length: 2m/pcs, 3m/pcs Finished Color: Silver, Black, White
Installation: Surface Mounted Dimension: 13.8*8.0mm
No.: KA18 Usage: Led Strip Heat Sink
High Light:

10mm aluminum profile for led light

,

10mm Aluminum Alloy 2m led profile

,

10mm Surface mounted 2m led profile


Product Description

LED Strip Aluminum Bar Profile PC Diffuser Cover Space 10mm LED Strip

Surface-mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 10mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.

Application
- For use in interior architecture.
- For creating linear lighting fixtures, continuous light arrangements.


Assembly
- Mounted to the surface with appropriate mounting clips

- Suspended with the spring wiring system


Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped frosted covers

- Space for LED strip up to 10mm width

Main Specifications

Model No.:   KA18
Item Type:   LED Strip Aluminium Profile
Dimensions:   (W)13.8*(H)8.0 mm
Standard length:   2m/pcs
Customized-length:   Available on request
Suitable for led strip:   PCB width up to 10mm
Material:   6063 T5 Aluminum Alloy
Treatment:

  Sandblasting oxidation

Finished color:   Silver, black, white
Diffuser material:   PC
Diffuser finished:   Frosted

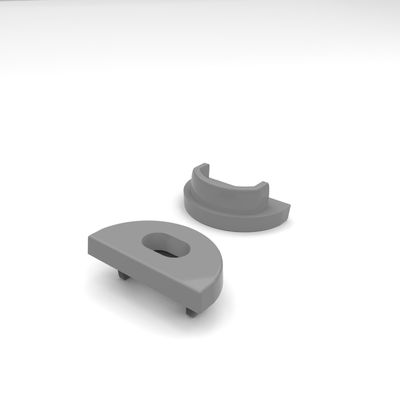

Accessories:   End caps, clips
Installation:   Surface-mounted, suspended
Standard Package:   Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package:   Available on request
Handling time   Samples within 3 working days
  Batch order 3-15 working days upon stocks
Shipment   By sea, by air, by express for option

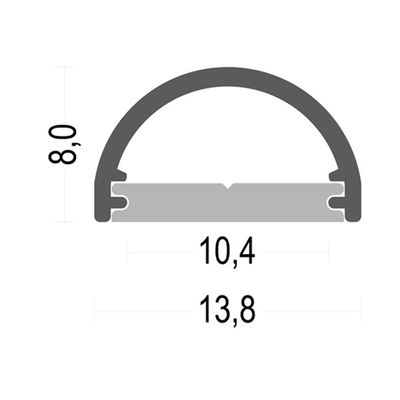

Drawing:

Led aluminum profile frosted Surface mounted Aluminum T Bar Extrusion suir to 10mm led strip 0

Installation

Led aluminum profile frosted Surface mounted Aluminum T Bar Extrusion suir to 10mm led strip 1



Application

Led aluminum profile frosted Surface mounted Aluminum T Bar Extrusion suir to 10mm led strip 2

FAQ:

Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.


Q: Can we order a special length for the aluminum profile?
A: Yes, any special length within 6 meters can be made upon your request. But the MOQ for the length longer than 2.5m is 500pcs per item.


Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.


Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: How to proceed with an order?
A: Step1: Please tell us your requirements or application.
---Step2: Quotation or solution will be sent to you accordingly.
---Step3: Sample will be shipped to you after everything is confirmed
---Step4: Modify or confirm the order according to your opinion.
---Step5: Start the production after your confirmation of the order.
